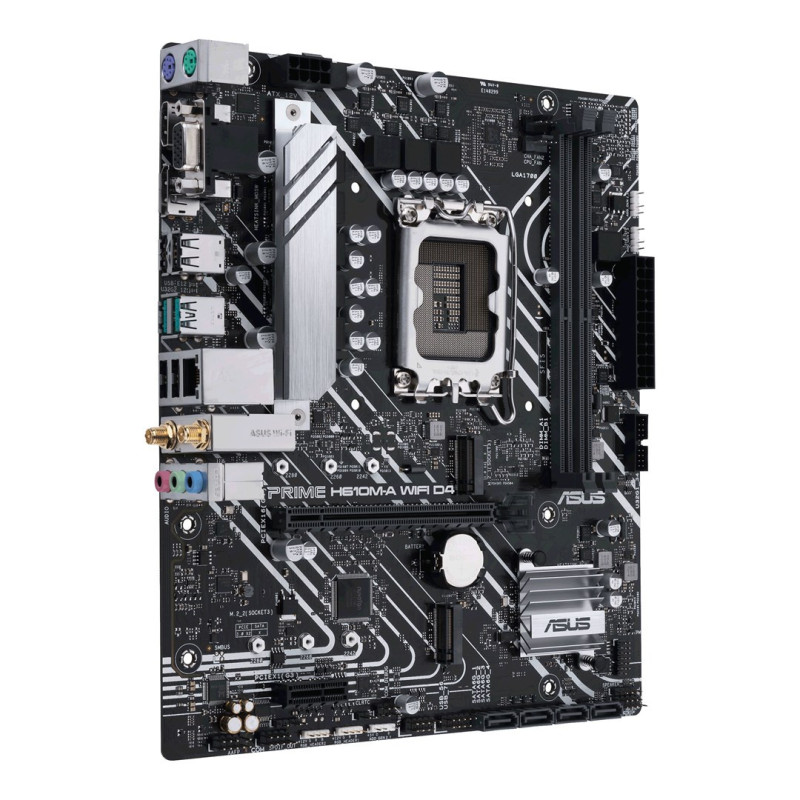

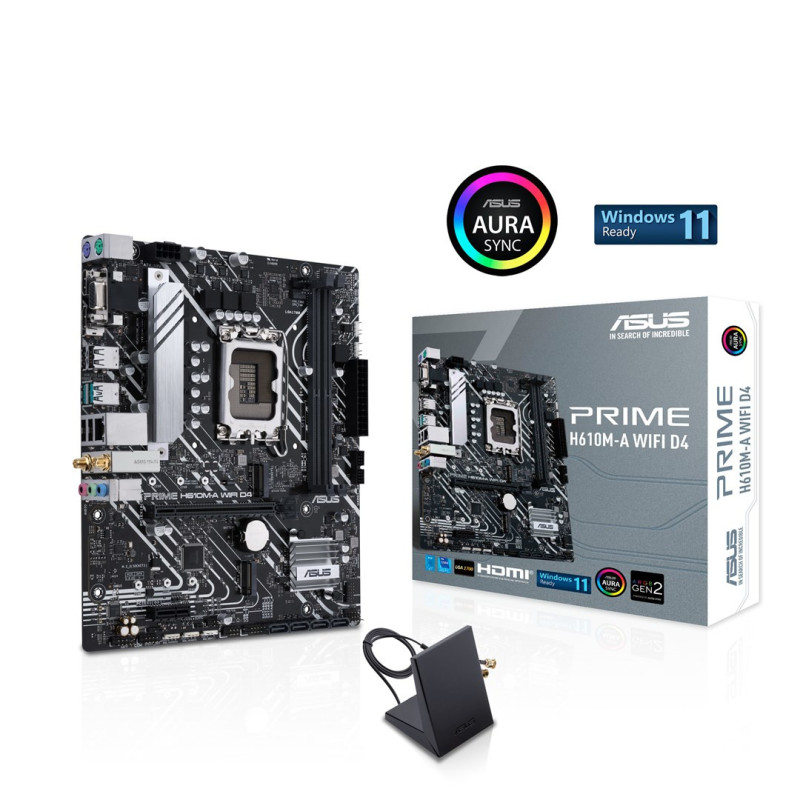

Motherboard - ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
Product reference:
14-4711081758211
Supports Intel 12th and 13th generation processors with LGA 1700 socket. Equipped with integrated Wi-Fi, micro ATX form factor and four DDR4 memory slots.
Motherboard - ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX
Product reference:
14-4711081758211
Supports Intel 12th and 13th generation processors with LGA 1700 socket. Equipped with integrated Wi-Fi, micro ATX form factor and four DDR4 memory slots.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS PRIME H610M-A WIFI D4
Compatible with Intel 12th and 13th generation processors with LGA 1700 socket. The device has integrated Wi-Fi, a micro ATX form factor motherboard, and four DDR4 memory slots.
- Micro ATX motherboard
- Built-in Wi-Fi and Bluetooth 5.0
- Compatible with up to 64GB DDR4 memory
- Intel H610 chipset for better performance
- Multiple connectivity options, including USB 3.2 and HDMI
Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Composite processor models | Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Graphics | |
| Number of supported screens | 3 |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel H610 |
| Motherboard format | micro ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Component | PC |
| Motherboard chipset | Intel |
Memory | |
| Memory slot type | DIMMs |
| Unbuffered memory | Yes |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Maximum internal memory | 64GB |
| Supported memory clock speeds | 3200, 2666, 2400, 2800, 3000, 2133, 2933 |
| Memory channels | Dual channel |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Height | 58 mm |
| Depth | 211 mm |
| Width | 244 mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth version | 5.0 |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11a, 802.11g, Wi-Fi 4 (802.11n), 802.11b |
Internal I/O | |
| S/PDIF output connector | Yes |
| USB 2.0 ports | 2 |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
| CPU cooler connector | Yes |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of COM ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| ATX power connector (24-pin) | Yes |
| Number of chassis cooler connections | 2 |
BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported memory types | HDD SSD |
| Supported memory interfaces | M.2, SATA |
Rear panel I/O connectors | |
| Headphone outputs | 1 |
| DisplayPort quantity | 1 |
| VGA (D-Sub) connector quantity | 1 |
| Number of HDMI ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A connectors quantity | 2 |
| Number of USB 2.0 ports | 4 |
| Microphone input | Yes |
| Ethernet LAN (RJ-45) connectors | 1 |
| DisplayPort version | 1.4 |
| Number of PS/2 ports | 2 |
| HDMI version | 2.1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
Other features | |
| Weight | 815 grams |
| | |
