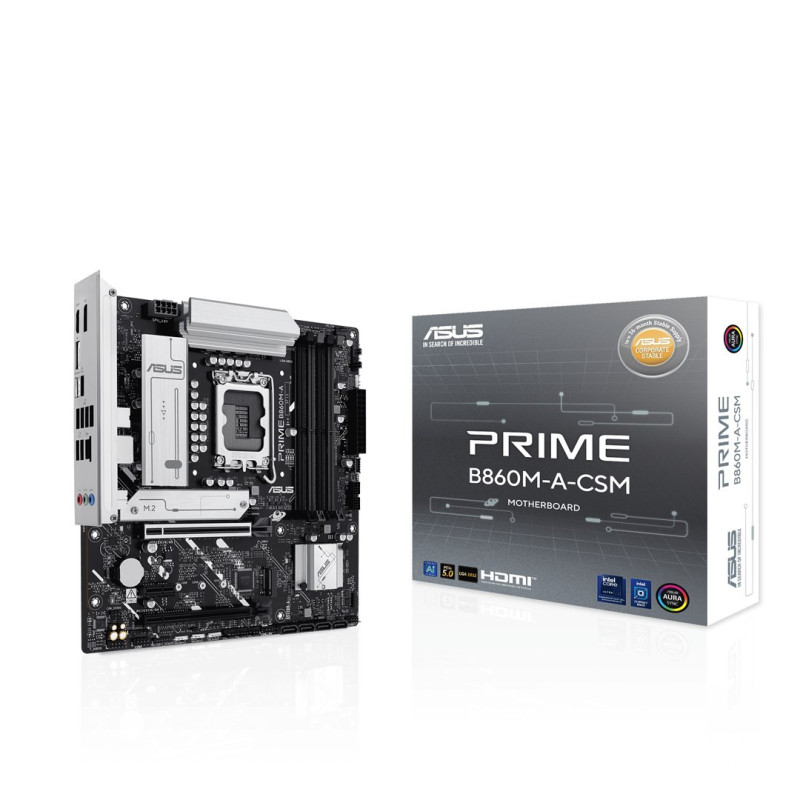

Motherboard - ASUS PRIME B860M-A-CSM Intel B860 Micro ATX LGA 1851
Product reference:
14-4711387819869
Supports Intel Core Ultra processors with LGA 1851 socket and has a micro ATX form factor. Features include 4 DDR5 memory slots, 7.1 audio channels, and 2.5 Gigabit Ethernet connectivity.
Motherboard - ASUS PRIME B860M-A-CSM Intel B860 Micro ATX LGA 1851
Product reference:
14-4711387819869
Supports Intel Core Ultra processors with LGA 1851 socket and has a micro ATX form factor. Features include 4 DDR5 memory slots, 7.1 audio channels, and 2.5 Gigabit Ethernet connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
9 - 13
business days

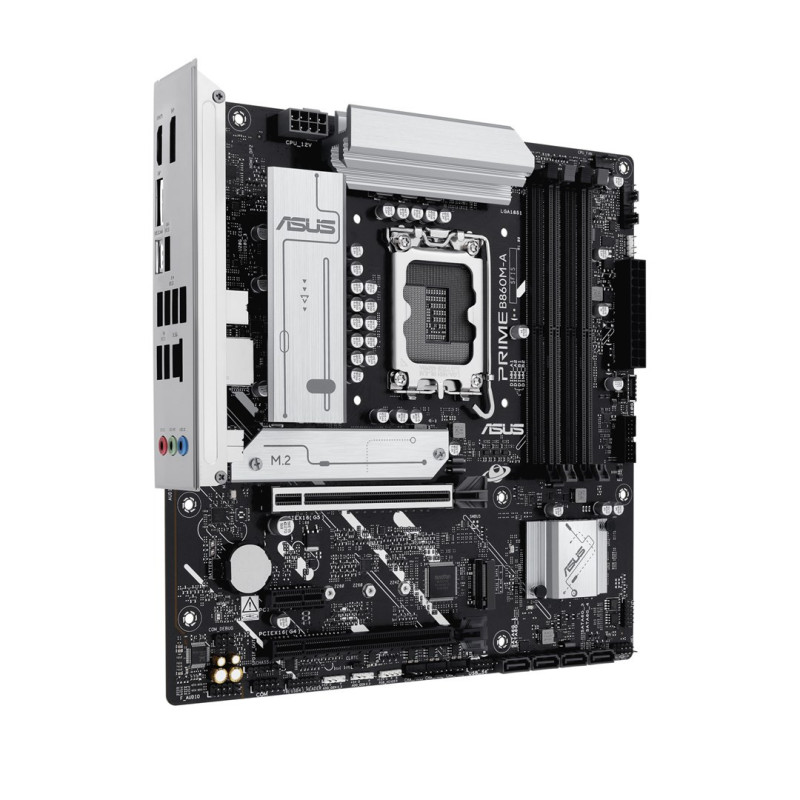

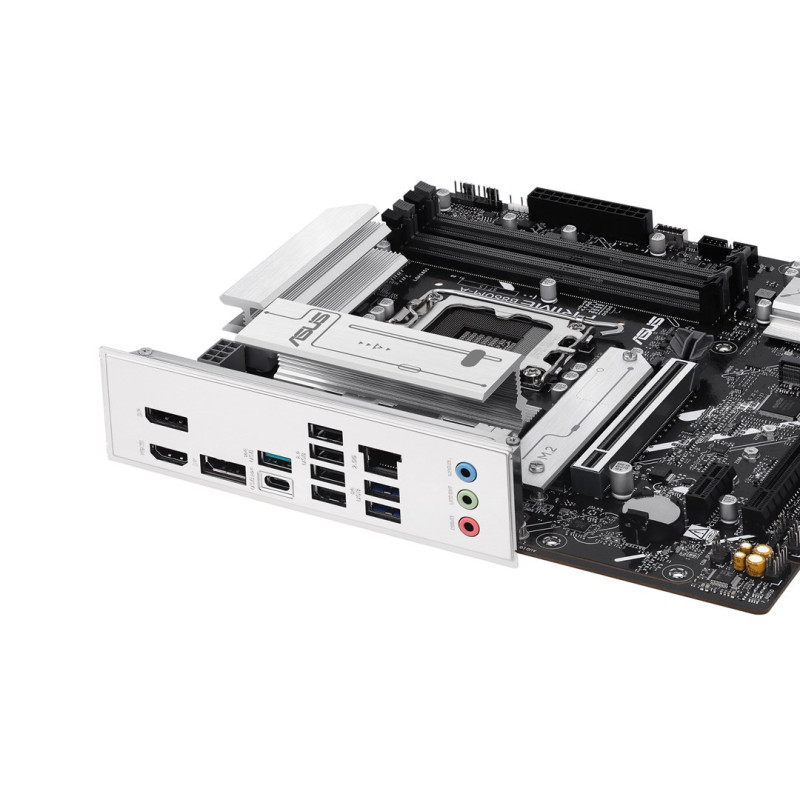

ASUS PRIME B860M-A-CSM Intel B860 Micro ATX LGA 1851
Compatible with Intel Core Ultra processors with LGA 1851 socket and has a micro ATX form factor. Key features: 4 DDR5 memory slots, 7.1 audio channels and 2.5 Gigabit Ethernet connection.
- Compatible with Intel Core Ultra (2 series) processors using LGA 1851 (Socket V1) for better performance.
- Supports DDR5-SDRAM with a maximum memory capacity of up to 256 GB and clock speeds of up to 8666 MHz.
- Equipped with a 7.1 audio output channel system, ensuring an immersive audio experience.
- It has 2.5 Gigabit Ethernet for fast network connectivity and supports multiple RAID levels (0, 1, 5, 10).
- Micro ATX format motherboard with dimensions of 244 mm x 244 mm x 50 mm, suitable for compact devices.
Processor | |
|---|---|
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor socket | LGA 1851 (Socket V1) |
| Processor manufacturer | Intel |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chipset | Intel |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Motherboard format type | micro ATX |
| Product color | Multicolored |
| Motherboard chip | Intel B860 |
| Audio output channels | 7.1 channels |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Memory channels | Dual channels |
| Number of memory slots | 4 |
| Supported memory clock frequency (max) | 8666MHz |
| Maximum internal memory | 256GB |
Weight and dimensions | |
| Width | 244 mm |
| Height | 50mm |
| Depth | 244 mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of USB 3.2 Gen 1 ports | 1 |
| ATX power connector (24-pin) | Yes |
| Number of SATA III connectors | 4 |
| Number of case fan connections | 3 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| RAID levels | 5, 1, 0, 10 |
| Number of supported storage devices | 6 |

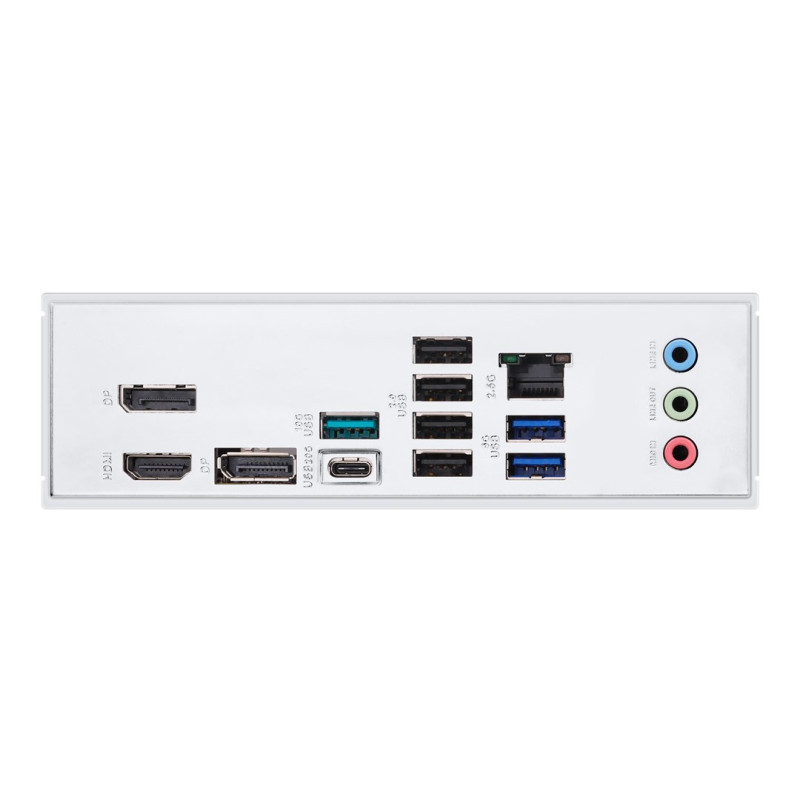

Rear panel I/O connectors | |
| Number of USB 2.0 ports | 4 |
| Number of HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 815 grams |
