Motherboard - ASUS PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
Product reference:
14-4711387814697
Supports Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Offers 4 DIMM slots for DDR5 memory, Wi-Fi 6E, and multiple USB ports including USB 3.2 Gen 2.
Motherboard - ASUS PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
Product reference:
14-4711387814697
Supports Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Offers 4 DIMM slots for DDR5 memory, Wi-Fi 6E, and multiple USB ports including USB 3.2 Gen 2.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

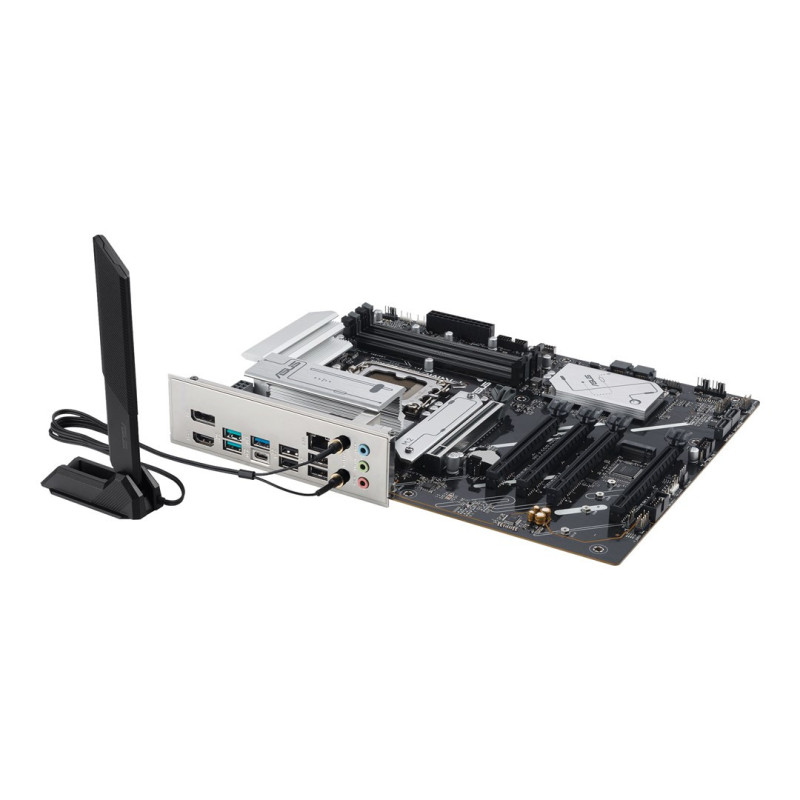

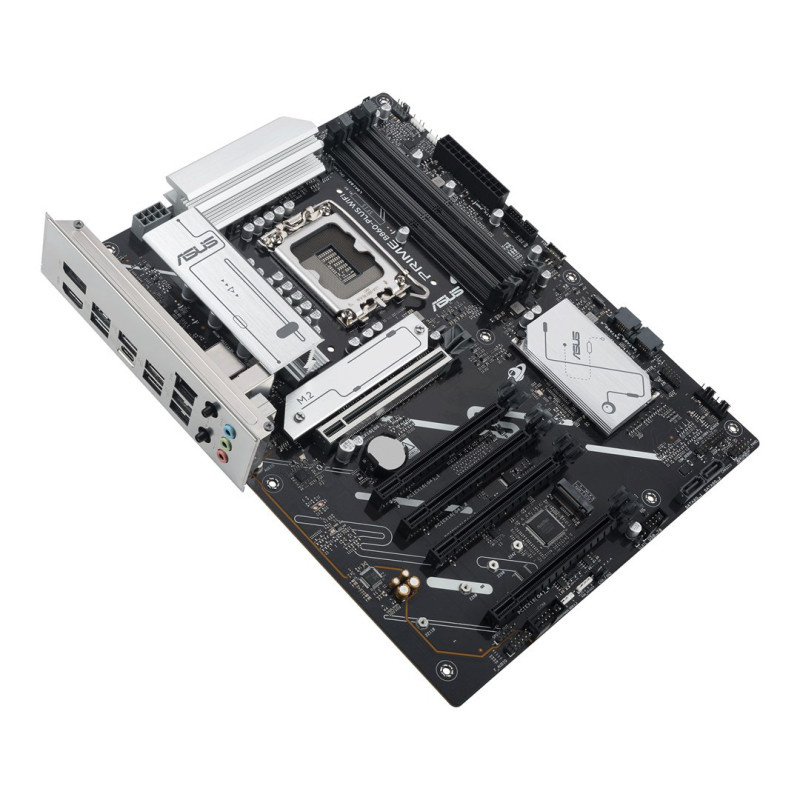

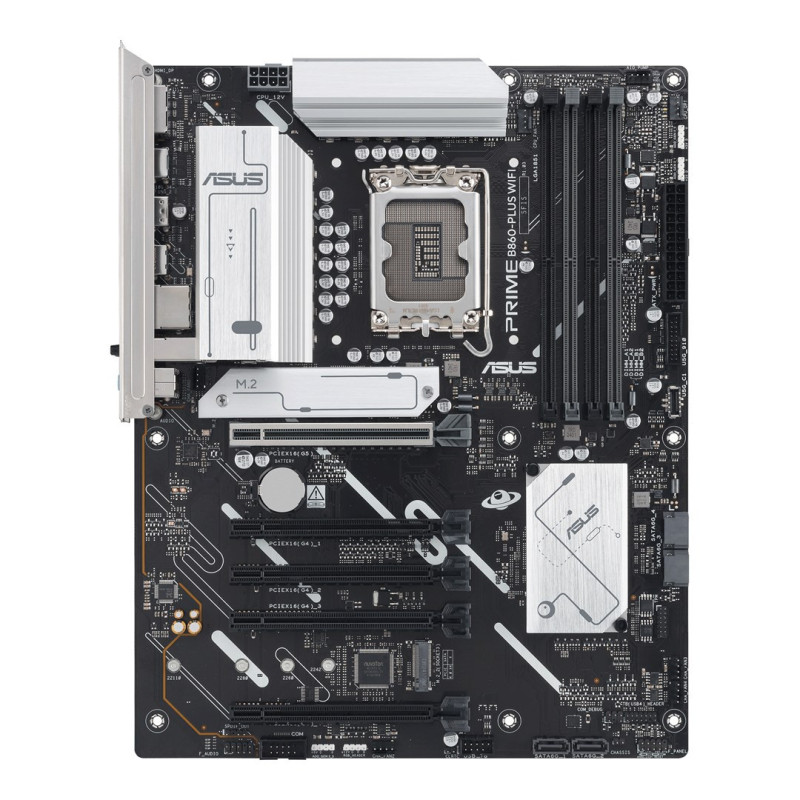

ASUS PRIME B860-PLUS WIFI Intel B860 ATX motherboard
Compatible with Intel Core Ultra processors with LGA 1851 socket and features the Intel B860 chipset. Offers 4 DIMM slots for DDR5 memory, Wi-Fi 6E, and multiple USB ports including USB 3.2 Gen 2.
- Processor socket: LGA 1851 (Socket V1), compatible with Intel Core Ultra (2 series)
- Maximum internal memory support: 256 GB with 4 DIMM slots DDR5-SDRAM
- Network capabilities: Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for better connectivity
- Audio output: 7.1 channels for an immersive audio experience
- Expansion options: 4 PCI Express x16 slots (Gen 4.x) and 2 M.2 slots for various upgrades
- Product color: Black, Aluminum
Processor | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1851 |
Graphics | |
| Integrated graphics card | No |
| Support for parallel processing technology | Does not belong |
Features | |
| Motherboard format type | ATX |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Windows operating system support | Windows 11, Windows 10 x64 |
| Component | PC |
Memory | |
| Maximum internal memory | 256GB |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channels |
| ECC compatibility | Non-ECC |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Internal I/O | |
| USB 2.0 ports | 1 |
| S/PDIF output connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of COM ports | 1 |
| 12V power connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| RGB LED pin connector | Yes |
| Thunderbolt connectors | 1 |
| Front panel connector | Yes |
| USB 3.2 Gen 2 ports | 1 |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 4 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Media controls | |
| RAID levels | 1, 10, 5, 0 |
| Supported media types | HDDs and SSDs |
| RAID support | Yes |
| Supported media interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of supported media | 6 |

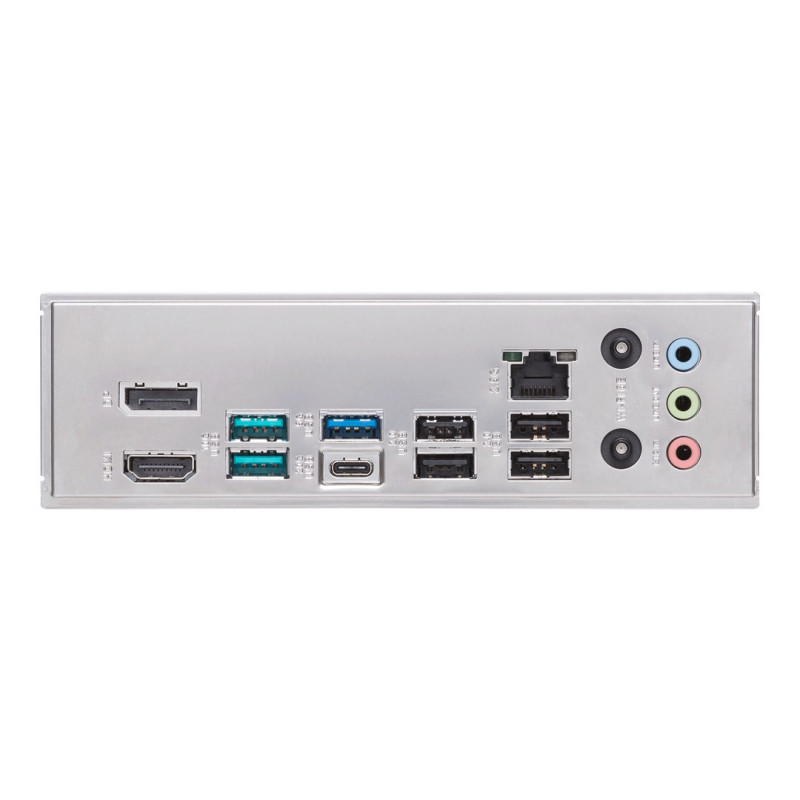

Rear panel I/O ports | |
| Number of DisplayPorts | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 4 |
| WiFi-AP antenna connector | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB 3.2 Gen 2 Type-A ports | 2 |
| Number of USB 3.2 Gen 1 Type-A ports | 1 |
| Number of HDMI ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 maximum key size | 2280 |
| 2nd M.2 maximum key size | 2280 |
