Motherboard - ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 ATX 256GB DDR5
Product reference:
14-4711387814857
Supports Intel Core Ultra processors with up to 256GB of internal memory using DDR5-SDRAM. The device has 4 DIMM slots, 7.1 audio output, and multiple USB ports, including USB 3.2 Gen 2.
Motherboard - ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 ATX 256GB DDR5
Product reference:
14-4711387814857
Supports Intel Core Ultra processors with up to 256GB of internal memory using DDR5-SDRAM. The device has 4 DIMM slots, 7.1 audio output, and multiple USB ports, including USB 3.2 Gen 2.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

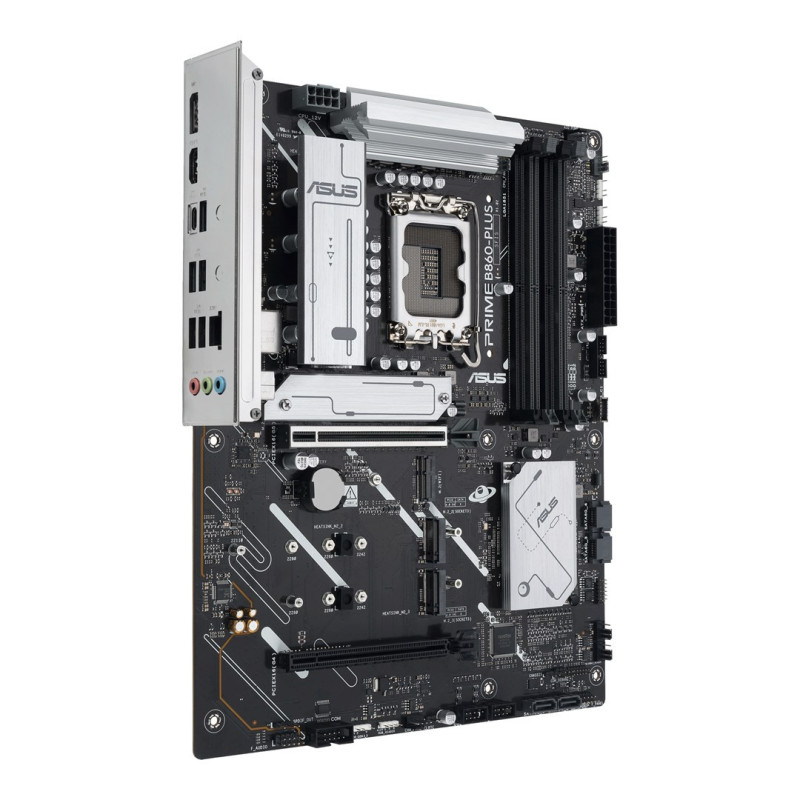

ASUS Prime B860-Plus-CSM Intel B860 LGA 1851 (Socket V1) ATX
Compatible with Intel Core Ultra processors, the maximum internal memory size is 256 GB using DDR5-SDRAM. There are 4 DIMM slots, 7.1 audio output and multiple USB ports, including USB 3.2 Gen 2.
- Compatible with Intel Core Ultra processors, the LGA 1851 socket ensures high-performance computing.
- Equipped with 256GB of maximum internal storage and dual-channel DDR5 support for better multitasking.
- There is 7.1 channel audio output and multiple USB ports for various connections.
- Includes advanced storage capabilities with RAID support and multiple M.2 and SATA III interfaces.
- Facilitates the use of up to 7 storage devices with RAID levels 0, 1, 5, and 10.
- There are 3 M.2 slots for fast storage.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Composite processor types | Intel Core Ultra (2 series) |
| Processor socket | LGA 1851 (Socket V1) |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Product color | Multicolor |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel |
| Motherboard chip | Intel B860 |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory size | 256GB |
| ECC compatibility | Non-ECC |
| Supported memory clock speed (max) | 8666MHz |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Height | 49mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| Thunderbolt connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF output connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 ports | 2 |
| Number of CPU cooler connections | 1 |
| Number of COM ports | 1 |
| Housing burglary connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Number of chassis cooler connections | 4 |
| CPU cooler connector | Yes |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Supported storage device interfaces | M.2, SATA III |
| RAID support | Yes |
| Supported storage device types | HDDs and SSDs |
| RAID levels | 10, 0, 1, 5 |
| Number of supported storage devices | 7 |
| Number of HDDs supported | 4 |

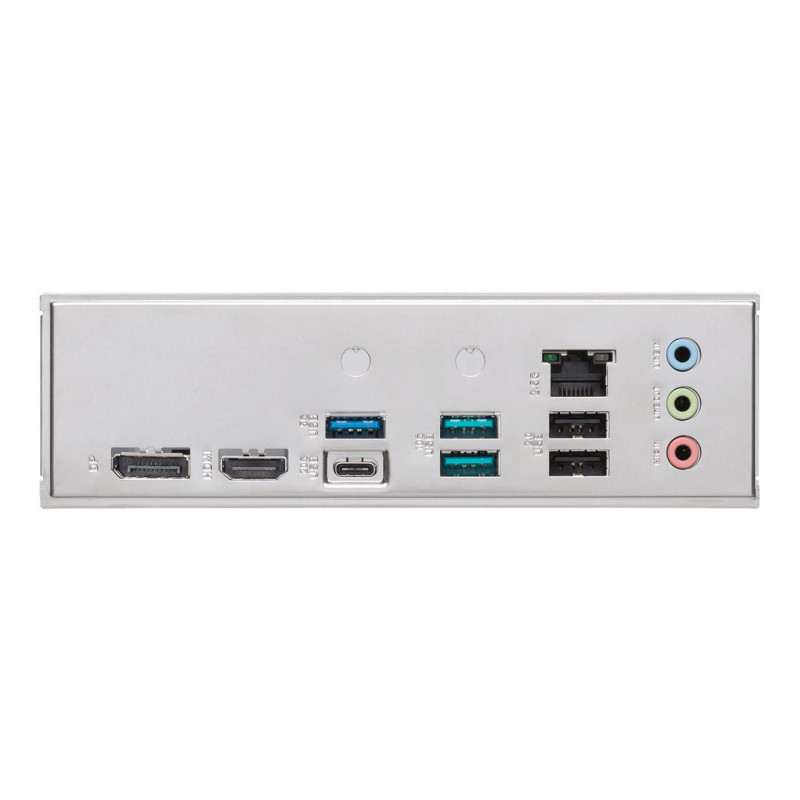

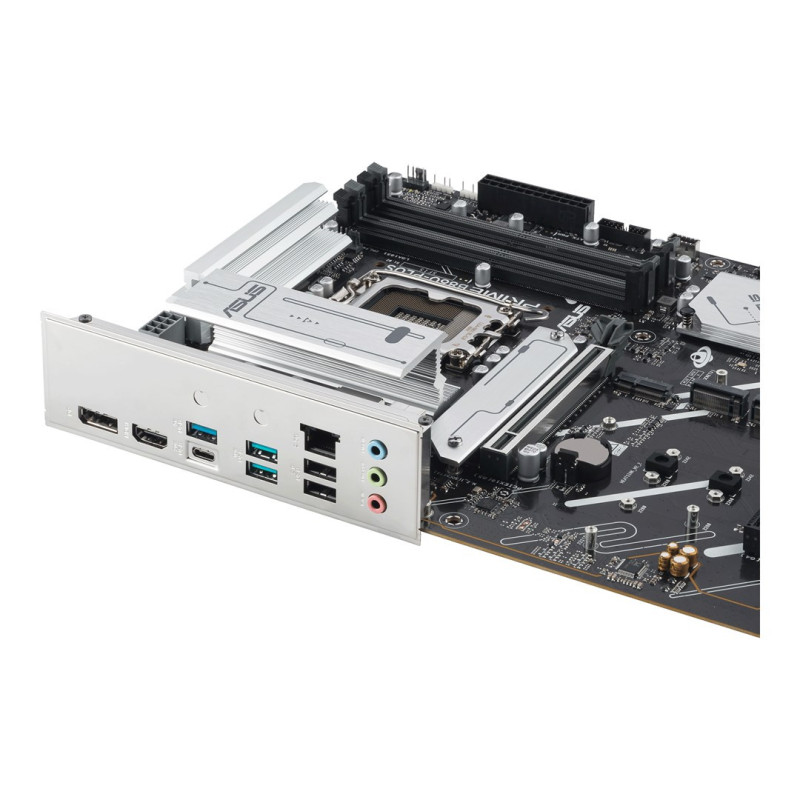

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort quantity | 1 |
| Number of USB 2.0 ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Microphone input | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Number of HDMI ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
Other features | |
| Weight | 896 grams |
