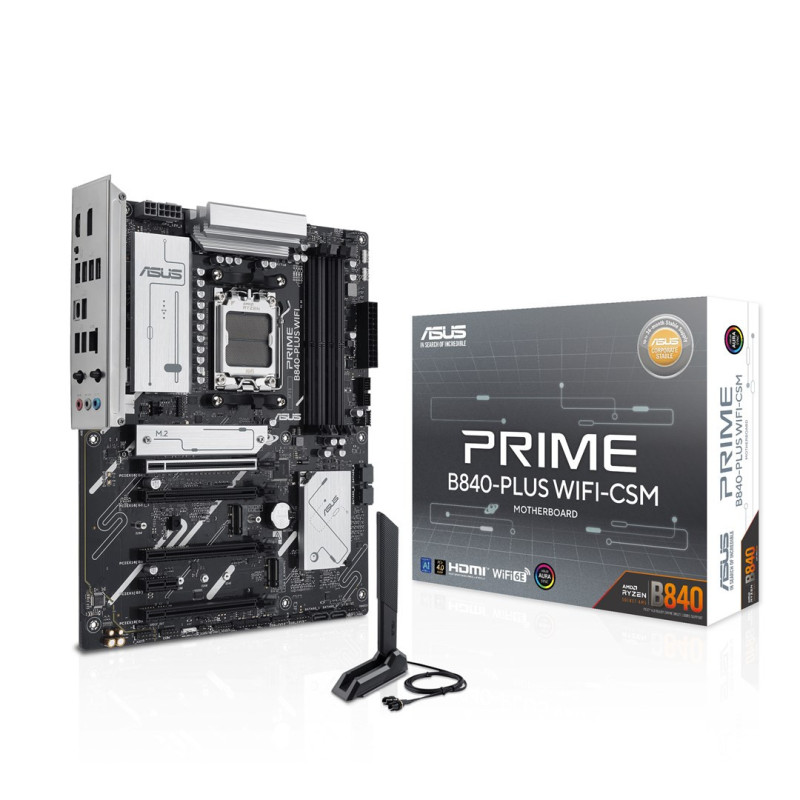

Motherboard - ASUS PRIME B840-PLUS WIFI AM5 ATX DDR5 192GB Wi-Fi 6E
Product reference:
14-4711387797273
The ASUS PRIME B840-PLUS WIFI AM5 ATX DDR5 192GB motherboard is compatible with AMD Ryzen 8000, 7000 and 9000 series processors, has an AM5 socket and supports DDR5 memory up to 192 GB. The device is equipped with Wi-Fi 6E, 2.5 Gigabit Ethernet and a variety of USB ports for convenient connectivity.
Motherboard - ASUS PRIME B840-PLUS WIFI AM5 ATX DDR5 192GB Wi-Fi 6E
Product reference:
14-4711387797273
The ASUS PRIME B840-PLUS WIFI AM5 ATX DDR5 192GB motherboard is compatible with AMD Ryzen 8000, 7000 and 9000 series processors, has an AM5 socket and supports DDR5 memory up to 192 GB. The device is equipped with Wi-Fi 6E, 2.5 Gigabit Ethernet and a variety of USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Compatible with AMD Ryzen 8000, 7000 and 9000 series processors, has Socket AM5 and supports DDR5 memory up to 192 GB. Equipped with Wi-Fi 6E, 2.5 Gigabit Ethernet and multiple USB ports for connectivity.
- Supports AMD Ryzen 8000, 7000 and 9000 series processors with Socket AM5.
- Equipped with advanced Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity.
- Offers extensive memory support up to 192 GB DDR5 RAM via 4 DIMM slots.
- Multiple expansion slots and RAID support are included for a variety of storage options.
Processor | |
|---|---|
| Compatible processor models | AMD Ryzen 8000 series, AMD Ryzen 7000 series, AMD Ryzen 9000 series |
| Processor manufacturer | AMD |
| Supported processor sockets | Socket AM5 |
Graphics | |
| Integrated graphics card | No |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard Chipset Family | AMD |
| Product color | Aluminum, Black |
| Motherboard chip | AMD B840 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
Memory | |
| ECC compatibility | ECC Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Memory channels | Two-channel |
| Number of memory slots | 4 |
| Maximum internal memory | 192GB |
| Unbuffered memory | Yes |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| The highest Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| S/PDIF output connector | Yes |
| Chassis intrusion connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| Front panel audio connector | Yes |
| Thunderbolt connectors | 1 |
| Number of chassis fan connectors | 4 |
| 12V power connector | Yes |
| USB 2.0 ports | 2 |
| ATX power connector (24-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package depth | 273 mm |
| Package weight | 1.26 kg |
| Package width | 353 mm |
| Package height | 68 mm |
Package contents | |
| Cables included | SATA |
| Antenna included | Yes |
| Screws included | Yes |
Storage controls | |
| RAID levels | 10, 1, 0, 5 |
| Number of supported storage devices | 7 |
| Supported storage device types | HDD SSD |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Supported storage device interfaces | M.2, SATA III |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 4 |
| Number of DisplayPort ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| WiFi-AP antenna connector | 1 |
Expansion slots | |
| 3rd M.2 maximum key size | 2280 |
| 1st M.2 maximum key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd generation M.2 highest PCI Express | 3.0 |
| 2nd M.2 maximum key size | 2280 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Security warning | |
| Warnings | Do not post to avoid damage to internal components and loss of warranty. |
