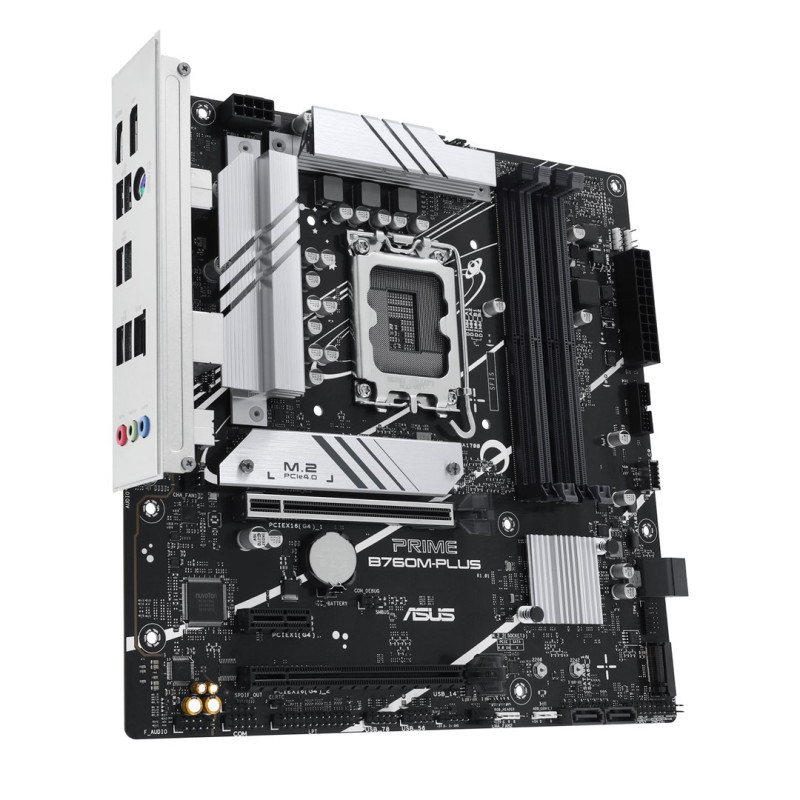

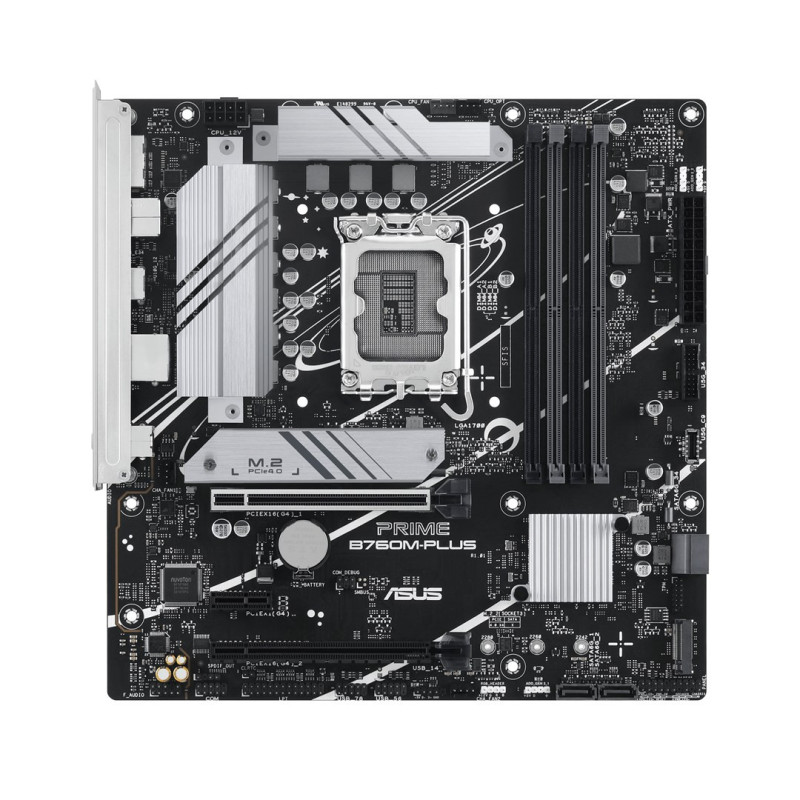

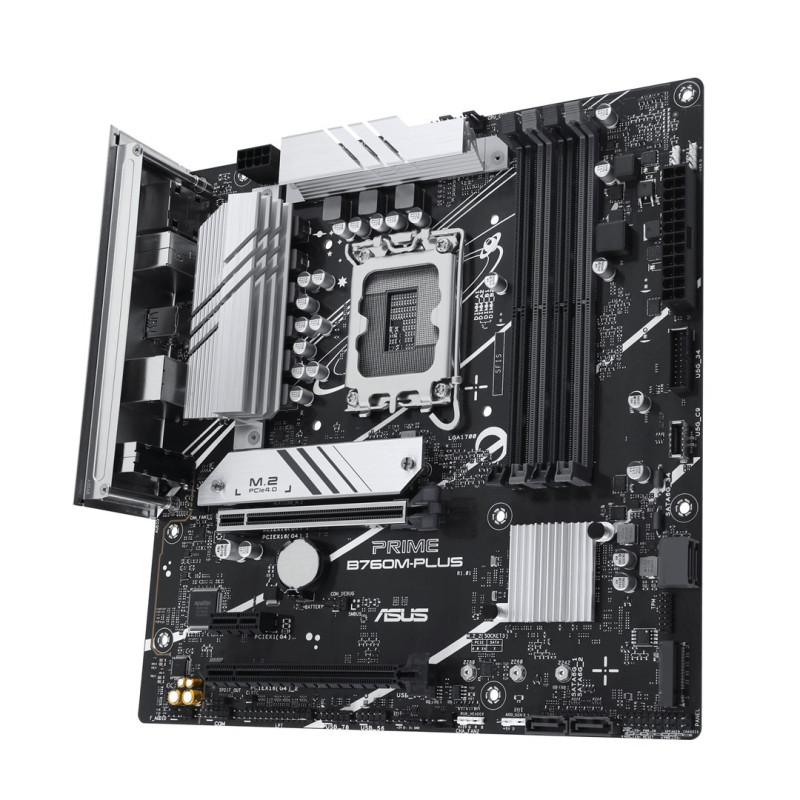

Motherboard - ASUS Prime B760M-Plus LGA 1700 'Micro ATX'
Product reference:
14-4711387469910
ASUS PRIME B760M-PLUS supports up to 192GB of DDR5-SDRAM memory in a dual-channel configuration and has two PCI Express x16 (Gen 4.x) connectors for fast connection of graphics cards and peripherals.
Motherboard - ASUS Prime B760M-Plus LGA 1700 'Micro ATX'
Product reference:
14-4711387469910
ASUS PRIME B760M-PLUS supports up to 192GB of DDR5-SDRAM memory in a dual-channel configuration and has two PCI Express x16 (Gen 4.x) connectors for fast connection of graphics cards and peripherals.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Prime B760m-plus
The ASUS Prime B760m-plus motherboard is a high-performance platform that supports Intel Core i3, i5, i7, and i9 processors. It offers dual-channel DDR5-SDRAM memory support with capacities up to 192GB.
Main features:
- Dual-channel DDR5-SDRAM memory support (up to 192 GB)
- Two PCI Express x16 (Gen 4.x) slots for fast peripherals
- Support for a wide range of storage devices, including M.2 and SATA III devices
- Rear panel I/O ports: Ethernet LAN, DisplayPort, USB 2.0 and 3.2 Gen 2 Type-A
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Celeron® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip family | Intel |
| Motherboard chip | Intel B760 |
| Motherboard format type | micro ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory frequencies | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Maximum internal memory | 192GB |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Maximum supported memory frequency | 7200MHz |
Dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| USB 2.0 ports | 3 |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU cooler connector | Yes |
| S/PDIF output connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of COM ports | 1 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| RGB LED pin connector | Yes |
| Number of chassis cooler connections | 2 |
| 12V power connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Screws included | Yes |
| Cables included | SATA |
Storage controls | |
| Supported storage device interfaces | M.2, SATA III |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Number of supported storage devices | 6 |
Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort quantity | 1 |
| Number of USB 2.0 ports | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Microphone input | Yes |
| Number of PS/2 ports | 1 |
| Number of HDMI ports | 1 |
Additional sockets | |
| Number of M.2 (M) slots | 2 |
| Number of PCI Express x16 (Gen 4.x) slots | 2 |
| Number of PCI Express x1 (Gen 4.x) slots | 1 |
