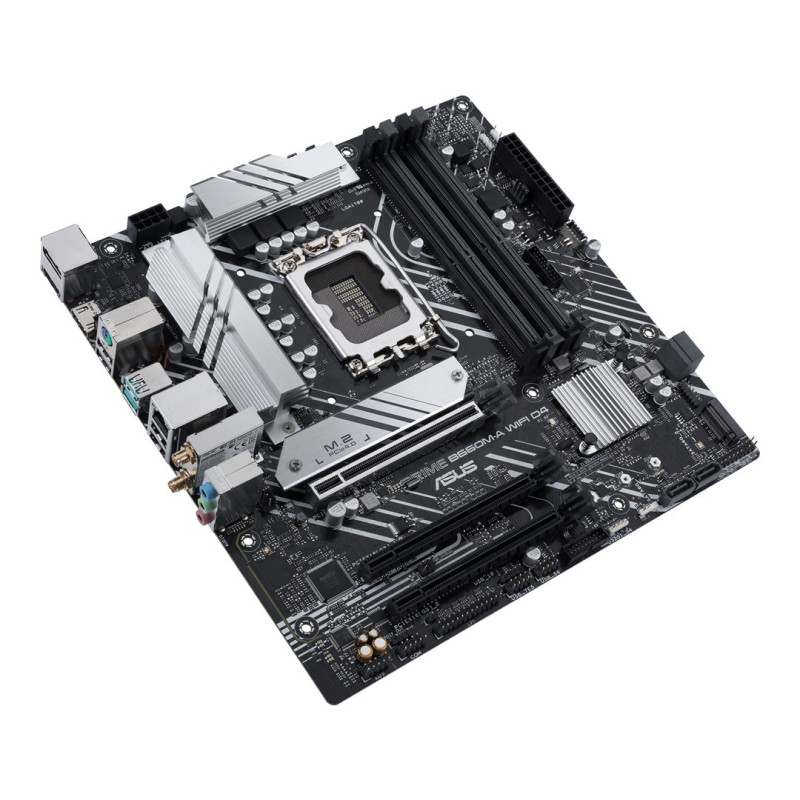

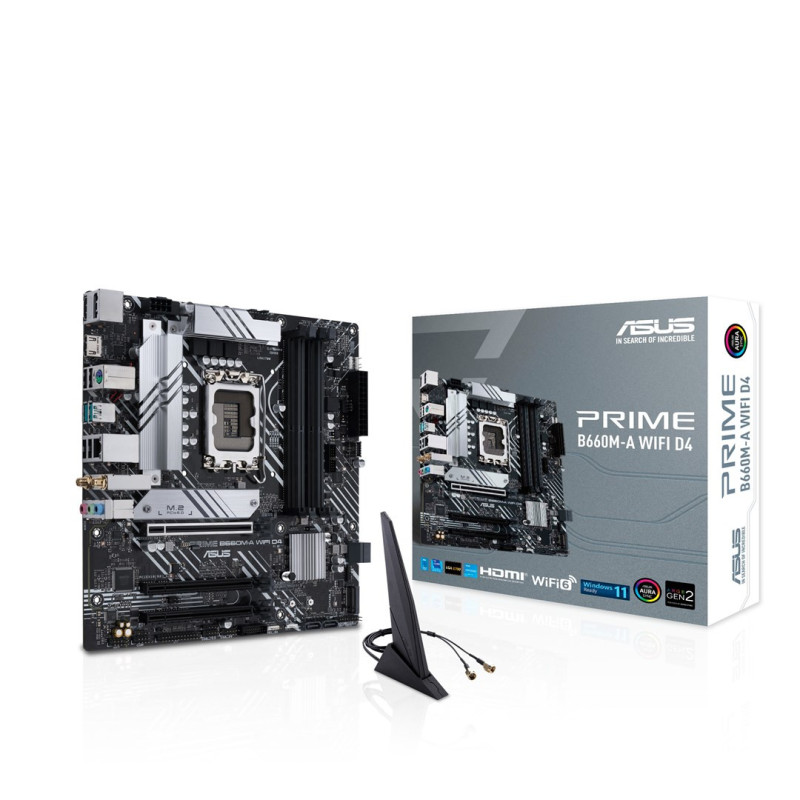

Motherboard - ASUS Prime B660M-A WIFI D4 Intel B660 LGA 1700 'Micro ATX'
Product reference:
14-4711081518105
The ASUS PRIME B660M-A WIFI D4 motherboard with UEFI AMI BIOS supports HDD and SSD via M.2 and SATA interfaces, offering various RAID levels, and has two PCI Express x16 (Gen 3.x) and one PCI Express x16 (Gen 4.x) slots.
Motherboard - ASUS Prime B660M-A WIFI D4 Intel B660 LGA 1700 'Micro ATX'
Product reference:
14-4711081518105
The ASUS PRIME B660M-A WIFI D4 motherboard with UEFI AMI BIOS supports HDD and SSD via M.2 and SATA interfaces, offering various RAID levels, and has two PCI Express x16 (Gen 3.x) and one PCI Express x16 (Gen 4.x) slots.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Prime B660m-a
The ASUS Prime B660m-a motherboard is a high-performance motherboard for Intel Core processors. It features four SATA III connectors, three USB 3.2 Gen 1 connectors, and one EPS power connector (8-pin). The board also has two M.2 slots, two PCI Express x16 (Gen 3.x) slots, and one PCI Express x16 (Gen 4.x) slot.
Main features
- UEFI AMI BIOS type
- Four SATA III connectors
- Three USB 3.2 Gen 1 ports
- Two M.2 connectors and two PCI Express x16 (Gen 3.x) slots
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
Graphics | |
| Number of supported displays | 3 |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard format type | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B660 |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4400, 4600, 4800, 5000, 5333 MHz |
| Maximum internal memory | 128GB |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
Weight and dimensions | |
| Depth | 244 mm |
| Height | 60mm |
| Width | 244 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 3 |
| S/PDIF output connector | Yes |
| Number of USB 2.0 ports | 3 |
| EPS power connector (8-pin) | Yes |
| CPU cooler connector | Yes |
| Number of COM ports | 1 |
| Number of chassis cooler connections | 2 |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Memory controllers | |
| Supported storage device types | HDD SSD |
| Supported memory device interfaces | M.2, SATA |
| RAID levels | 5, 1, 0, 10 |

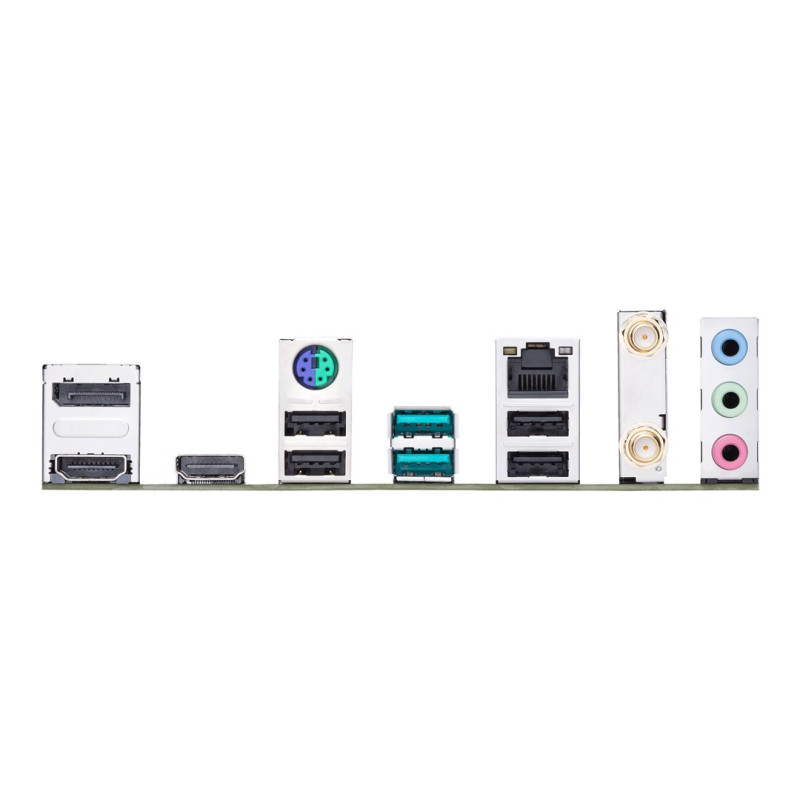

Rear panel I/O connectors | |
| DisplayPort quantity | 1 |
| Ethernet LAN (RJ-45) connectors | 1 |
| DisplayPort version | 1.4 |
| Number of USB 2.0 ports | 4 |
| Number of HDMI ports | 2 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A connectors quantity | 2 |
| Number of PS/2 ports | 1 |
| Headphone outputs | 1 |
| Microphone input | Yes |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 819 grams |
| | |
