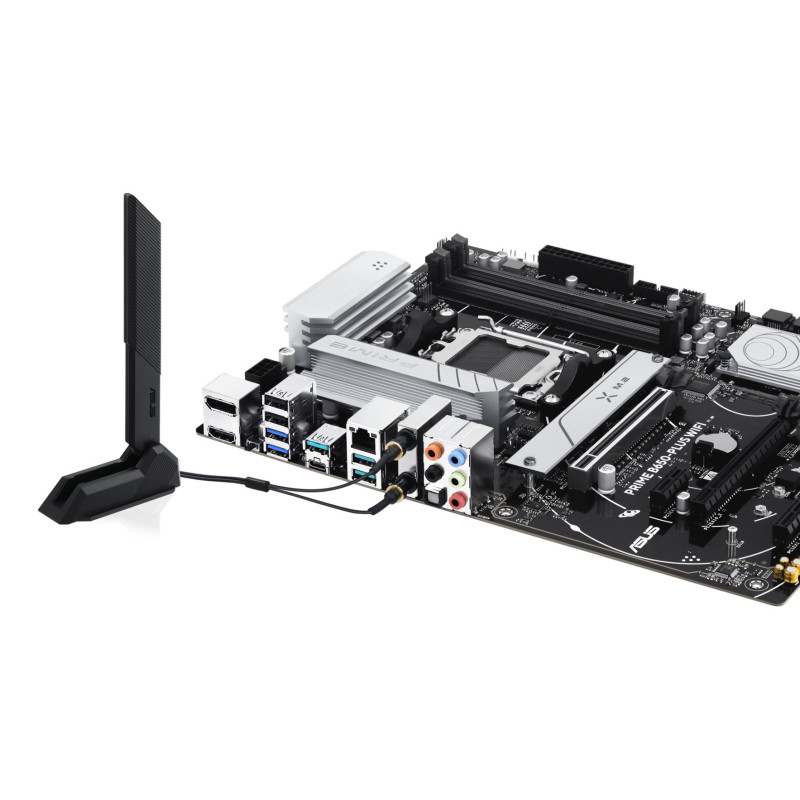

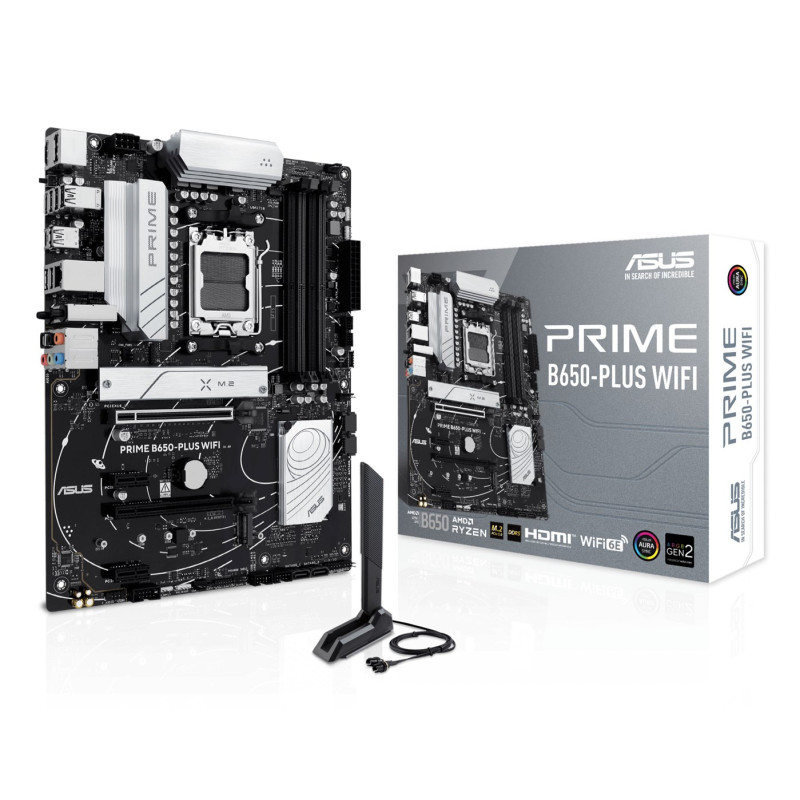

Motherboard - ASUS PRIME B650-PLUS WIFI AM5 ATX Wi-Fi 6E, 192GB RAM, Dual M.2
Product reference:
14-4711387760895
The ASUS PRIME B650-PLUS WIFI AM5 ATX motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket. It offers Wi-Fi 6E, a maximum memory capacity of 192 GB, and two M.2 slots for storage.
Motherboard - ASUS PRIME B650-PLUS WIFI AM5 ATX Wi-Fi 6E, 192GB RAM, Dual M.2
Product reference:
14-4711387760895
The ASUS PRIME B650-PLUS WIFI AM5 ATX motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket. It offers Wi-Fi 6E, a maximum memory capacity of 192 GB, and two M.2 slots for storage.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
0 month
Delivery from Europe in
8 - 9
business days
ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX
Compatible with AMD Ryzen 7000, 8000, and 9000 series processors with Socket AM5. Key features include Wi-Fi 6E, a maximum memory capacity of 192 GB, and two M.2 slots for storage.
- Compatible with AMD Ryzen 7000, 8000 and 9000 series processors with Socket AM5.
- Equipped with Wi-Fi 6E and 2.5 Gigabit Ethernet for fast connectivity.
- Offers up to 192GB of DDR5 memory with speeds up to 7600MHz.
- Featuring 7.1 channel audio output and multiple USB ports for various connections.
Processor | |
|---|---|
| Multiple processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series |
| Processor manufacturer | AMD |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard format type | ATX |
| Motherboard chip | AMD B650 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
Memory | |
| ECC compatibility | ECC Non-ECC |
| Supported memory clock speeds | 5600 - 7800 MHz |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
network | |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of RGB LED pin connectors | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| RAID levels | 0, 1, 10 |
| Supported storage device interfaces | M.2, SATA III |
Rear panel I/O ports | |
| Number of USB 2.0 ports | 2 |
| Number of HDMI ports | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| Number of PCI Express x16 (Gen 4.x) slots | 2 |
