Motherboard - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) 'Micro ATX'
Product reference: 14-4711081684749

The ASUS P12R-M motherboard supports up to 128GB of DDR4-SDRAM memory, features dual-channel architecture, and an integrated Intel I210-AT LAN controller for fast and reliable connectivity.

Motininė Plokštė - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) "Micro ATX"
Motininė Plokštė - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) "Micro ATX"
Motininė Plokštė - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) "Micro ATX"
Motininė Plokštė - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) "Micro ATX"

Motherboard - ASUS P12R-M Intel C252 LGA 1200 (Socket H5) 'Micro ATX'

Product reference: 14-4711081684749

The ASUS P12R-M motherboard supports up to 128GB of DDR4-SDRAM memory, features dual-channel architecture, and an integrated Intel I210-AT LAN controller for fast and reliable connectivity.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
42820 €
Product in warehouse

Guarantee
12 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

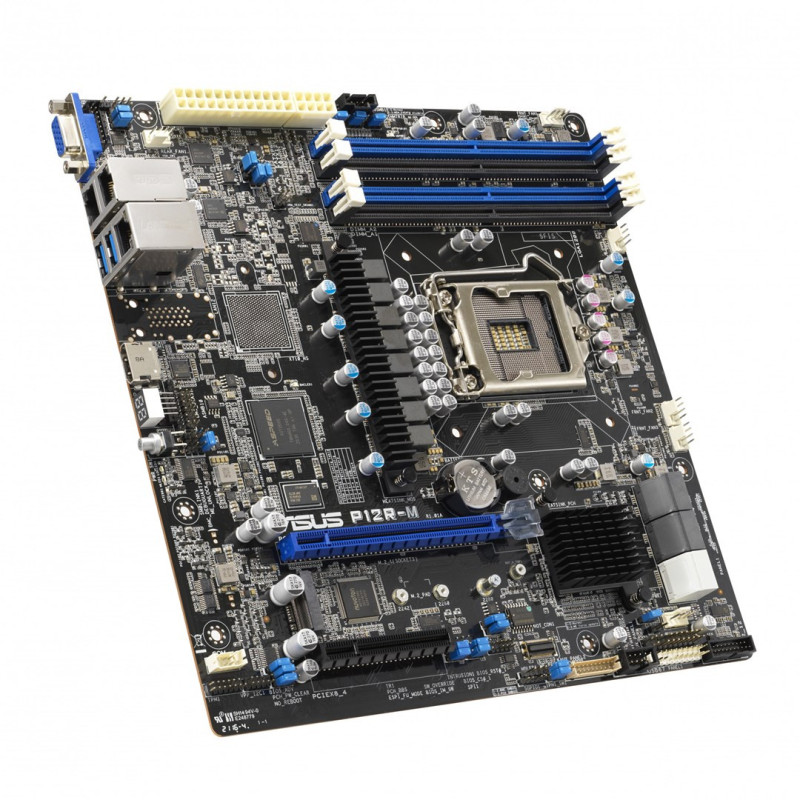

Motherboard - ASUS P12R-M

The ASUS P12R-M is a high-end micro ATX motherboard designed for server applications, featuring the Intel C252 chipset and support for Intel Xeon E and Pentium processors.

Main features

  • Compatible with Intel Xeon E and Pentium processors
  • Dual-channel memory architecture with 4 DIMM slots
  • 64 MB of integrated graphics memory (ASPEED AST2600)
  • Supports up to 128 GB DDR4-SDRAM memory

Processor

Processor socketLGA 1200 (Socket H5)
Processor manufacturerIntel
Composite processor modelsIntel Xeon E, Intel® Pentium®

Video card

Graphics card familyASPEED
Video cardAST2600
Integrated graphics card memory64MB

Features

ComponentServer
Motherboard formatmicro ATX
Motherboard chipIntel
Motherboard chipIntel C252

Memory

Supported memory frequencies3200MHz, 2933, 2666
Memory channelsDual channels
Memory slot typeDIMMs
Maximum internal memory128GB
Supported memory module capacities16GB, 32GB, 4GB, 8GB
Number of memory slots4
Supported memory typesDDR4-SDRAM

Operating conditions

Storage relative humidity (HH)20 - 90%
Storage temperature (TT)-40 - 70 °C
Operating temperature (OT)10 - 50 °C

Weight and dimensions

Depth244 mm
Width244 mm

Network

LAN controllerIntel® I210-AT
Ethernet LANYes
Wi-FiNo

Internal I/O

EPS power connector (8-pin)Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors2
Serial port connections1
Number of SATA III connectors6
ATX power connector (24-pin)Yes

Packaging details

Package weight1.3 kg

Storage controls

Supported storage device interfacesM.2, SATA III

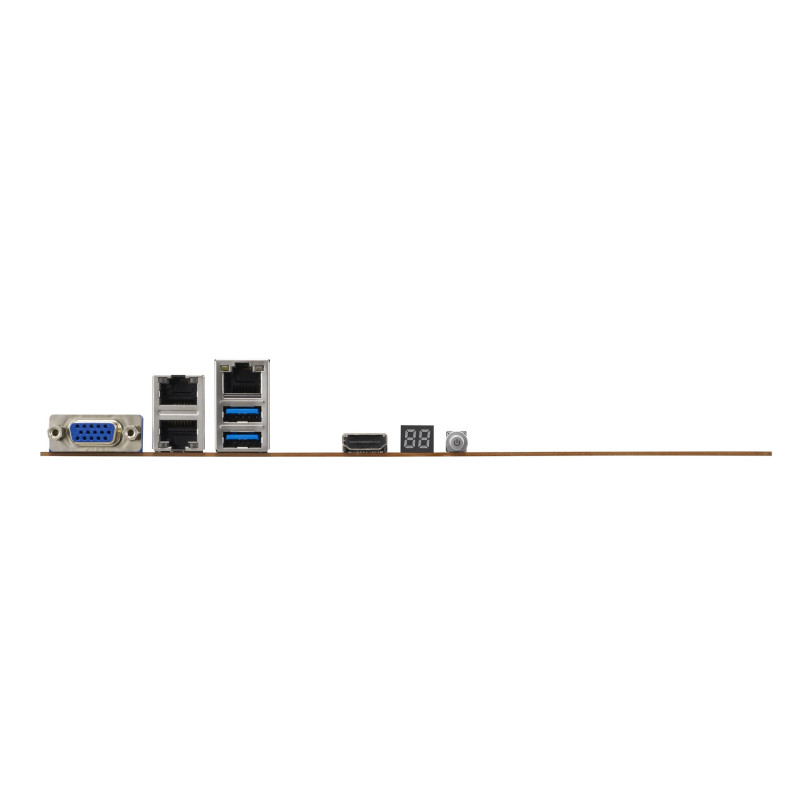

Rear panel I/O ports

Number of VGA (D-Sub) ports1
Ethernet LAN (RJ-45) ports2
Number of HDMI ports1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports2

Expansion slots

PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots1

Security warning

Warnings
Avoid contact with liquids and moisture to prevent damage to the equipment. The product contains electrical components - use caution during installation to avoid injury. Ensure adequate ventilation to prevent overheating and possible damage.
