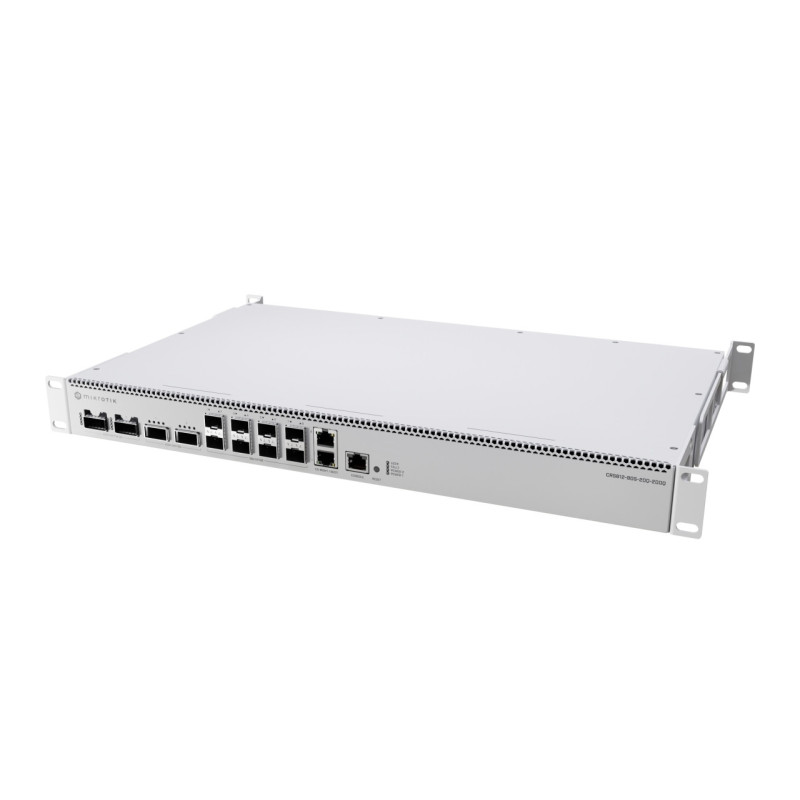

MIKROTIK Cloud Router Switch CRS812 DDQ
Product reference:
18-CRS812-8DS-2DQ-2DDQ-RM
MIKROTIK Cloud Router Switch CRS812 DDQ
MIKROTIK Cloud Router Switch CRS812 DDQ
Product reference:
18-CRS812-8DS-2DQ-2DDQ-RM
MIKROTIK Cloud Router Switch CRS812 DDQ
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
400G used to mean expensive, complex, and hard to achieve. CRS812 DDQ that changes! With a modern Marvell switch chip and a powerful ARM processor, it delivers advanced routing, switching, and flow control features trusted in millions of RouterOS deployments - now with ports up to 400 Gbps!
Where does it fit best?
-
Top-of-rack / leaf switch with 400G uplinks to the spine layer
-
University or company (campus) core, combining 10G legacy with modern 50G interfaces
-
Service Provider Aggregation Node
-
Labs, AI clusters, media workflows, where fast "east-west" data flow is crucial
CRS812 allows you to expand your network from 10 to 400G in one simple, accessible and manageable RouterOS v7 on the device - without expensive and complex infrastructure upgrades!
With CRS812 400 gigabits is no longer an unattainable luxury - it's an affordable way to move your network into the future while keeping your existing equipment in an active system.
| Product code | CRS812-8DS-2DQ-2DDQ-RM |
| Architecture | ARM 64bit |
| CPU | AL52400 |
| CPU core count | 4 |
| CPU nominal frequency | 2000MHz |
| Switch chip model | 98DX7335 |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| RAM size | 4GB |
| Storage size | 512MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -10°C to 50°C |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |

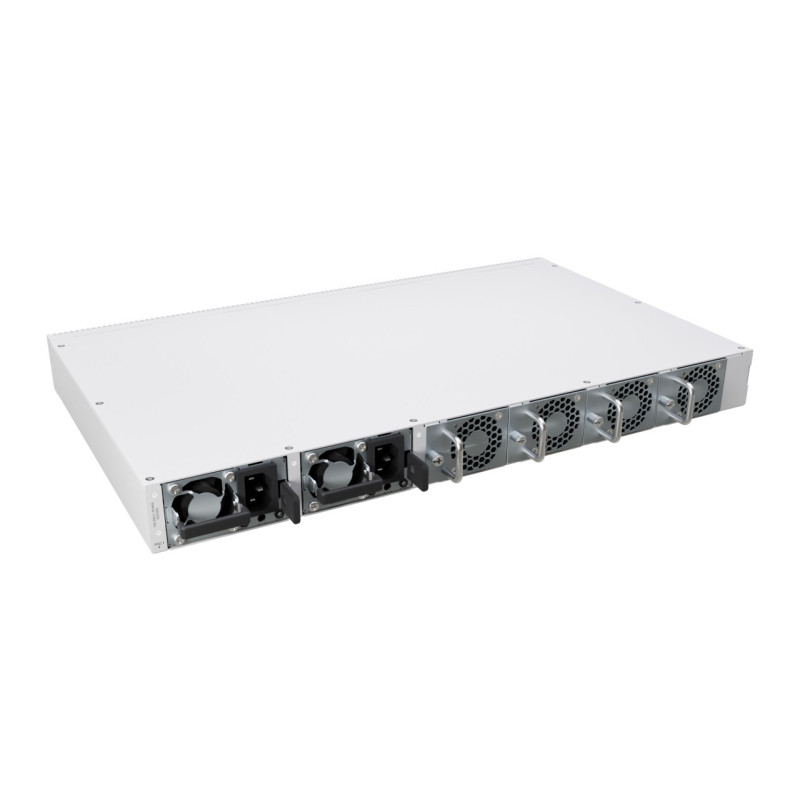

| Number of PSU slots | 2 |
| Frequency (Hz) | 50-60 |
| Max power consumption | 134 W |
| Max power consumption without attachments | 81 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| Number of 2x 10M/100M/1G/10G Ethernet ports | 2 |
| Number of 50G SFP56 ports | 8 |
| Number of 200G QSFP56 ports | 2 |
| Number of 400G QSFP56-DD ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certifications Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
