Mainboard, ASUS, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 2xM.2, 1xPCI-Express 4.0 16x, Me
Product reference:
2-4718017623544
AMD B550|SAM4|Micro-ATX|DDR4|4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
Mainboard, ASUS, AMD B550, SAM4, MicroATX, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 2xM.2, 1xPCI-Express 4.0 16x, Me
Product reference:
2-4718017623544
AMD B550|SAM4|Micro-ATX|DDR4|4800/4600/4466/4400/4266/4133/4000/3866/3733/3600/3466/3333/3200/3000/2800/2666/2400/2133 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

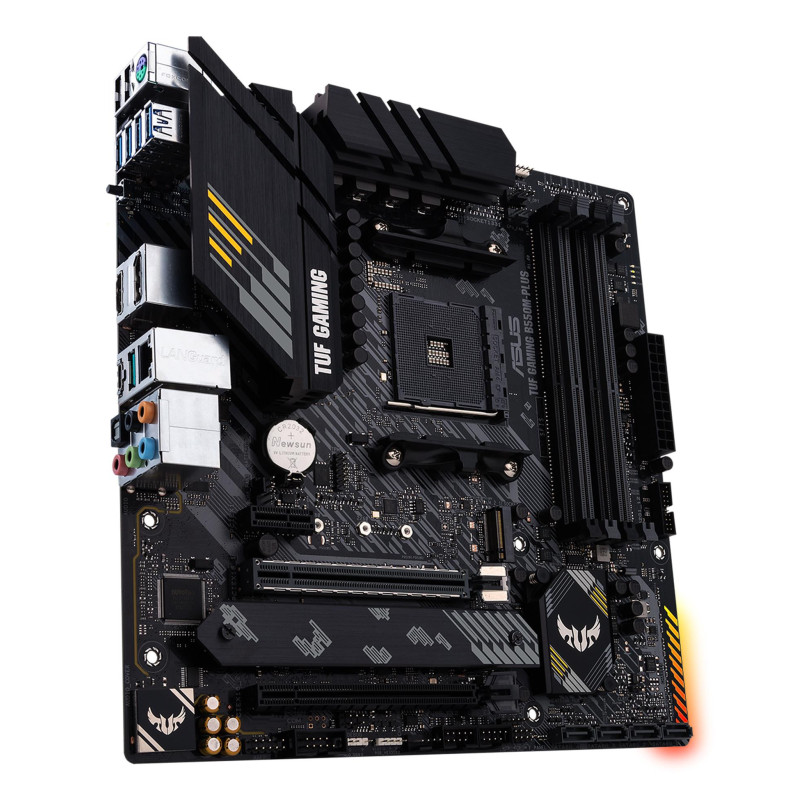

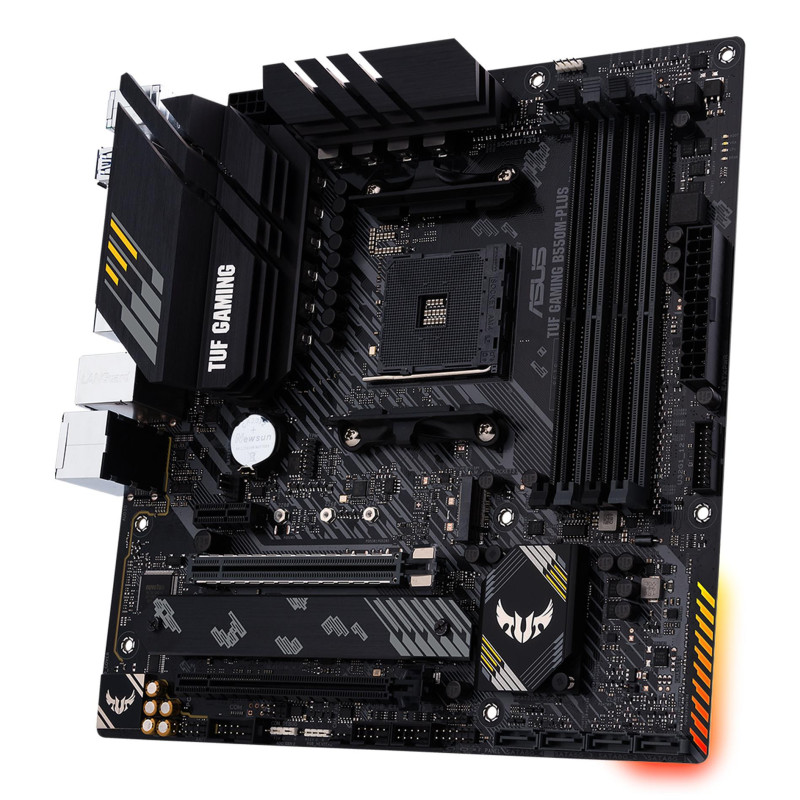

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: Provides crystal-clear in-game voice communication
| Vendor Homepage | www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/specifications/ |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 MHz |
| Memory slots | 4 |
| M.2 | 2 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| Audio port | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 Yes |
| USB 3.2 | 5 Yes |
| USB-C | 1 |
| SATA 3.0 | Yes |
| Serial | Yes |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10 |
| Units per Shipping Box | 10 |
| Shipping Box Depth | 56.5 cm |
| Shipping Box Height | 29 cm |
| Shipping Box Weight | 14.2 kg |
| Shipping Box Width | 36 cm |
| Unit Calculated Volume | 0.005899 cubm |
| Product Net Weight | 1.1 kg |
| Unit Calculated Weight | 1.42 kg |
| Unit Box Width | 0.27 |
| Unit Box Length | 0.28 |
| Unit Box Height | 0.07 |
