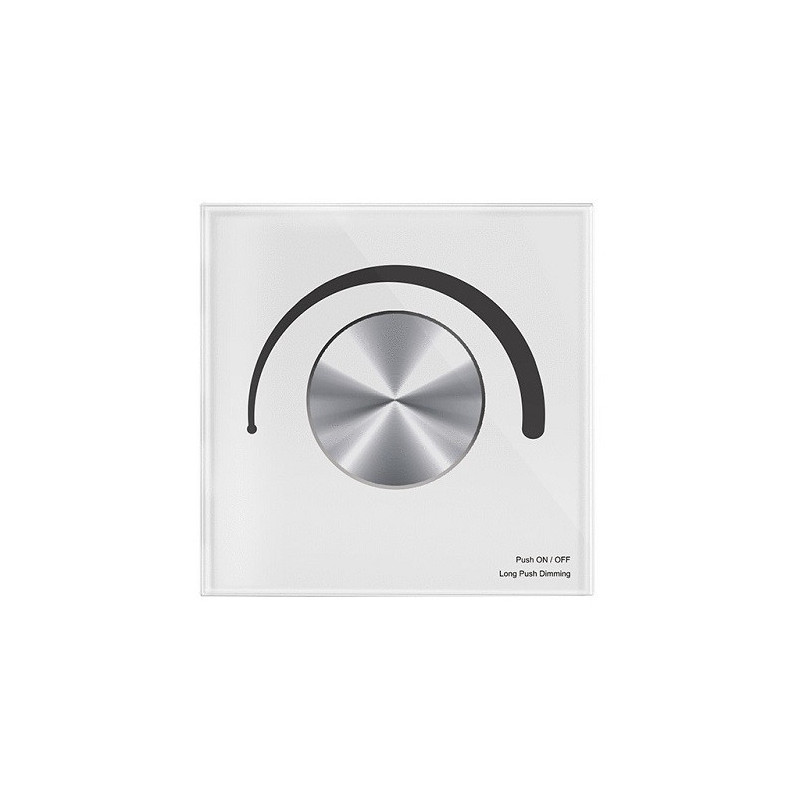

Rotary Triac Dimer T1-K, 12-48VDC, 3x 4A


Wall-mounted LED dimmer for single-color strips with 3 channels, supporting 12-48VDC and 4A per channel. Equipped with a rotary knob that allows you to adjust the brightness in 256 levels, it also has integrated protections against short circuit and overheating.


  • Supports smooth brightness adjustment of up to 3 single-color LED strips with a mechanical rotary button.
  • There are 256 levels of brightness adjustment and flicker-free operation.
  • Luxurious glass panel design, mounted like a standard switch.
  • Integrated protection against short circuit, overheating and overload for safe operation.

Features

Product type LED Dimmer Switch
Model T1-K
Channels 3
Compatibility Skydance V1, V2-L, V3, V3-L, V3-X, V4-L, V4-D, VP

Specifications

Voltage 12-48V DC
Voltage per channel 4A
Power 144W@12V; 288W@24V
Brightness adjustment range 0-100%
Brightness adjustment levels 256
PWM frequency 2KHz / 8KHz
Operating temperature -30~+55°C
Dimensions 86 x 86 x 48 mm
Color White
Security class IP20 (not waterproof)
Certificates CE, EMC, LVD, RED, RoHS
Compatible cable cross-section 0.5-2.0 mm²
