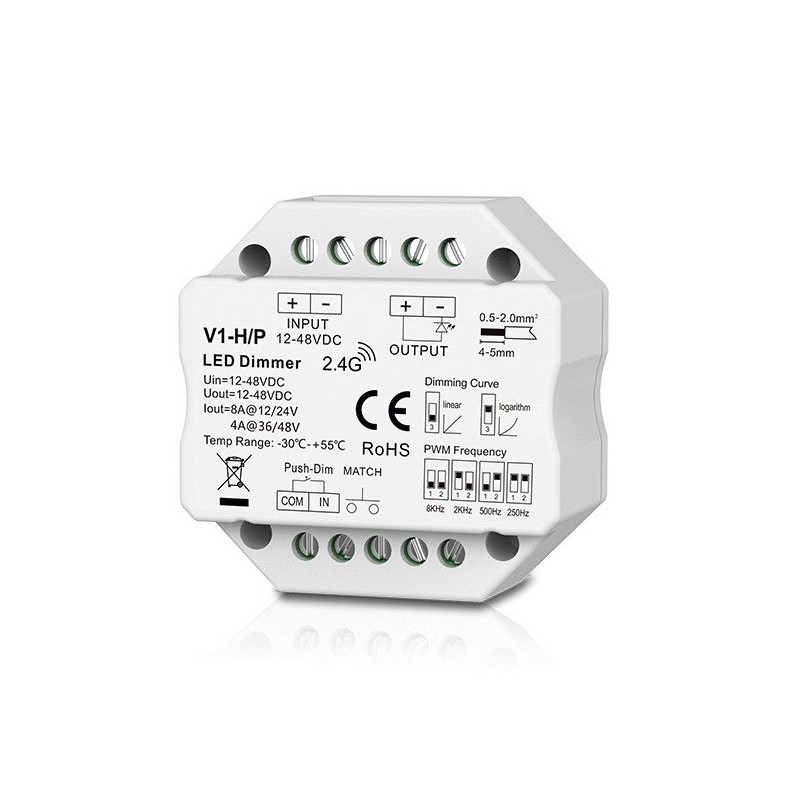

LED Controller - V1-H / P 12-48V 8A RF Remote Sliding
Product reference: 14-9990001084578

The V1-H/P controller operates at 12-48V DC, has a maximum output current of 8A, and supports 4096 brightness levels. The controller has an RF remote control, Push-Dimm function, and is compact, so it easily fits into standard electrical junction boxes.

LED Valdiklis - V1-H / P 12-48V 8A RF Nuotolinis Stumdomas

LED Controller - V1-H / P 12-48V 8A RF Remote Sliding

Product reference: 14-9990001084578

The V1-H/P controller operates at 12-48V DC, has a maximum output current of 8A, and supports 4096 brightness levels. The controller has an RF remote control, Push-Dimm function, and is compact, so it easily fits into standard electrical junction boxes.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2958 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

V1-H/P Controller, 12-48V, 1x 8A, Push-Dimm


The V1-H/P controller operates at 12-48V DC, has a maximum output current of 8A, and supports 4096 dimming levels. It features an RF remote control, Push-Dimm function, and is compact, so it easily fits into standard wall switches.


  • Ultra-smooth dimming with 4096 levels from 0 to 100%, flicker-free.
  • Compatible with 2.4 GHz RF remote controls and standard buttons for universal control.
  • The compact design fits standard wall switches, ensuring easy installation.
  • Approved by CE and RoHS standards, providing a reliable solution for LED lighting projects.

Features

Product model V1-H/P
Channels 1
Supported lighting systems Single color

Specifications

Input voltage 12-48V DC
Output voltage 12-48V DC
Output current 8A @ 12/24V; 4A @ 36/48V
Output power 96W @ 12V; 192W @ 24V; 144W @ 36V; 192W @ 48V
PWM frequency 500Hz / 2kHz / 8kHz / 16kHz
Grayscale 4096 levels
Dimming range 0-100%
Control distance Up to 30m
Safety class IP20 (not waterproof)
Composite wire cross-section 0.5-2.0 mm²
Certificates CE, EMC, LVD, RED, RoHS
Operating temperature -30 to +55°C
Dimensions 52 x 52 x 26 mm
Color White
Weight 61g
