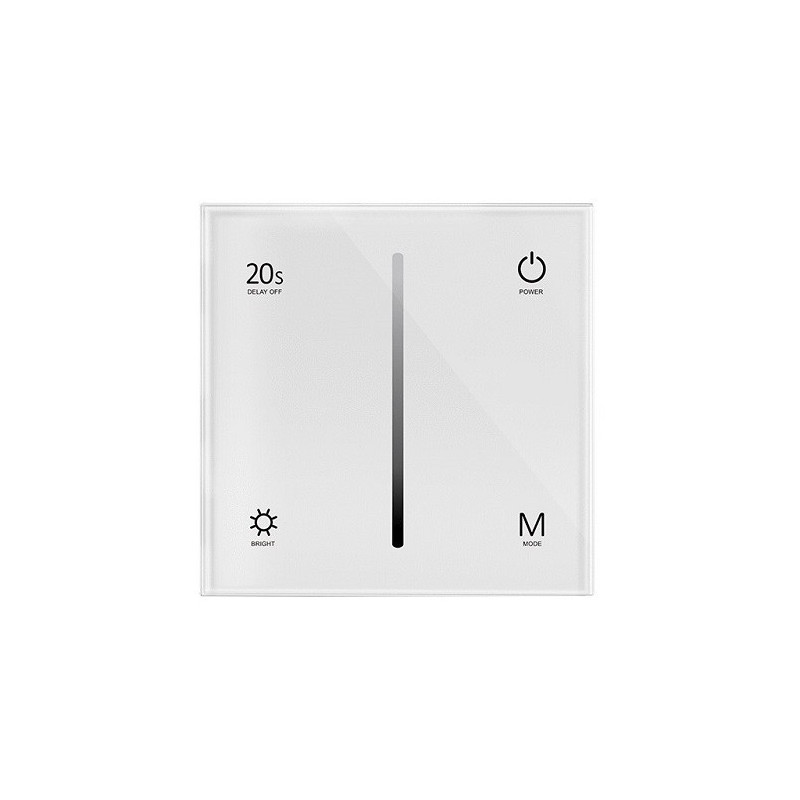

LED Controller - Touch Panel Dimming T1-1 12-48VDC 2Ch
Product reference: 14-9990001084608

LED controller - Touch panel dimmer T1-1 12-48VDC 2Ch. This wall-mounted dimmer is designed for single-color LED strips, has 2 channels, supports 12-48V DC and up to 10 lighting levels. It has touch buttons, a touch slider for brightness adjustment and integrated protection against short circuit and overheating.

LED Valdiklis - Jutiklinis Pultas Tamsinimo T1-1 12-48VDC 2Ch

LED Controller - Touch Panel Dimming T1-1 12-48VDC 2Ch

Product reference: 14-9990001084608

LED controller - Touch panel dimmer T1-1 12-48VDC 2Ch. This wall-mounted dimmer is designed for single-color LED strips, has 2 channels, supports 12-48V DC and up to 10 lighting levels. It has touch buttons, a touch slider for brightness adjustment and integrated protection against short circuit and overheating.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2982 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Touch Panel Dimmer T1-1, 12-48VDC, 2Ch


Wall-mounted dimmer for single-color LED strips with 2 channels, supporting 12-48V DC and up to 10 brightness levels. Features touch buttons, touch slider for brightness adjustment and integrated short-circuit and overheating protection.


  • Wall-mounted dimmer for single-color LED strips with 2 channels and 10 adjustable brightness levels.
  • Smooth dimming and dimming without flickering, with a convenient touch slider and separate on/off button.
  • Dynamic mode with 6 speed settings and integrated protection against short circuit and overheating.
  • Luxurious glass panel design, compatible with RF remote control for added convenience.

Features

Product type LED dimmer
Model T1-1
Number of channels 2
Lighting systems One color

Specifications

Voltage 12-48V DC
Input current 10.5A
Output current 5A@12-24V / 3A@36-48V (for each channel)
Power 120-288W
Adjustment range 0-100%
PWM frequency 1KHz / 2KHz / 8KHz / 16KHz
Control area 4 touch buttons, 1 touch slider
Protection class IP20 (not waterproof)
Working temperature -30~+55°C
Compatible cable cross-section 0.5-2.0 mm²
Dimensions 86 x 86 x 33 mm
Color White

Certificates

Certificates CE, EMC, LVD, RED, RoHS, FCC
