Iveco Daily 2023-2025 Reversing Camera 3rd Brake Light

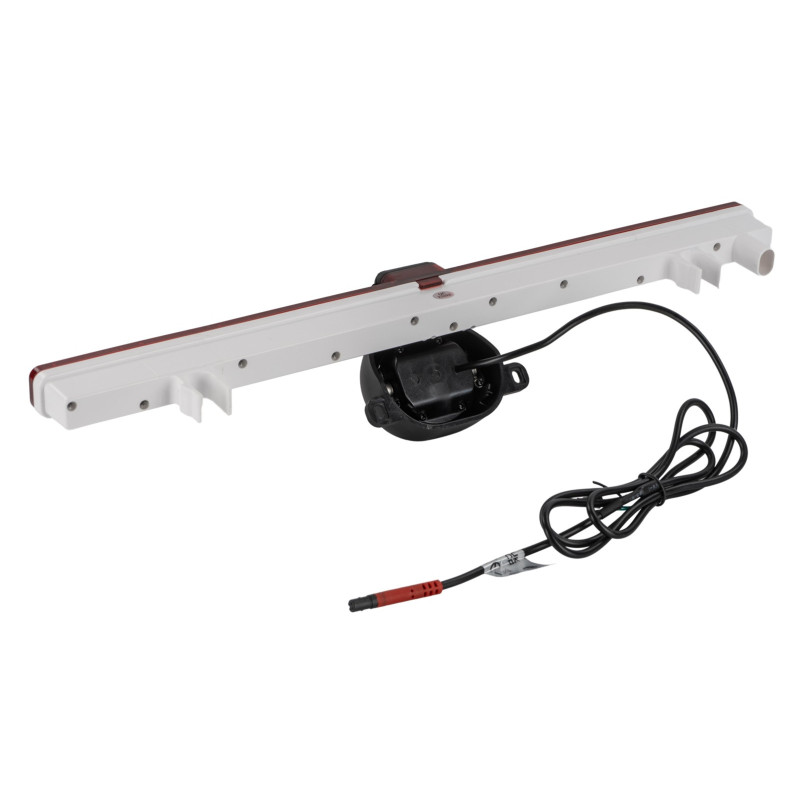

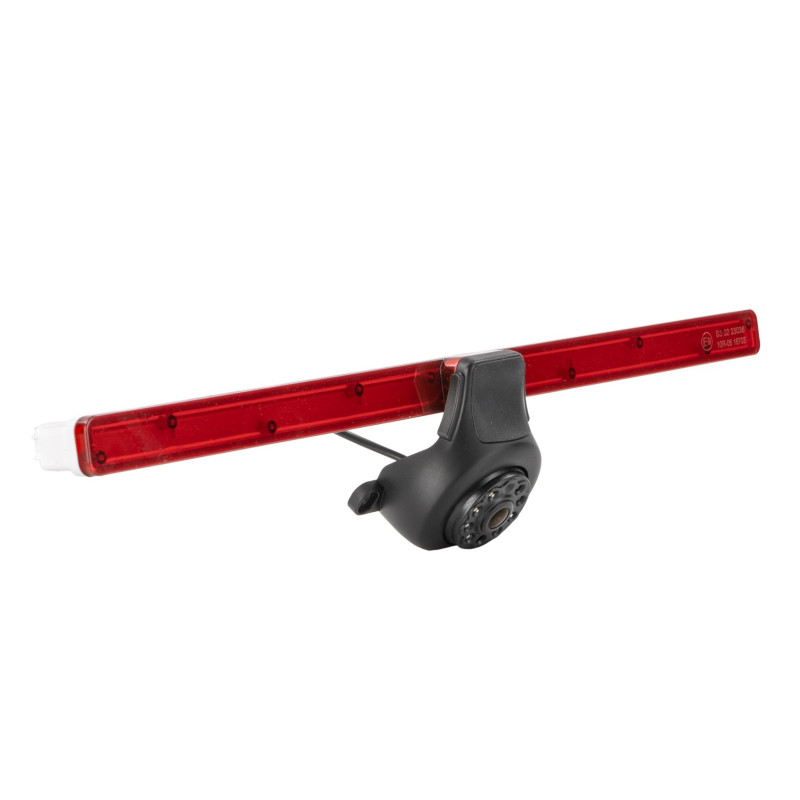

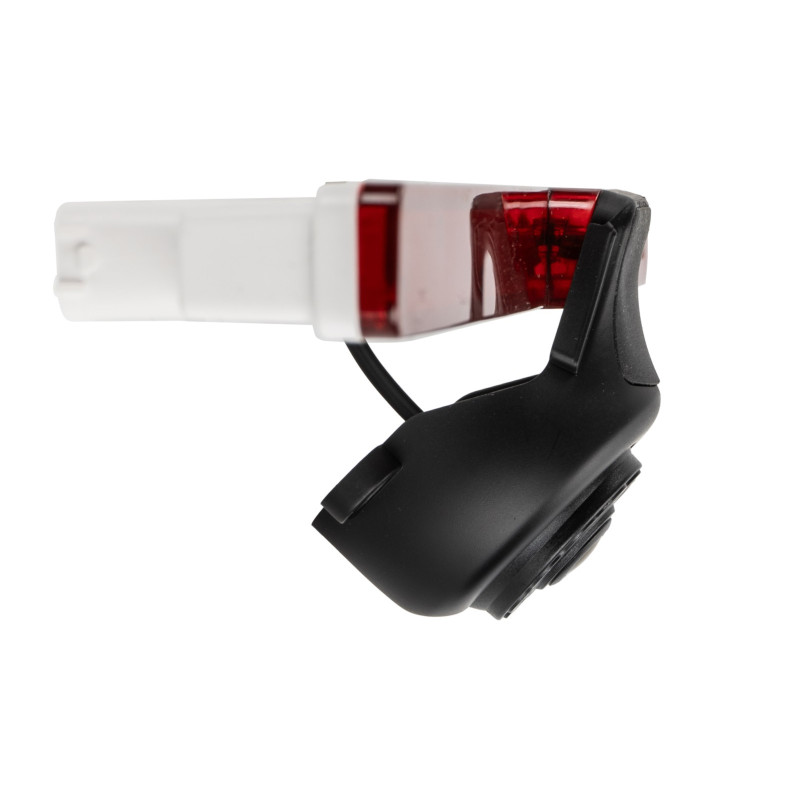

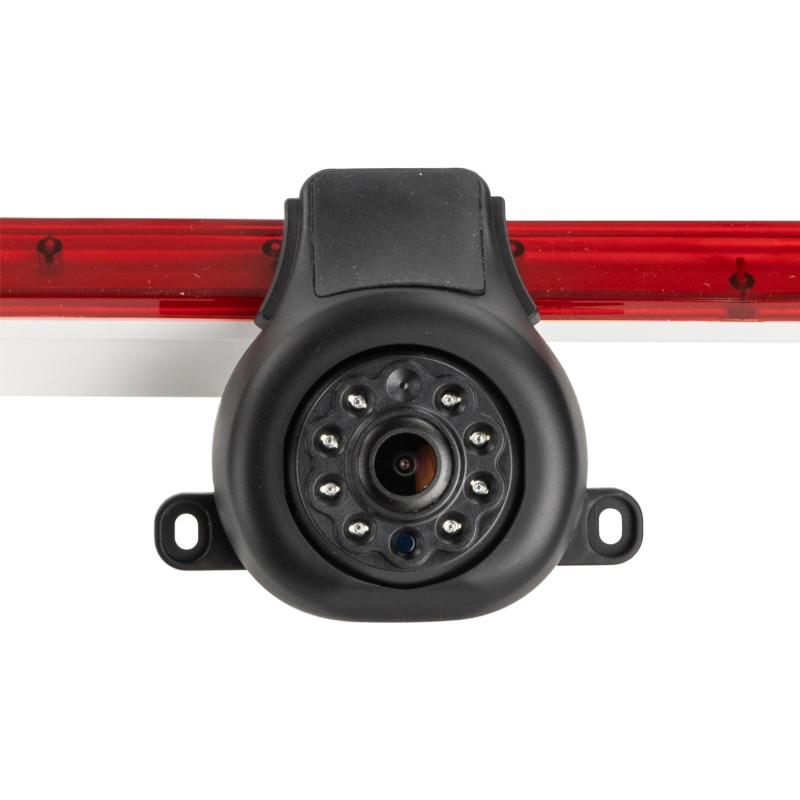

Iveco Daily (2023-2025) reversing camera - integrated in the third brake light, with night vision

Dedicatedreversing camerafor carsIveco Daily (2023-2025), intended for on-site installationoriginal third brake light.
Equipped withauxiliary lines (on/off)andnight view, provides a wide field of view and safety when reversing, even in the dark.
Perfect integration with the vehicle body makes installation aesthetically pleasing and completely non-invasive.

✅ Application:

• Iveco Daily- vintages2023-2025

⚙ Technical characteristics:

• Execution:plastic

• Color:black / red

• Extras:auxiliary lines (activated by jumper), night view

• Image sensor:1/3" CMOS

• TV system:NTSC

• Effective pixels:976 × 592

• Lens:12.6 mm

• Minimum lighting:0 Lux (with night mode activated)

• Night vision range:up to 35 feet (~10 m)

• Resolution:600 TV lines

• Viewing angle:horizontal 115°, vertical 75°, adjustment +5°

• Degree of protection:IP67 - water and dust resistant

• System connector:4-pin ACV (m) Ø5.2 mm

• Operating voltage:+12V DC

• Camera power supply:+3V DC (requires converter)

• Power consumption:150 mA (when in night mode)

• Operating temperature:-20°C to +70°C

• Storage temperature:-40°C to +80°C

• Dimensions:OEM - installation in place of the 3rd brake light

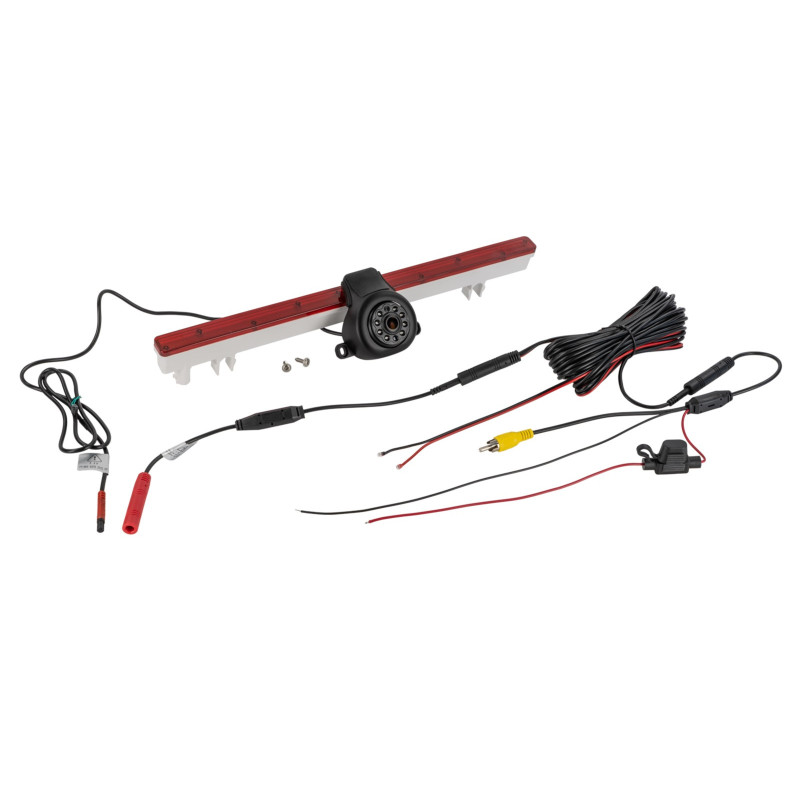

⚡ Connections:

• Red wire:+12V - stable power supply via fuse

• Black wire:vehicle ground / GND

• RCA (m) yellow:signal output in
