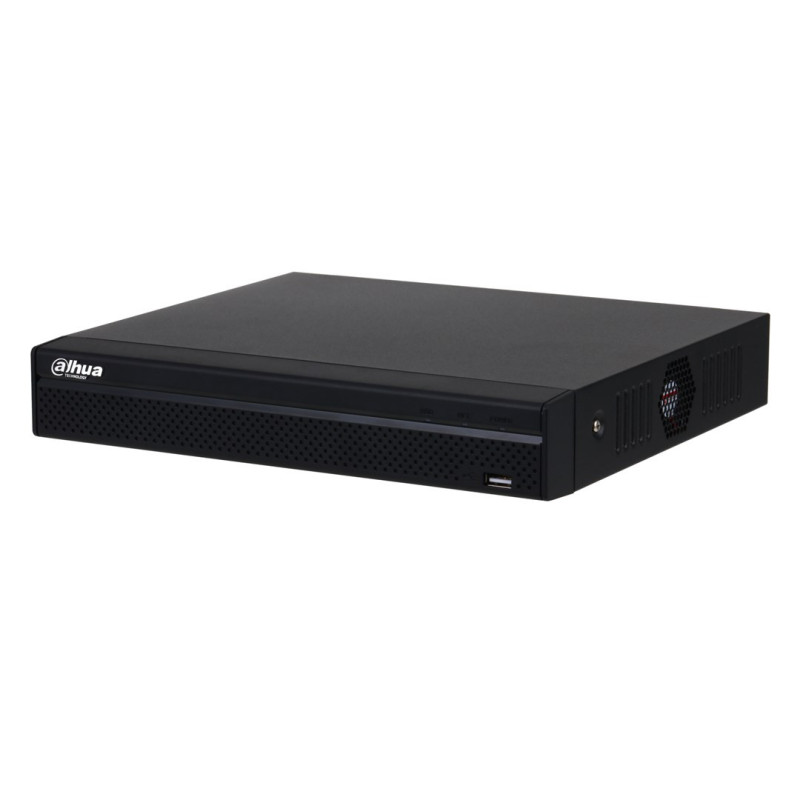

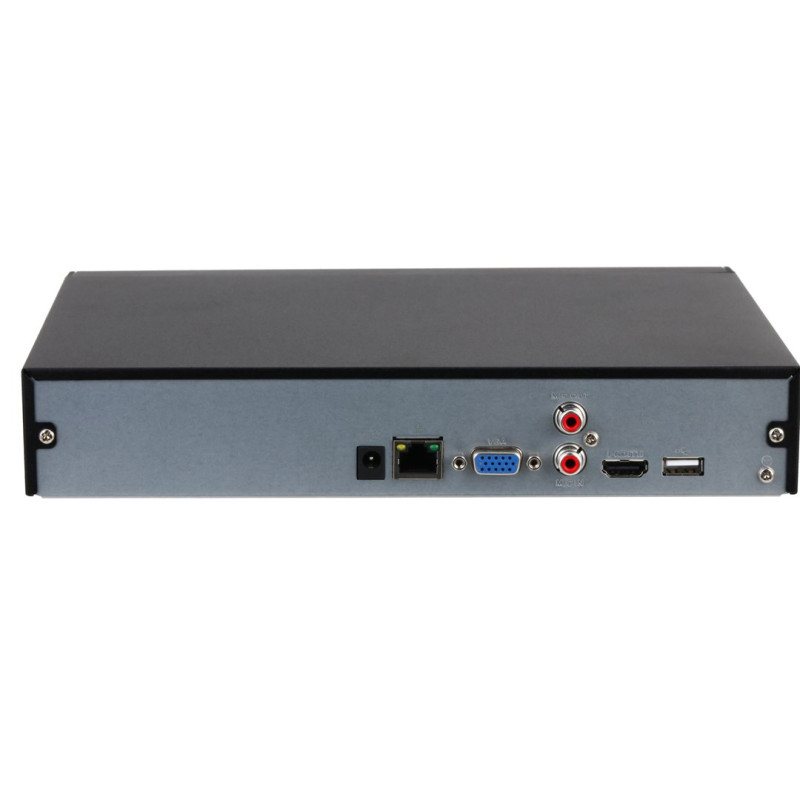

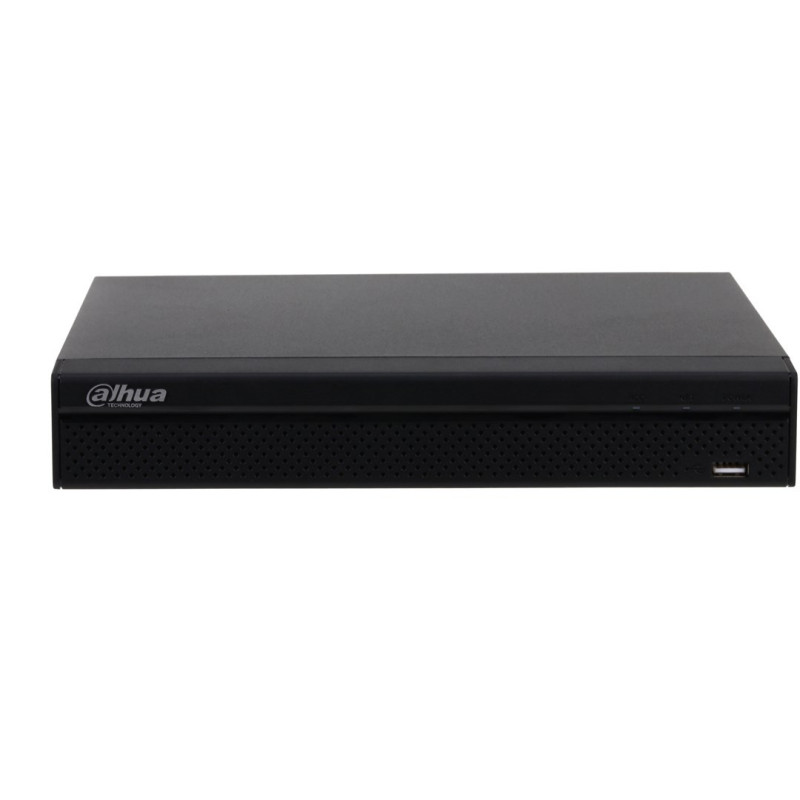

IP recorder 16 cameras 4K 12MP, 1HDD, IVS, H.265, 160Mbps, NVR4116HS-4KS3

Short description: 16-channel IP camera 4K video recorder, Lite series. Max. 8x 1080p@25 fps/ 2x 8MP@25 fps. Available recording resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF, QCIF. Maximum data rate up to 160Mbps. Compression Smart H.265+/H.265/Smart H.264+/H.264. Available 1 HDD up to 20 TB. 1-ch. VGA, 1-ch. HDMI (up to 3840×2160). Smart functions: AI, SMD Plus. Supports EPTZ; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK standard. Model: NVR4116HS-4KS3. Brief technical characteristics: • Digital 16-channel IP recorder 12MP 160Mbps. • High-quality industrial-grade processor. • AI functions per recorder: SMD Plus. • AI functions per camera: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map. • Number of AI channels: face detection/recognition (6 channels per camera only); perimeter protection (6 channels per camera only); SMD Plus 4 channels per recorder (6 channels per camera). • Convenient graphical user interface. Software Linux, GUI system. • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG Video Compression Technology. • Audio compression: PCM; G.711A; G.711U; G.726. • Simultaneously perform the following operations: recording, live video display, recording review, recording copy, device management, remote access via network. • Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox, Safari, Edge. • Free software for device management, video review and archiving using a computer network or the Internet. • Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF. • Network bandwidth without AI: 160 Mbps for access, 160 Mbps for storage and 80 Mbps for transmission. • Network bandwidth with AI: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for transmission. • Decoded camera resolution without AI: 1 ch. x12MP@25 fps; 2 ch. x8MP@25 fps; 3 ch. x5MP@25 fps; 4 ch. x4MP@25 fps; 8 ch. x1080p@25 fps. • Decoded camera resolution with AI: 1 ch. x12MP@25 fps; 1 ch. x8MP@25 fps; 2 ch. x5MP@25 fps; 3 ch. x4MP@25 fps; 7 ch. x1080p@25 fps. • Max IP camera inputs 16. • Automatic IP camera search. • Supported IP cameras: Dahua, Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha; ONVIF22.12. • HDMI connector and VGA connector simultaneously: 1pc. HDMI resolution: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1pc. VGA resolution: 1920 × 1080, 1280 × 1024, 1280 × 720. • HDMI connector separately: 1pc. resolution: 1920 × 1080, 1280 × 1024, 1280 × 720. • VGA connector separately: 1pc. resolution: 1920 × 1080, 1280 × 1024, 1280 × 720. • Screen division: main screen 1/4/8/9/16, second screen 1/4/8/9/16. • Recording playback channels: 1/4/8/9/16. • Audio input: 1 channel RCA. • Audio output: 1 channel RCA. • Hard disk: max. 1 pc. SATA disk. • Maximum HDD capacity: 20TB. • USB port: 2 pcs. (2x USB2.0). • Recording copy: USB / network. • 10/100/1000Mb/s network port 1 pc. (Ethernet RJ-45) for Internet connection. • Network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (supports IP camera, DVR, NVS); ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK. • P2P iCloud technology (IE): No static IP address required, no need to open ports. • Recording modes: General, motion detection; smart; alarm. • Smart alarm: face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; heat map. • General alarm: Motion detection; Privacy masking; Video loss; Scene change; PIR alarm; IPC external alarm. • Anomaly alarm: Camera disconnection; Storage error; HDD full; IP conflict; MAC conflict; Login blocked; Cybersecurity exception. • Alarm transmission methods: Recording; Snapshot SNAPSHOT (panoramic); IPC external alarm output; Audio; Buzzer BUZZER; Log, by preset; Email (send photo). • Record search: by date/time or events (e.g. motion detection, alarm). • Playback functions: Instant playback, General playback, Event playback, Tag playback, Smart playback. • OSD: Camera name, time, video loss, motion detection, recording. • Supports EPTZ and one-click arming and disarming of the security system. • Setting of color, brightness and contrast for each IP camera. • Unlimited number of users (possibility to assign different rights to each user). • Time synchronization: automatic. Automatic summer/winter time adjustment. • System recovery after power failure. • Ability to update IP camera software (firmware) via NVR. • Power supply: 12V DC, 2A. • Power consumption: <10W (without HDD). • Humidity 10~93%RH (non-condensing). • Operating temperature: -10°C~+55°C. • Weight: 0.81 kg without hard drive. • Dimensions: 1U, 260 mm × 232.5 mm × 47.6 mm. • Warranty 36 months.
