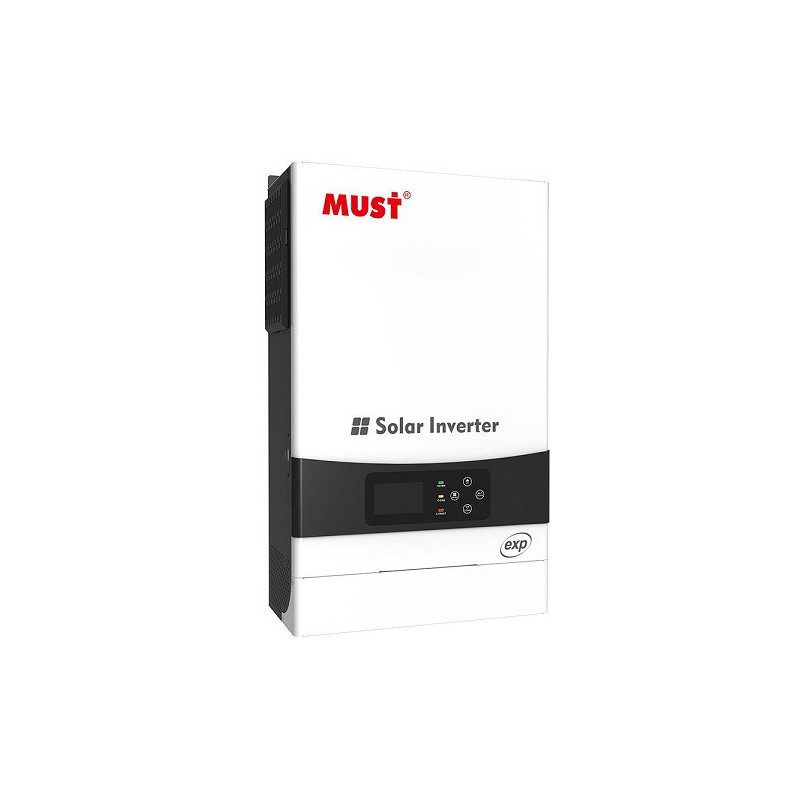

Inverter MUST PV19-4024 EXP, 4kW, single-phase, 24V, 100A MPPT, 500V

Solar inverter MUST PV19-4024 EXP, 4kW, single-phase, 24V battery, PV max. 100A/ 500V/ 5kWFeatures:Combines the functions of an inverter, MPPT 100A solar charger and battery charger to ensure uninterrupted power support, and remains portable in size. This inverter does not require a battery to operate. The LCD screen can be used to set operating parameters and priorities according to need. Rated power 4kW. Solar panel power up to 5kW. The maximum PV open circuit voltage reaches 500V DC, MPPT voltage 150~450V DC, which allows full use of solar energy. Parallel connection is not supported. Integrated MPPT PV charge controller. Matching power from solar energy, AC or battery to ensure continuous power supply. Allows flexible scheduling of inverter charging and discharging time. With USB and RS485 communication interfaces. Protection against overload, short circuit and deep discharge.Technical data:Battery voltage: 24V DC. Rated power: 4000W. Fuse tripping: at 8000VA. Waveform: true sine wave. Battery type: lithium. Switching time: 10ms/20ms. Frequency: 50/60Hz. PV open circuit voltage max.: 500V DC. MPPT voltage range: 150~450V DC. Max. solar charging current: 100A. Solar panel power: 5000W. Display: LCD. Operating temperature: 0°C ~ +55°C. Dimensions: 322x486x134 mm. Weight: 11kg. Certificates: CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011); EN IEC62368-1:2020+A11:2020; CE-LVD (IEC62109-1:2010, EN IEC62109-2:2011); EN IEC62368-1:2018, EN IEC62109-1:2010, EN IEC62109-2:2011.Warranty:The warranty for the voltage converter (inverter) is valid from the date on which we (the seller) are provided with the serial number of the inverter, the purchase invoice, a certificate from a certified electrician or ESO at the time of delivery of the solar power plant about the installed: 1) Lightning protection and surge arrester (from the input side) 2) Lightning protection (between the solar panels and the inverter) 3) DC voltage disconnector between the panels and the inverter 4) Separate grounding of the solar panels, from the common grounding of the house. The 2-year (24-month) manufacturer's warranty is valid from the date of purchase of the inverter, upon submission of the above documents.Note:A lightning strike is an insured event, not a warranty event.Specifications
