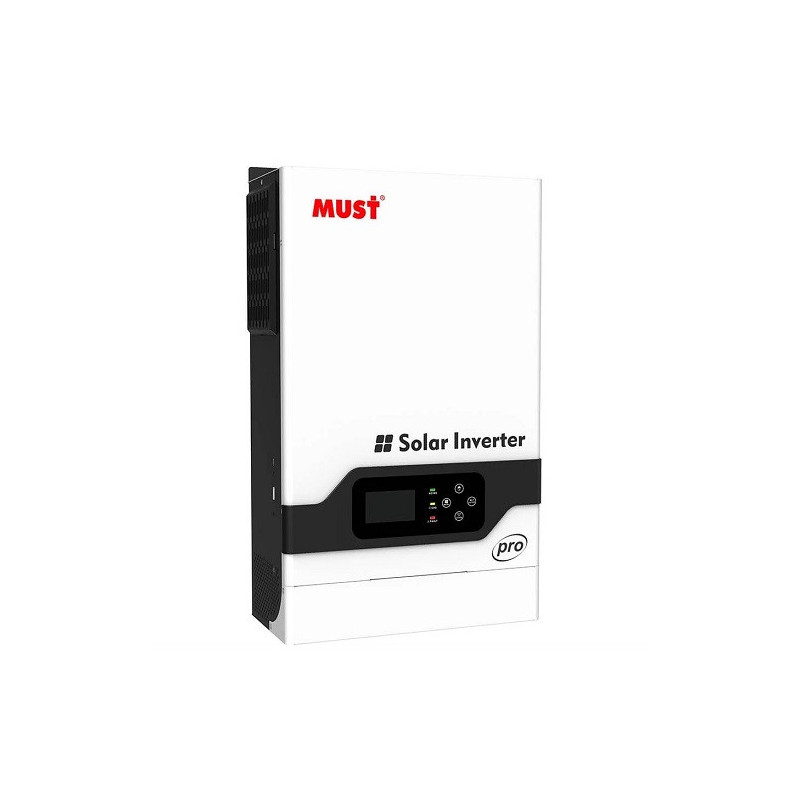

Inverter MUST PV18-5248PRO, 5kW, 1-phase, 48V, 80A MPPT, 450V
Product reference: 9990000820702-1

Inverter MUST PV18-5248PRO, 5kW, 1-phase, 48V, 80A MPPT, 450V

Product reference: 9990000820702-1
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
57083
Product in warehouse

Guarantee
6 month

Delivery in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Solar inverter MUST PV18-5248PRO, 5kW, 1-phase, 48V, 80A MPPT, 450V


Features:
Multifunction inverter/charger, combining functions of inverter, MPPT 80A solar charger and battery charger to offer uninterruptible power support with portable size.
No battery is required for this inverter.
The LCD display allows you to set operating parameters and charger priorities.
Rated power 5kW. The maximum PV open circuit voltage is 450V DC and the MPPT voltage is 150~430V DC, allowing full use of solar energy.
Built-in MPPT 80A solar charge controller.
Combining solar system, AC utility, and battery power source to supply continuous power. Generator compatibility.
Support USB, RS485 monitoring functions.
Protection against overload, short circuit and deep discharge.
CE, SAA, ISO9001 certified.


Technical specifications:
Battery voltage: 48V DC.
Rated power: 5200W.
Surge power: 10400VA.
Waveform: pure sine wave.
Transfer time: 10ms/20ms.
Frequency: 50/60Hz.
PV array open circuit voltage max: 450V DC.
MPPT voltage range: 150~430V DC.
Max. Solar charge current: 80A.
PV array power max: 1500W.
Display: LCD.
Operating temperature: 0°C~+50°C.
Dimensions: 295x528x121mm.
Weight: 14kg.


Warranty: 24 months.


Specifications
Default battery system voltage48V DC
Inverter Output
Rated power5200VA / 5200W
Surge power10400W
Waveformpure sine wave
AC voltage regulation (Battery mode)230V AC (setting)
Transfer time10ms (UPS/VDE4105) / 20ms(APL)
Input AC
Voltage230V AC
Selectable voltage range170~280V AC(UPS)/ 90~280V AC(APL)/ 184~253V AC(VED4105)
Frequency range50Hz / 60Hz (Auto sensing)
Efficiency
Inverter efficiency (peak)93%
Battery
Normal voltage48V DC
Floating charge voltage54.8V DC
Overcharge protection60V DC
Solar charger & AC charger
Maximum PV array open circuit voltage450V DC
PV array MPPT voltage range150~430V DC
Maximum PV current18A
Maximum solar charge current80Amp
Maximum AC charge current60Amp
Maximum charge current80Amp
General specifications
Dimensions(W*H*D)295*528*121 mm
Package dimensions(W*H*D)628*425*251 mm
Net weight14 kg
Gross weight15 kg
Operating temperature0°C to 50 °C
Humidity range (non-condensing)5% - 95%
Storage temperature-15°C to 60 °C


Warranty:
The warranty of the voltage converter (inverter) is valid from the day when we (the seller) is provided with the serial number of the inverter, the purchase invoice, a certified electrician's certificate about the installed:
1) Lightning protection and overvoltage limiter (on the input side)
2) Lightning protection (between solar panels and inverter)
3) DC voltage switch between panels and inverter
4) Dedicate grounding for solar panels separated from grounding of the house


The 2-year (24-month) manufacturer's warranty begins from the day of purchase, but comes into effect only after submission of these documents.
Note: Lightning strike is not a valid warranty claim, it is classified as insurance claim.



Download User Manual
