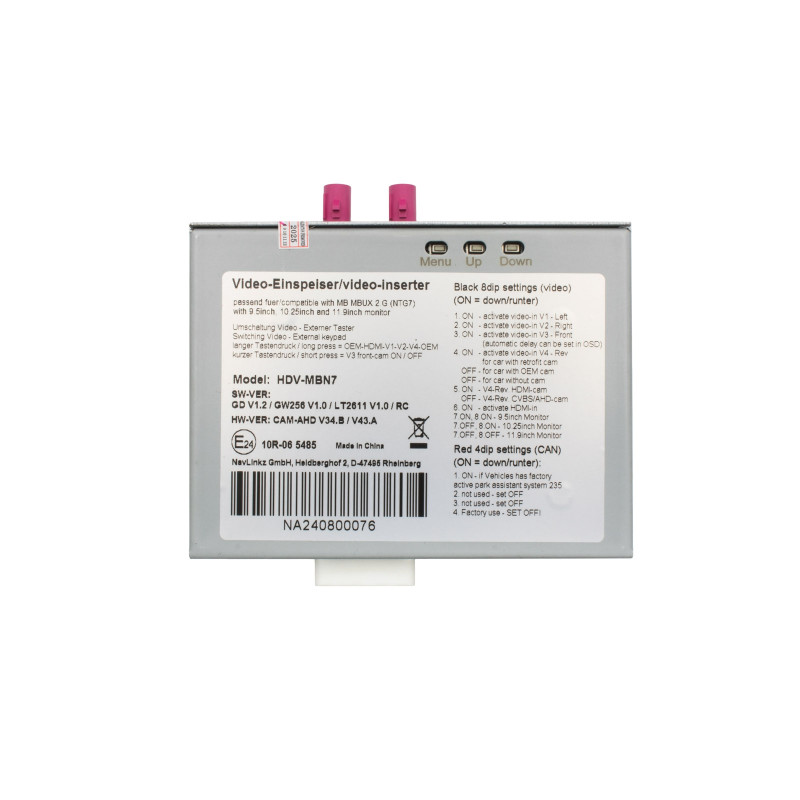

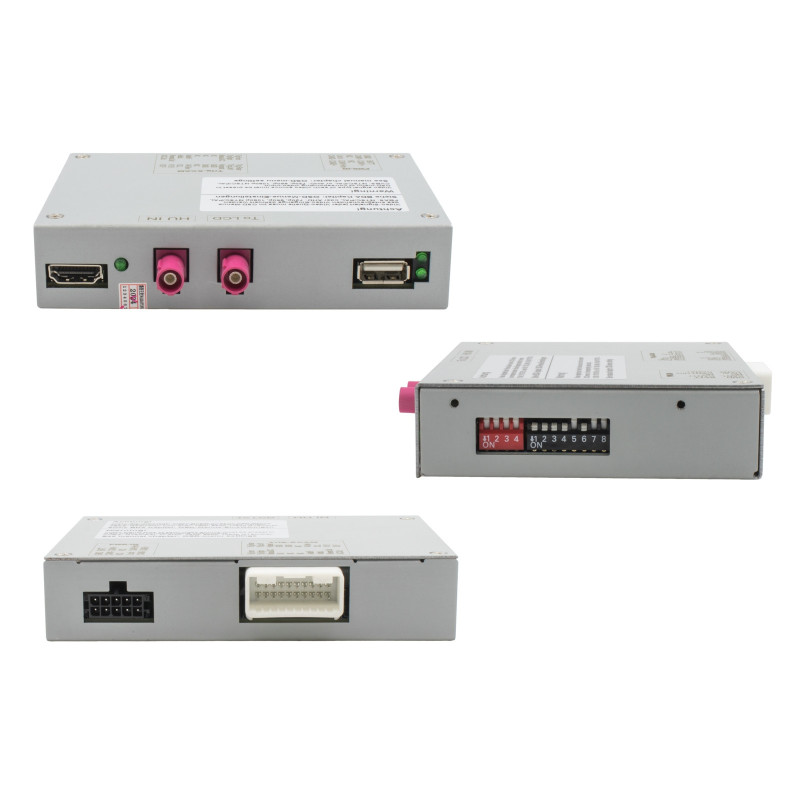

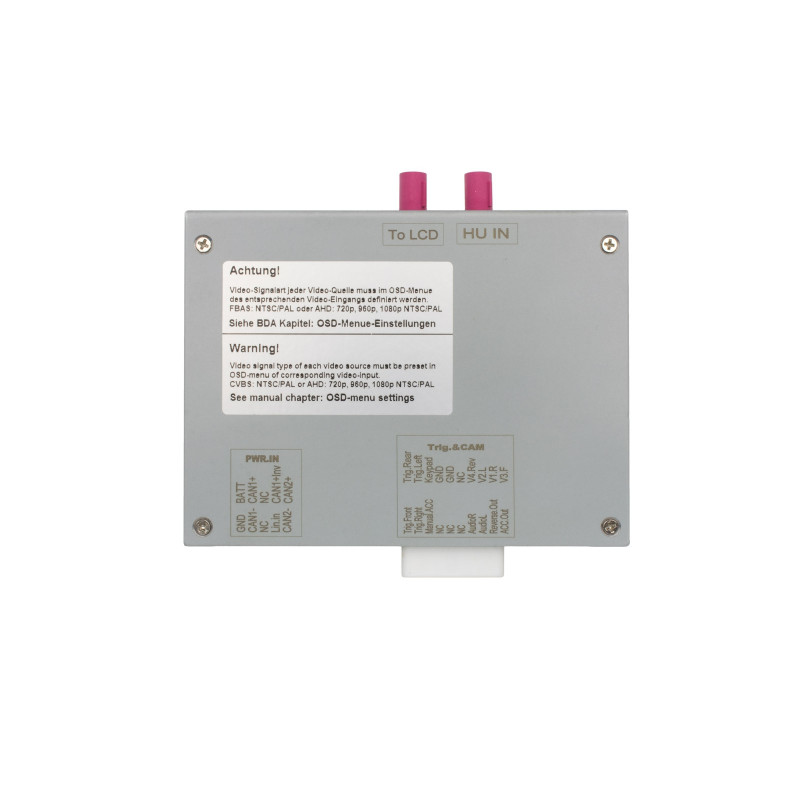

Interfejs do podłączenia kamery Mercedes Sprinter MBUX NTG7 (CVBS / AHD) + HDMI

Mercedes NTG 7 - MBUX 2 Video Interface. Monitor 9.5 inch, 10.25 inch, 11.9 inchwith navigation. To connectcamerasfront and rear and two side cameras

Product features

• 2 video inputs for front + rear cameras
• 2 video inputs for side mirror cameras
• Support for dynamic twist lines

Make and model:

• Mercedes A-Class (W177)
• Mercedes B-Class (W247)
• Mercedes Sprinter (W907/W910)
• Mercedes Vito (W447)Compatibility:MBUX2 NTG7 multimedia system with 10.25-inch monitor

• Mercedes C-Class (W206) 06.2021-,
• Mercedes C-Class T-Model/Estate (S206) 06/2021-,
• Mercedes C-Class Off-Road (X206) 10/2021-,
• Mercedes CLE Coupé (C236) 11/2023-,
• Mercedes CLE convertible (A236) 2024-,
• Mercedes E-Class (W214) 08/2023-,
• Mercedes E-Class T-Model/Estate (S214) 08/2023-,
• Mercedes E-Class off-road (X214) 09/2013-,
• Mercedes EQE (V295) 03/2022-,
• Mercedes EQE SUV (X294) 12/2022-,
• Mercedes EQS (V297) 08.2021-,
• Mercedes SUV EQS (X296) 08/2022-,
• Mercedes GLC Coupe (C254) 07/2023-,
• Mercedes SUV GLC (X254) 07/2022-.
• Mercedes GT AMG Coupé (C192) 10/2023-,
• Mercedes SL AMG (R232) 11/2021

Compatibility:MBUX2 NTG7 multimedia system with 9.5 or 11.9-inch monitor

Limitations:

CAN bus compatibility:In some vehicles, the CAN bus compatibility of the interface may be limited, either as a whole or for individual functions. This may be noticeable both during installation and later. The interface with all video inputs can be operated using analog switching signals without the need for connection to the vehicle's CAN bus. Individual additional functions are omitted; see chapter 2.4.2 "Analog Connection without CAN Bus."

Video only:The interface does not transmit any audio signals. To connect audio signals, you must use an existing factory AUX audio input or optional products.

Factory rear camera:Automatic switching to the RFK input occurs only as long as reverse gear is engaged. Optional accessories are required for different switching times.

Aftermarket front camera:Switching to the front camera occurs automatically when reverse gear is disengaged for 5, 10, 15, or 20 seconds (depending on the OSD Position menu). Manual switching to the front camera is also possible using the external button.

Guide lines for reversing camera:In case of incomplete compatibility of the vehicle's CAN bus, the Mobile Guide Lines function cannot be used with an analog interface or connection.

Vehicles with active parking assistant system 235:The camera image cannot be displayed when the factory active system is used.

Interface for connecting the Mercedes Sprinter NTG 7 camera - MBUX. 7"/10.25" monitor with navigation. - hassle-free connection of a reversing camera!

Reversing cameras are devices that significantly improve our driving comfort! Every driver knows that even the simplest maneuvers can cause a lot of problems. If you've already equipped yourself with the right equipment, you're probably looking for a way to connect it. Fortunately, we have the perfect solution you've been looking for. Connecting Interface
