Inbay - Zestaw do ładowania bez przewodowego z trzema cewkami w samochodzie

INBAY® 3-Coil Set

Made in Germany 5 Watt*

The charger supports wireless inductive charging of smartphones using INBAY®

All INBAY® products work with the globally recognized Qi standard for wireless charging.

All smartphones certified by the international Wireless Power Consortium are compatible with INBAY®.

Compatible smartphones with charging power at the link below:

https://www.wirelesspowerconsortium.com/products

INBAY® meets the following technical specifications:

• QI Certificate
• ECE 10R conformity mark - 05 14145
• Electromagnetic standard VW80000 / TL-965
• FOD - "Foreign Object Detection"

INBAY® in the vehicle:

• No interference with radio/DAB audio reception
• No disruptions to the bus system
• No risk to other electronics in the vehicle!

Note:

• mounting options in/under shelves or storage compartments (see instructions)
• There must be no metal objects between the charger and the smartphone
• protective covers must not contain any metal elements

Connector:

• Universal harness +12V

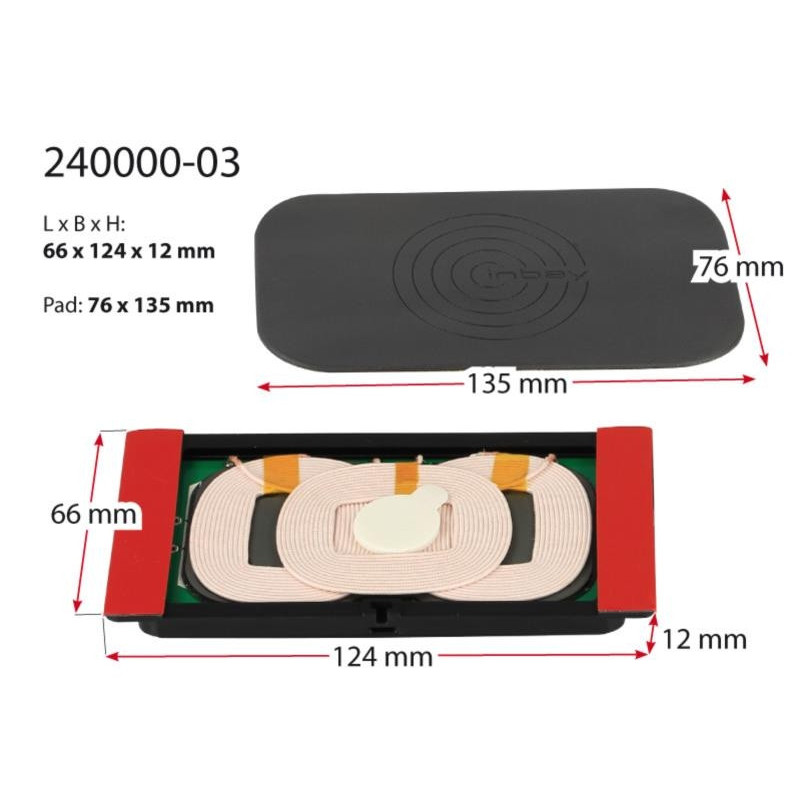

• Charging coil dimensions: L = 124mm / W = 66mm / H = 12mm
• Pad dimensions: L = 135 / W = 76mm
• Input voltage: +12V DC
• Output voltage: 5V
• Output current: max. 1A
• Output Power: 5W compatible smartphones > 5W max.

*in the case of smartphones with a fast charging function, depending on the applications used in parallel with charging, it may only be possible to maintain the charge state
