Inbay - Zestaw do ładowania bez przewodowego z trzema cewkami w samochodzie 15W

INBAYKit 3 coils 12V/fiber optic kit

15 watts

This universal solution supports wireless inductive charging from INBAY® smartphones at appropriate installation locations depending on the vehicle's equipment.

• All IINBAY® products use the Qi standard
• This is the global standard for wireless charging.
• Therefore, all smartphones using the Qi standard are compatible with INBAY

INBAY® meets the following technical specifications:

• QI Certificate
• ECE 10R conformity mark - 05 15424
• EMV FMC 1278 standard
• FOD - "Foreign Object Detection"
• No interference with radio/DAB audio reception
• No disruptions to the bus system
• No risk to other electronics in the vehicle!

Attention:

• mounting options in/under shelves or storage compartments (see instructions)
• There must be no metal objects between the charging coil and the smartphone

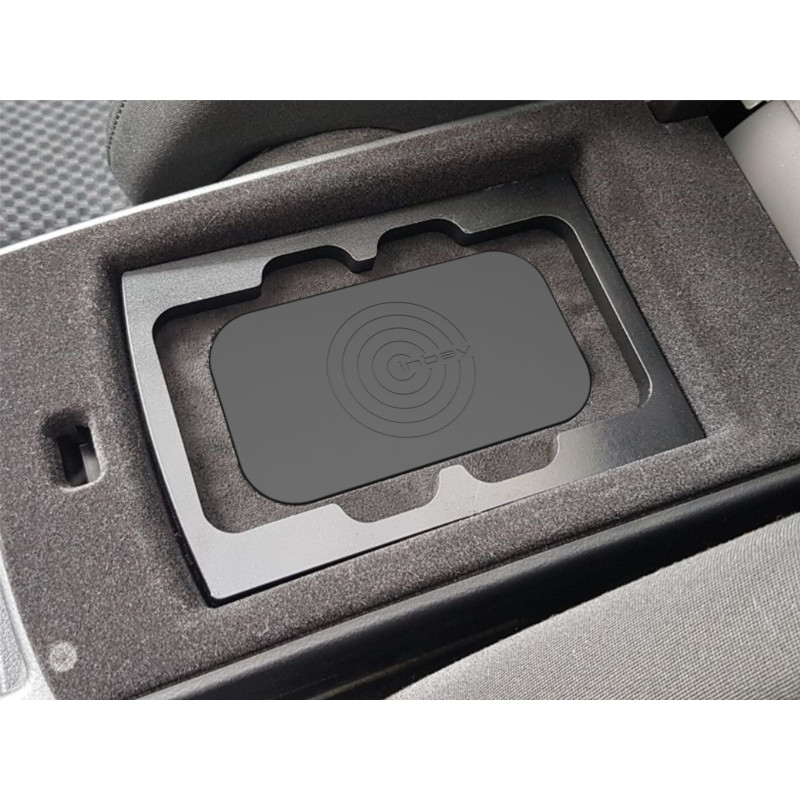

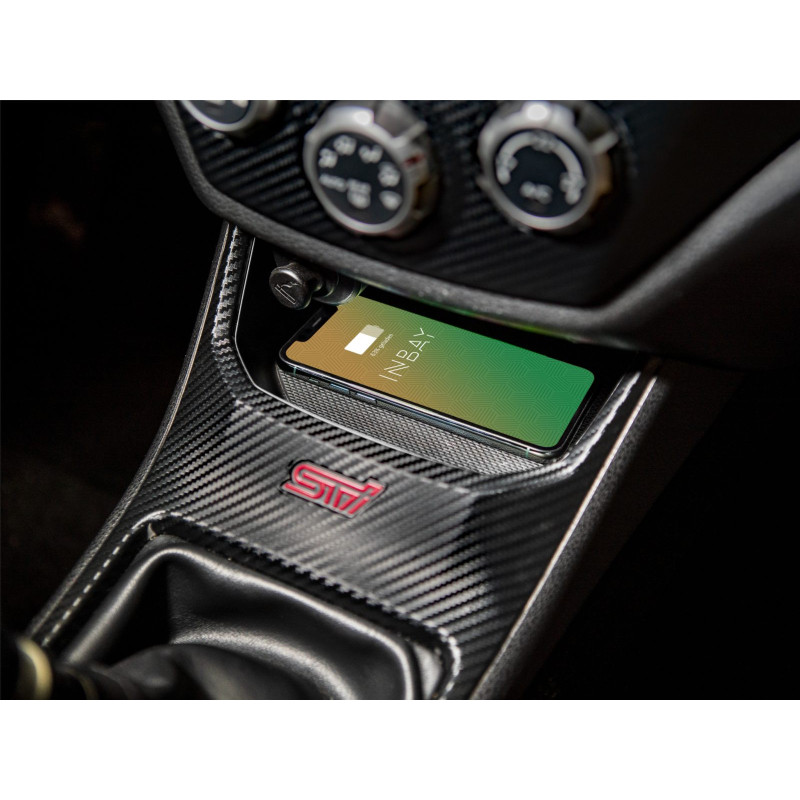

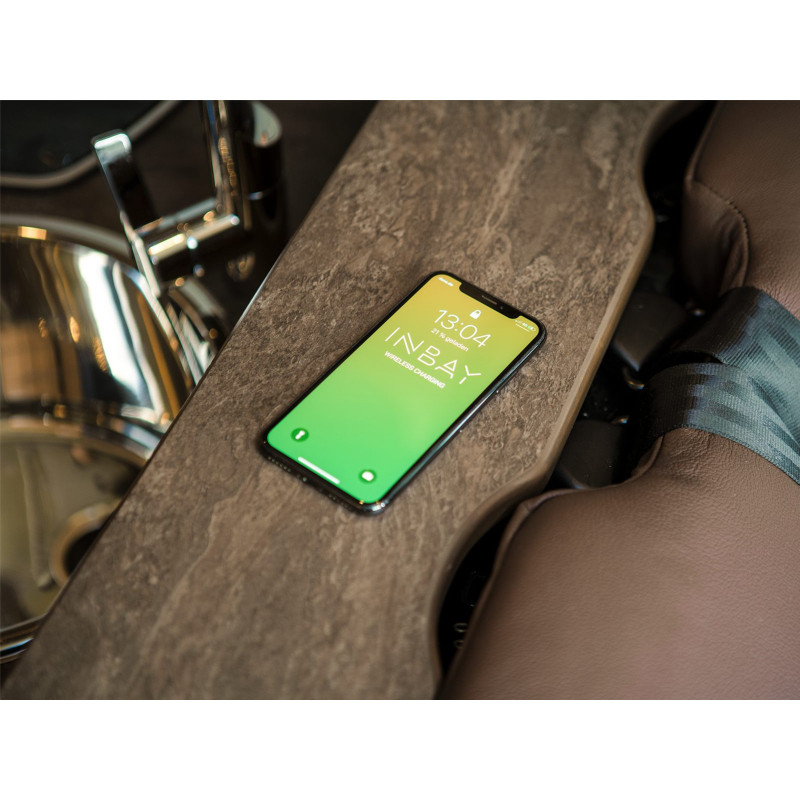

• item image 3: installation example Subaru WRX Stiitem image 5: installation example Audi A4 center console item image 6: installation example of a shelf in a camper van

Connector:

• 12V universal harness

Dimensions:

• L = 165.3mm / W = 76mm / H = 14.7mm
• washer length = 135 / width = 76mm

Charging current:

• DC5 - 9V / 1 - 1.2A (5W, 7.5W, 10W, 15W)
