Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

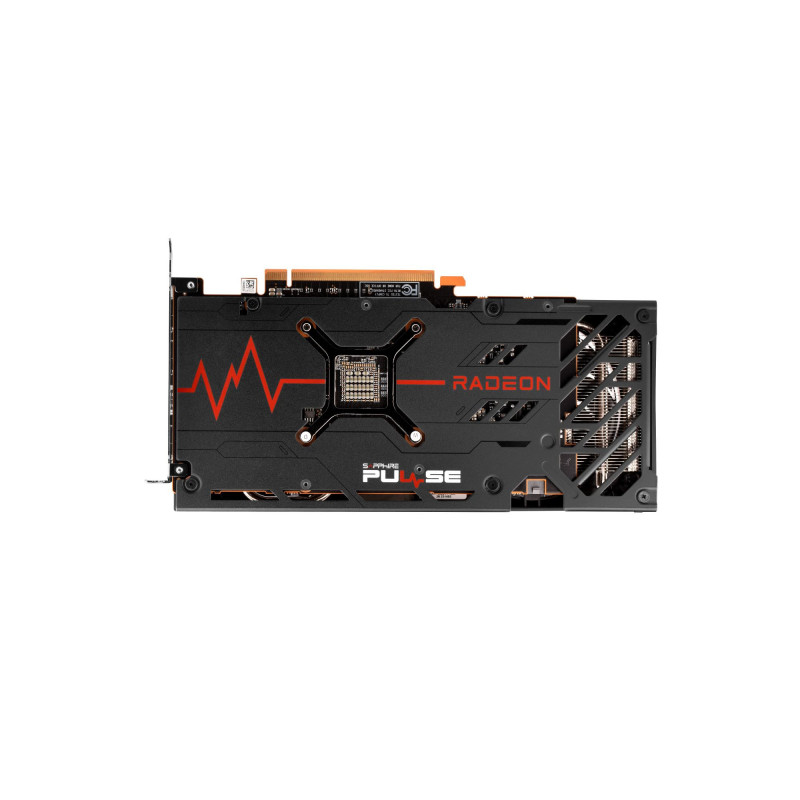

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

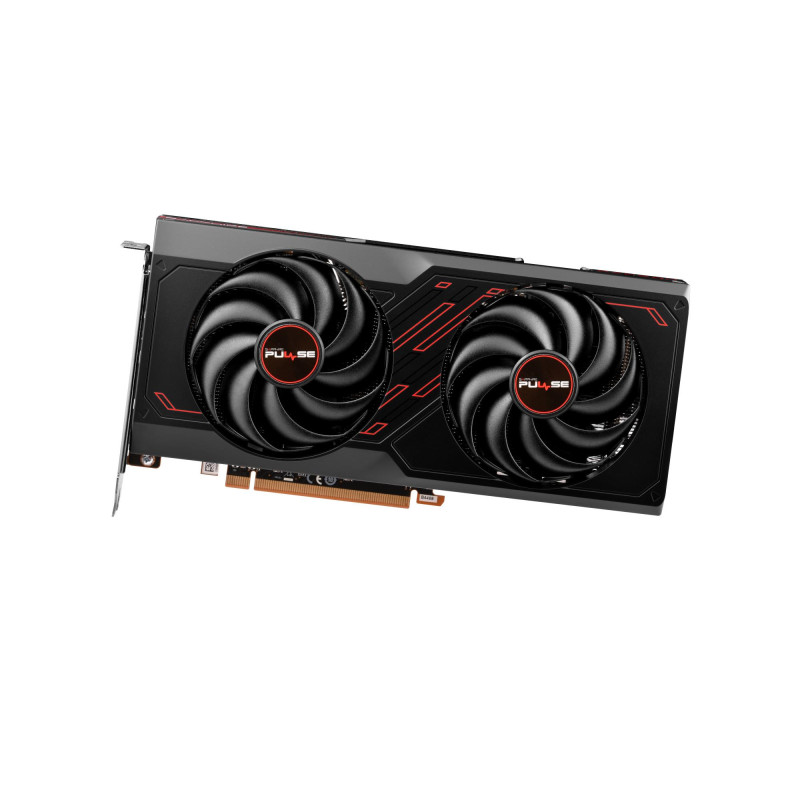

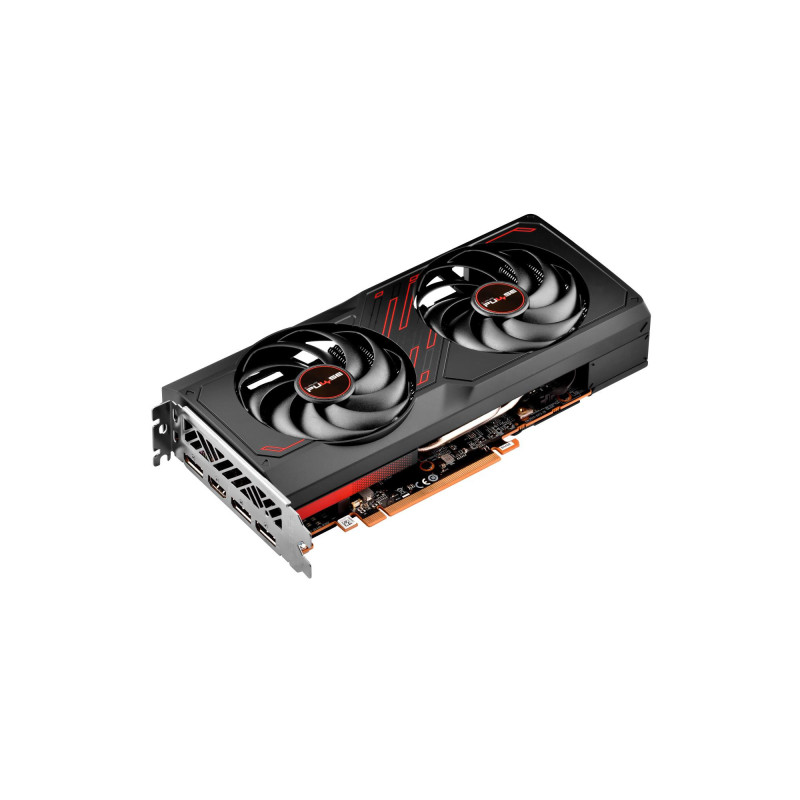

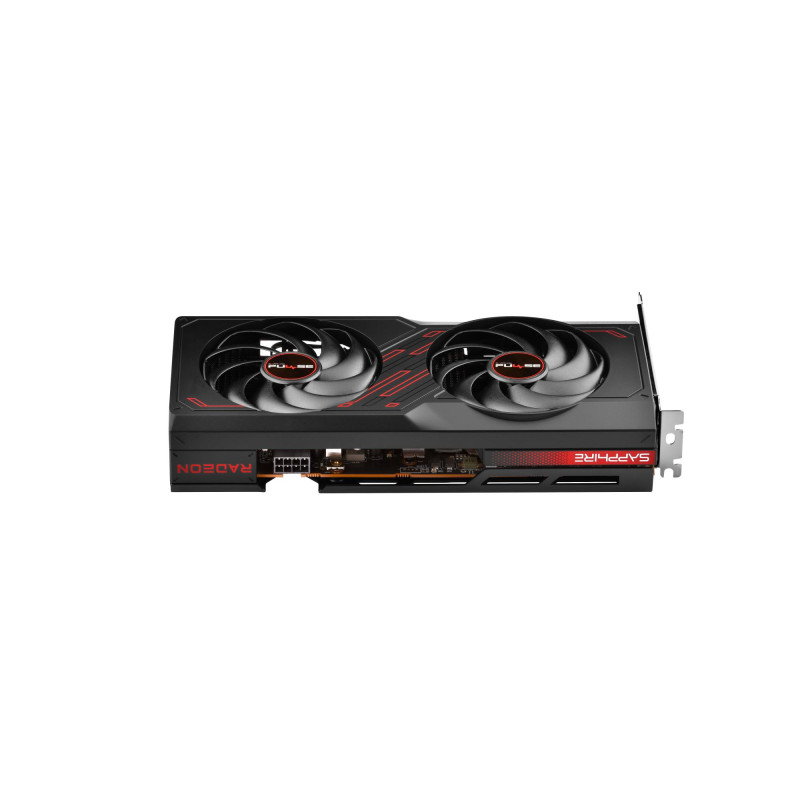

| Summary | Sapphire PULSE 11324-01-20G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s) |
| Vendor Homepage | https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-7600-8g-gddr6#Specification |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.285 |
| Unit Box Width | 0.168 |
| CUDA | No |
| Graphics processor | Radeon RX 7600 |
| Graphics processor family | AMD |
| Infinity cache | 32 MB |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2755 MHz |
| Processor frequency | 2355 MHz |
| Ray accelerators | 32 |
| Stream processors | 2048 |
| Data transfer rate | 18 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x8 4.0 |
| AMD FreeSync | Yes |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Cooling technology | Sapphire Dual-X |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Minimum system power supply | 550 W |
| Power consumption (typical) | 185 W |
| Supplementary power connectors | 1x 8-pin |
| Linux operating systems supported | Yes |
| Minimum RAM | 8192 MB |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Depth | 44.07 mm |
| Height | 107.1 mm |
| Length | 240 mm |
| Quick installation guide | Yes |
| Country of origin | China |
| Model | 11324-01-20G |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00407 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.893 kg |
