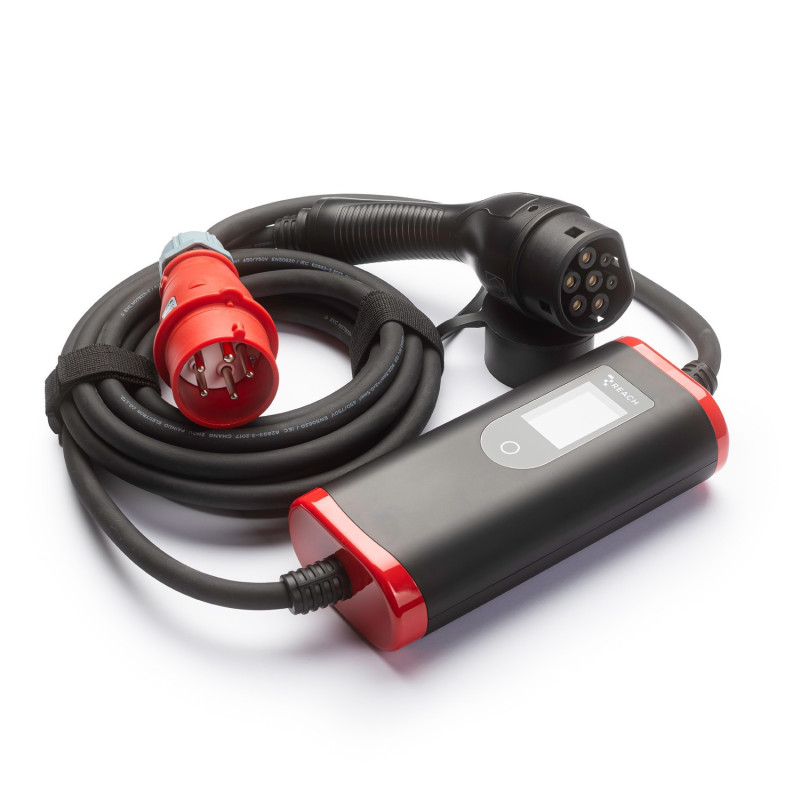

Electric vehicle charger Reach PEVC4 3-phase Type2 16A 11kW 10.0m

Specification:
Connector type: Type 2 and CEE red plug
Charging current: 6-16 A (3-phase, adjustable)
Maximum charging power: 11 kW
Cable length: 10 m
Protection class: IP65
Operating voltage: AC 400-440V
Block size: 220 x 100 x 60 mm
Protection class: IP65
Operating temperature: -35°C ~ +50°C
Operating humidity: 5% ~ 95% RH
Protection against overheating, overvoltage, overload, voltage fluctuations, short circuit, surges, leakage; grounding.
Warranty: 24 months.

Real-Time Charging Management
The integrated LED display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:
Maximum current: The maximum current that the charging station can use.
Accumulated energy: Total energy accumulated during the charging session.
Charging time: How long it takes to charge.
Charging unit temperature: The current temperature of the charging unit.
Mains voltage: current mains voltage.
Instantaneous charging power: the actual power supplied to the car at this moment.
Instantaneous charging current: current charging current.
Charging status: waiting, charging, completed.
On-screen control menu options:
Current change: ability to change the charging current from 6 A to 16 A.
Charging start time setting: Ability to set the charging start time up to 12 hours in advance.
Grounding Mode Control: Enable/disable grounding modes depending on usage circumstances.

Control via mobile app, and when there is no network, via Bluetooth
The device has an integrated smart control system that you can access via a mobile app or Bluetooth.
The app allows you to:

• Start charging


• View charging history


• Set charging time


• Adjust charging power
