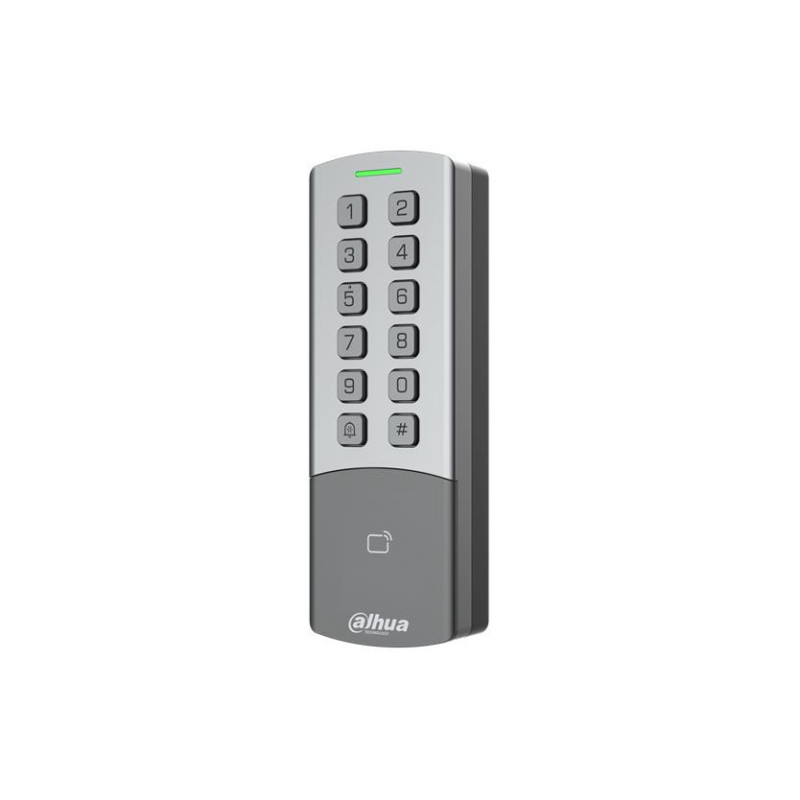

CODE LOCK SMART / ASI1201M-MEP DAHUA

Dahua Card Swiping,Password Access Standalone

> The front part of the case is made of zinc alloy and the back part is made of plastic.

> Supports 10,000 users, 10,000 passwords, 10,000 cards (125 KHz, EM-Marine RFID, 13.56 MHz Mifare), and 100,000 records.

> Mechanical keypad with backlighting.

> Supports RS-485 communication and Wiegand communication.

> Buzzer and indicator light.

> Supports doorbell.

> Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, and excessive use of illegal card.

> Cards can be issued to multiple types of users such as normal, VIP, patrol, guest, blocklist, other, and custom users.

> Supplies power to 1 lock (12 V, 500 mA or lower) or 1 card reader (12 V, 200 mA or lower).

> Convenient to configure through its webpage that is accessible to both computers and mobile devices.

> PoE power supply.

> Supports security extension modules for access control, preventing doors from being forcefully opened.

> Online update.

> Supports TCP/IP connection, auto registration, P2P registration and DHCP.

> IP65 and IK08 rated.

> Supports surface mount.

> Compatible with multiple platforms such as SmartPSS lite, DSS PRO and DMSS.
