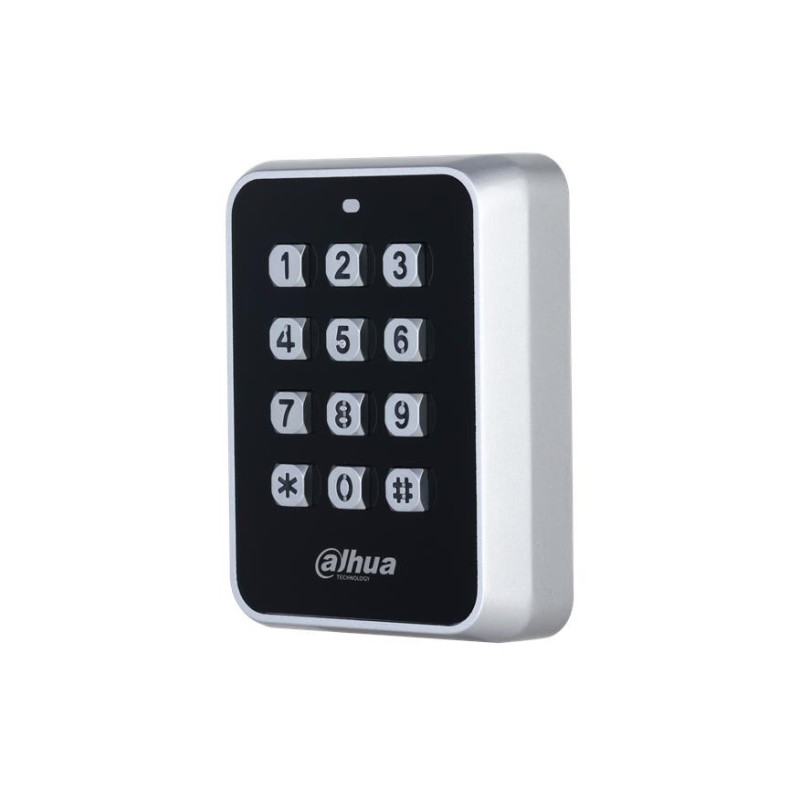

CARD READER MIFARE 13.56MHZ / ASR1101M-V1 DAHUA

DHI-ASR1101M-V1 Vandal-proof Indoor Password IC Card Reader

> The metal keypad has a backlight and makes a beeping sound each time you press a key on it.

> High-performance 32-bit processor.

> 3 identity verification modes: Card, password, and a combination of card and password.

> Contactless card reading. Supports reading Mifare cards (IC card).

> Works at a frequency of 13.56 MHz.

> RS-485 and Wiegand communication.

> Highly compatible with third-party products, the device supports the W26 and W34 Wiegand interface, with W34 as the default.

> Provides online updates.

> Buzzer and indicator light.

> Lightning-proof, antistatic, and anti-short-circuit design.

> Built-in dongle software ensures long-term operation of the device.

> Tamper alarm.

> Overcurrent and overvoltage protection for all interfaces.

> IK08 rated.

> Operating temperature is -10 °C to +55 °C, and the operating humidity is less than 95%.

> Supports surface mount and flush mount (86 mount box is required).
