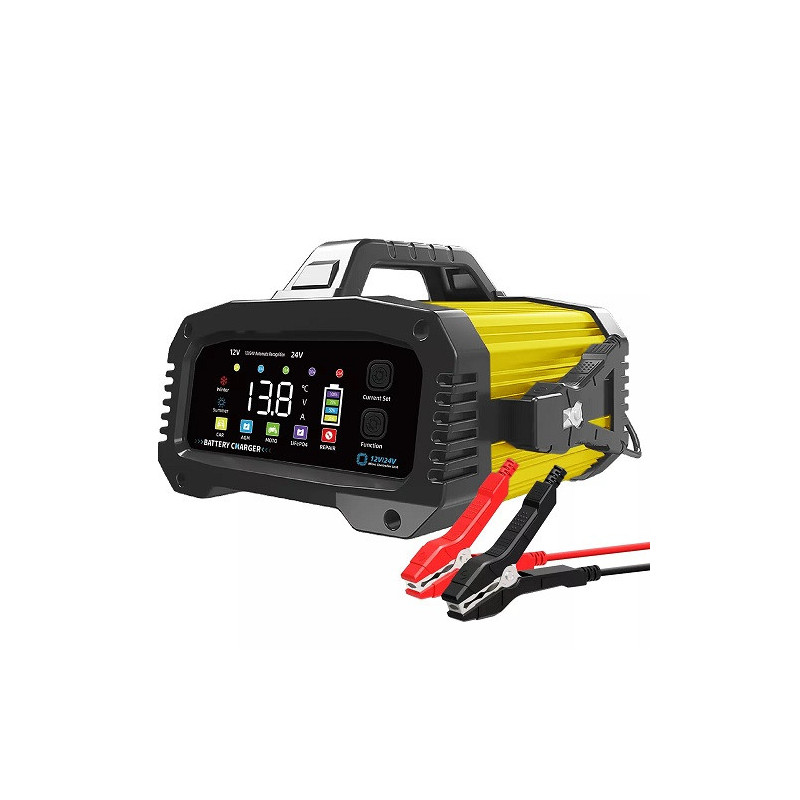

Automatic lead acid/LiFePO4 battery charger, 12V 25A/24V 15A

Automatic smart battery charger with integrated charge management system, for 12V - 24V lead-acid and LiFePO4 batteries. It is designed to charge and maintain batteries of cars, motorcycles, scooters, tricycles and other vehicles. Automatically detects the battery condition and selects the appropriate charging mode, has a battery "revival" pulse function and an auxiliary start mode for discharged 12V batteries.
Features:
Suitable for 12V and 24V batteries - can be used in various vehicles and devices.
Supported battery types: lead acid (STD, AGM, GEL, EFB), lithium iron phosphate (LiFePO4).
Automatic intelligent charging algorithm with battery condition diagnostics, optimized charge control, temperature correction and pulse reset function.
Automatic charging - the device itself adjusts the charging current and voltage level according to the battery condition.
Pulse Repair mode helps reduce sulfation and restore a weakened lead-acid battery.
Low Voltage Start for 12V batteries allows you to start the engine when the battery is almost completely discharged (short-term mode ~200 s).
The kit includes terminals for convenient connection to the battery.
Summer/winter mode: the device automatically detects the ambient temperature and selects the appropriate charging voltage depending on the ambient temperature (only works in car mode).
Integrated protections: against reverse polarity, overload, short circuit, overcurrent, overtemperature, wrong button pressing, etc., protect both the charger and the batteries. In addition, the charger has a memory function, battery charge level setting, and sensitive control buttons, making use more convenient and faster.
Sturdy construction: Aluminum housing ensures good cooling and durability. Convenient portable design with cable and terminal holders.
Easy to use. Just connect the battery to the charger and turn on the power, the device automatically detects the remaining battery charge and ambient temperature, and then selects the appropriate charging mode. When fully charged, the charger automatically turns off the charging system.
Wide application: for cars, motorcycles, ATVs, scooters, tricycles, agricultural machinery and other 12/24 V systems.
Advantages: ease of use, automatic operation, efficient battery charging and prolongation of its service life.
Device functions:
1. Standard car battery charging mode:
Charging current (Imax): 25 A (12V mode); 12.5 A (24V mode).
Charging voltage: 14.4-14.9 V (12V mode); 29.2-30 V (24V mode).
Automatic winter/summer temperature adjustment.
Supported batteries: 12-24 V lead-acid batteries.
Maximum duration of one charge: 15-16 hours.
2. Charging mode for AGM batteries:
Charging current (Imax): 25 A (12V mode); 12.5 A (24V mode).
Charging voltage: 14.6 V (12V mode); 29.2 V (24V mode).
Supported batteries: 12-24 V AGM type lead-acid batteries.
Maximum duration of one charge: 15-16 hours.
Trickle charging is not used.
3. Charging mode for lithium iron phosphate (LiFePO4) batteries:
Charging current (Imax): 25 A (12V mode); 12.5 A (24V mode).
Charging voltage: 14.6 V (12V mode); 29.2 V (24V mode).
Supported batteries: 12-24 V LiFePO4 (lithium iron phosphate).
Maximum duration of one charge: 15-16 hours.
Trickle charging is not used.
4. Lead-acid battery repair mode:
Recovery principle: positive impulse recovery method.
Recovery voltage: 14.6 V (12V mode); 29.2 V (24V mode).
Supported batteries: lead-acid type batteries.
Maximum battery recovery time: 15-16 hours.
5. Low Voltage Start mode:
Charging current (Imax): 20 A (only in 12V mode).
Maximum operating time: ~200 seconds
Charging stops automatically when the process is complete and the indicator shows "ON".
Technical data:
Input voltage: 100-220V AC.
Frequency: 50/60Hz.
Input current: 1.92A @240V AC.
Output voltage: 13.8-29.6 V DC.
Charging current (Imax): 25A (12V DC) / 15A (24V DC).
Supported battery types: STD, AGM, GEL, EFB, LiFePo4.
Display: LED.
Operating temperature: -10°C ~ +45°C.
Dimensions: 216mm x 192mm x 125mm.
Weight: ~1.4 kg.
Housing material: aluminum.
Color: yellow, black.
Warranty: 24 months
