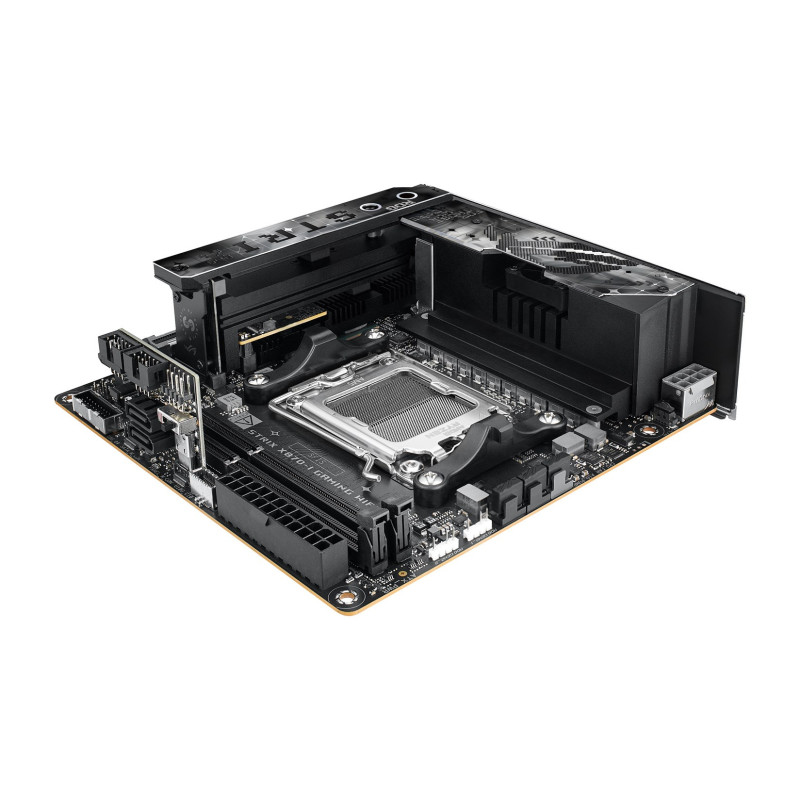

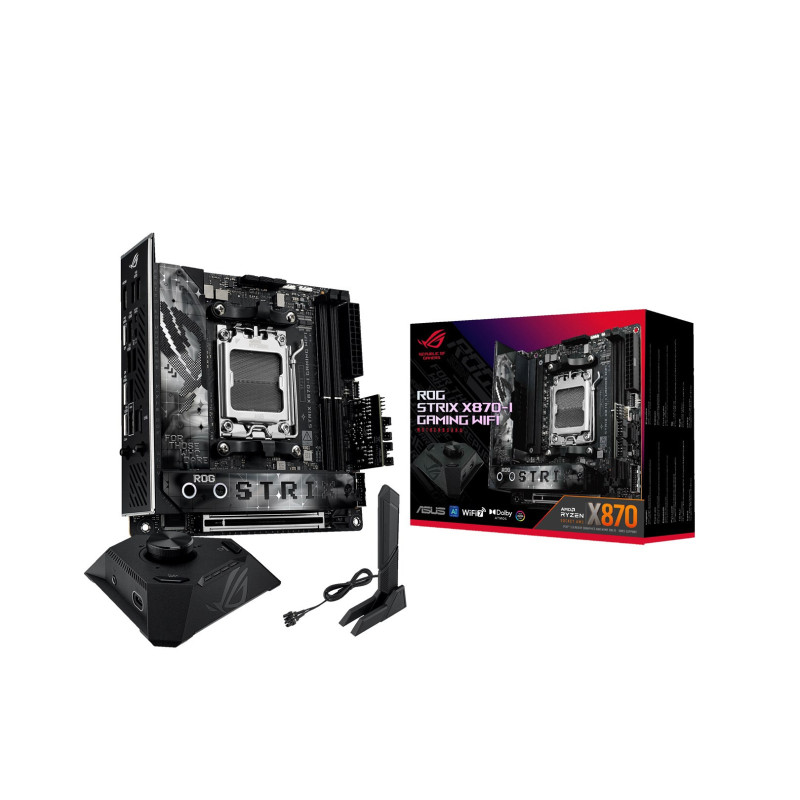

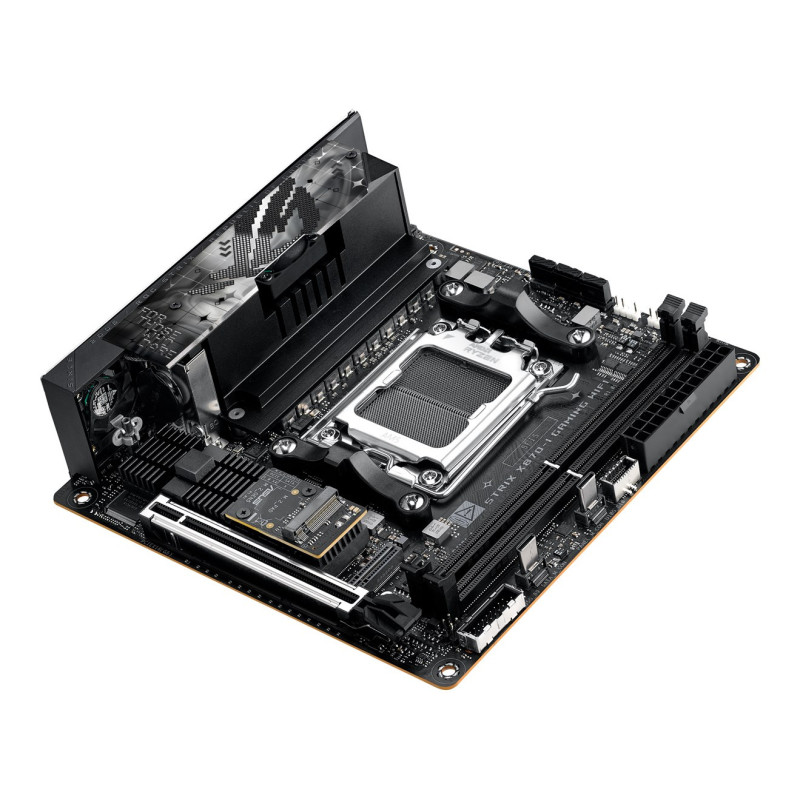

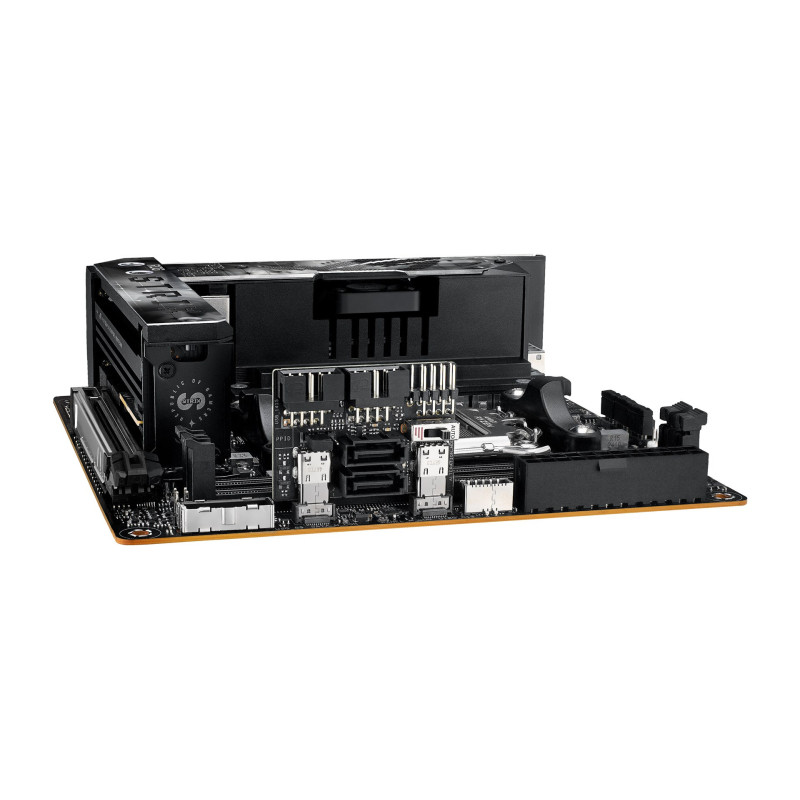

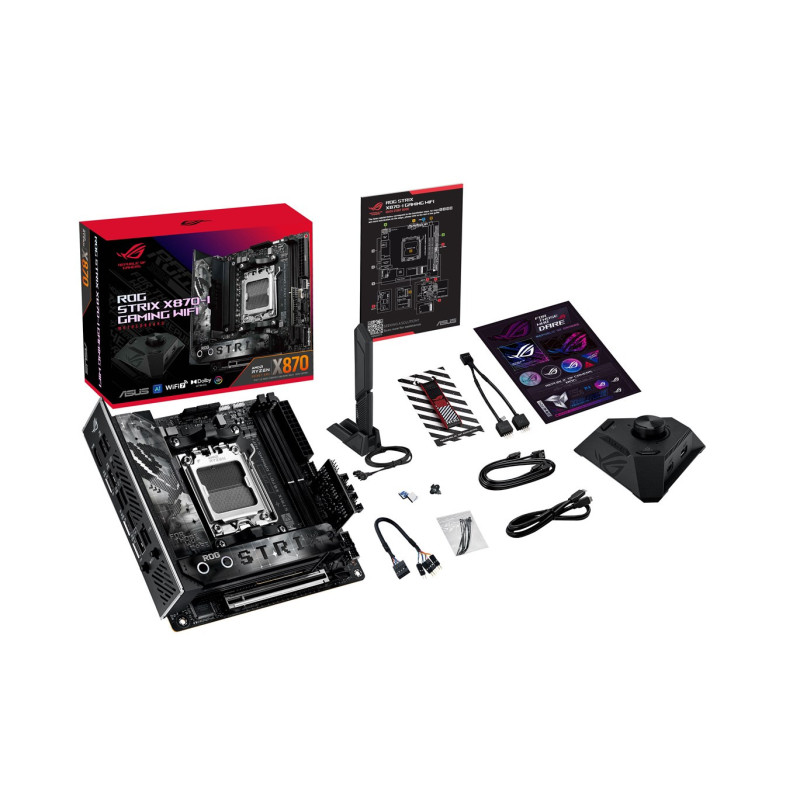

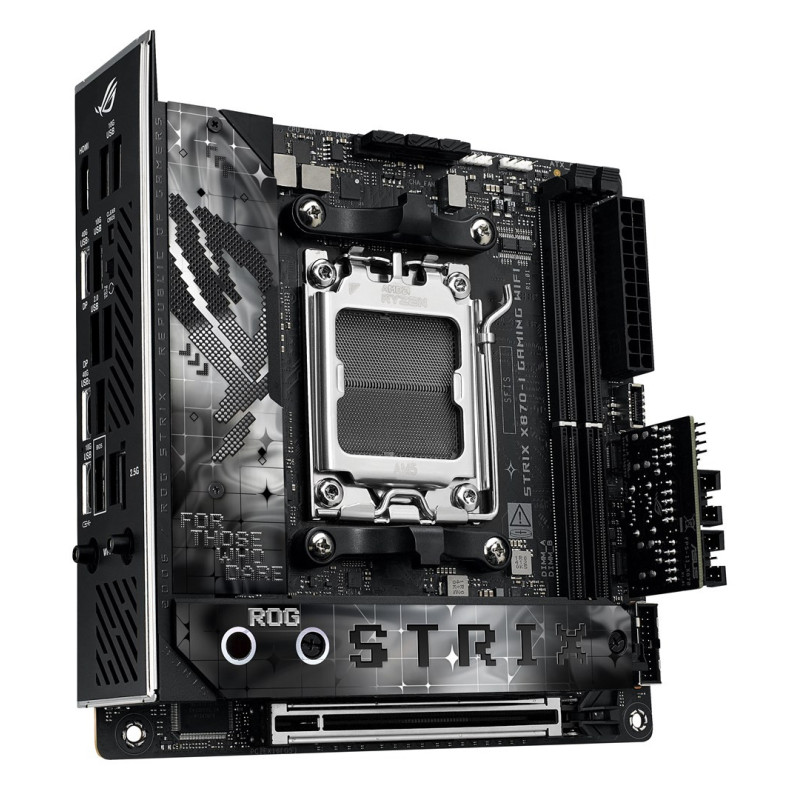

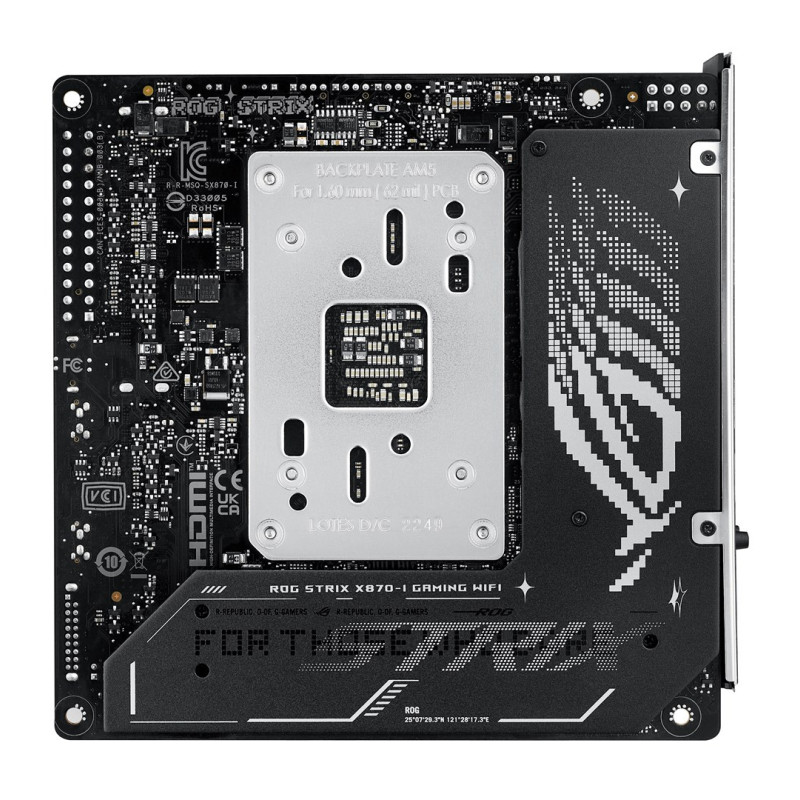

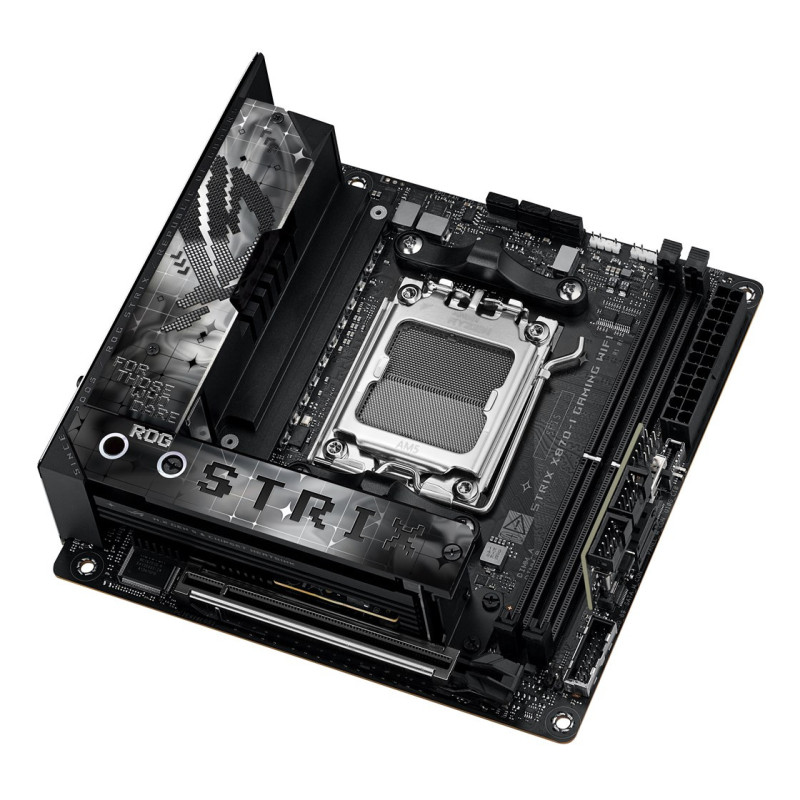

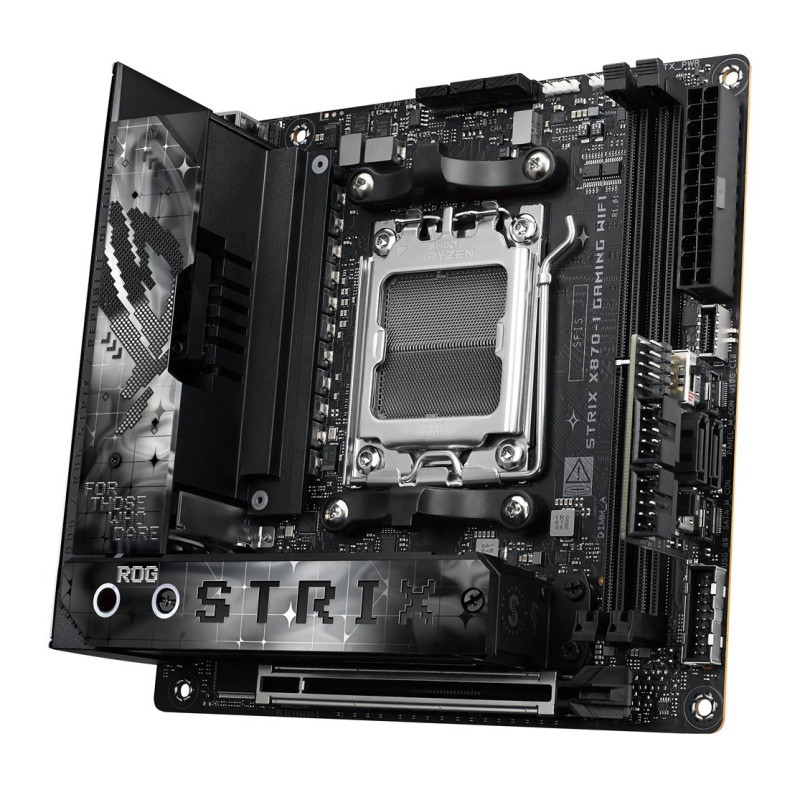

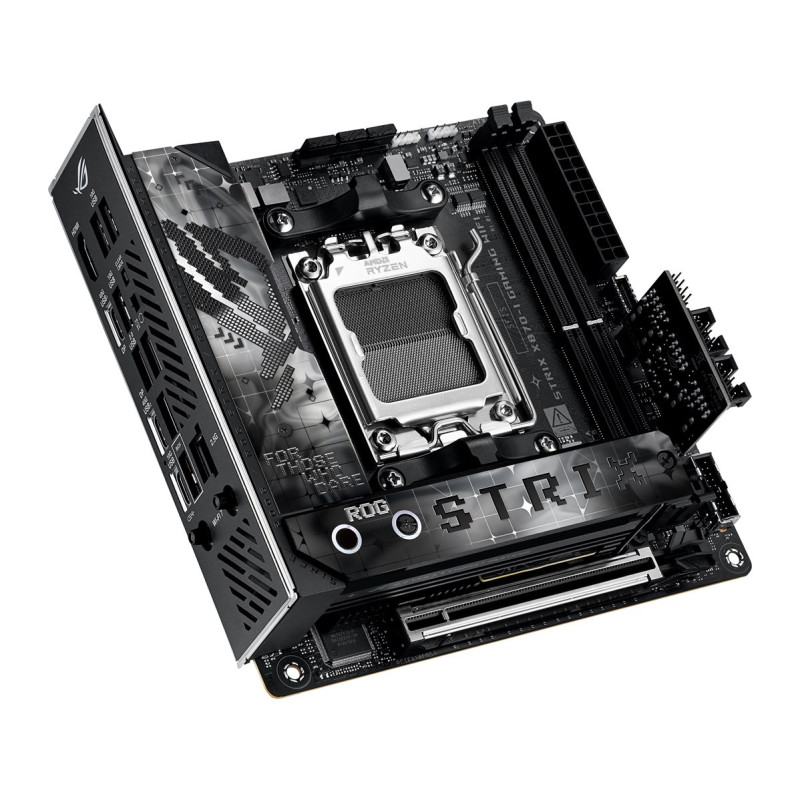

ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard
Product reference:
6-90MB1IW0-M0EAY0
ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard
ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard
Product reference:
6-90MB1IW0-M0EAY0
ASUS ROG STRIX X870-I GAMING WIFI AMD X870 socket AM5 mini ITX motherboard
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Motherboard chipset family | AMD |
| Motherboard form factor | mini ITX |
| Motherboard chipset | AMD X870 |
| Windows operating systems supported | Windows 11 x64 |
| Product colour | Black |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| ECC сompatibility | ECC & Non-ECC |
| Memory channels | Dual-channel |
| Maximum internal memory | 96 GB |
| Supported memory clock speed (max) | 8600 MHz |
| Unbuffered memory | Yes |
| Width | 170 mm |
| Depth | 170 mm |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet interface type | Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 1 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Number of HDDs supported | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 4 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |

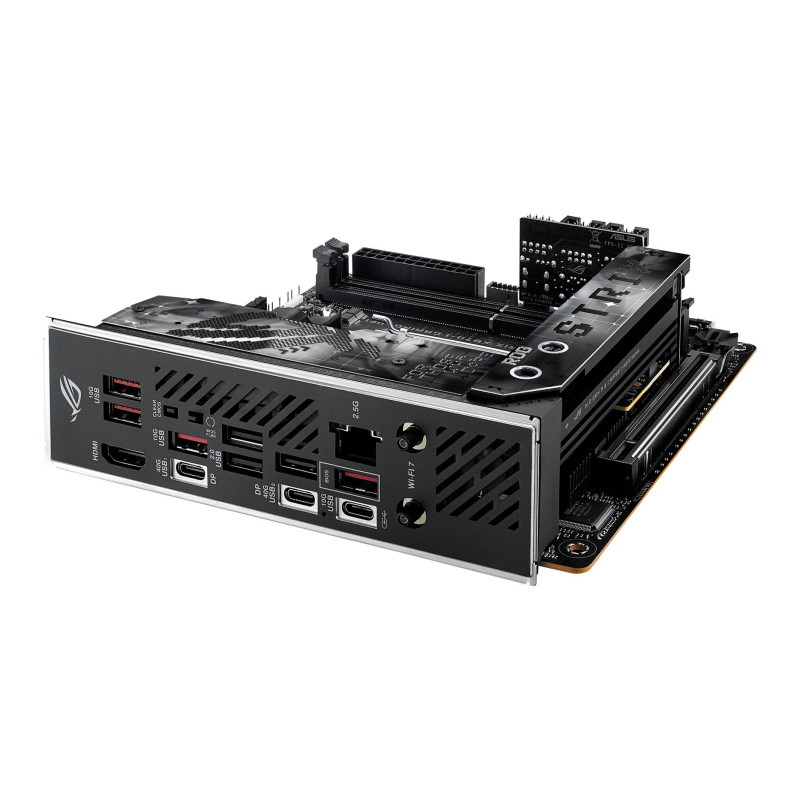

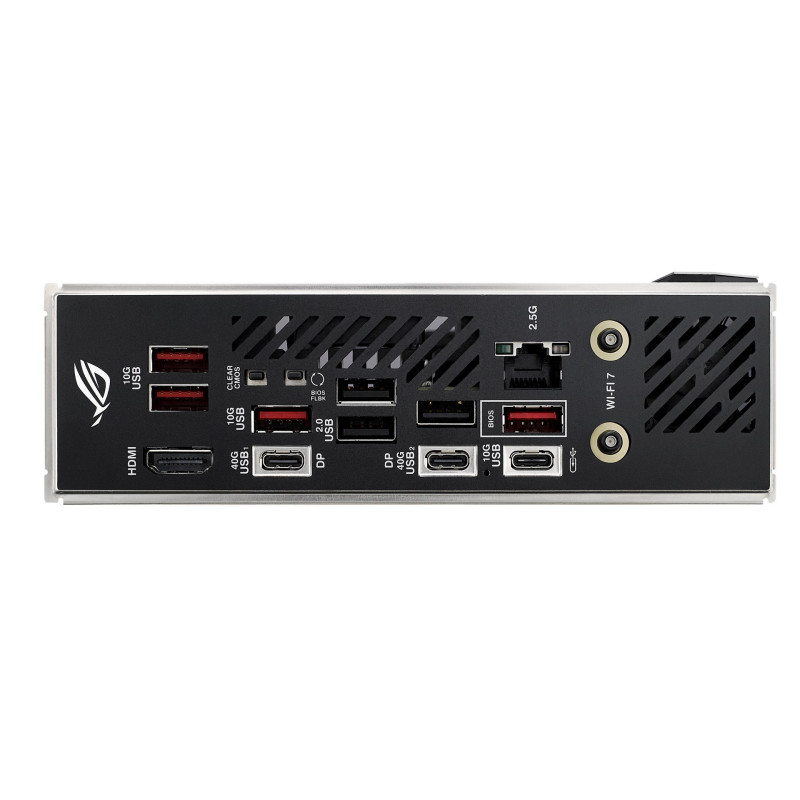

| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
