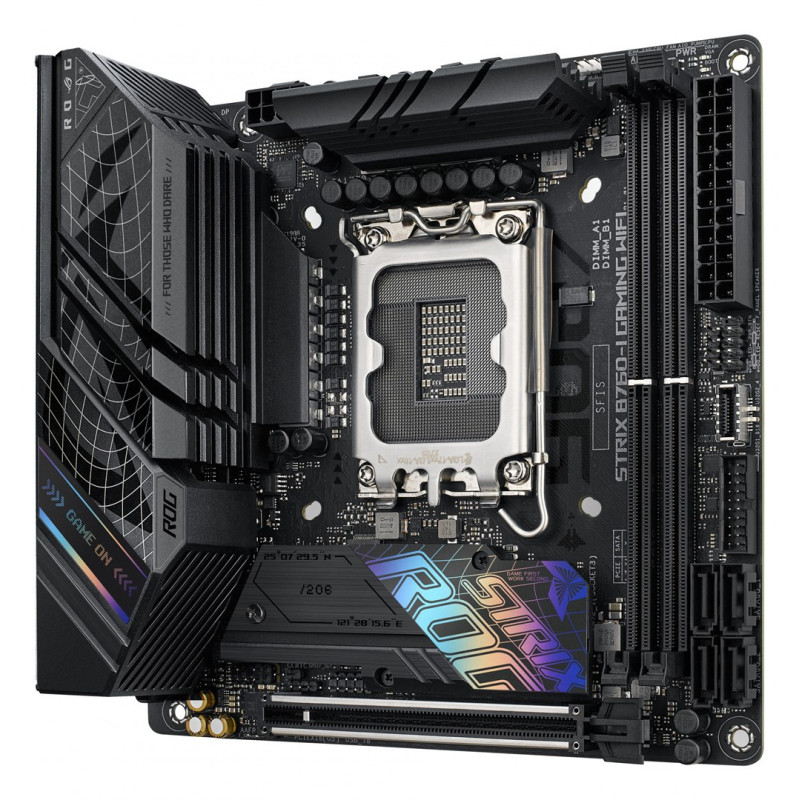

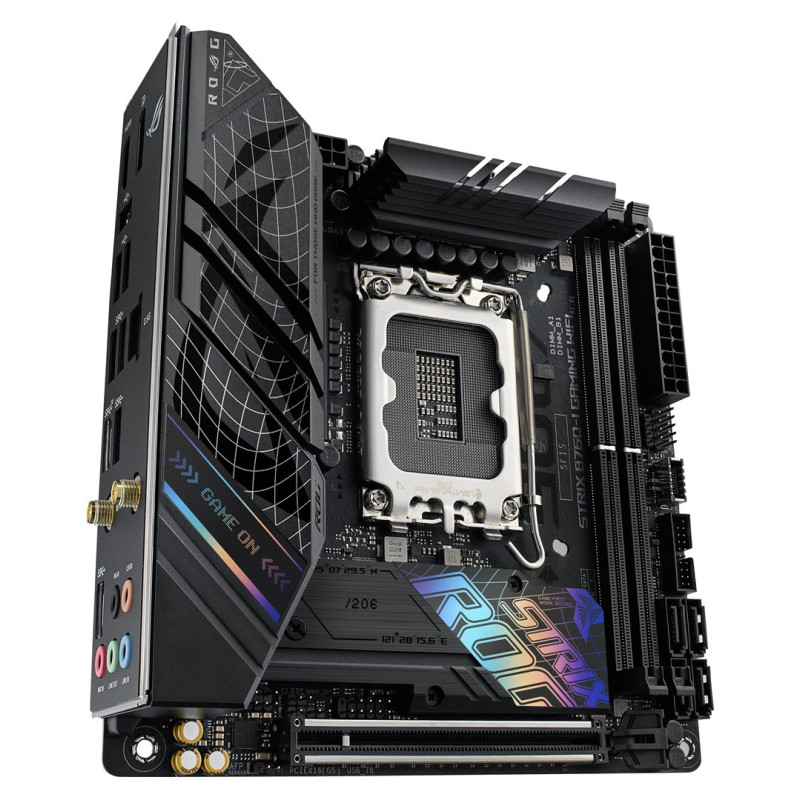

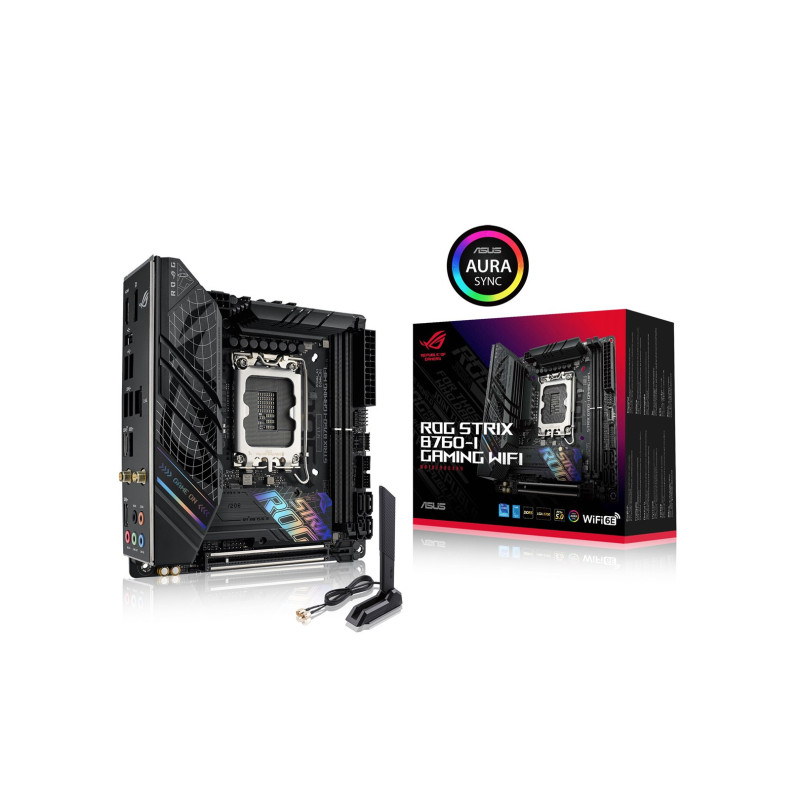

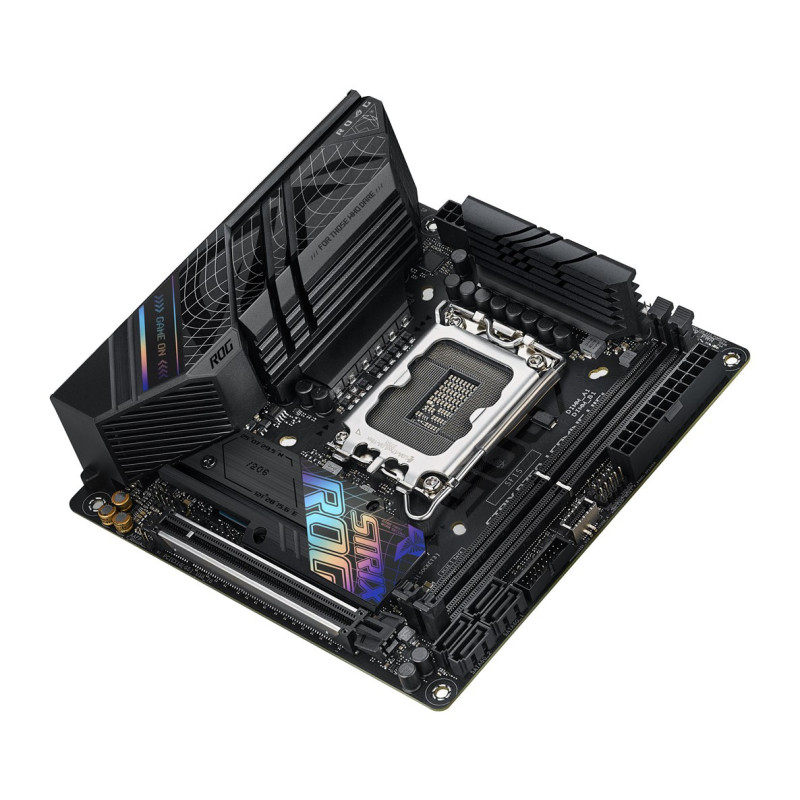

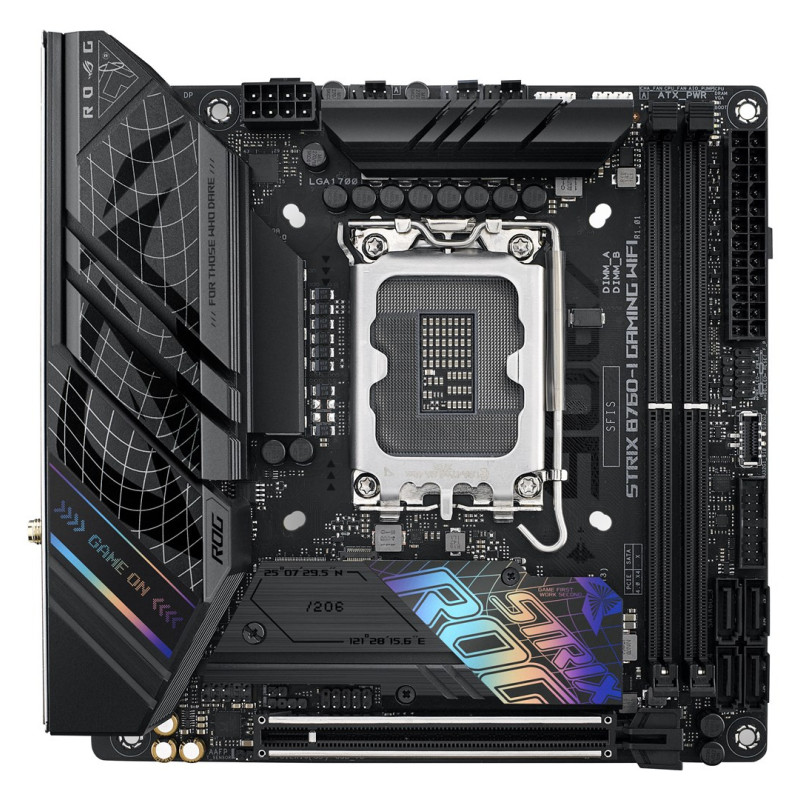

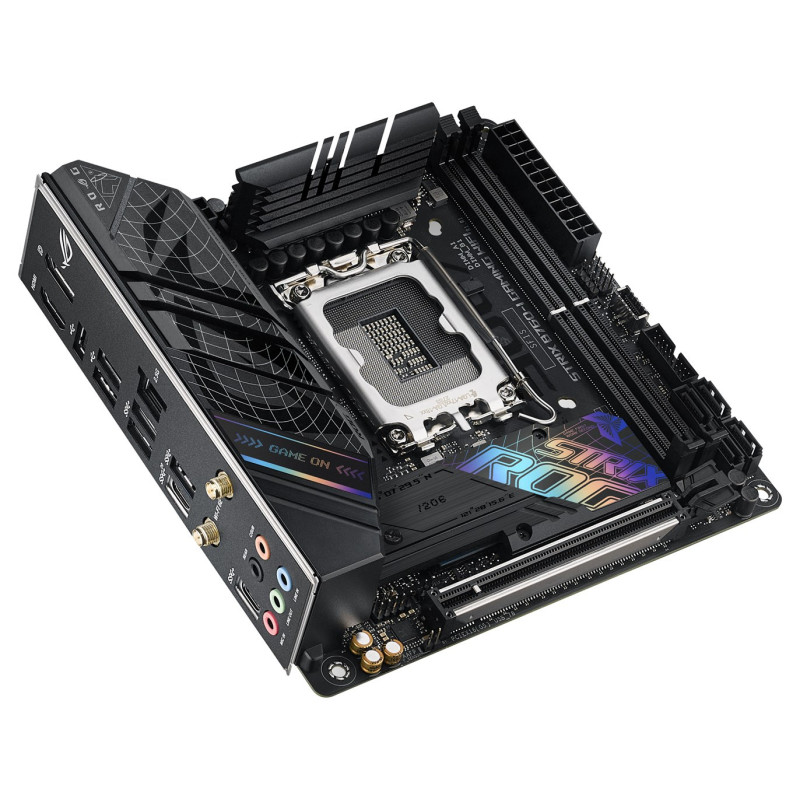

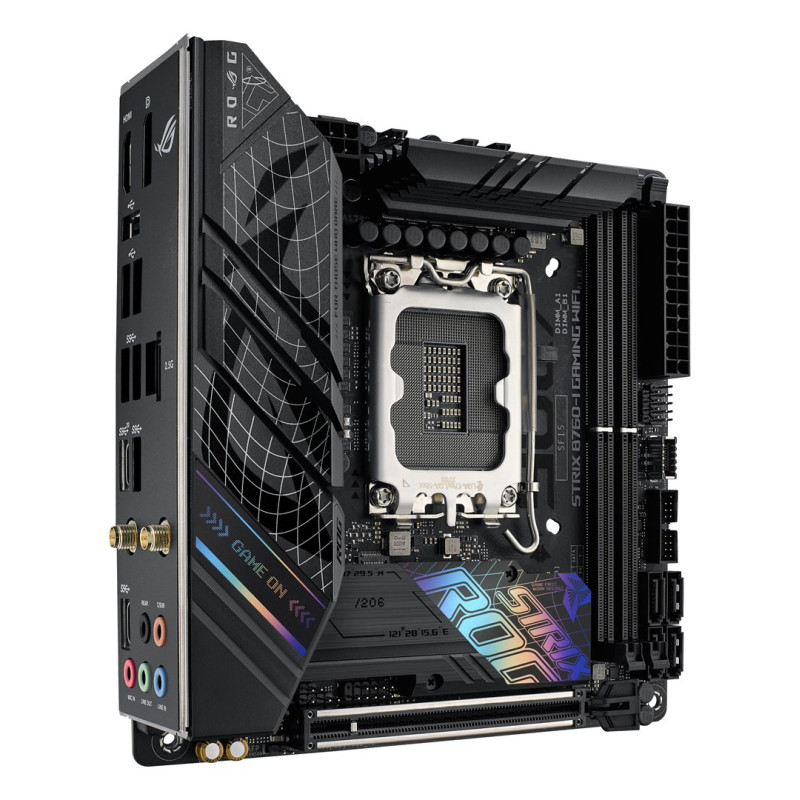

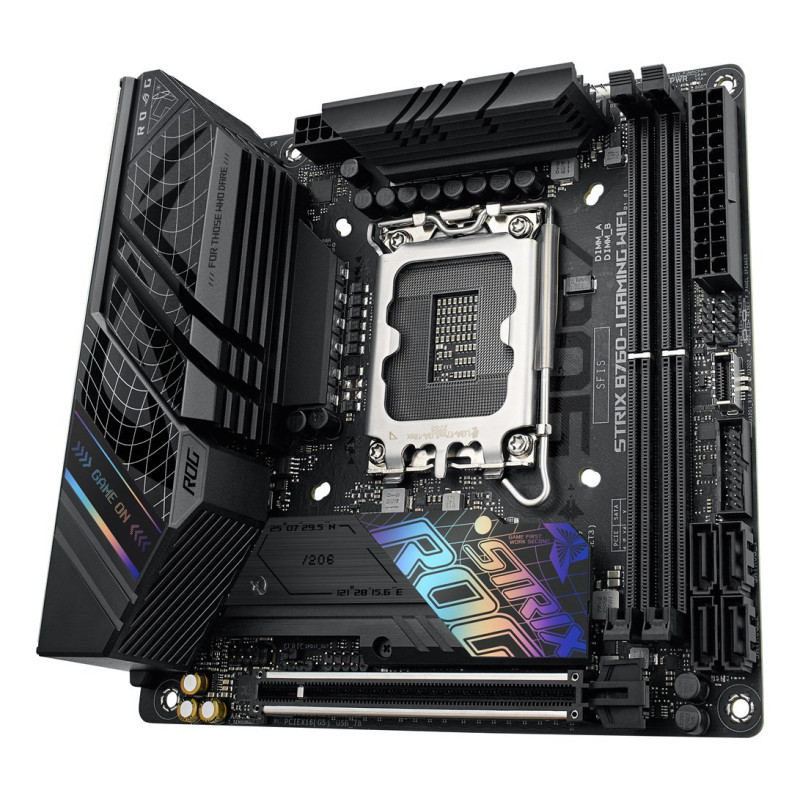

ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
Product reference:
6-90MB1D90-M1EAY0
ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
Product reference:
6-90MB1D90-M1EAY0
ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard form factor | mini ITX |
| Audio output channels | 7.1 channels |
| Audio chip | SupremeFX S1220A |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 7600 MHz |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 7600 MHz, 6600, 6400, 5600, 7200, 6200, 5200, 6800, 7000, 5000, 4800, 6000, 5800, 5400 |
| Maximum internal memory | 64 GB |
| ECC сompatibility | Non-ECC |
| Unbuffered memory | Yes |
| Height | 50 mm |
| Width | 170 mm |
| Depth | 170 mm |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b, 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| BIOS type | UEFI AMI |
| User guide | Yes |

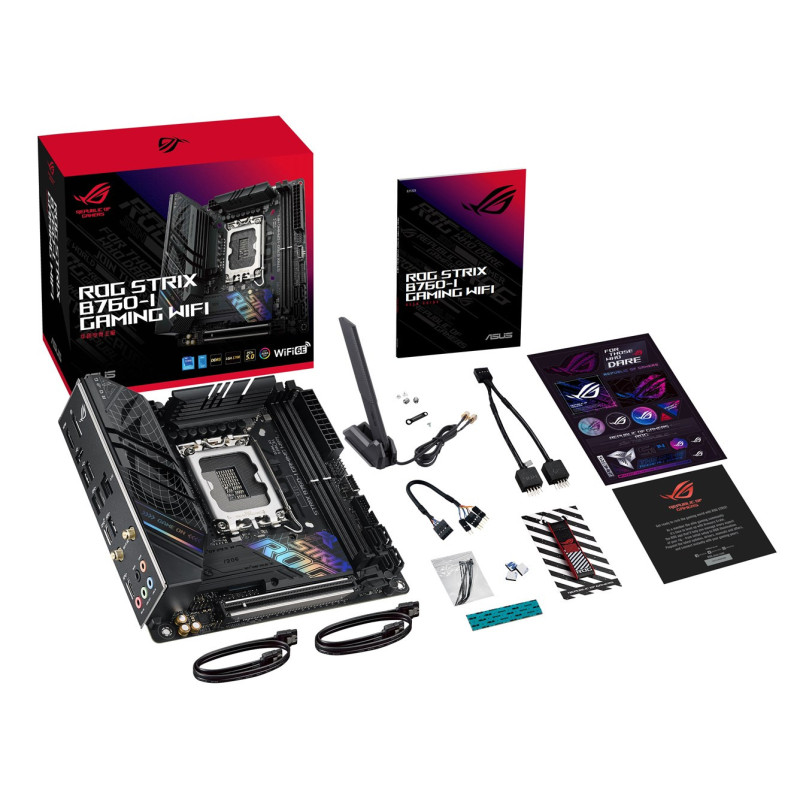

| Cables included | SATA |
| Number of HDDs supported | 4 |
| RAID levels | 5, 1, 10 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |

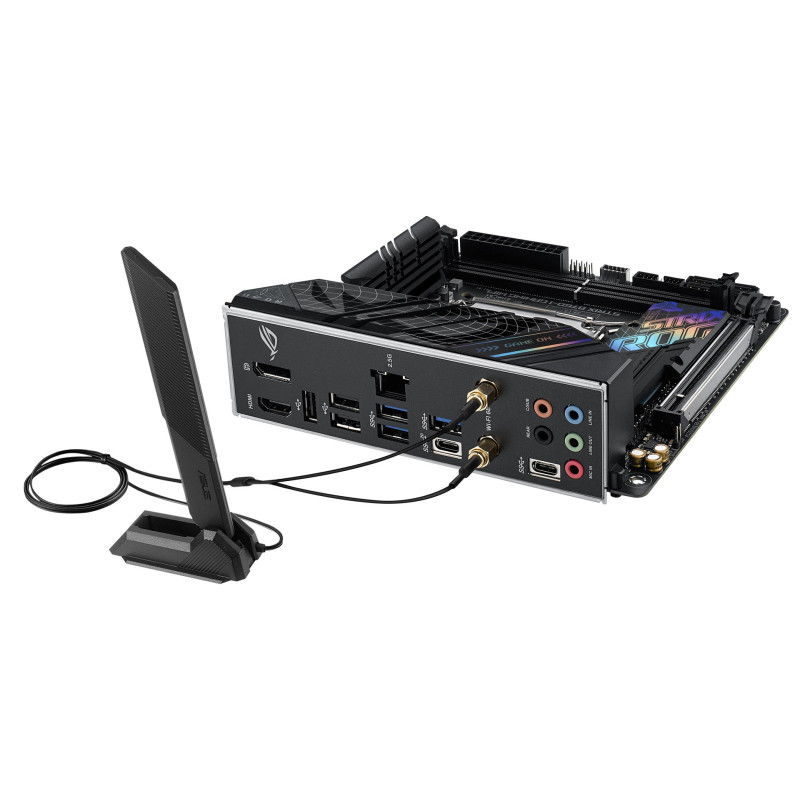

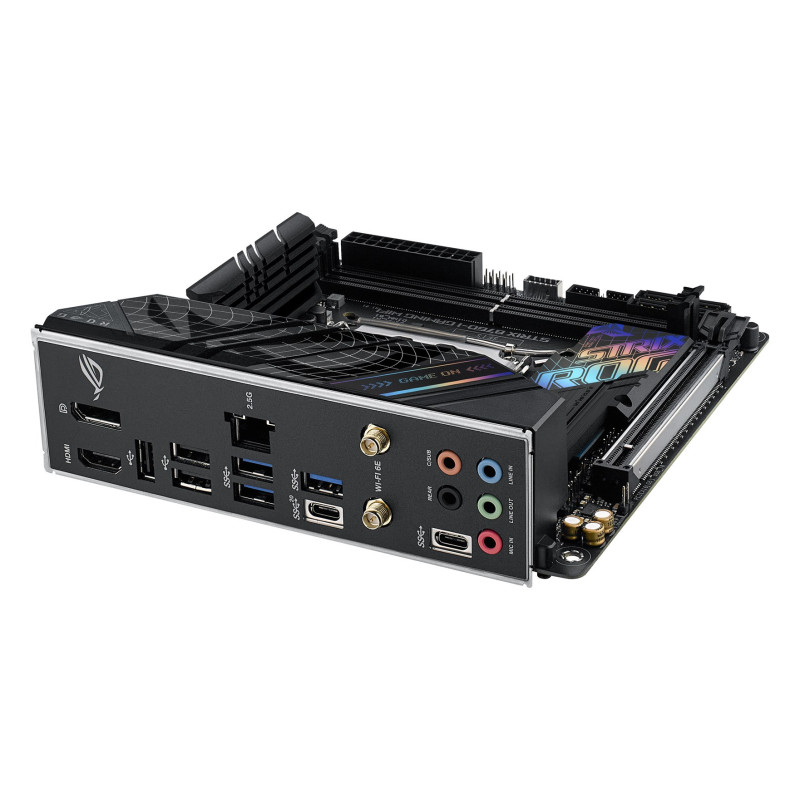

| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Weight | 644 g |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply. |
