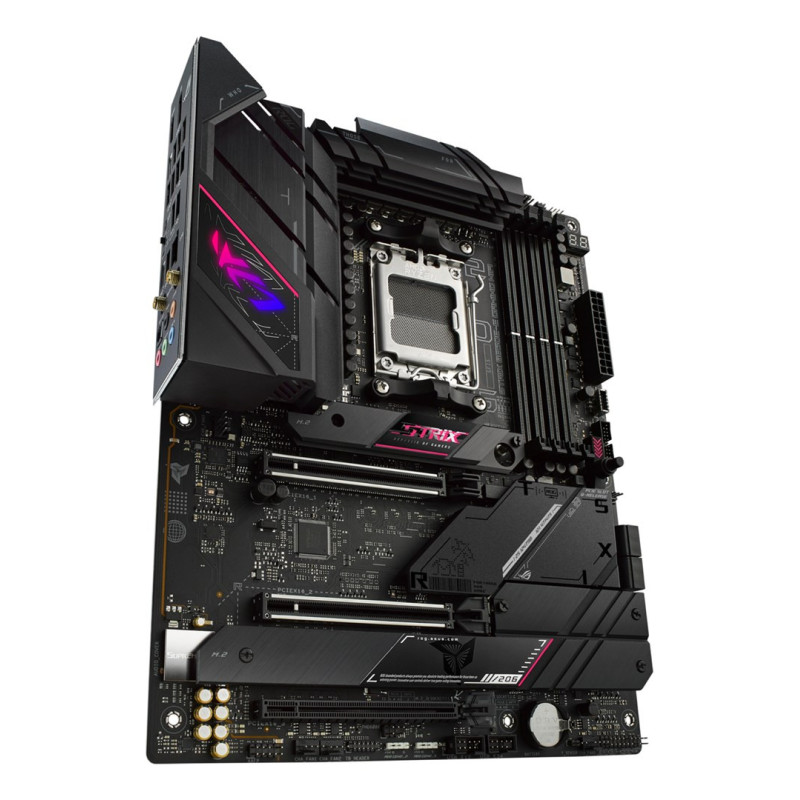

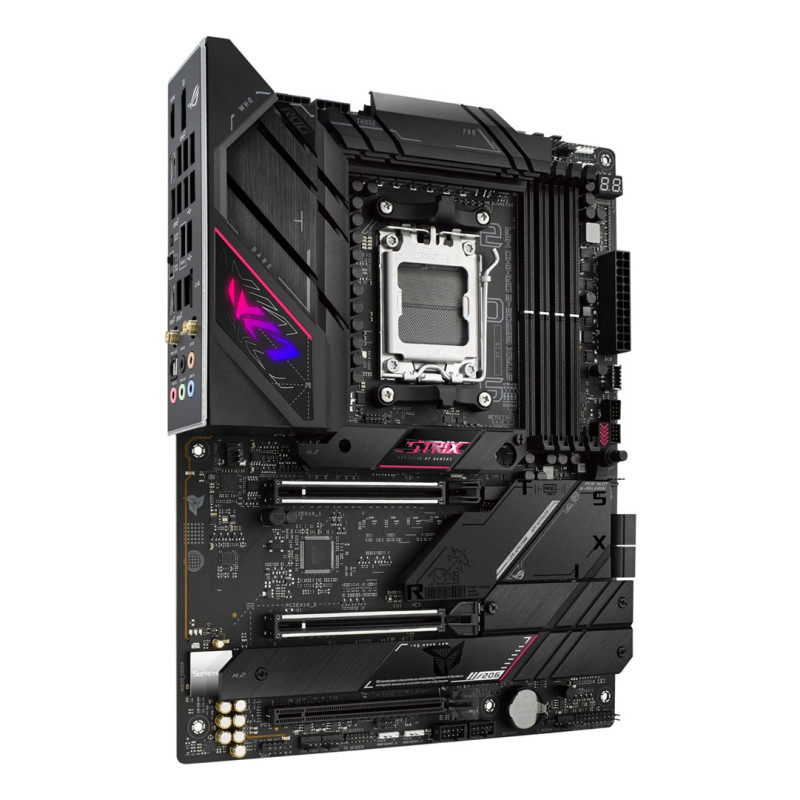

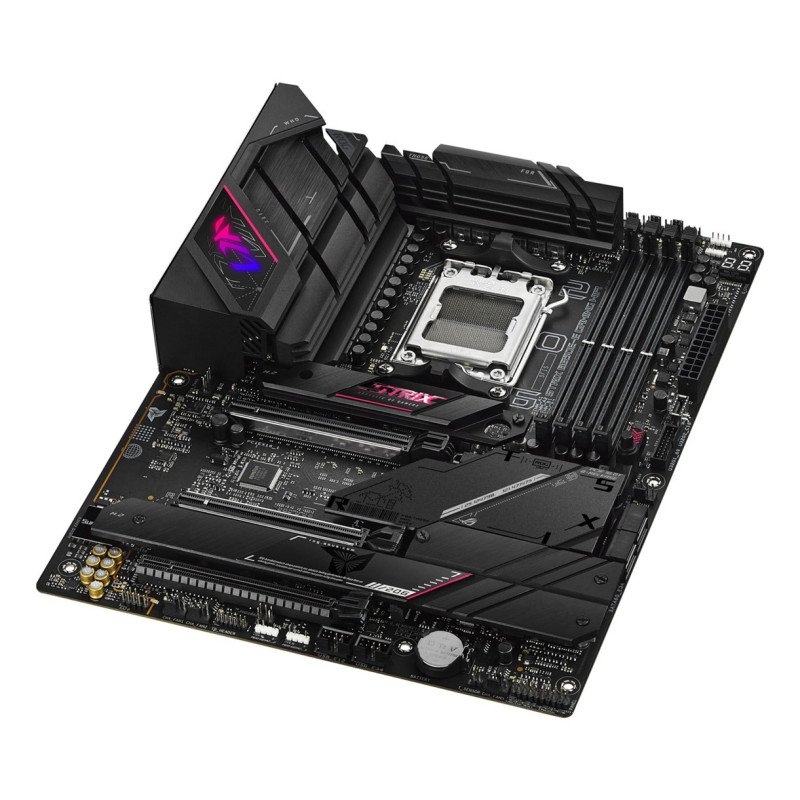

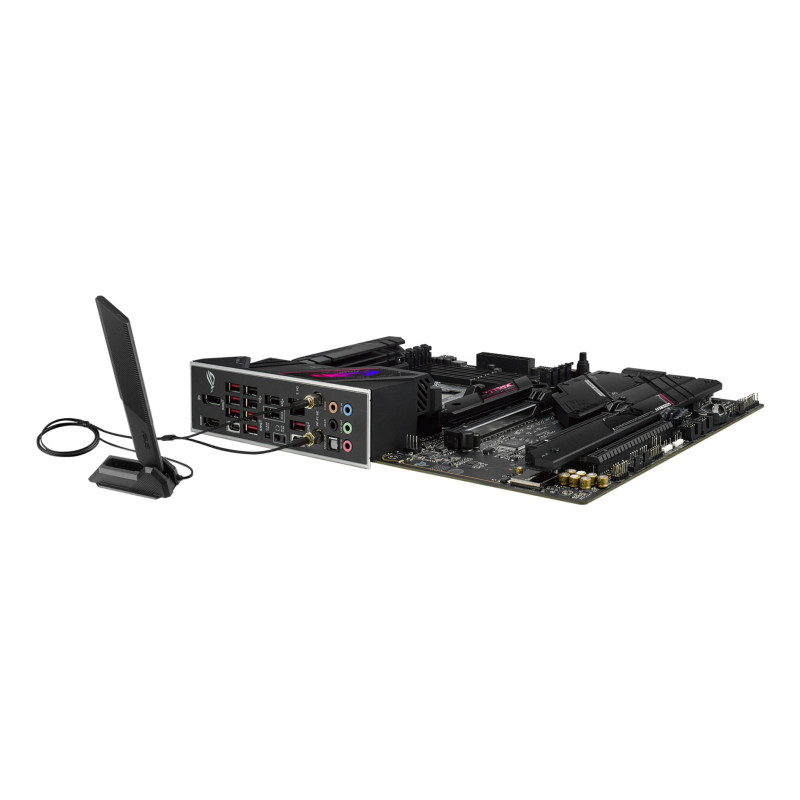

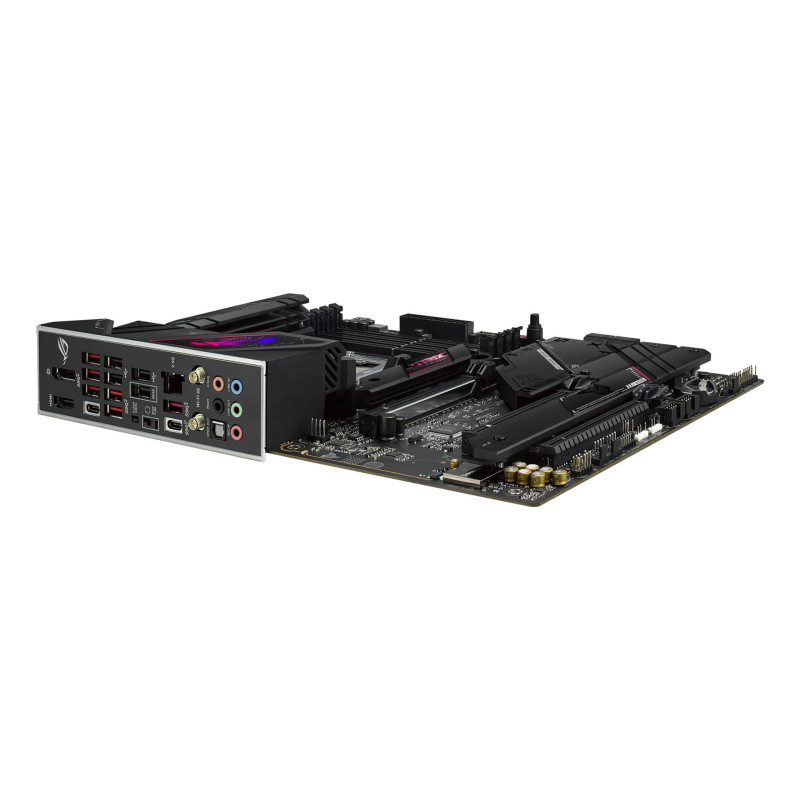

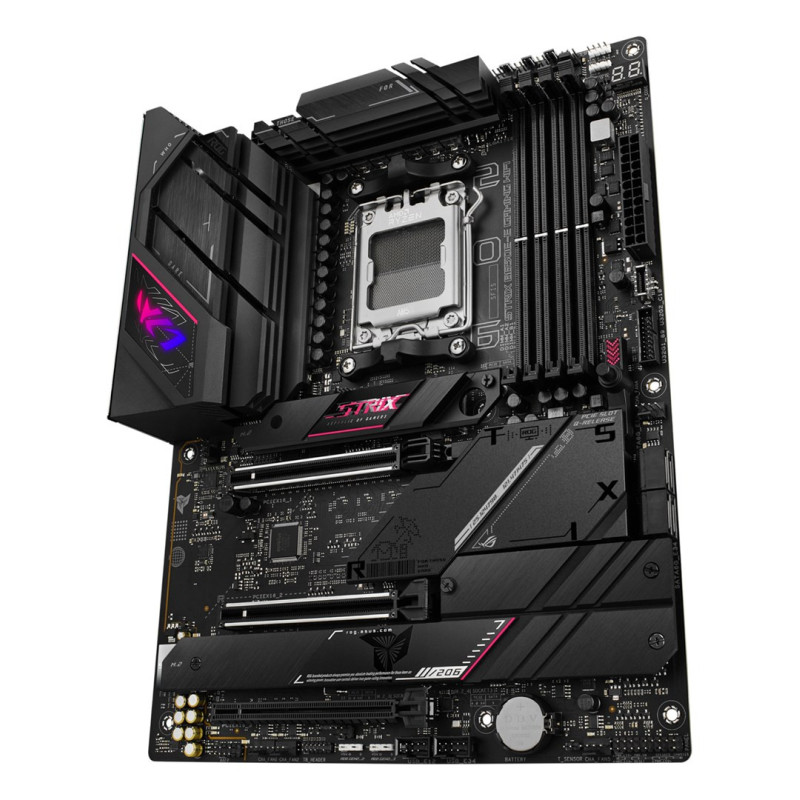

ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX
Product reference:
6-90MB1BB0-M0EAY0
ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX
Product reference:
6-90MB1BB0-M0EAY0
ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | AMD |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Parallel processing technology support | Not supported |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 Windows 10 |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Motherboard form factor | ATX |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5800 5400 5000 6400 MHz 4800 6000 5200 6200 5600 |
| Unbuffered memory | Yes |
| Maximum internal memory | 128 GB |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6400 MHz |
| Depth | 244 mm |
| Width | 305 mm |
| Wi-Fi standards | 802.11g 802.11b 802.11a Wi-Fi 6 (802.11ax) Wi-Fi 5 (802.11ac) Wi-Fi 6E (802.11ax) Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Thunderbolt headers | 1 |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| User guide | Yes |
| Cables included | SATA |
| RAID support | Yes |
| RAID levels | 10 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |

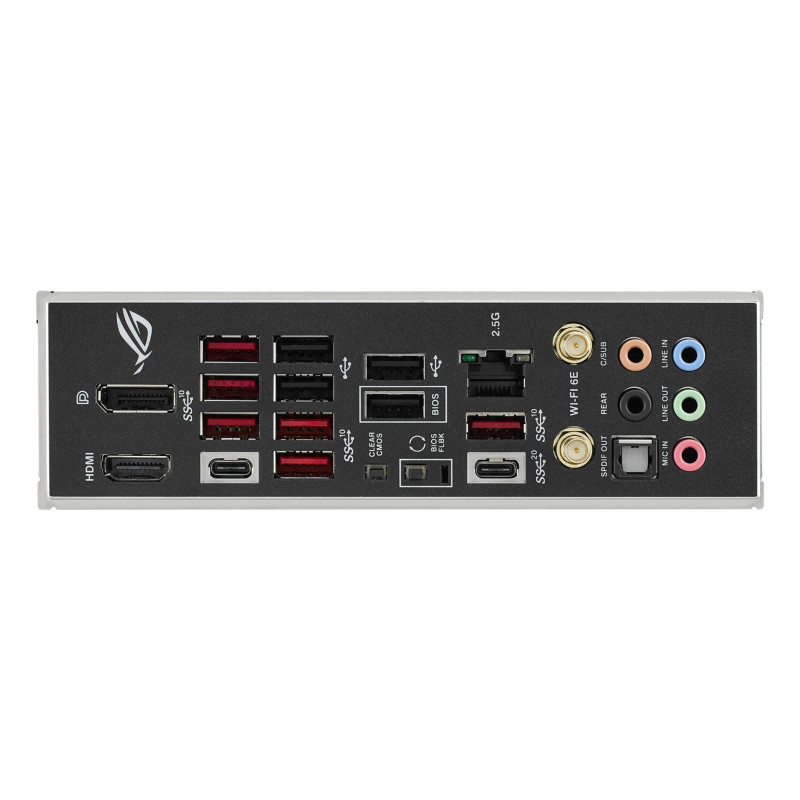

| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Back-to-BIOS button | Yes |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. Avoid contact with liquids to prevent electronic damage. Dispose of in accordance with local regulations for electronic waste. |
