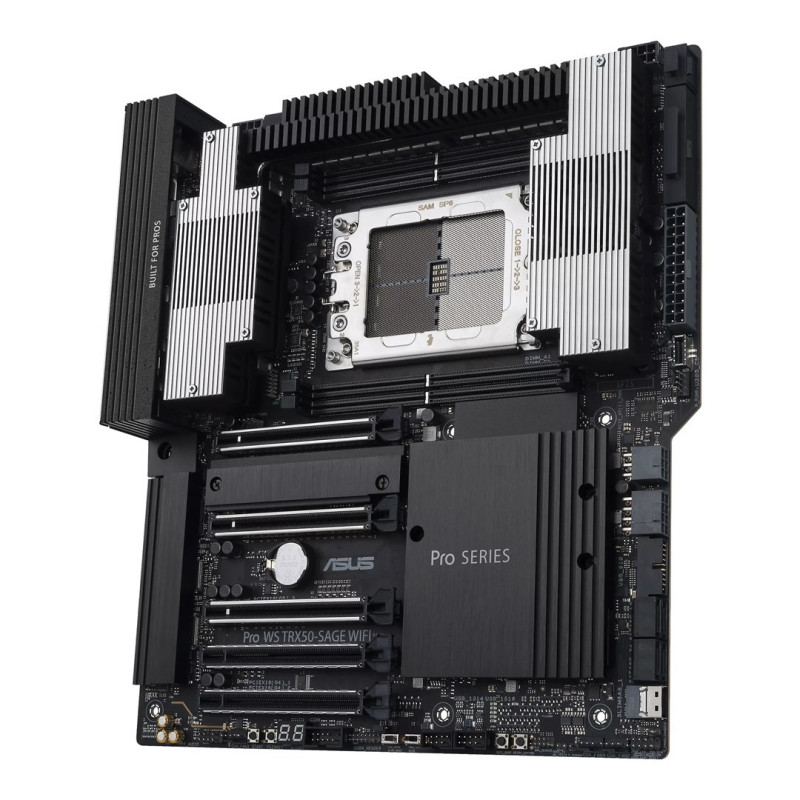

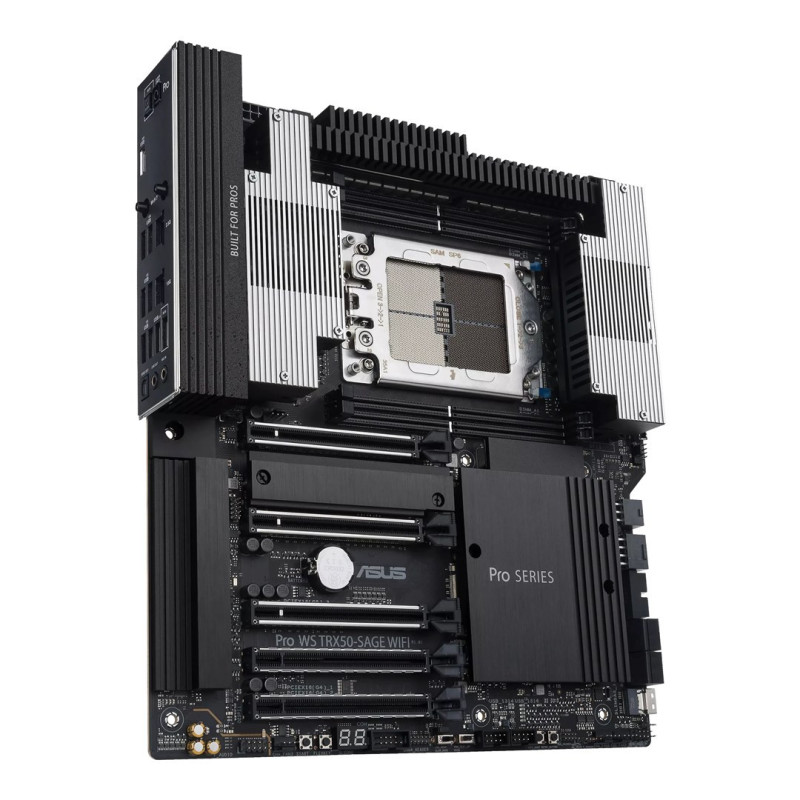

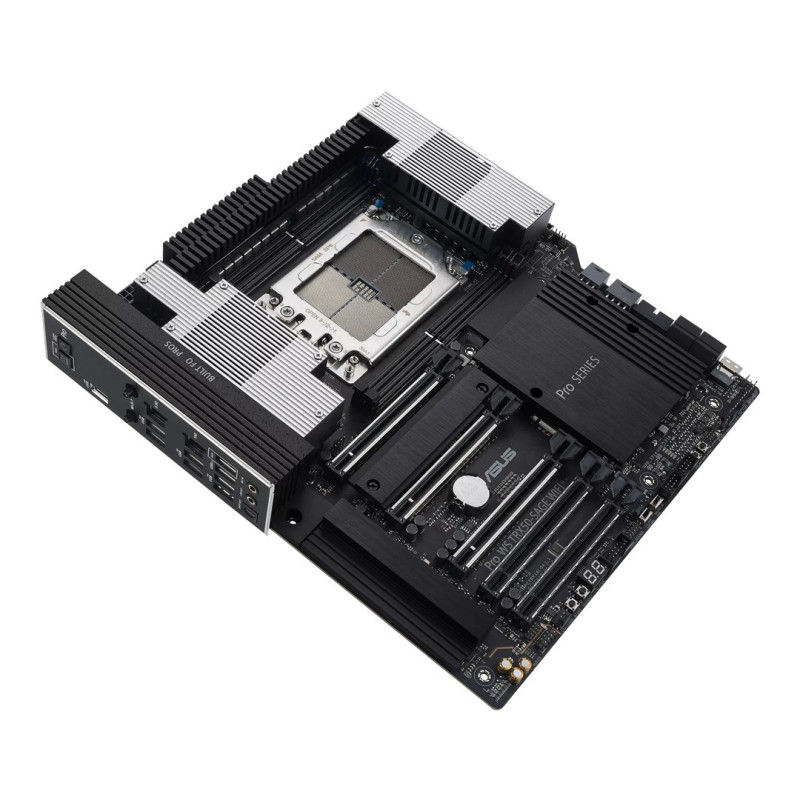

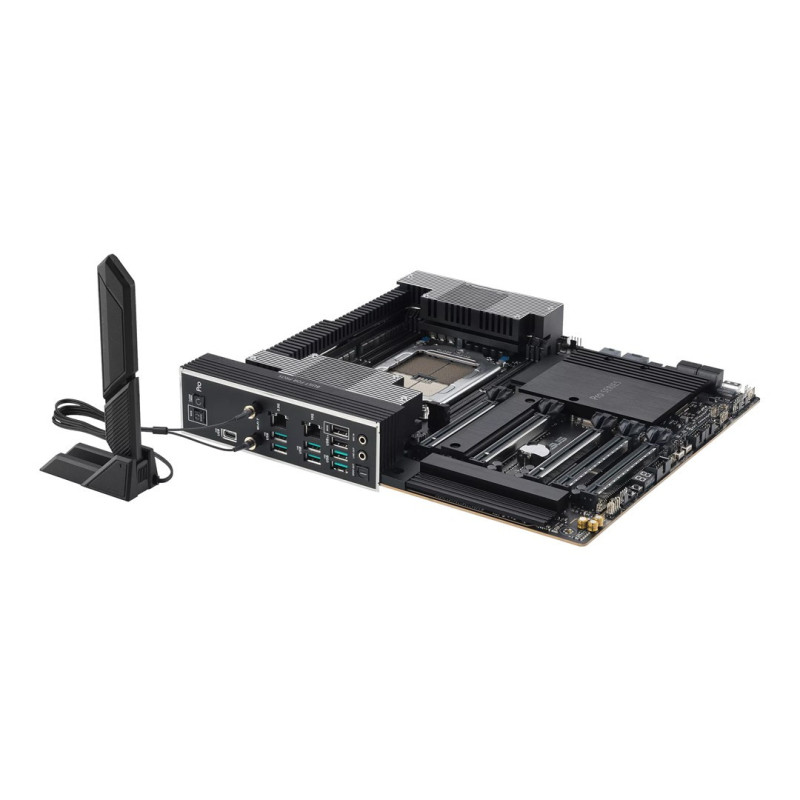

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
Product reference:
6-90MB1FZ0-M0EAY0
ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
Product reference:
6-90MB1FZ0-M0EAY0
ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ Threadripper™ |
| Processor socket | Socket sTR5 |
| Product colour | Black |
| Motherboard form factor | SSI CEB |
| Audio chip | Realtek ALC1220P |
| Motherboard chipset | AMD TRX50 |
| Component for | Workstation |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 Windows 10 x64 |
| Memory channels | Quad-channel |
| ECC | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5 ECC RDIMM |
| Depth | 280 mm |
| Width | 305 mm |
| LAN controller | Intel I226-LM |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 10 Gigabit Ethernet 2.5 Gigabit Ethernet |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| USB 2.0 connectors | 2 |
| Number of chassis fan connectors | 4 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| Integrated SAS ports | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Cables included | PCIe, SATA |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1 10 5 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| S/PDIF out port | Yes |

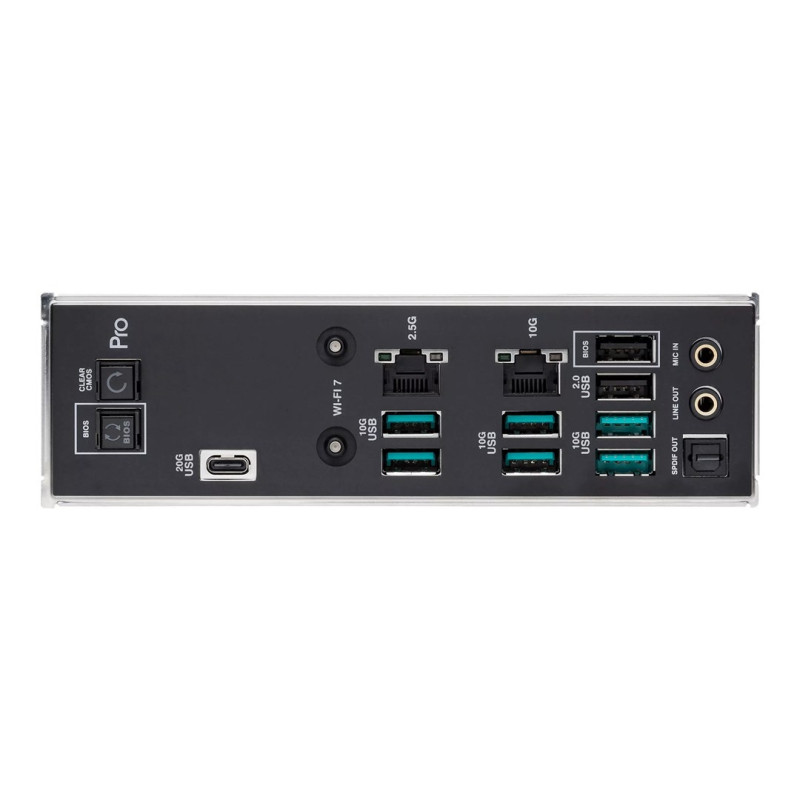

| Ethernet LAN (RJ-45) ports | 2 |
| USB connector type | USB Type-C USB Type-A |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Weight | 2.53 kg |
| Warnings | The motherboard may contain electronic components hazardous to health - avoid direct contact. Use only in a dry and well-ventilated area. Do not open or disassemble the motherboard. |
