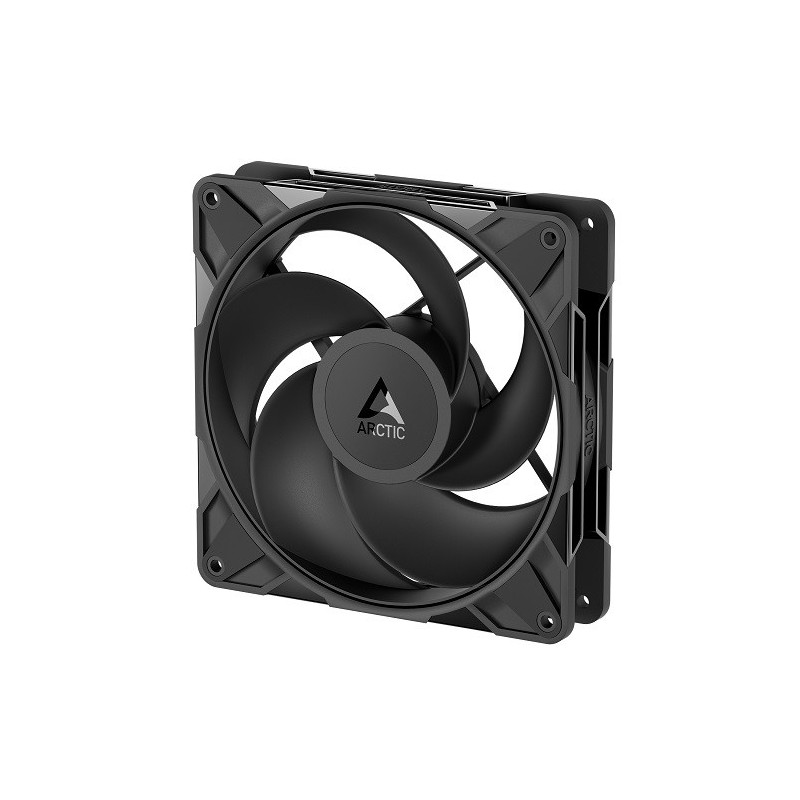

ARCTIC P14 PRO Reverse PWM PST case fan, 4-pin, 140mm
ARCTIC P14 PRO Reverse PWM PST case fan, 4-pin, 140mm
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days
Case fan P14 Pro Reverse, 4-pin, 140mm, black
Features:
Reverse airflow direction The P14 Pro Reverse fan is specially designed for rear air intake. It is especially suitable for applications where conventional fans would detract from the aesthetic appearance.
Efficient operation in high air resistance conditions. Thanks to their high static pressure, the Pro series fans efficiently drive air through narrow spaces. This makes them ideal for radiators, perforated panels and mesh filters.
PST - PWM based synchronized fan control An additional PWM connector allows you to synchronize multiple fans in series using a single connector.
Optimized bearing and axle design (FDB): A fluid dynamic bearing combined with an extended shaft ensures quieter operation by distributing pressure more evenly and reducing vibrations.
Automatic balancing: The automatic measurement and balance adjustment system ensures exceptional fan impeller accuracy and smooth operation, so the fan rotates smoothly, without extraneous vibrations and noise, and reduces bearing load.
Advanced microcontroller reduces motor noise, compensates for load fluctuations and protects against high currents or incorrect polarity during start-up.
More power, less noise. The fan provides higher performance at low speeds, higher airflow and static pressure.
6 year warranty. Excellent long-term testing results, even in extremely adverse conditions, ensure that these products are not only of high quality but also durable, which is why they are covered by a 6-year manufacturer's warranty.
Maximum performance: The improved fan blade design provides an optimal balance of performance and smooth operation. Smaller gaps allow for higher static pressure and maximum airflow efficiency.
Technical data:
Speed: 400-2650 rpm PWM controlled (0 rpm below 5% PWM).
Airflow: 98 CFM / 166.5 m³/h.
Static pressure: 5.1 (mm/H2O).
Bearing: fluid dynamic bearing.
Voltage/current: 0.4A/ 12V DC.
Connector: 4-pin + 4-pin sockets.
Cable length: 400mm+80mm.
Dimensions: 140x140x30 mm.
Color: black.
Weight: 248 g.
Warranty: 6 years.
