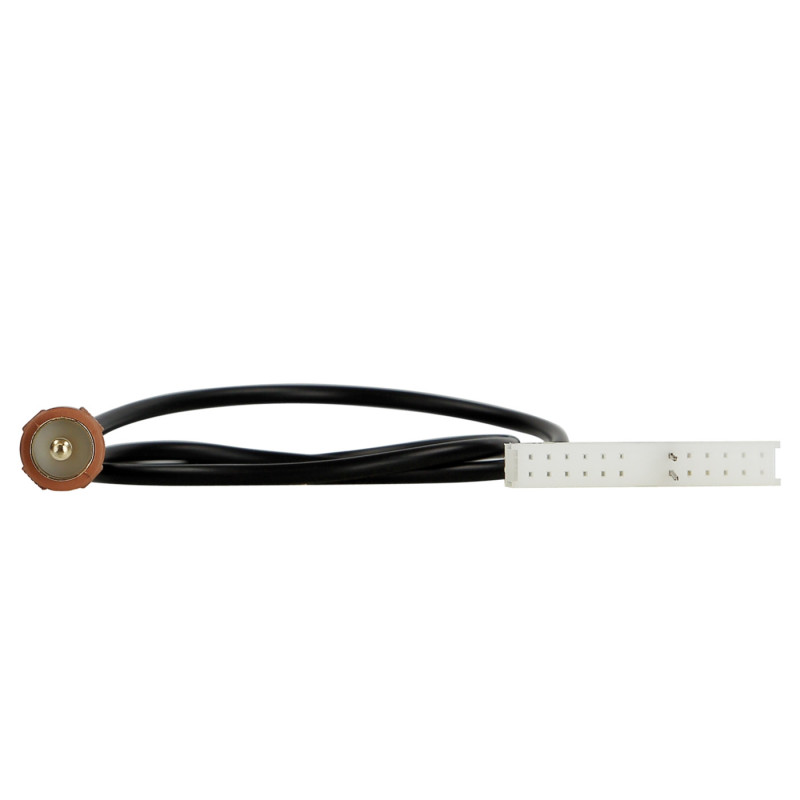

Adapter do kamery fabrycznej MIB-PQ. SEAT, SKODA, VW.

Adapters are needed to keep the factory camera when replacing the radio with a universal one. These allow you to connect a factory-installed camera to a device with a camera input. Depending on the vehicle and equipment, the adapter provides an RCA video signal, +6V power/ground for the OEM camera and a reversing signal. Vehicles with a 360° camera system or systems with moving distance lines may not be compatible. Before installation, check the correct assignment of the adapter to the OEM connector. Many retrofit devices must be set to the camera function in the menu.

Attention:

• connector: 52-pin Quadlock MQS plug
• connector: OEM reversing camera > RCA(m) brown

MQS B connector blue:

• Pin 6: Video+
• Pin 12: Video-

Make and model:

• Seat Alhambra II (7N) MJ 2016 - 2021
• Seat Arona MJ 2018 - 2021
• Seat Ateca (KH7) MJ 2017 - 2021
• Seat Ibiza (6P) 2015 - 2017
• Seat Ibiza (6F) 2017 - 2021
• Seat Leon III (5F) MJ 2013 - 2020
• Seat Toledo IV (KG) MJ 2016 - 2019
• Skoda Fabia III (NJ) MJ 2014 - 2021
• Skoda Karoq (NU7) MJ 2018 - 2021
• Skoda Kodiaq (NS7) MJ 2017 - 2021
• Skoda Octavia 3 (5E) MJ 2012 - 2020
• Skoda Rapid (NH1) MJ 2016 - 2019
• Skoda Superb 3 (3V) MJ 2015 - 2020
• Skoda Yeti MJ 2015 - 2017
• VW Amarok MJ 2017 - 2021
• VW Arteon (3H) MJ 2018 - 2021
• VW Beetle (5C) MJ 2015 - 2019
• VW Caravelle 2015 - 2019
• VW Crafter (SZ/SY) MJ 2017 - 2021
• VW Caddy (2K) MJ 2016 - 2021
• VW Golf VII MJ 2012 - 2020
• VW Golf VII Sportsvan MJ 2014 - 2020
• VW Multivan (T6) MJ 2015 - 2019
• VW Passat (B8) MJ 2016 - 2021
• VW Polo5 (6C) MJ 2014 - 2017
• VW Polo6 (AW1) MJ 2018 - 2021
• VW Scirocco 3 (13) MJ 2016 - 2017
• VW Sharan (7N) MJ 2016 - 2021
• VW T6 2015 - 2015 - 2019
• VW T6.1 2019 - 2021
• VW T-Cross (C1) 04/2019 - 2021
• VW T-Roc (A11) MJ 2018 - 2021
• VW Tiguan III (AD1) MJ 2016 - 2021
• VW Touran (5T) MJ 2016 - 2021

General installation instructions:

Any additional connections, connection changes, alternative connections, loose cable connections or extensions of loose cable connections specified in the information text or instructions are for guidance purposes only and are intended for the information of a trained specialist installer.

More connections, changes to harness cable configurations, or the use of alternative connections or connection extensions: 1: Connections and changes may only be made by a trained specialist installer. 2: Connections and modifications must be checked before connection against any manufacturer approvals or manufacturer warranty terms that may be affected by the modifications. 3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's wiring diagram before connection. 4: Connections and modifications are made at the user's own risk and without any guarantee of function. 5: Connections and modifications are made at the user's own risk without any guarantee of damage to the vehicle, retrofit device or interface. 6: Modifications to the pre-assembled wiring harness may void the product warranty.
