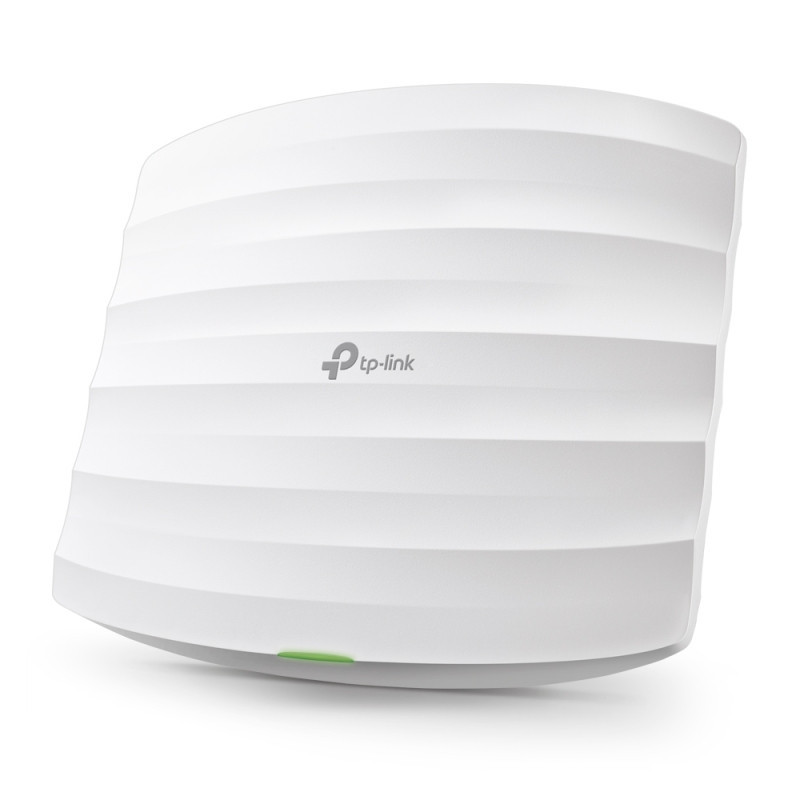

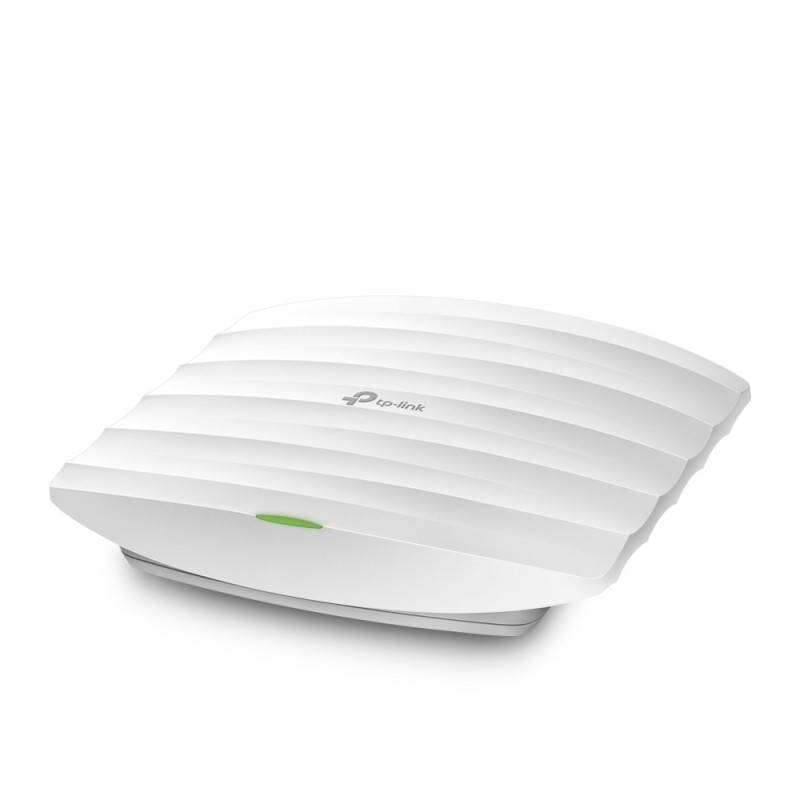

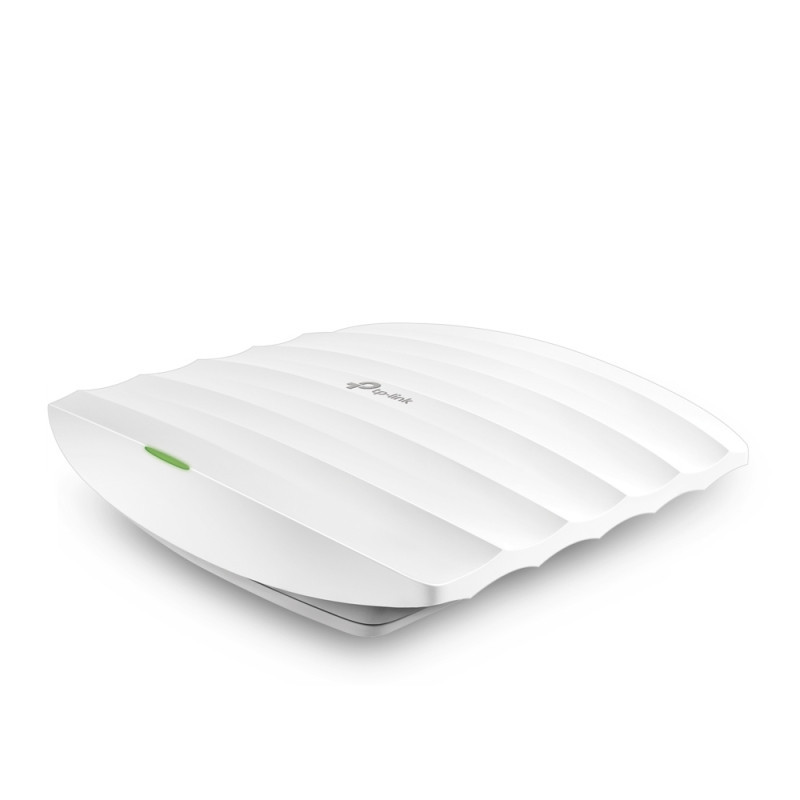

AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds


• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations


• Free cloud centralized management and Omada app for ultra convenience and easy management


• Support Power over Ethernet (802.3at) for convenient and affordable installation


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.


• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections


• Load balance ensures large numbers of users have smooth network experiences in high density business networks


• Supports VLAN management for an enhanced network management

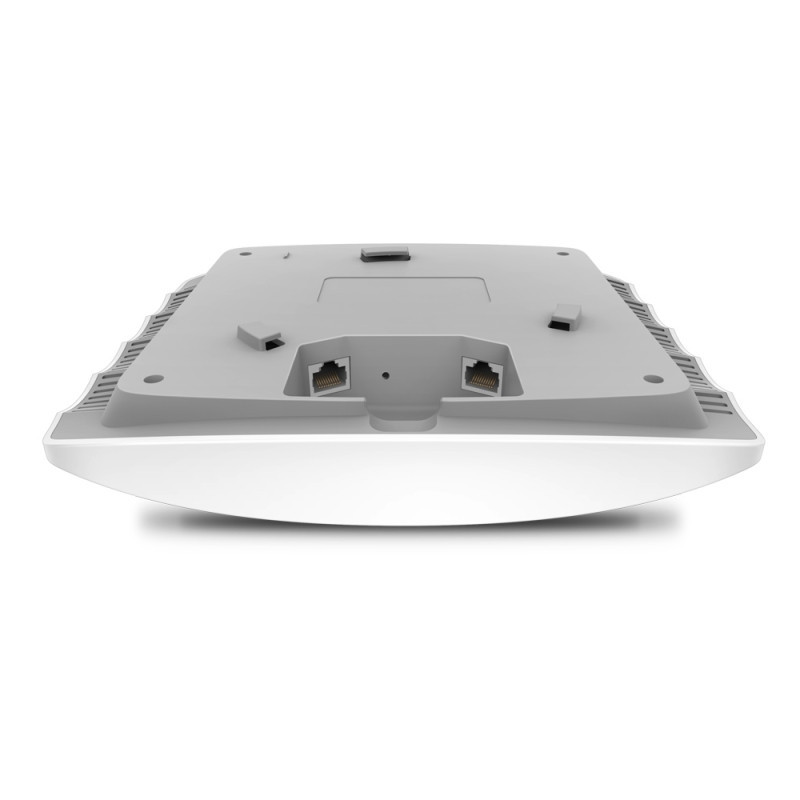

HARDWARE FEATURESInterface: Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE ) Physical Security Lock: Yes Button: Reset

Power Supply: 802.3af/A PoE 48V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included)

Power Consumption: 12.3 W Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)

Antenna Type (Internal Omni): 2.4GHz: 3* 3.5dBi 5GHz: 3*4dBi

Mounting: Ceiling / Wall Mounting (Kits included)

WIRELESS FEATURESWireless Standards: IEEE 802.11ac/n/g/b/a Frequency: 2.4GHz and 5GHz

Signal Rate: 5GHz: Up to 1300Mbps 2.4GHz: Up to 450Mbps

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power: CE: ≤20dBm(2.4GHz) ≤23dBm(5GHz) FCC: ≤24dBm(2.4GHz) ≤24dBm(5GHz)

MANAGEMENTOmada App: Yes

Centralized Management: Omada Software Controller OC200

Cloud Access: Yes (Through Omada Software Controller or OC200) Email Alerts: Yes LED ON/OFF Control: Yes Management MAC Access Control: Yes SNMP: Yes System Logging Local/Remote Syslog: Local/Remote Syslog SSH: Yes Web-based Management: HTTP/HTTPS L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes

OTHERSCertification: CE, FCC, RoHS

Package Contents: AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245 Gigabit Passive PoE Adapter Power Cord Mounting Kits Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
