5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi
Product reference:
17-9990000992256
5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi
5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi
Product reference:
17-9990000992256
5G / LTE / CBRS 2x2MIMO antenna, 1.7-3.8GHz, 2x 14dBi
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 4
business days

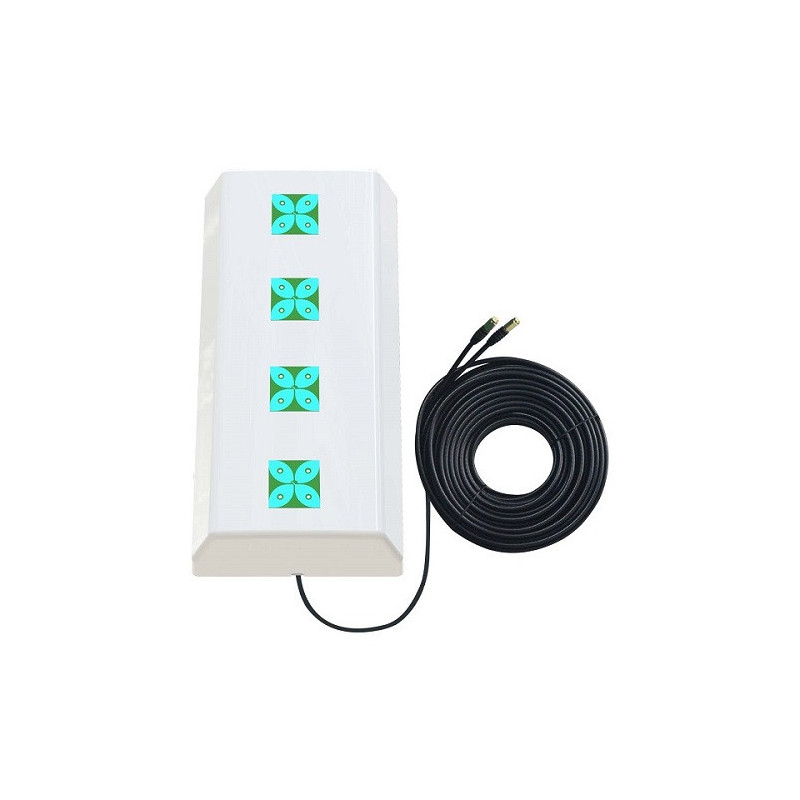

LTE/5G/CBRS 2x2 MIMO antenna, 1710-2690MHz / 3300-3800MHz, 2x 14dBi, connection SMA-Male
Features:
Dual polarization panel design antenna, 1710-2690MHz / 3300-3800MHz, 2x 14dBi.
Application: LTE, 3G/4G/5G, CBRS, mobile networks, DAS (Distributed Antenna Systems), Wi-Fi IEEE802.11b/g/n.
With 2x 15m long cables.
Lightning protection DC grounding.
Technical specification:
Frequency: 1710-2690MHz / 3300-3800MHz.
Gain: 2x 14 dBi.
VSWR: <2.
Impedance: 50 ohms.
Max. power per port: 50W.
Connector: 2x SMA-male.
Cables: 2x RG58 copper.
Cable length: about 15m.
Mounting: on a pole with a diameter of 30-50mm.
Material: PC, ABS.
Dimensions: 410 x 180 x 55 mm.
Polarization: dual polarization +/-45°.
Color: white.
Weight: 1.5kg.
Operating temperature: -40°C~ +70°C.
Operating humidity: up to 95%RH.
Warranty:24 months
