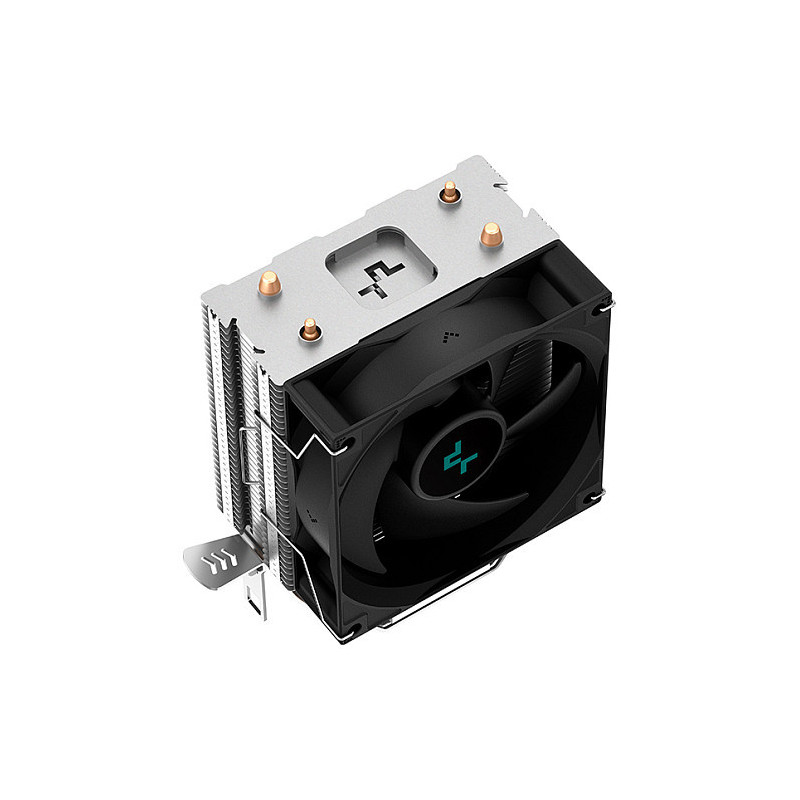

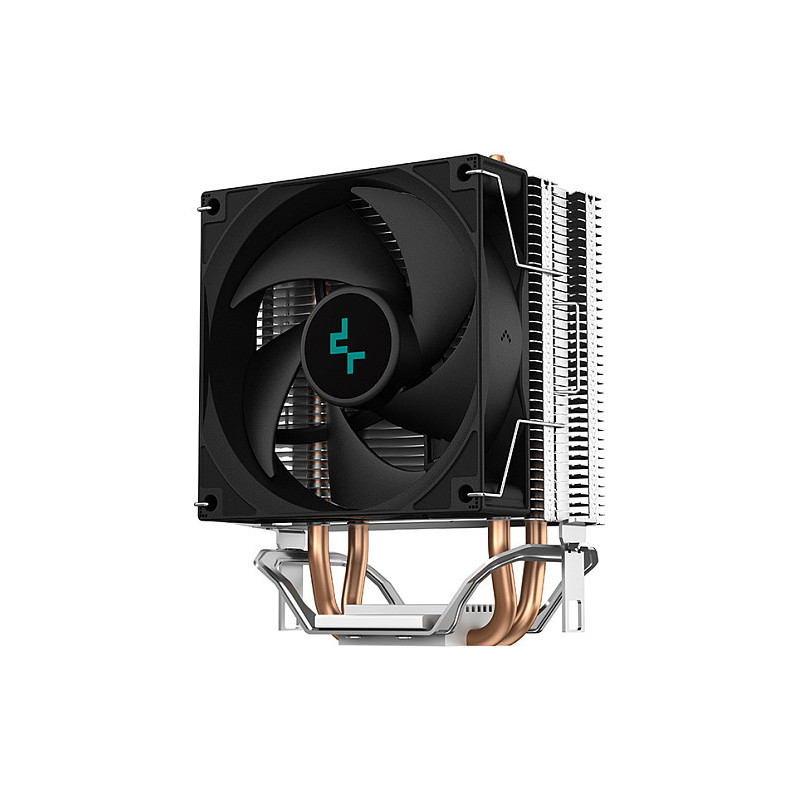

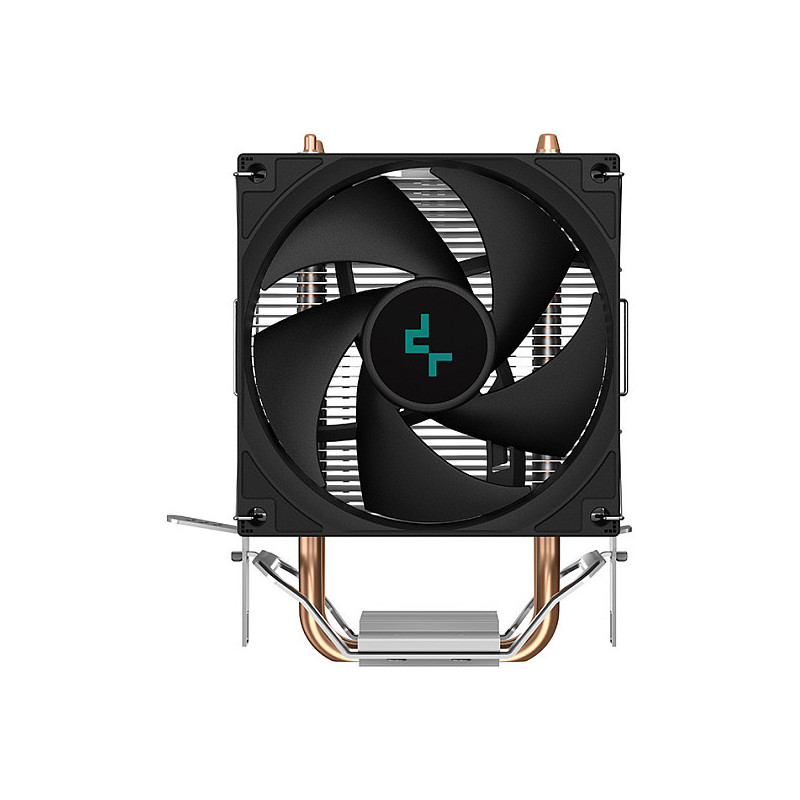

DeepCool AG200

DeepCool AG200. Type: Air cooler, Fan diameter: 9.2 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 3050 RPM, Maximum air pressure: 2.89 mmH2O, Bearing type: Hydraulic. Width: 119 mm, Depth: 133 mm, Height: 77 mm. Product colour: Aluminium, Black

EFFICIENT
COOLING POWER

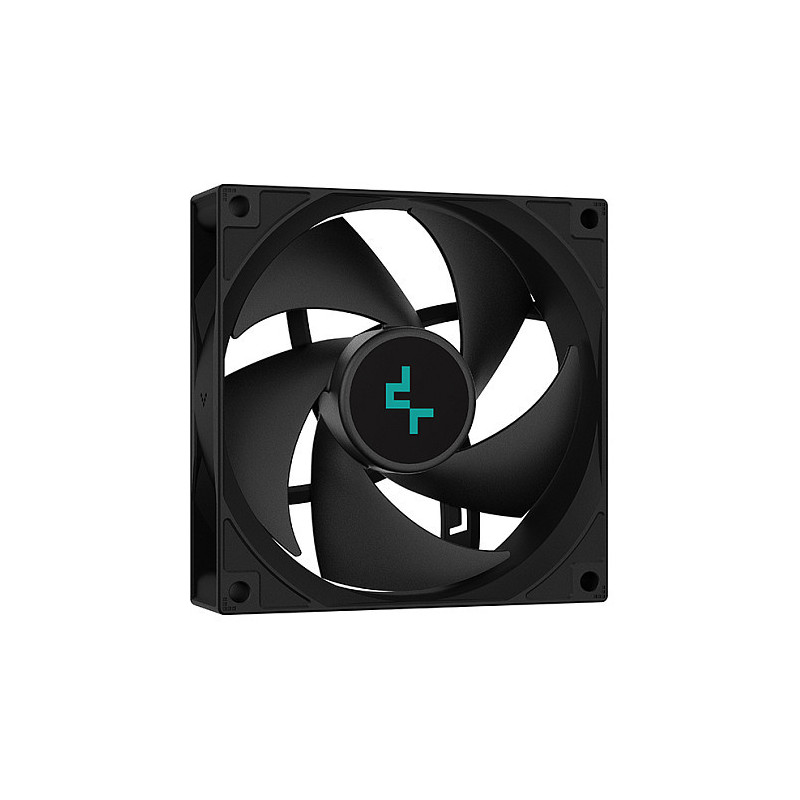

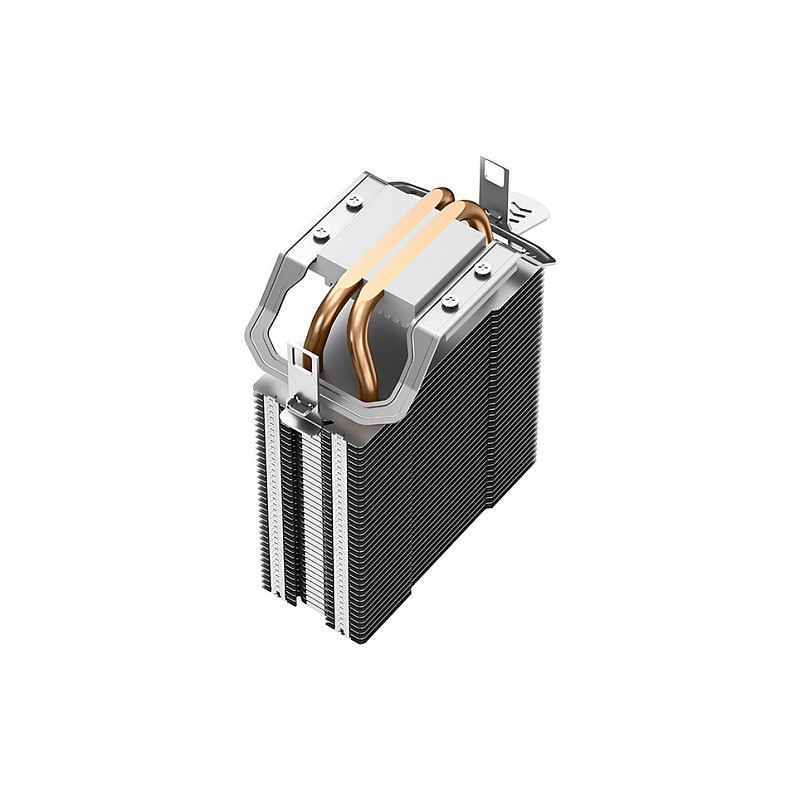

Two direct contact copper heat pipes effectively transfer heat for optimal dissipation through the heat sink tower. The 92mm PWM fan outputs balanced airflow for performance and silence.

NEW FAMILY APPEARANCE

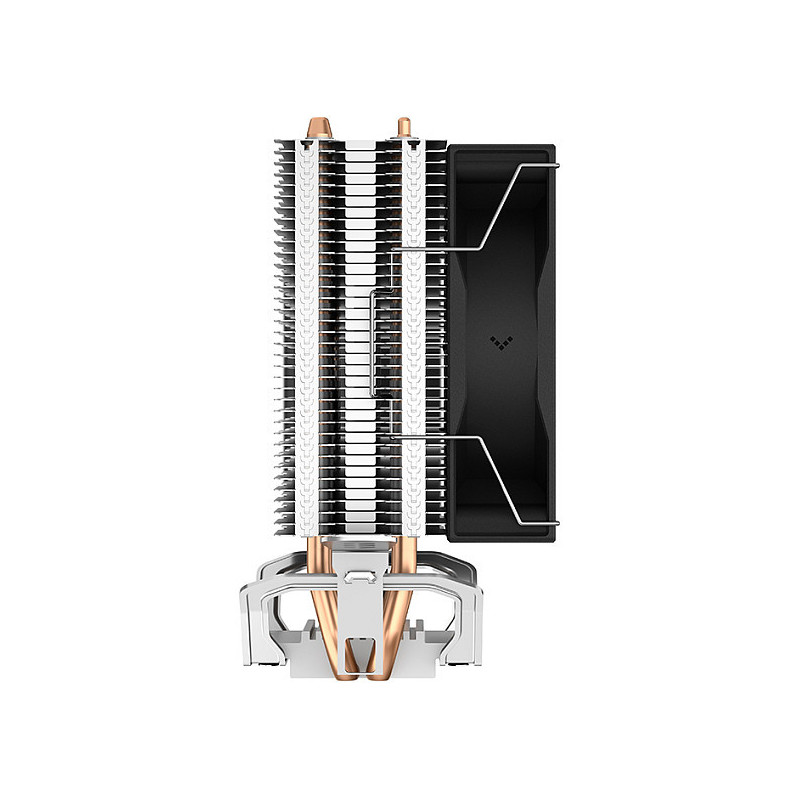

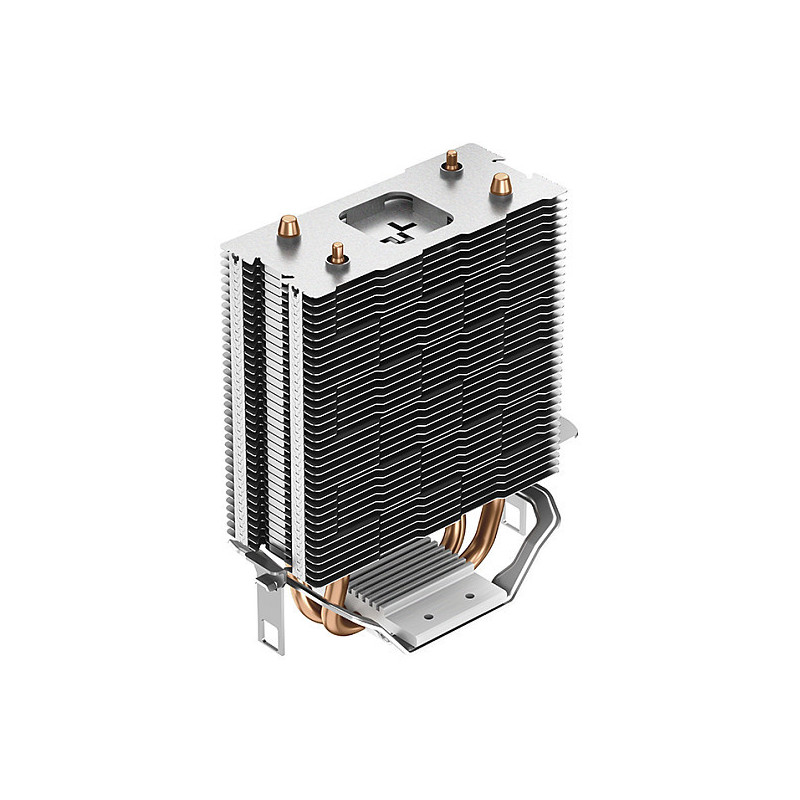

The AG200 adopts a new DeepCool family design and features a unique matrix fin array that densely packs each fin for a neat and firm construction.

EASY INSTALLATION

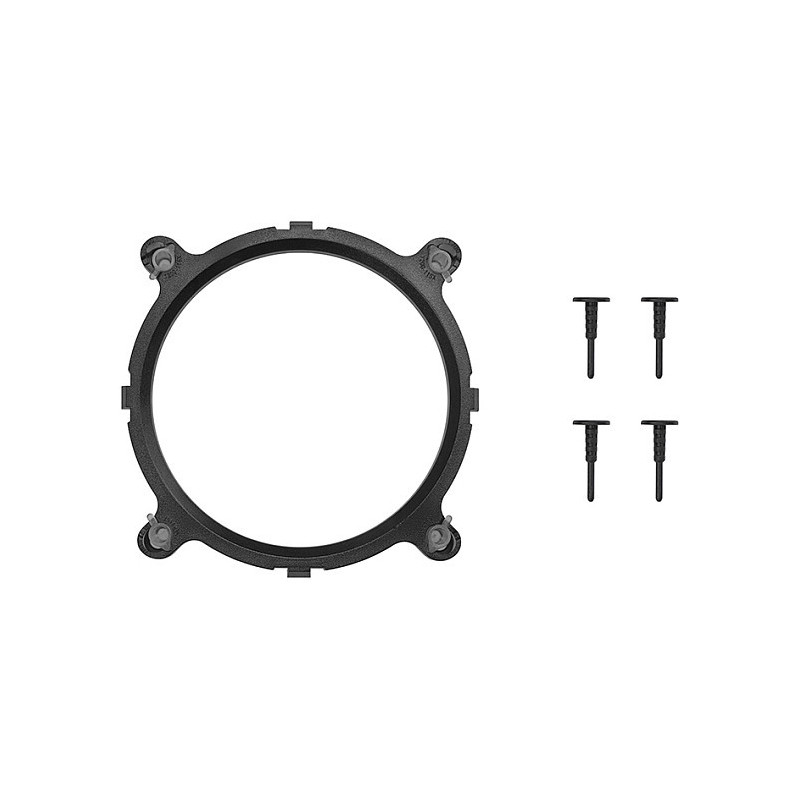

Compatible with multiple socket platforms from Intel and AMD with support for the latest changes. Ensure a proper mount pressure with the included brackets for a seamless installation.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational speed (min): 500 RPM
Rotational speed (max): 3050 RPM
Noise level (high speed): 30.5 dB
Maximum airflow: 36.75 cfm
Maximum air pressure: 2.89 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Hydraulic
Quantity per pack: 1 pc(s)

Design

Product colour: Aluminium, Black
Number of fans: 1 fan(s)
Number of fan blades: 5
Number of heat pipes: 2
Fan connector: 4-pin

Power

Rated voltage: 12 V
Fan power consumption: 1.56 W
Rated current: 0.13 A

Weight & dimensions

Width: 119 mm
Depth: 133 mm
Height: 77 mm
Radiator width: 9.4 cm
Radiator depth: 13.3 cm
Radiator height: 5.7 cm
Weight: 304 g
Fan dimensions (W x D x H): 92 x 92 x 25 mm
Heat pipes diameter: 6 mm

Packaging content

Package type: Box
Feature: CPU socket spacer(s)
