DeepCool LE360 V2

DeepCool LE360 V2. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum air pressure: 2.53 mmH2O, Bearing type: Hydro Dynamic Bearing (HDB). Product colour: Black

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow: 75.89 cfm
Maximum air pressure: 2.53 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Hydro Dynamic Bearing (HDB)
Fan noise level (max): 31.6 dB
Pump connector: 4-pin
Quantity per pack: 1 pc(s)
Pump motor speed (min): 2500 RPM
Pump motor speed (max): 3400 RPM
Fan speed (min): 500 RPM
Fan speed (max): 2100 RPM

Design

Product colour: Black

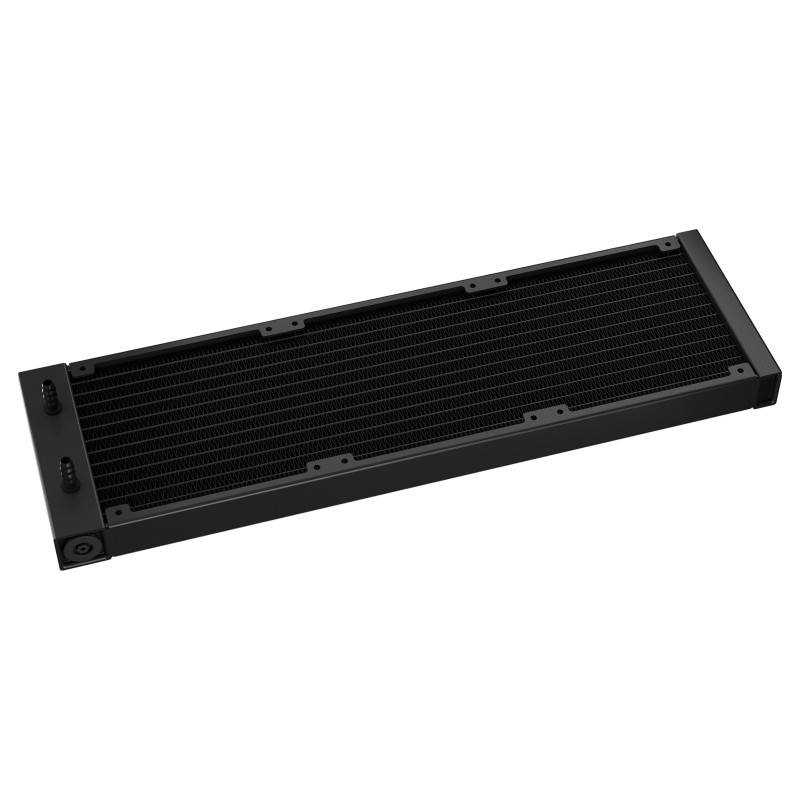

Radiator material: Aluminum

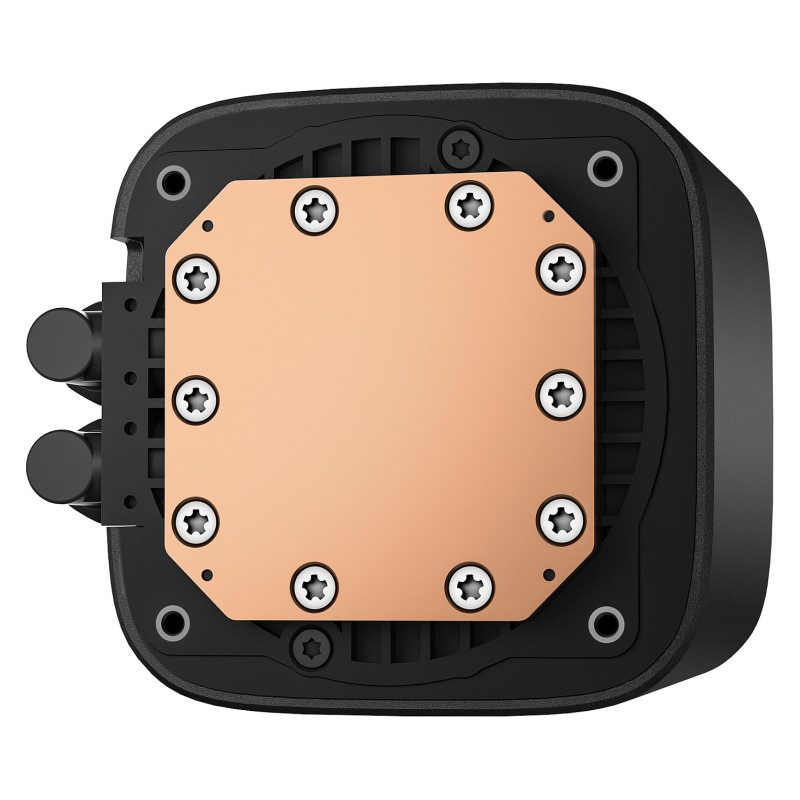

Base plate material: Copper
Number of fans: 3 fan(s)
Number of fan blades: 9
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin

Power

Fan power consumption: 2.04 W
Pump power consumption: 3.48 W
LED voltage: 5 V
Pump voltage: 12 V
Pump current: 290 mA
Fan voltage: 12 V
Fan current: 0.17 A
LED power consumption (fan): 2.8 W
LED power consumption (pump): 3.15 W

Weight & dimensions

Radiator width: 12 cm
Radiator depth: 40.2 cm
Radiator height: 2.7 cm
Tube length: 41 cm
Pump width: 7.8 cm
Pump depth: 9.1 cm
Pump height: 6.5 cm
Weight: 1.63 kg

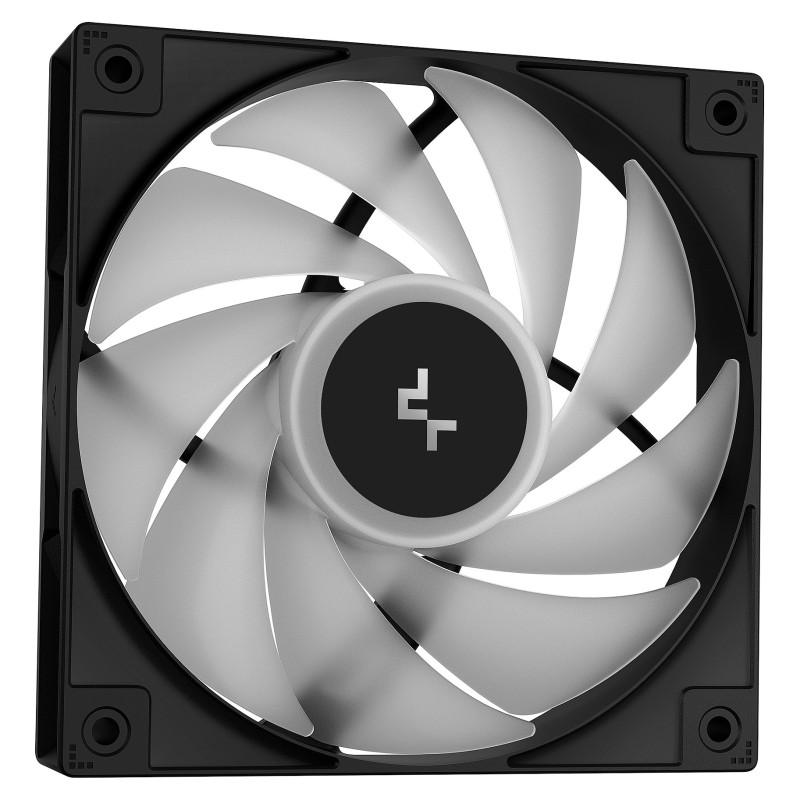

Fan dimensions (W x D x H): 120 x 120 x 25 mm

Packaging content

Package type: Box
Cables included: 3-pin, 4-pin

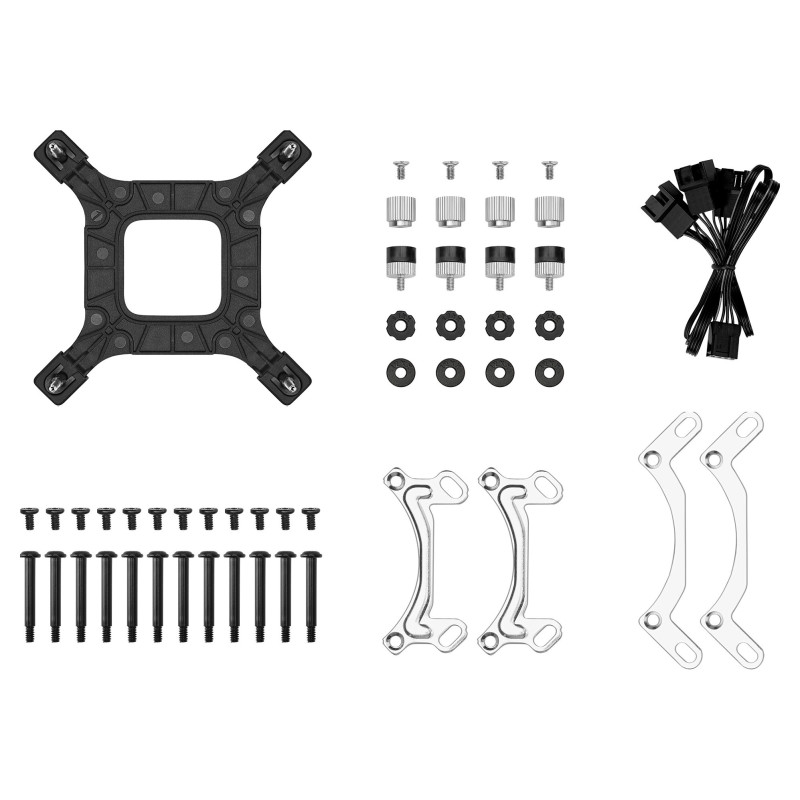

Feature: Mounting kit
Feature: CPU bracket(s)
