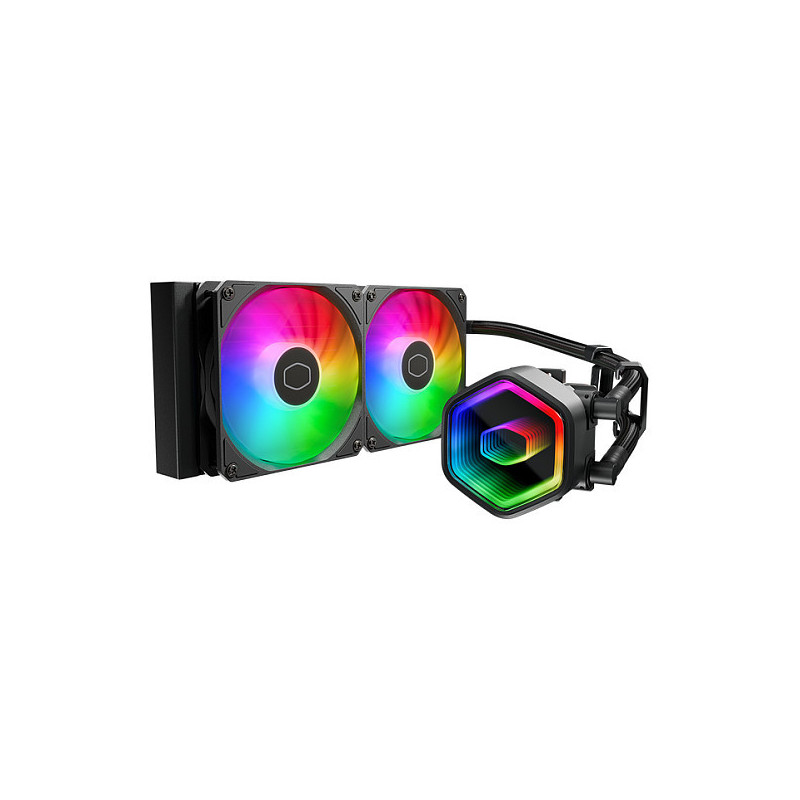

„Cooler Master MasterLiquid 240 Core II“

Cooler Master MasterLiquid 240 Core II. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Rotational speed (min): 650 RPM, Rotational speed (max): 1750 RPM, Noise level: 30 sone, Airflow: 120 m³/h, Maximum air pressure: 2 mmH2O, Bearing type: Sleeve bearing. Product colour: Black

MasterLiquid Core II Series
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.

Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics

Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance

Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation

Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look

Daisy chain connection
Simplified fan connection for easy cable management

Longer tubes for easy placement configuration

UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs

SUPPORT LGA 1851 RL-ILM SOCKET DESIGN

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Rotational speed (min): 650 RPM
Rotational speed (max): 1750 RPM
Noise level: 30 sone
Airflow: 120 m³/h
Maximum air pressure: 2 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Sleeve bearing
Pump noise level: 25 dB
Pump connector: 3-pin + 4-pin
Pump motor speed: 3100 RPM
Pump's mean time to failure (MTTF): 50000 h
Fan's mean time to failure (MTTF): 160000 h

Design

Product colour: Black
Radiator material: Aluminum
Number of fans: 2 fan(s)
Feature: Illumination LED
Illumination colour: Multi
Display type: Not applicable

Power

Rated voltage: 12 V
Fan power consumption: 2.76 W
Pump power consumption: 3.6 W
Rated current: 0.23 A
Safety current: 0.45 Ah
Pump voltage: 12 V

Weight & dimensions

Radiator width: 27.7 cm
Radiator depth: 11.9 cm
Radiator height: 2.72 cm
Pump width: 8.3 cm
Pump depth: 7.62 cm
Pump height: 5.23 cm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
