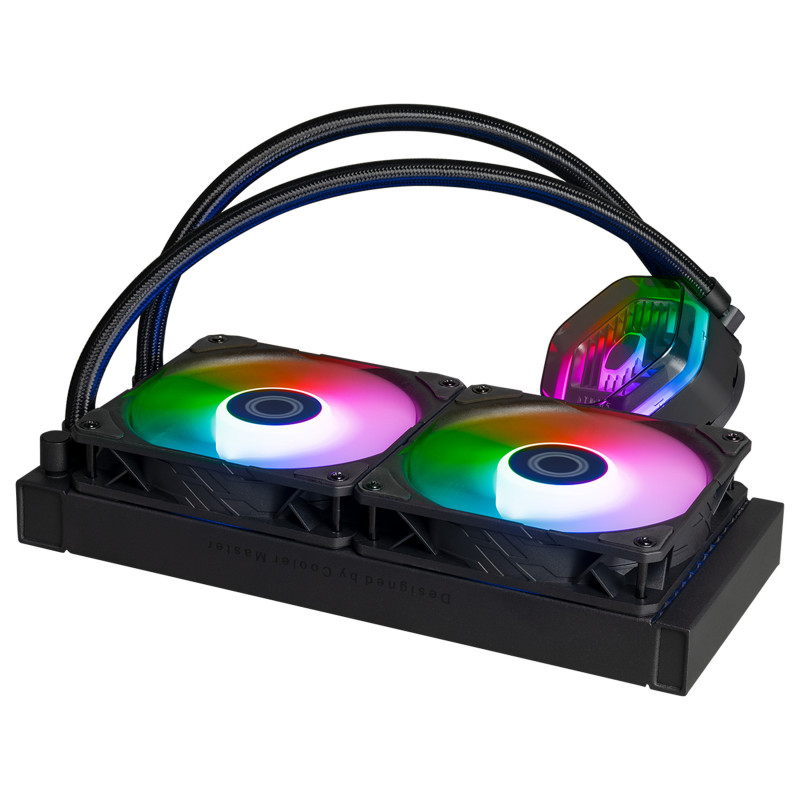

„Cooler Master MasterLiquid 240 ATMOS“

Cooler Master MasterLiquid 240 ATMOS. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Rotational speed (min): 690 RPM, Rotational speed (max): 2500 RPM, Maximum air pressure: 3.61 mmH2O, Bearing type: Loop Dynamic Bearing (LDB). Product colour: Black

360 Degrees of Cool

360 Degrees of Cool
The next generation AIO liquid cooling is here with the MasterLiquid 240 Atmos. The Atmos is our forward-thinking, innovative take on what an AIO cooler can and should be. Exceptionally silent performance provided by our SickleFlow Edge fans. An optimized user experience from unboxing to the MasterCTRL software. A pump top cover fully customizable with your own 3D-printed creations. Eco-friendly construction implemented throughout. Our signature dual chamber pump design, refined. The Atmos represents the best of the best in modern AIO liquid cooling, a full 360 degrees of cool.

Refined dual chamber design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

IMPROVED QUALITY
Fully automated production and assembly of the pump with fully recorded production history.

Fully customizable
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides unprecented creative freedom.

Eco-friendly construction
The pump top cover has been constructed from recycled plastic materials, while 35% of the cooler's metal materials are recyclable. Along with sustainable packaging materials and a 30% reduction in total packaging size, the Atmos is an eco-pioneer.

Latest Sickleflow Edge 120 fans
Pre-installed SickleFlow Edge 120mm fans further improve cooling performance and simplify user installation.

Optimized user experience
With features such as our streamlined MasterCTRL software and modernized packaging techniques, the Atmos is bringing a overhauled, and smoother, user experience.

FULLY CUSTOMIZABLE
Customize the pump top cover with your 3D designs and take full control of the ARGB Gen 2 lighting. The Atmos provides uprecedented creative freedom.

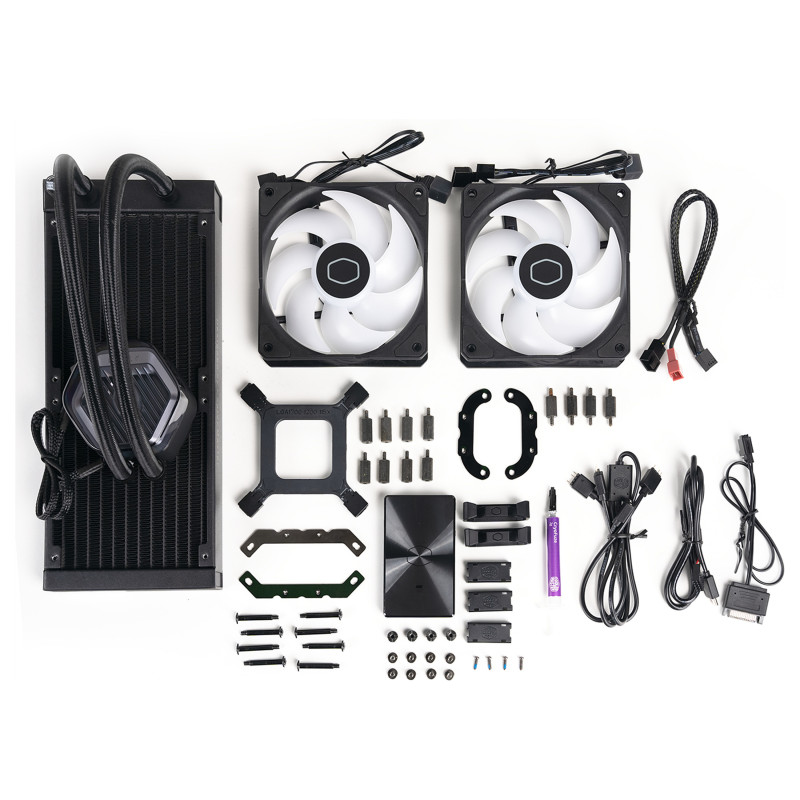

Tube clips included
Tube clips are included to improve and strengthen your cooler setup.

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational speed (min): 690 RPM
Rotational speed (max): 2500 RPM
Noise level (high speed): 27.2 dB
Maximum airflow: 70.7 cfm
Maximum air pressure: 3.61 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Loop Dynamic Bearing (LDB)
Pump noise level: 12 dB
Pump connector: 4-pin
Pump's mean time to failure (MTTF): 210000 h
Fan's mean time to failure (MTTF): 160000 h

Design

Product colour: Black
Radiator material: Aluminum
Number of fans: 2 fan(s)
Feature: Illumination LED
Illumination colour: Multi
Fan connector: 4-pin
Display type: Not applicable

Power

Rated voltage: 12 V
Pump power consumption: 3.84 W
Rated current: 0.2 A
Safety current: 0.3 Ah
Pump voltage: 12 V

Weight & dimensions

Radiator width: 12 cm
Radiator depth: 27.7 cm
Radiator height: 2.72 cm
Pump width: 8.1 cm
Pump depth: 8.49 cm
Pump height: 5.32 cm
Weight: 1.45 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 211 mm
Package depth: 293 mm
Package height: 136 mm
Package weight: 2.53 kg
