Aušintuvas Master V4 Alpha 3DHP juodas

Cooler Master V4 Alpha 3DHP Black. Type: Air cooler, Fan diameter: 12 cm, Airflow: 107.2 m³/h, Maximum air pressure: 2.69 mmH2O, Bearing type: Loop Dynamic Bearing (LDB). Width: 114 mm, Depth: 133 mm, Height: 161 mm. Product colour: Black

V4 Alpha 3DHP Black

Advanced Cooling, Elevated

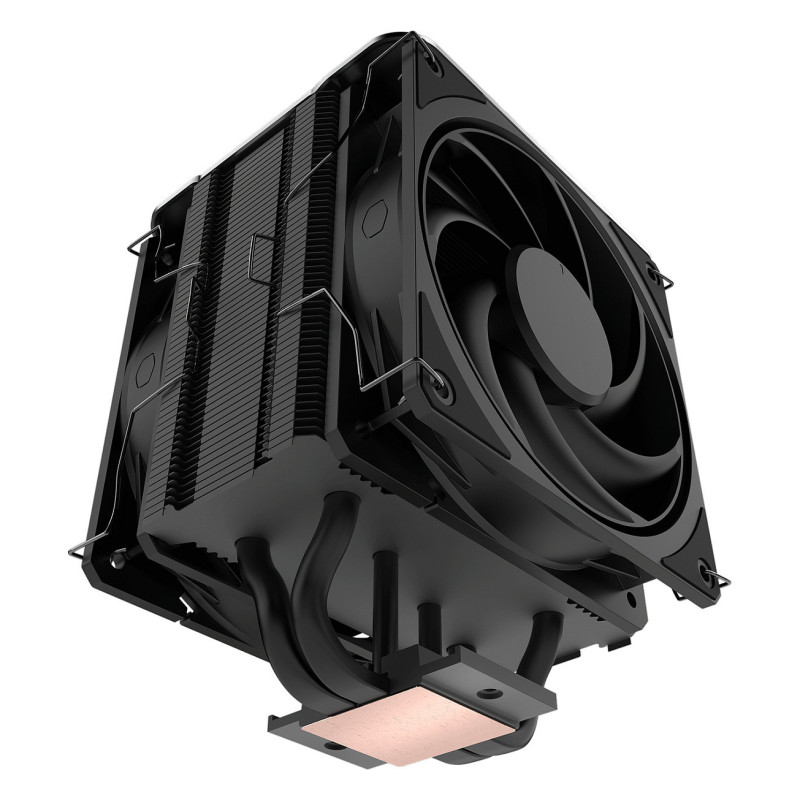

The Cooler Master V4 Alpha 3DHP Black CPU air cooler delivers exceptional cooling performance and sleek aesthetics, featuring the company's proprietary 3DHP Technology for rapid heat dissipation and peak system efficiency to rival the performance of conventional four-heat-pipe coolers. Using just two heat pipes, it is engineered to maintain optimal processor temperatures under heavy workloads. The V4 Alpha 3DHP Black has been crafted in the shape of a classic V automotive engine but delivers performance comparable to that of one of the most efficient electric cars available. The V4 Alpha 3DHP Black CPU air cooler stands out with its innovative design and excellent performance. Built for enthusiasts and perfected for professionals, V4 Alpha 3DHP Black isn't just a cooler, it's the heartbeat of your high-performance machine.

Less heat pipes. More cooling efficiency.
Less noise. More reliability.

The Advanced 3DHP Internal Structure

3DHP heat pipes use a hybrid internal structure that combines sintered powder and grooved channels in varying textures and sizes. Each section is optimized for a specific phase—evaporation, condensation, or liquid return—resulting in more efficient heat transfer than traditional designs.

*Image for reference only; actual internal configuration may vary in the final product design.

Cooler Master Proprietary 3DHP Technology

3DHP technology redefines heat pipe design by adding a third dimension—an extra pipe that fills the dead zone in standard U-shaped layouts. This added connection improves heat transfer in a slimmer, more efficient design.

It delivers the cooling power of a four-pipe solution with a more streamlined layout—giving you lower temps, quieter fans, and more flexibility, whether you're building for silence or pushing your system to the limit.

Quieter. Stronger. Smarter.

Fewer pipes, better performance. 3DHP's efficient heat transfer reduces radiator turbulence and lowers fan noise across the system. Whether you're building for silence or tuning for peak output, 3DHP delivers.

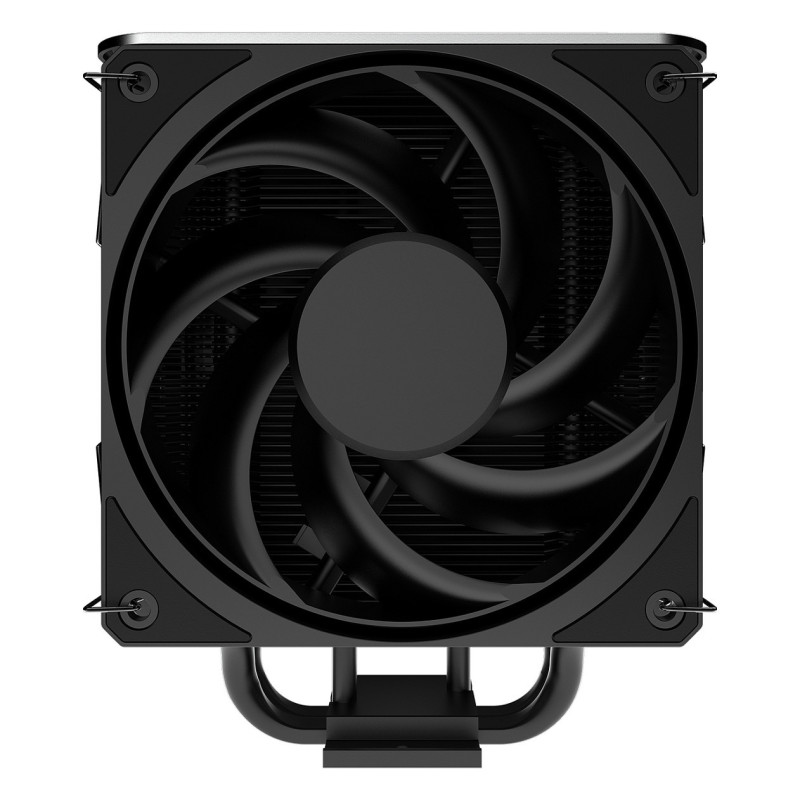

Pre-Installed Ring Blade Fans

The included Mobius 120 fans features a ring blade design that cuts high-frequency noise and keeps operation smooth and quiet—especially when paired with the 3DHP module.

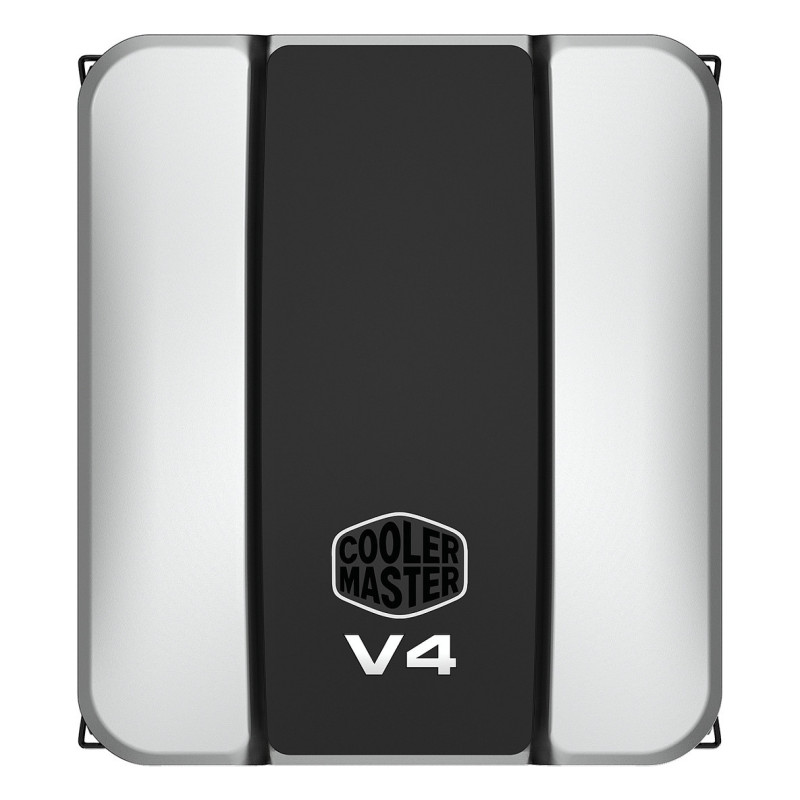

Minimalist Design

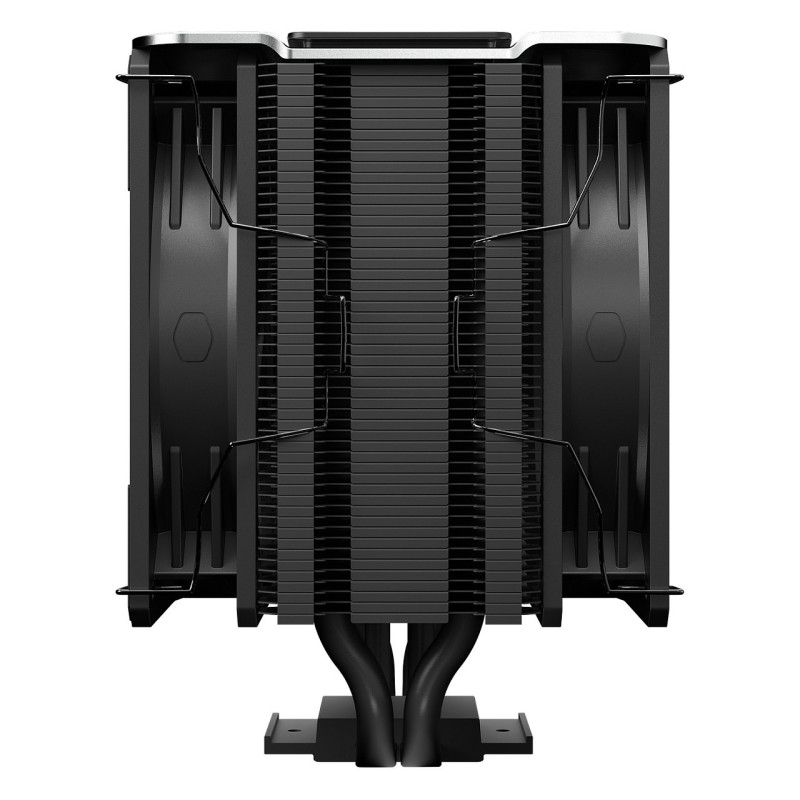

The V4 Alpha 3DHP Black draws inspiration from a classic V-style automotive engine—bold, compact, and built for performance. Its unique form factor supports efficient airflow and reliable cooling, all in a design that stands out

Excellent Thermal Dissipation

Keeps temperatures lower under the same CPU workload, helping maintain system stability and long-term reliability.

Larger Contact Surface for Maximum Heat Transfer

Unlike most four-pipe coolers with direct contact, our solid copper base covers more surface area. Combined with wider 3DHP heat pipes, it ensures efficient heat transfer from the CPU to the cooling array.

CRYOFUZE THERMAL PASTE

Included high-performance thermal paste relies on nanoparticles for maximal heat transfer.

AMD & INTEL COMPATIBILITY

Features compatibility with AMD and Intel CPU sockets.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Maximum airflow: 63.1 cfm
Airflow: 107.2 m³/h
Maximum air pressure: 2.69 mmH2O
Fan 2 rotational speed (min): 0 RPM
Fan 2 rotational speed (max): 1850 RPM
Fan 2 maximum airflow: 50.5 cfm
Fan 2 maximum air pressure: 1.77 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Loop Dynamic Bearing (LDB)
Fan noise level (min): 20 dB
Fan noise level (max): 22.6 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 0 RPM
Fan speed (max): 2050 RPM
Fan's mean time to failure (MTTF): 200000 h

Design

Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 2 fan(s)
Fins material: Aluminium
Fan connector: 4-pin
Display type: Not applicable

Power

Rated voltage: 12 V
Fan power consumption: 1.44 W
Rated current: 0.12 A
Safety current: 0.35 Ah

Weight & dimensions

Width: 114 mm
Depth: 133 mm
Height: 161 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 155 mm
Package depth: 155 mm
Package height: 215 mm

Technical details

Warranty period: 5 year(s)

Packaging content

Package type: Box
