ARCTIC TP-4 šilumos kriauklės junginys

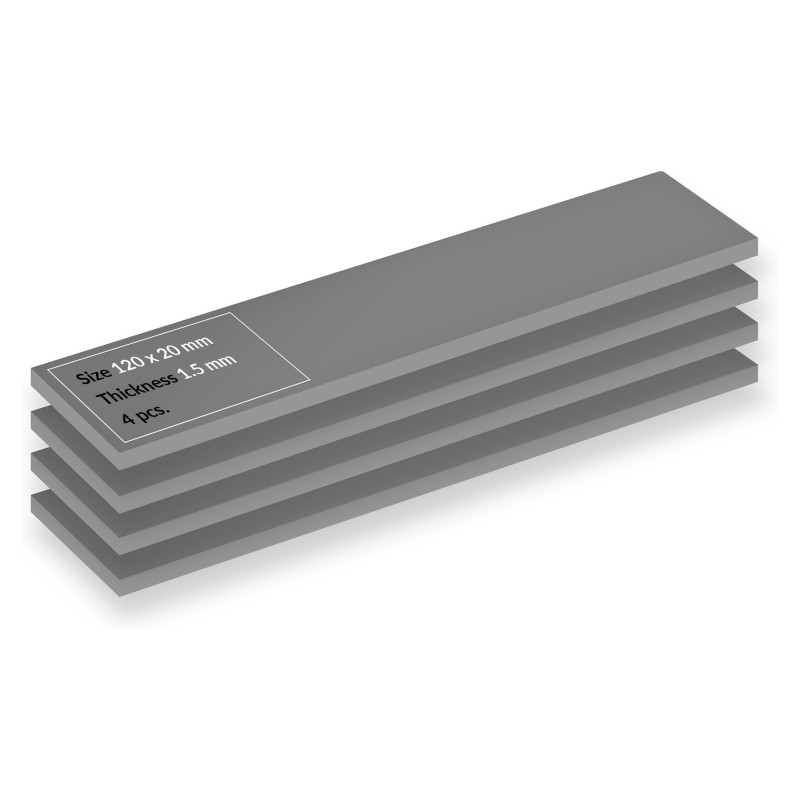

ARCTIC TP-4 Premium Performance Thermal Pad. Type: Thermal pad, Density: 3.4 g/cm³, Product colour: Grey. Width: 20 mm, Depth: 120 mm, Height: 1.5 mm. Quantity per pack: 4 pc(s), Package width: 95 mm, Package depth: 140 mm. Country of origin: China

High Performance — Extremely Soft
The silicone-based TP-4 combines high thermal conductivity with extremely low hardness and reliably compensates for manufacturing tolerances between chips.

Safe Application
Electrically insulating, non-adhesive, and easy to handle — for safe and reliable heat transfer.

Minimizing Thermal Resistance
The thinner the pad, the lower the thermal resistance. Depending on mounting pressure, the TP-4 can be compressed to up to 60% of its original thickness.

Bridging Uneven Surfaces
Adapts optimally to varying chip heights, air gaps, and uneven surfaces to ensure reliable contact.

Available in Various Thicknesses and Sizes
Available in 0.5 mm, 1.0 mm, and 1.5 mm thicknesses as well as multiple sizes. Can be individually cut to size if needed.

Stackable Without Performance Loss
Thanks to its low hardness and low interface resistance, multiple pads can be combined without affecting thermal transfer performance.

Versatile Applications
Ideal for RAM, chipsets, GPUs, consoles, laptops, and many other electronic components. Flexible, vibration-dampening, and easy to cut.

Features

Type: Thermal pad
Density: 3.4 g/cm³
Product colour: Grey
Operating temperature (T-T): -40 - 200 °C

Technical details

Warranty period: 6 year(s)
Compliance certificates: UL, RoHS

Weight & dimensions

Width: 20 mm
Depth: 120 mm
Height: 1.5 mm

Packaging data

Quantity per pack: 4 pc(s)
Package width: 95 mm
Package depth: 140 mm
Package height: 2.5 mm
Package weight: 61 g

Logistics data

Country of origin: China
