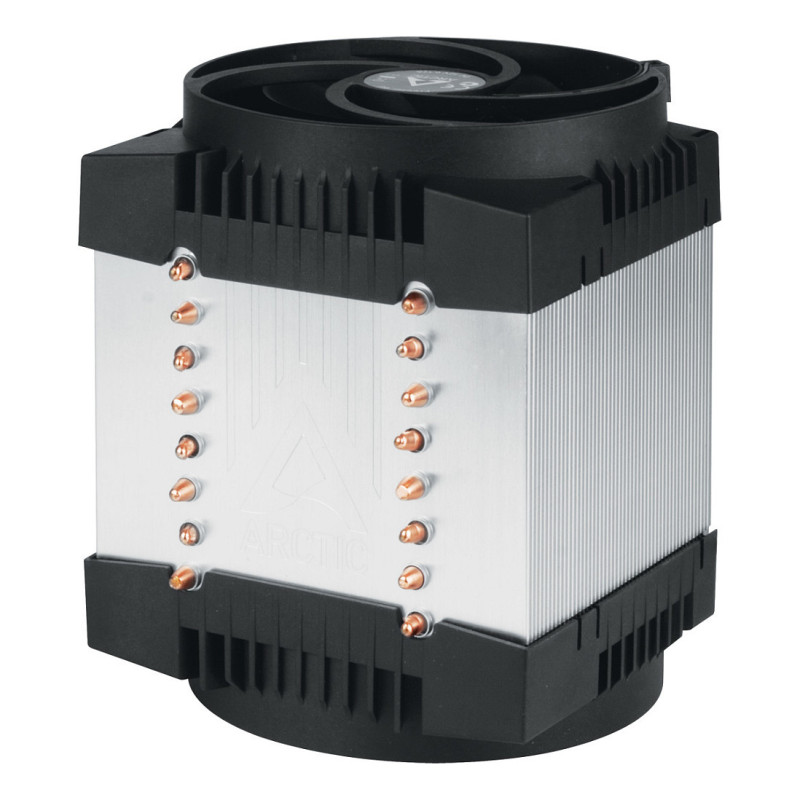

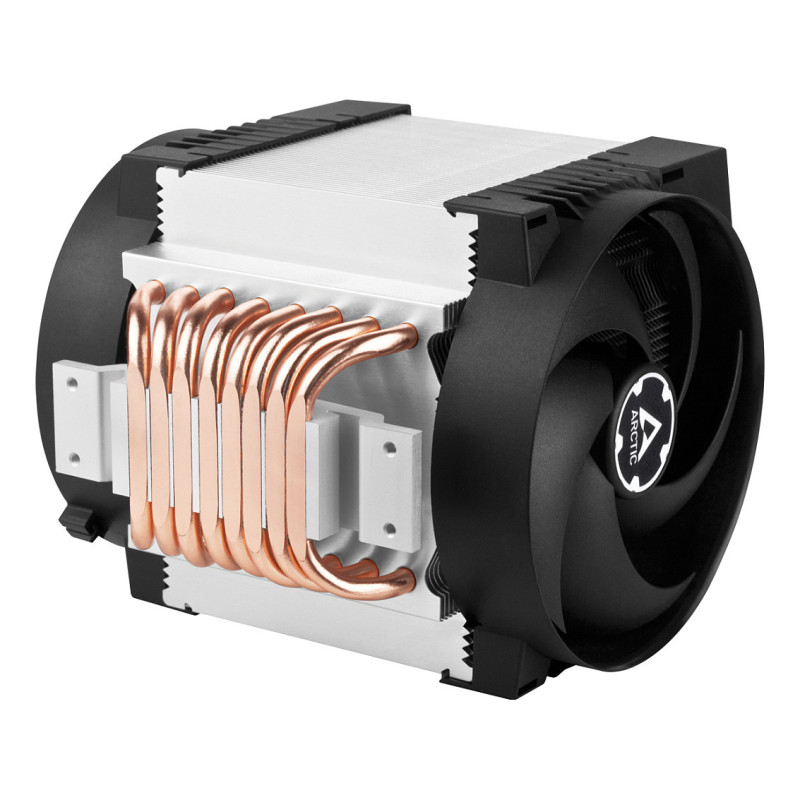

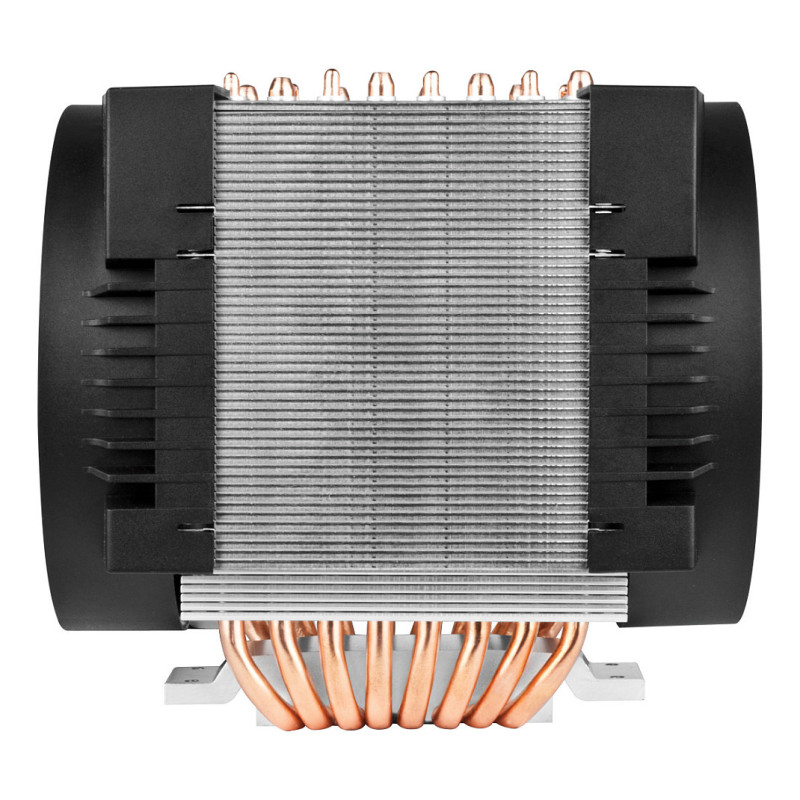

ARCTIC šaldiklis 4U-M Rev. 2

ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel. Type: Air cooler, Fan diameter: 12 cm, Airflow: 122.16 m³/h, Bearing type: Dual ball bearing. Width: 156 mm, Depth: 124 mm, Height: 145 mm. Product colour: Aluminium, Black

Efficient, reliable, durable and quiet - the demands on server cooling are high. ARCTIC has developed specialised solutions for continuous operation that ensure the reliable performance of servers and workstations. Our fans deliver high performance and set new standards in energy efficiency.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 4189, LGA 4677 (Socket E), LGA 4710 (Socket E2), SP6, Socket TR4, Socket TR5, Socket sTRX4, Socket sWRX8
Maximum airflow: 71.9 cfm
Airflow: 122.16 m³/h
Bearing type: Dual ball bearing
Fan noise level (max): 40 dB
Fan speed (min): 400 RPM
Fan speed (max): 2300 RPM
Fan static pressure: 3.3 mmH2O
Operating temperature (T-T): 0 - 40 °C

Design

Product colour: Aluminium, Black
Number of fans: 2 fan(s)
Number of fins: 57
Fins material: Aluminium
Number of heat pipes: 8
Fan connector: 4-pin
Rack capacity: 4U
Display type: Not applicable

Power

Starting voltage: 8 V
Thermal Design Power (TDP): 350 W
Fan voltage: 12 V
Fan current: 0.12 A

Weight & dimensions

Width: 156 mm
Depth: 124 mm
Height: 145 mm
Weight: 1.27 kg
Heat pipes diameter: 6 mm
Cable length: 0.2 m
Package width: 160 mm
Package depth: 211 mm
Package height: 141 mm
Package weight: 1.55 kg

Packaging content

Package type: Box
