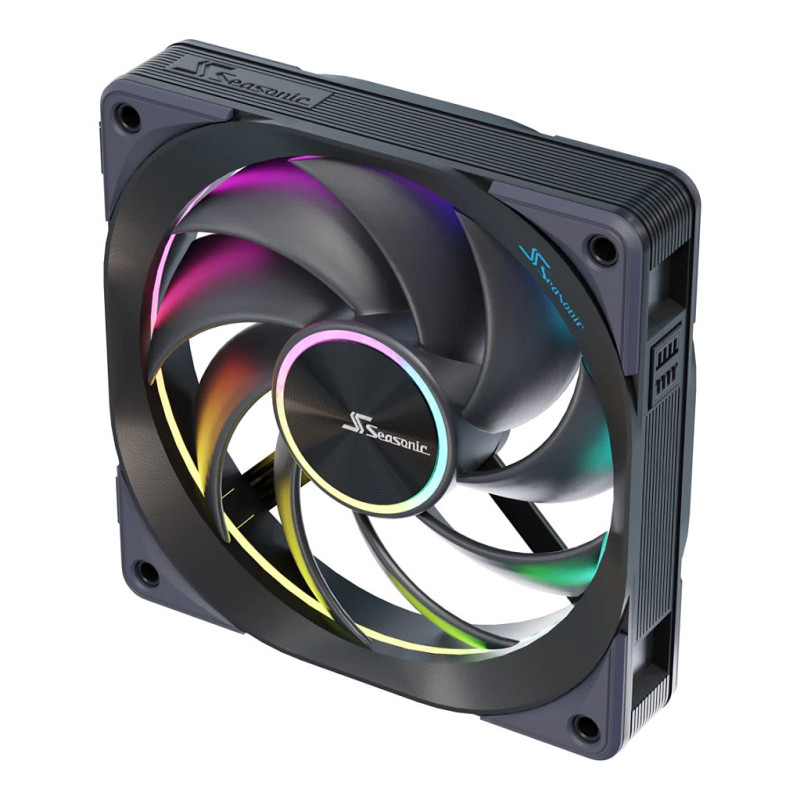

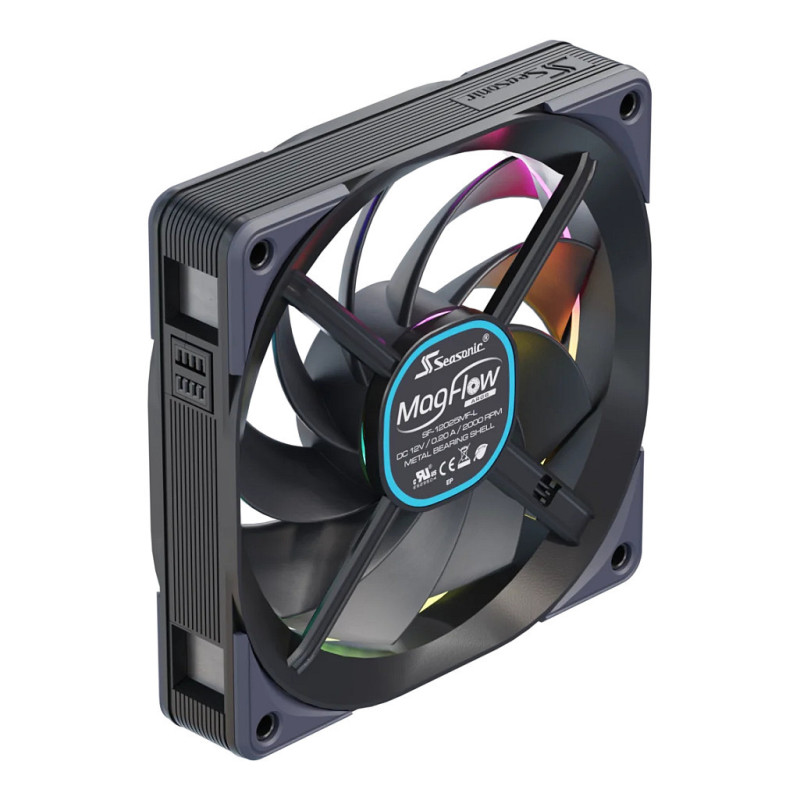

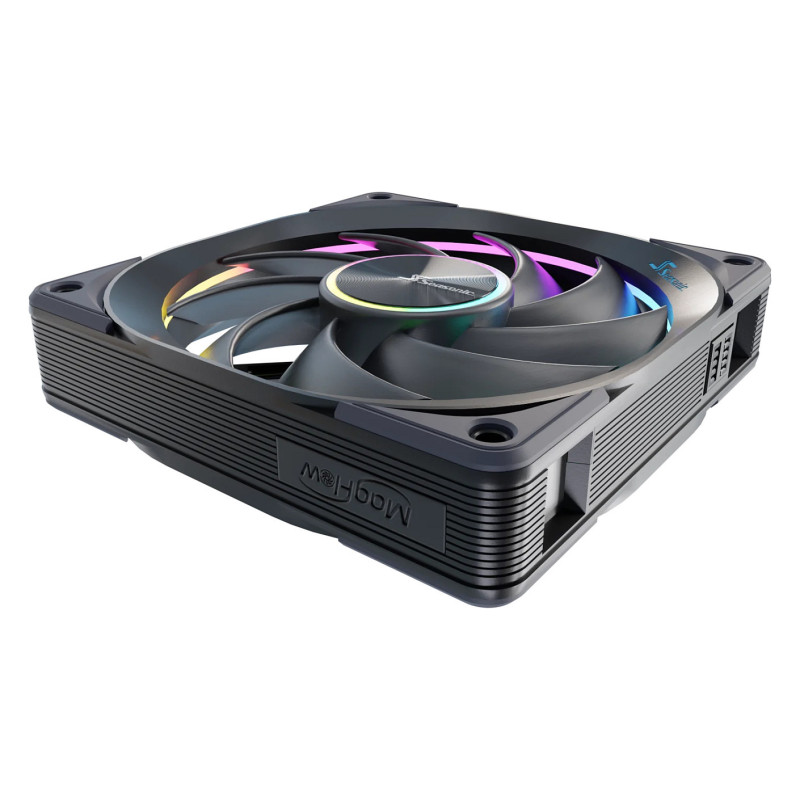

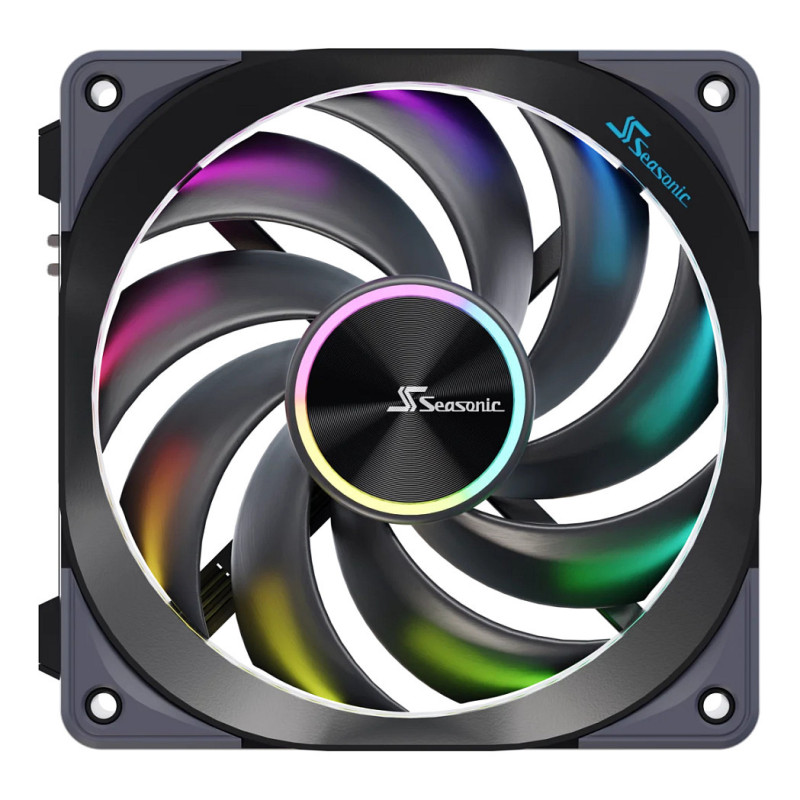

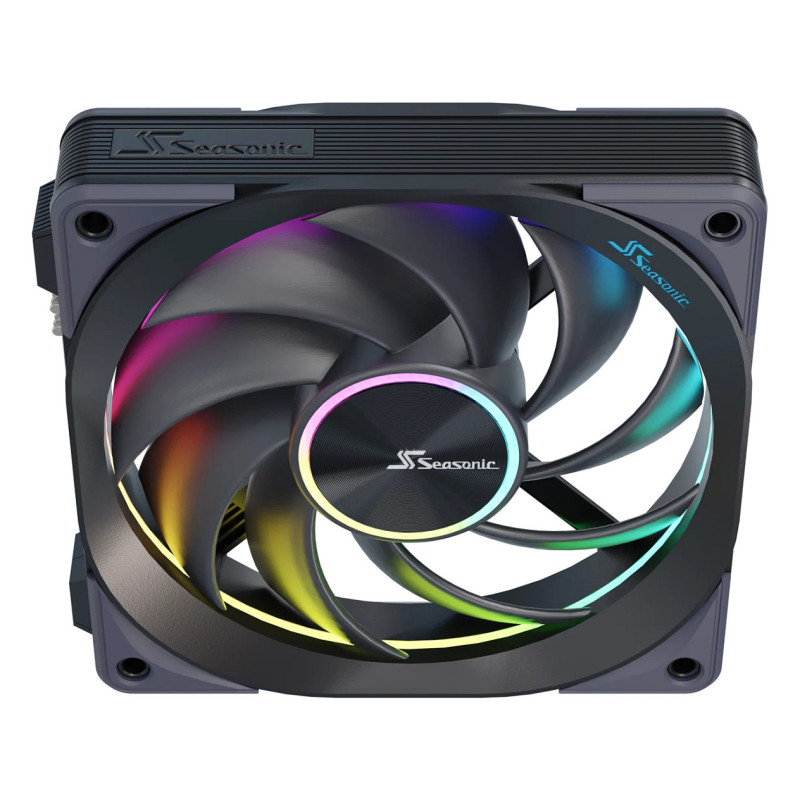

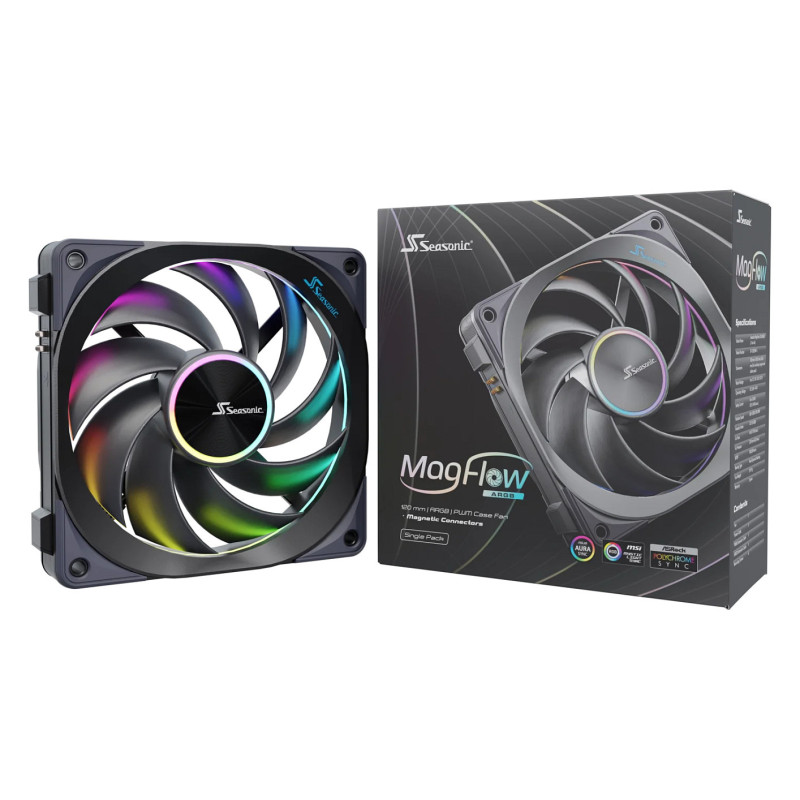

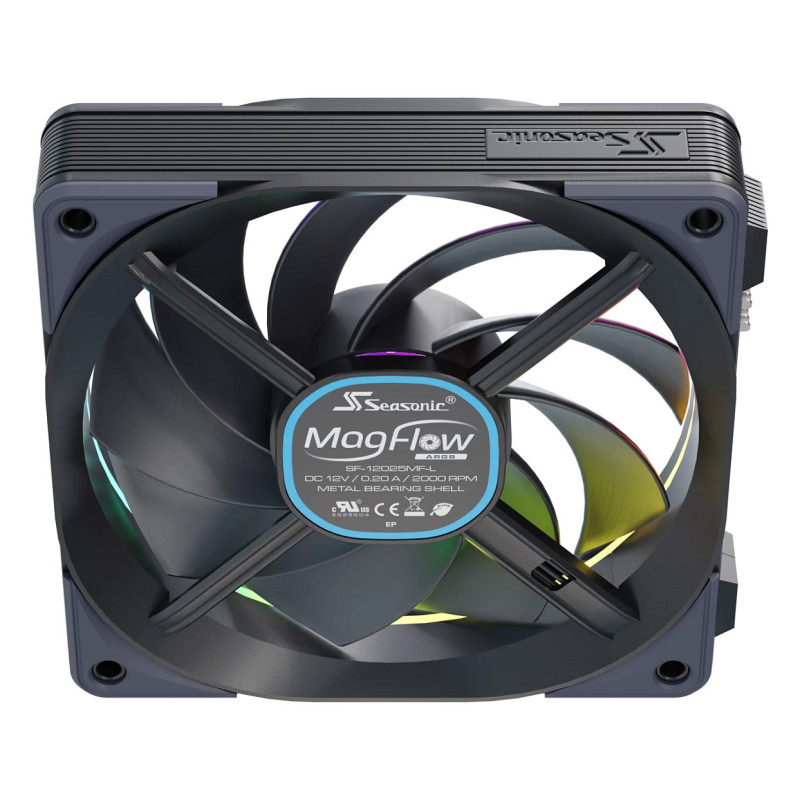

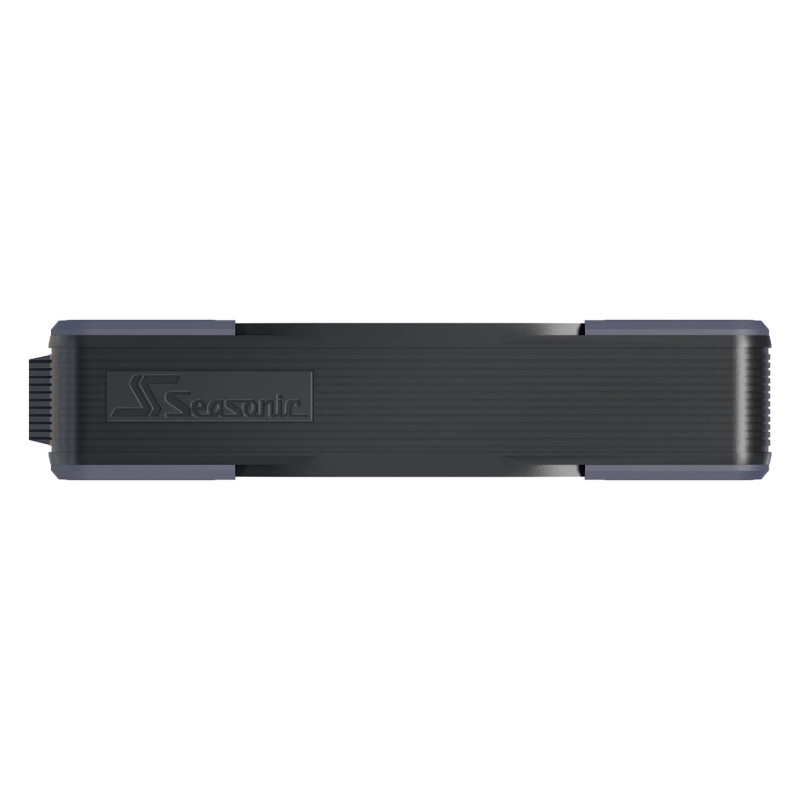

Sezoninis MagFlow ARGB

Seasonic MagFlow ARGB. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.28 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 124.2 mm, Depth: 26.6 mm, Height: 120.4 mm. Product colour: Black

MagFlow ARGB 120 mm

The Seasonic MagFlow ARGB Fan is a novel cooling product in terms of style and functional modularity. Perfectly positioned, built-in magnetic attachment points connect the fan sides easily, pin-to-pin with a snap. Hassle-free installation saves time and enhances the look of the PC by eliminating the need to run cables in between fans.

DAISY CHAIN DESIGN
Individual fans are attached to each other by an interlocking mechanism supported by magnets. This system eliminates the use of wires to make the installation simpler and cleaner.

Fluid Dynamic Bearing Fan
The extremely quiet fluid dynamic bearing with its low vibration further reduces blade deflection and has a long life expectancy.

Efficiency and noise are well-balanced by a special 9-blade fan buried into the FDB bearing to increase blade stability, reduce noise, and maximize airflow. Shock absorbing rubber pads on all corners eliminate vibration between the case and the fans.

Modularity
Regardless of the number of fans to be installed, attaching the cables for power and signal becomes extremely easy and convenient with the magnets. The connectors snap quickly and precisely in place, which greatly simplifies the assembly process.

Easy Installation On Top Of The Radiator
After the fans are connected, they can be installed on top of the water-cooling radiator with only four screws, which reduces the time spent on alignment and screw locking.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (max): 2000 RPM
Noise level (high speed): 30.155 dB
Maximum airflow: 49.47 cfm
Maximum air pressure: 2.28 mmH2O
Bearing type: Fluid Dynamic Bearing (FDB)
Fan noise level (max): 30.155 dB
Fan bearing technology: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Fan speed (max): 2000 RPM
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Number of fans: 1 fan(s)
Number of fan blades: 9

Power

Voltage: 12 V
Rated current: 0.1 A
Maximum current: 0.18 A
Fan voltage: 12 V
Fan current: 0.1 A

Weight & dimensions

Width: 124.2 mm
Depth: 26.6 mm
Height: 120.4 mm
Weight: 214 g
Fan dimensions (W x D x H): 124.2 x 26.6 x 120.4 mm
Fan weight: 214 g

Technical details

Warranty period: 3 year(s)

Packaging content

Package type: Box
Cables included: Fan
Feature: Screws included
Feature: Manual
