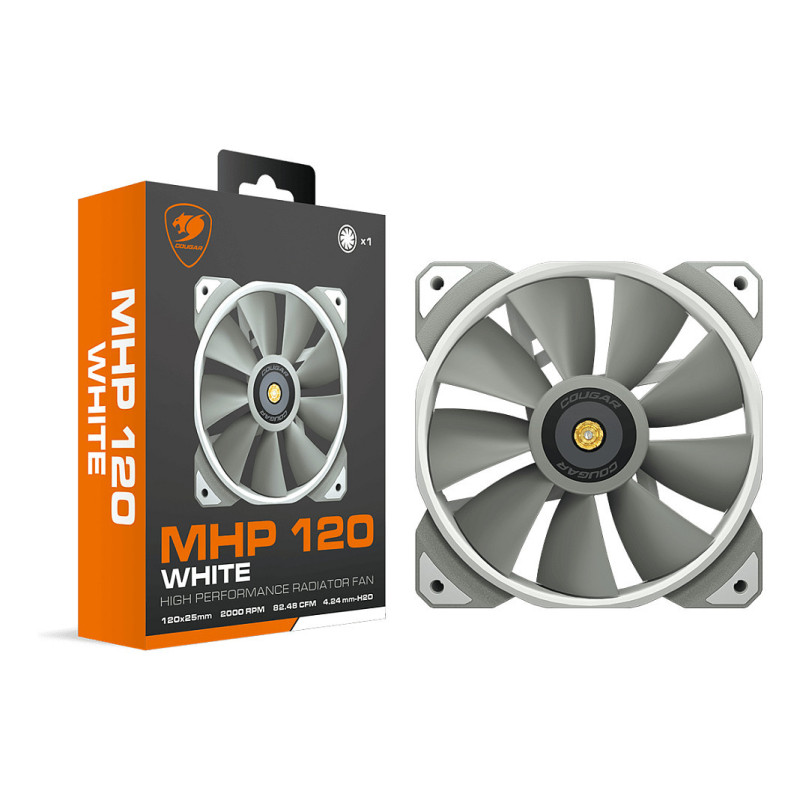

POUGAR CGR-CF-MHP12HB-W

COUGAR Case Fan MHP 120, White. Type: Air cooler, Fan diameter: 12 cm, Airflow: 143.53 m³/h, Maximum air pressure: 4.24 mmH2O. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: White

MHP 120
- Single Pack -
High Performance Radiator Fan
Through structural adjustment and precision tuning, MHP 120 fan is suitable for any cooling fan position inside the chassis. In addition, the metallic-reinforced motor hub & metallic bearing shell design drastically increases the stability and cooling performance. MHP120 is the perfect choice for cooling fan upgrades!

Extremely Hyper Fan
With 2000 RPM(max)
Proven with data from certified professional testing labs, MHP 120 delivering 82.48 CFM/ 143.53 m3/h high air flow and 4.24mmH2O high static pressure. Moreover, it features a high fan speed capable of reaching up to 2000 RPM, providing outstanding performance, MHP 120 fan is the fan that dominates!

Metal-reinforced
Motor Hub & Shell
With the metal-reinforced motor hub and metal bearing shell design, MHP 120 fan generates excellent rotational stability that takes enhanced performance and durability to a whole new level.

HDB Bearing & PWM Control
MHP 120 is equipped with HDB bearing (Hydro Dynamic Bearings), that extends the fan's life span and reduces decibel effectively. Meanwhile, PMW control technology allows for total control on fan speed to reach that perfect balance between machine performance and cooling.

Anti-vibration Damper
MHP 120 cooling fan is equipped with rubber dampers at four edges of the fan that absorbs vibration. Further reducing noise from mounting gaps and/or resonance in the chassis, adding to the quiet performance of your PC system.

Suitable For Radiator / Heatsink
With the high static pressure level of MHP 120, it is an excellent choice for most of the radiator & heatsink in maximizing their heat dissipation. And of course, MHP 120 is also compatible, and can be mounted to most of the air / water cooler from other brands with ease.

Performance

Suitable location: Computer case
Type: Air cooler
Fan diameter: 12 cm
Maximum airflow: 82.48 cfm
Airflow: 143.53 m³/h
Maximum air pressure: 4.24 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 34.5 dB
Fan bearing technology: Hydraulic bearing
Quantity per pack: 1 pc(s)
Fan speed (min): 600 RPM
Fan speed (max): 2000 RPM

Design

Product colour: White
Material: Metal
Number of fans: 1 fan(s)
Number of fan blades: 9
Fan connector: 4-pin

Power

Rated voltage: 12 V
Fan power consumption: 2.76 W
Rated current: 0.23 A

Weight & dimensions

Width: 120 mm
Depth: 120 mm
Height: 25 mm
Weight: 186 g
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Cable length: 0.2 m
Package width: 169 mm
Package depth: 135 mm
Package height: 27 mm
Package weight: 276 g

Technical details

Compliance certificates: CE

Packaging content

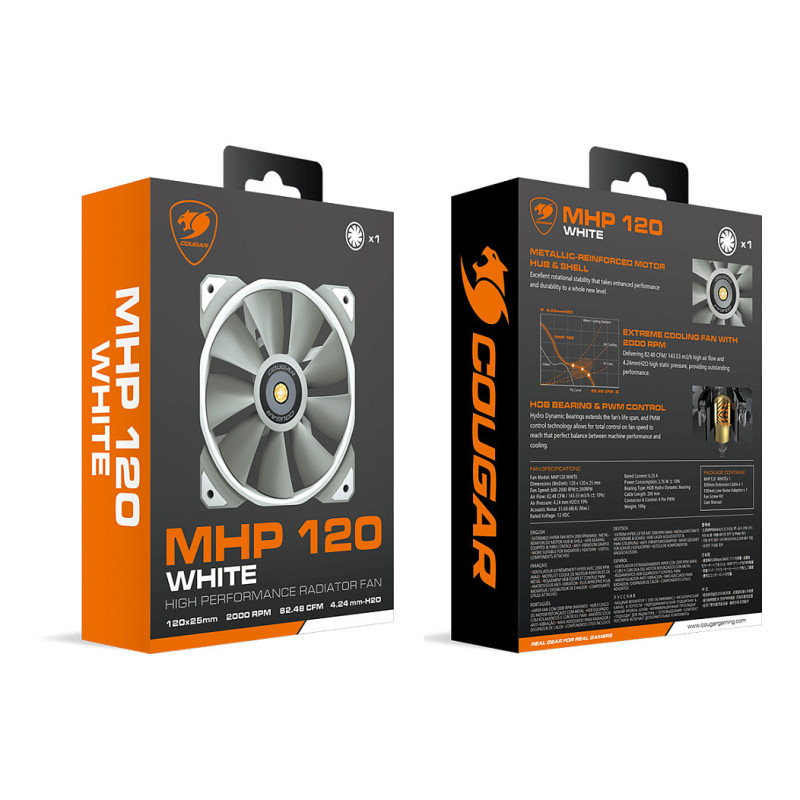

Package type: Hanging box
Feature: Mounting kit
Feature: Screws included

Other features

Country of origin: China
