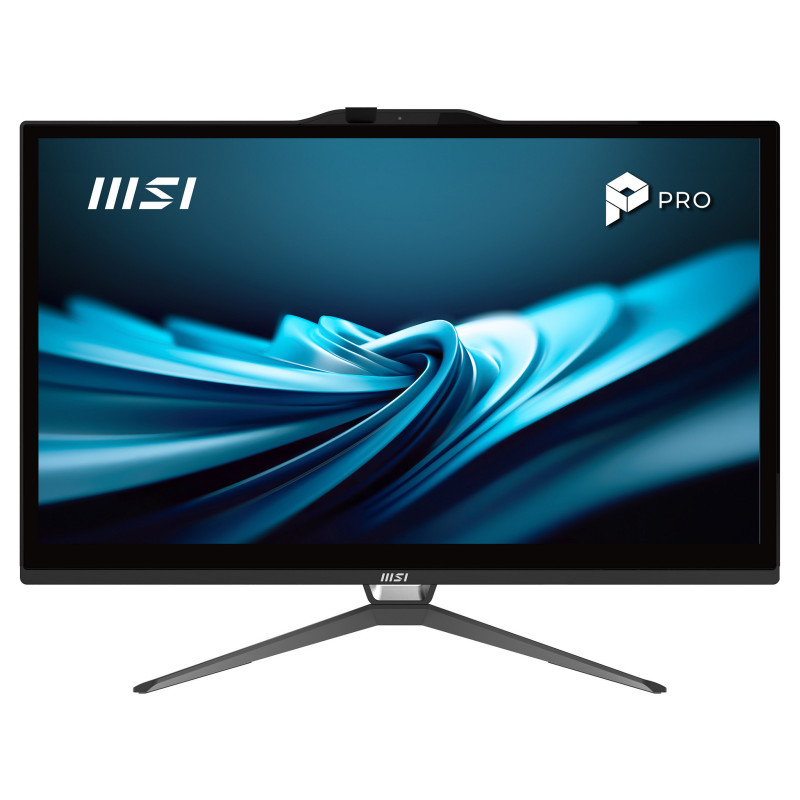

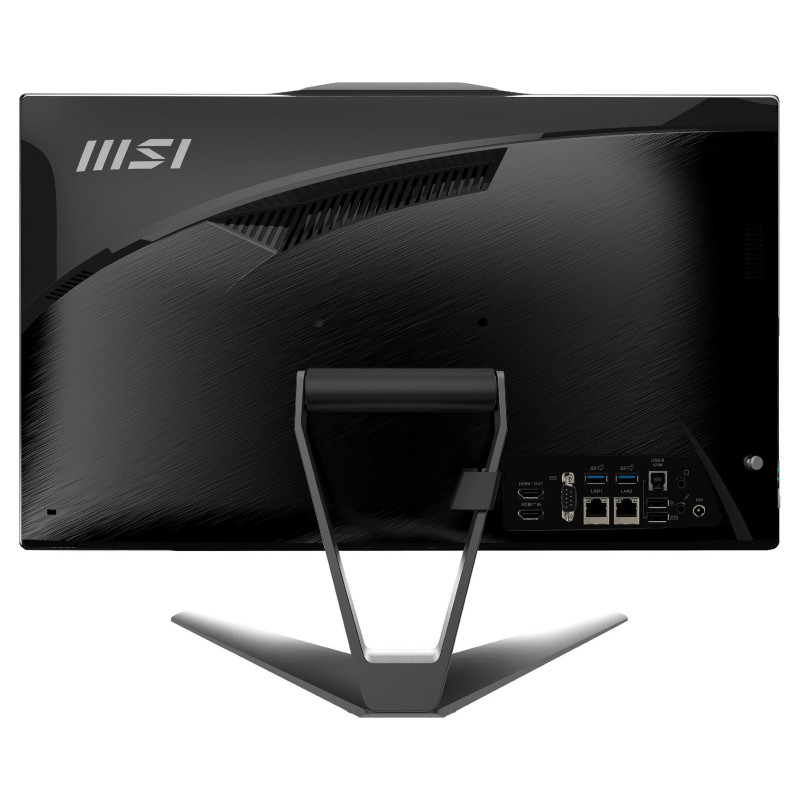

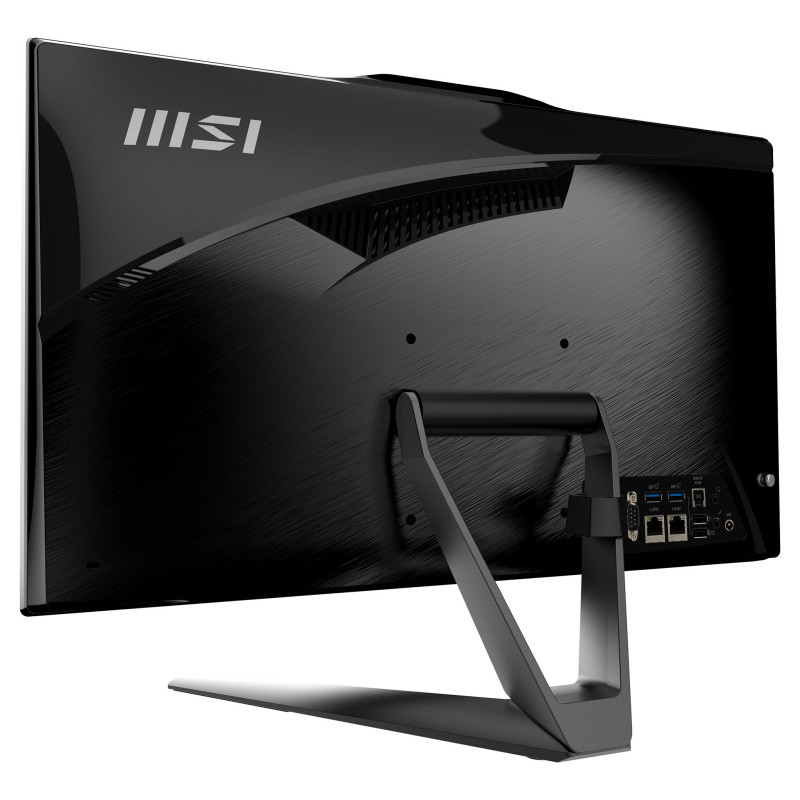

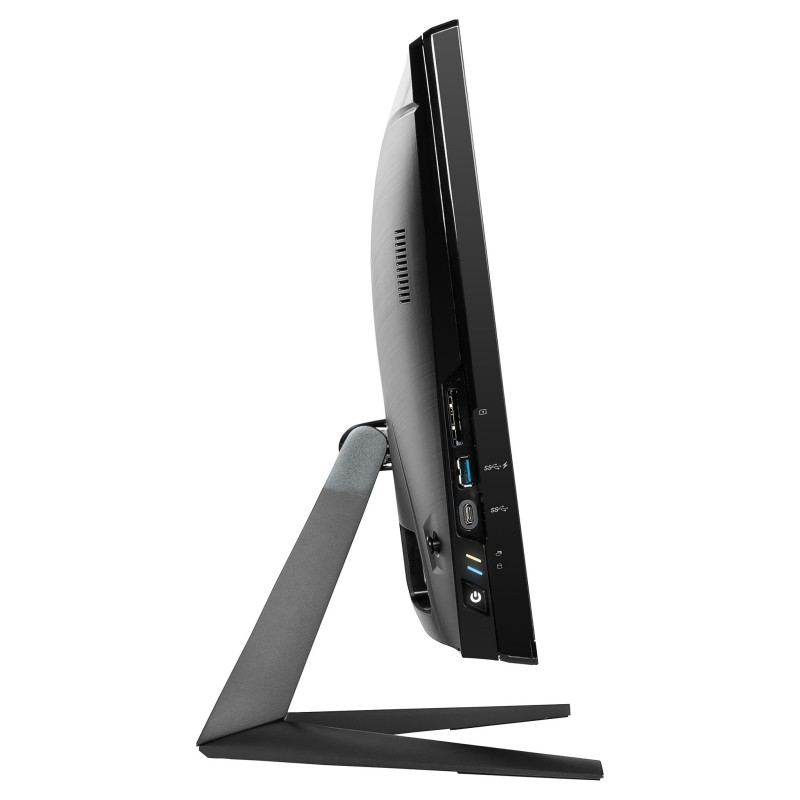

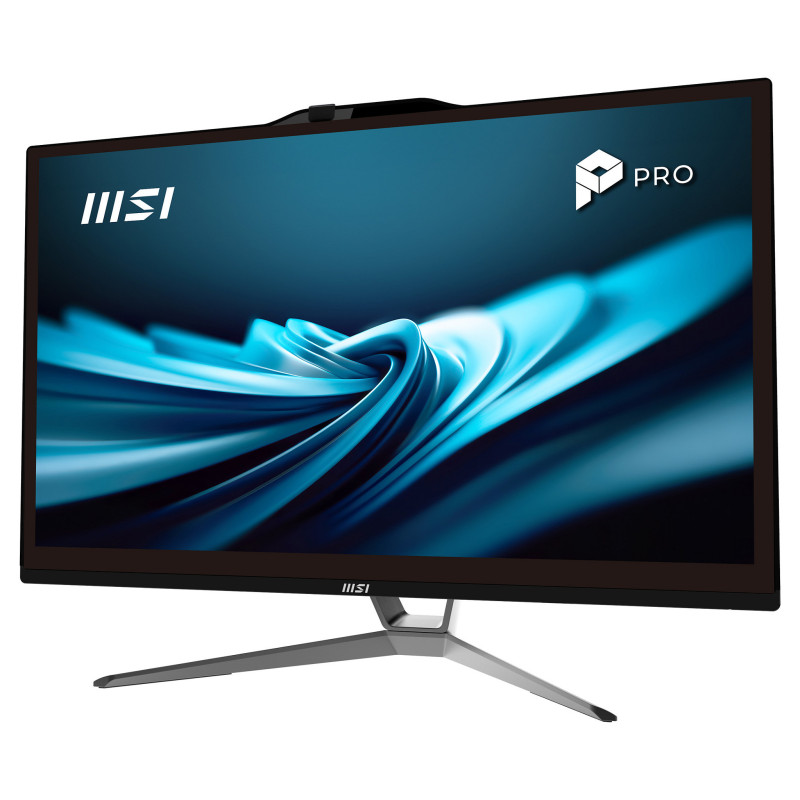

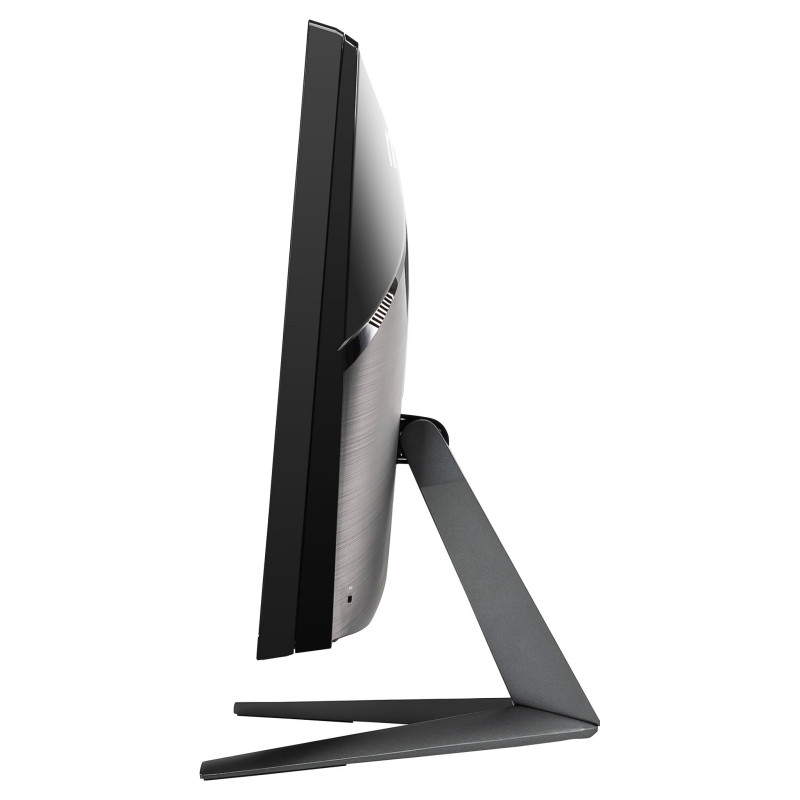

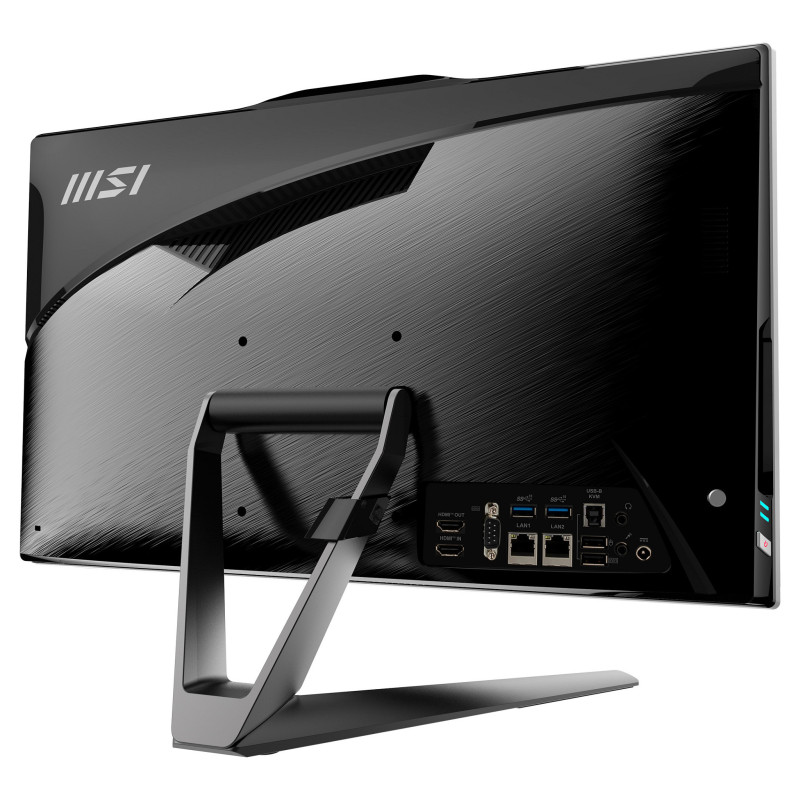

MSI Pro AP222T 14MA-613EU

MSI Pro AP222T 14MA-613EU. Product type: All-in-One PC. Display diagonal: 54.6 cm (21.5"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Panel type: IPS. Processor family: Intel® Core™ i3. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel UHD Graphics 730. Built-in camera. Operating system installed: Windows 11 Home. Product colour: Black

Resilient and Pioneering
Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.

Touch This World With Unlimited Opportunity
Intuitively clicking on what you need with your fingers, the PRO AP222T Series is equipped with 10-point touch technology that provides more flexibility and multiple uses.

Easy Maintenance Design
With the HDD Rapid Upgrade Design, maintaining or upgrading your 2.5" storage on PRO AP222 Series will not be a nightmare any more.

Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
Feature: Touchscreen
HD type: Full HD
Native aspect ratio: 16:9
Display brightness: 250 cd/m²
Panel type: IPS
Pixel pitch: 0.2745 x 0.2745 mm
Feature: Anti-glare screen

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: Intel® Core™ i3 (14th gen)
Processor model: i3-14100
Processor cores: 4
Processor threads: 8
Processor boost frequency: 4.7 GHz
Performance cores: 4
Performance-core Max Turbo Frequency: 4.7 GHz
Performance-core base frequency: 3.5 GHz
Processor cache: 12 MB
Processor cache type: Smart Cache
Processor base power: 60 W
Maximum turbo power: 110 W

Memory

Internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 64 GB
Memory slots type: SO-DIMM
Memory clock speed: 3200 MHz
Memory layout (slots x size): 1 x 8 GB

Storage

Total storage capacity: 512 GB
Storage media: SSD
Total SSDs capacity: 512 GB
Number of SSDs installed: 1
SSD capacity: 512 GB
SSD interface: PCI Express
Feature: NVMe
SSD form factor: M.2
M.2 SSD size: 2280 (22 x 80 mm)
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: SD

Graphics

Discrete graphics card model: Not available
Feature: On-board graphics card
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel UHD Graphics 730

Audio

Feature: Built-in speaker(s)
Number of speakers: 2
RMS rated power: 2.5 W
Audio chip: Realtek ALC897

Camera

Feature: Built-in camera
Camera HD type: HD
Feature: Privacy camera
Privacy type: Privacy shutter

Network

Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Antenna type: 1x1
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Bluetooth
Bluetooth version: 5.2

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 2
Headphone outputs: 1
Feature: Microphone in
Feature: DC-in jack

Design

Product colour: Black
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm

Performance

Product type: All-in-One PC
Motherboard chipset: Intel H610

Software

Operating system installed: Windows 11 Home

Power

AC adapter power: 120 W

Weight & dimensions

Width (with stand): 499.2 mm
Depth (with stand): 209.4 mm
Height (with stand): 373 mm
Weight (with stand): 5.9 kg
Package width: 582 mm
Package depth: 237 mm
Package height: 499 mm
Package weight: 9.02 kg

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 85%

Other features

Warranty period: 3 year(s)
