„Conceptronic ALTHEA18B“ mobiliųjų įrenginių įkroviklis

Conceptronic 4-Port 100W GaN USB PD Charger with USB-C Charging Cable, USB-C x 3, USB-A x 1, QC 3.0, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 3, Fast charging, Power protection features: Overheating, Overload, Short circuit. Cable length: 1.5 m, Product colour: Black

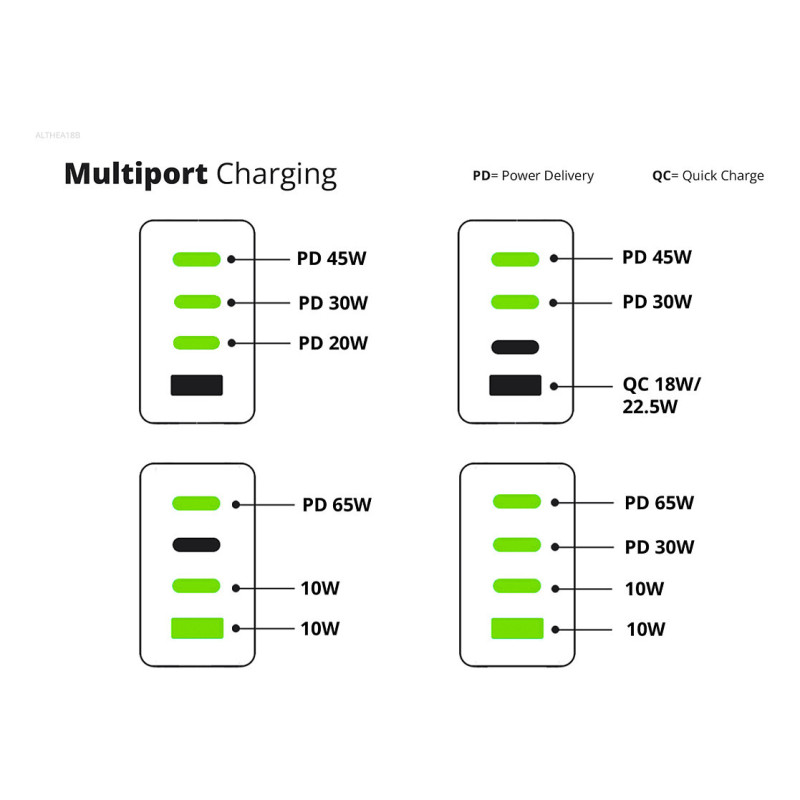

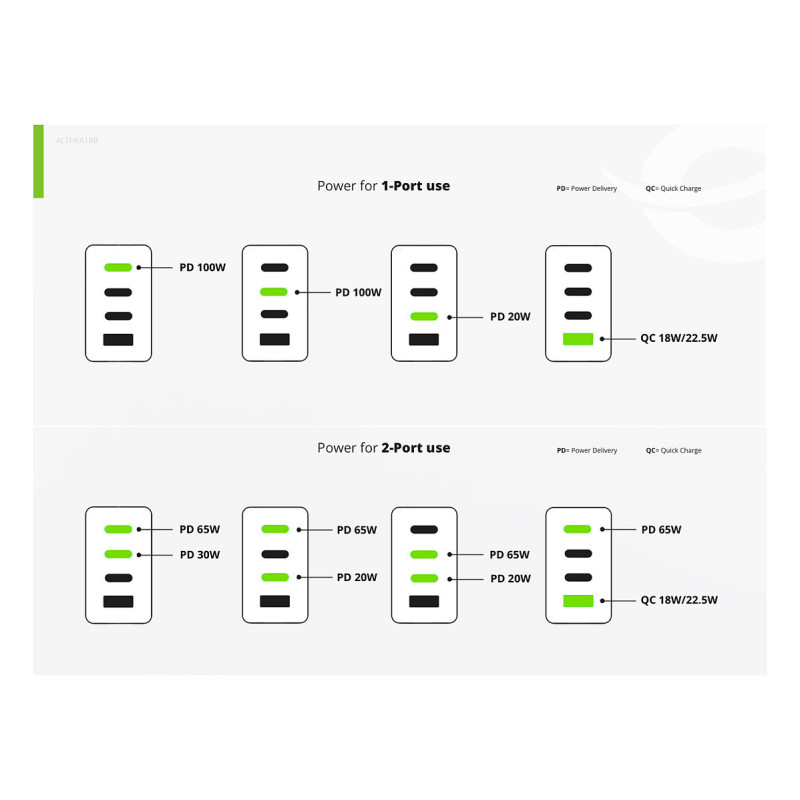

This charger features cutting-edge Gallium Nitride (GaN) technology, delivering up to 100W of power for exceptionally fast and efficient charging. It includes 4 ports: 3 USB-C ports with Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, enabling simultaneous charging of multiple devices with varying power needs. The charger supports a wide range of output options from 3.3V to 20.0V, making it compatible with a broad spectrum of devices, from smartphones to laptops. Enhanced safety is ensured with built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and connected devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, and features Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat generation. Additionally, the charger includes a 1.5m 100W USB-C to USB-C cable equipped with an E-mark chip for added convenience and versatility. (Note: A charging cable with an E-mark chip is required for power delivery greater than 3 amps.)

Performance

Charger compatibility: Universal
Power source type: AC

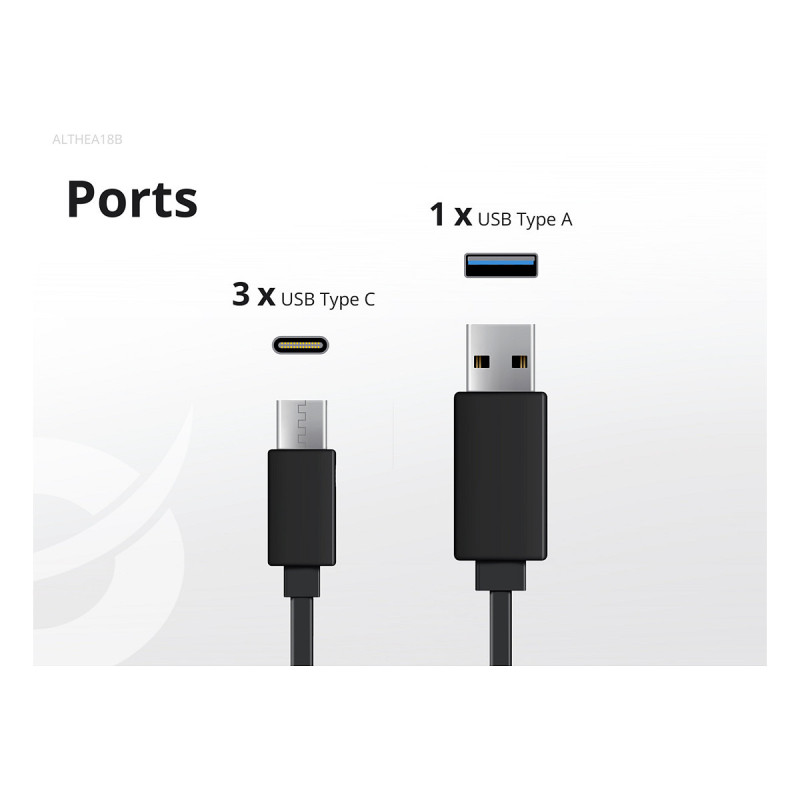

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

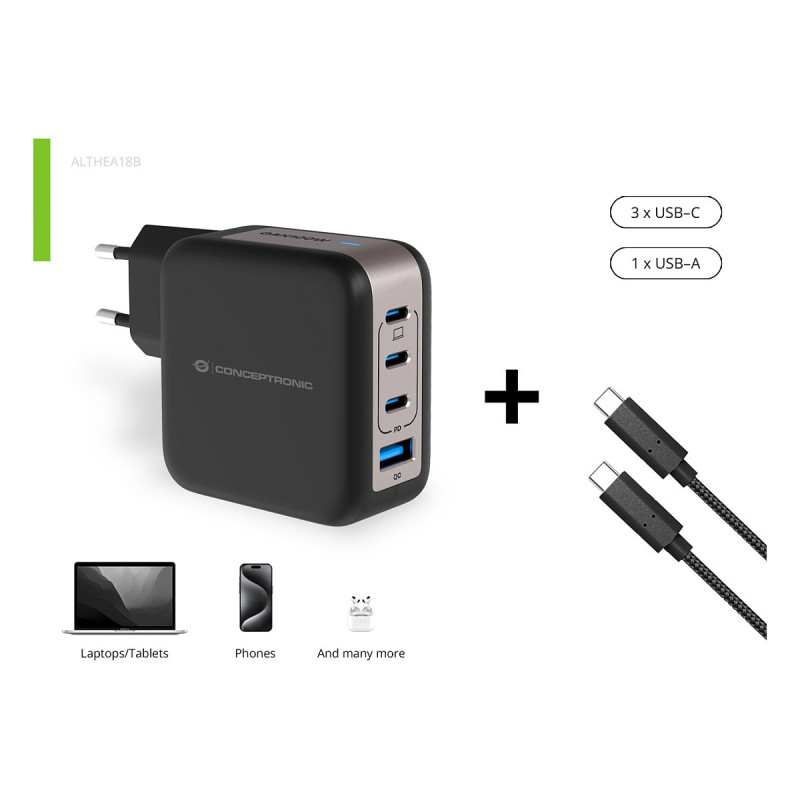

USB Type-C ports quantity: 3
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Quick Charge 3.0
Charger type: Indoor

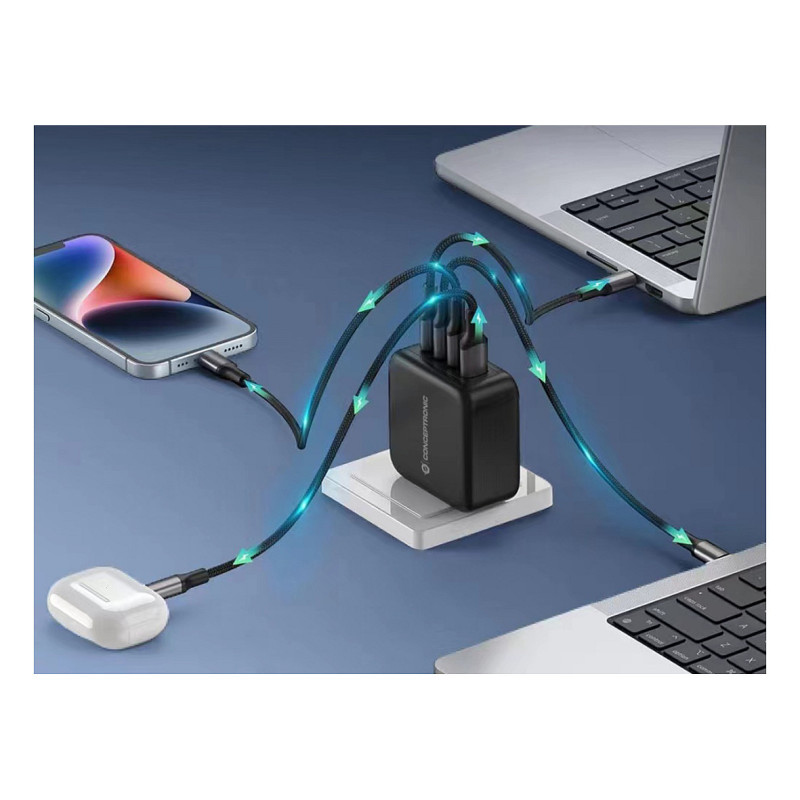

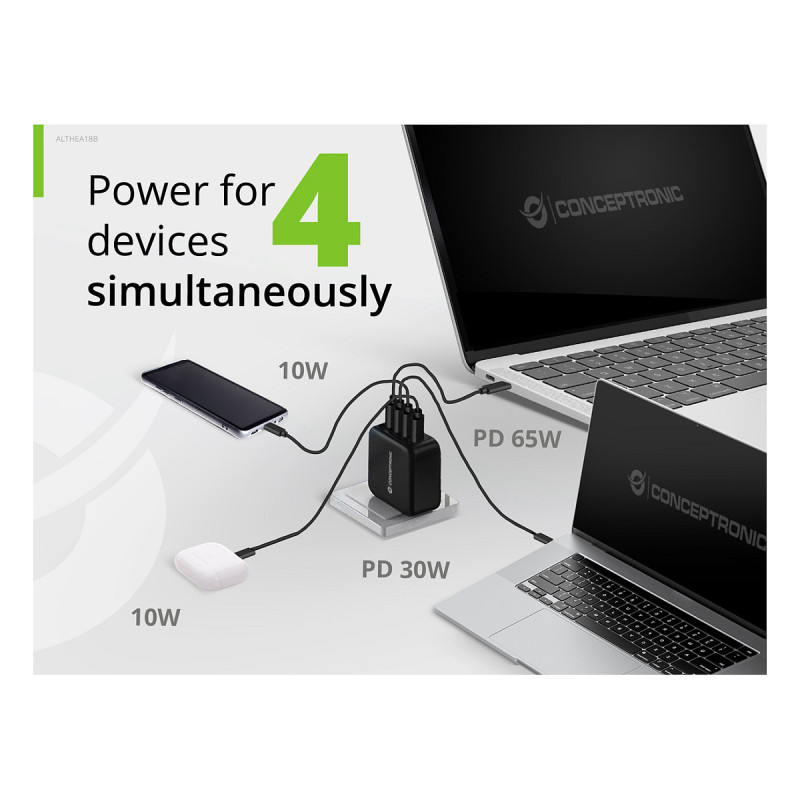

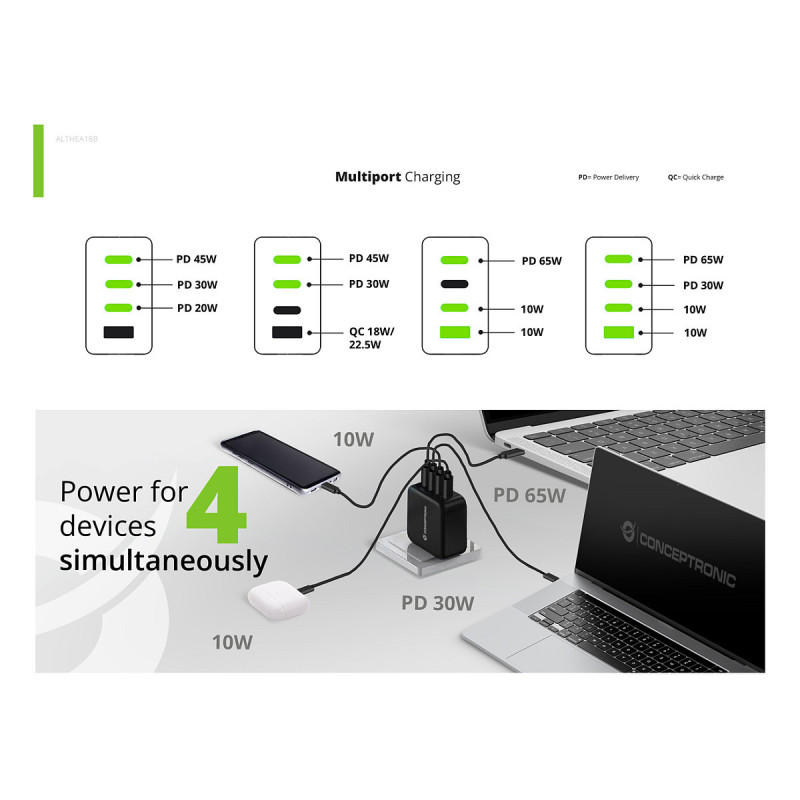

Number of simultaneously connected devices (max): 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black
Cable length: 1.5 m
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 2.5 A
Maximum power: 100 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 3 A
Output current (15V): 3 A
Output current (20V): 5 A

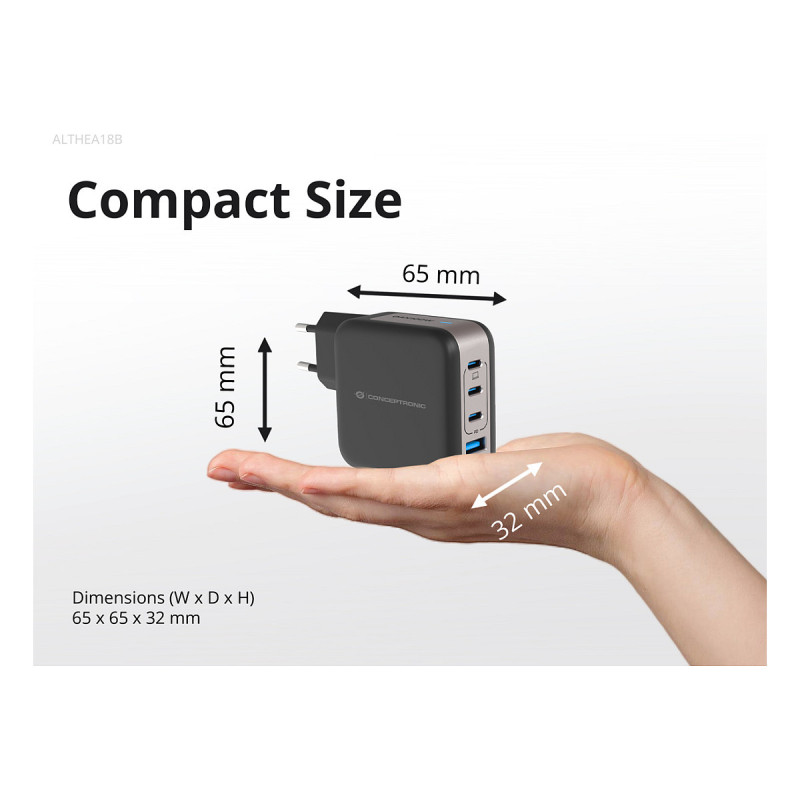

Weight & dimensions

Width: 65 mm
Depth: 65 mm
Height: 32 mm
Weight: 204 g

Packaging data

Package width: 153 mm
Package depth: 36 mm
Package height: 136 mm
Package weight: 136 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

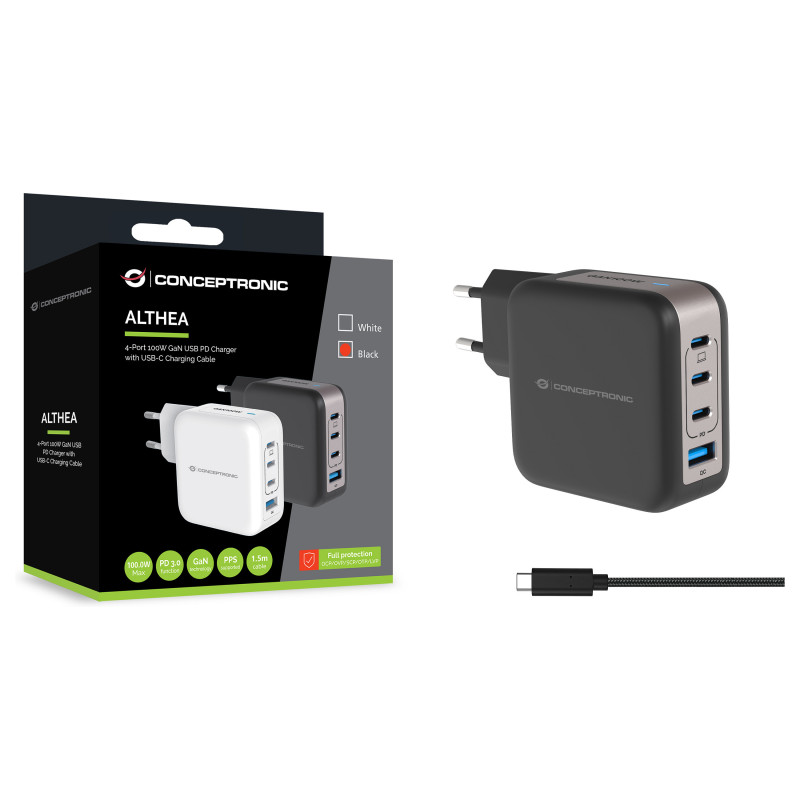

Packaging content

Cables included: USB Type-C
Feature: Manual

Sustainability

Feature: Sustainability compliance

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 148 cm
Master (outer) case width: 385 mm
Master (outer) case length: 292 mm
Master (outer) case height: 320 mm
Master (outer) case gross weight: 12.6 kg
Products per master (outer) case: 40 pc(s)
Country of origin: China
