„Conceptronic ALTHEA16B“ mobiliojo įrenginio įkroviklis

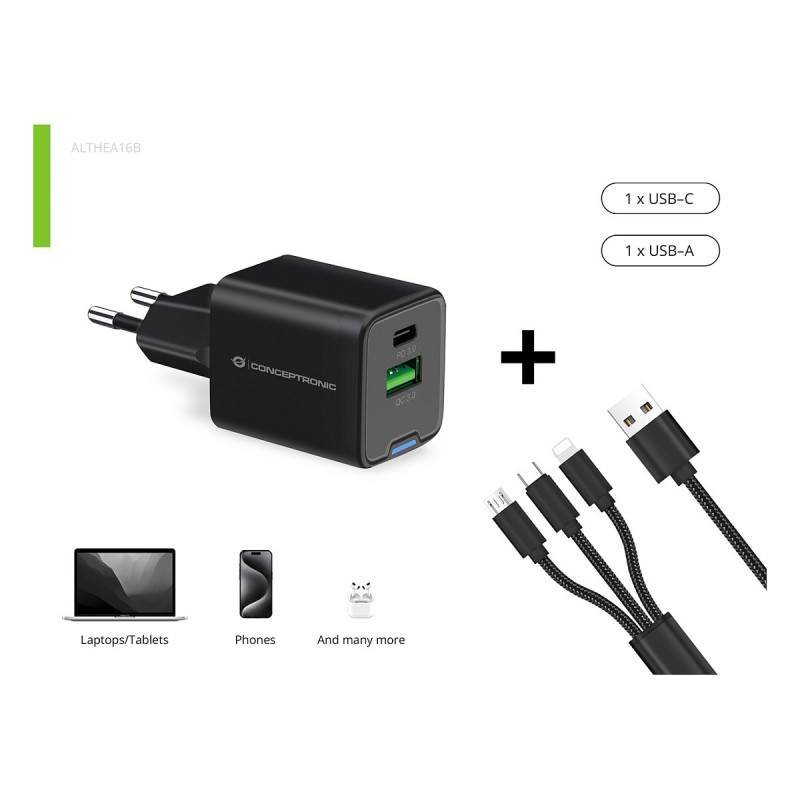

Conceptronic 2-Port 33W GaN USB PD Charger with 3-in-1 Charging Cable, USB-C x 1, USB-A x 1, QC 3.0, PPS. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 1, Fast charging, Power protection features: Overheating, Overload, Short circuit. Cable length: 1.5 m, Product colour: Black

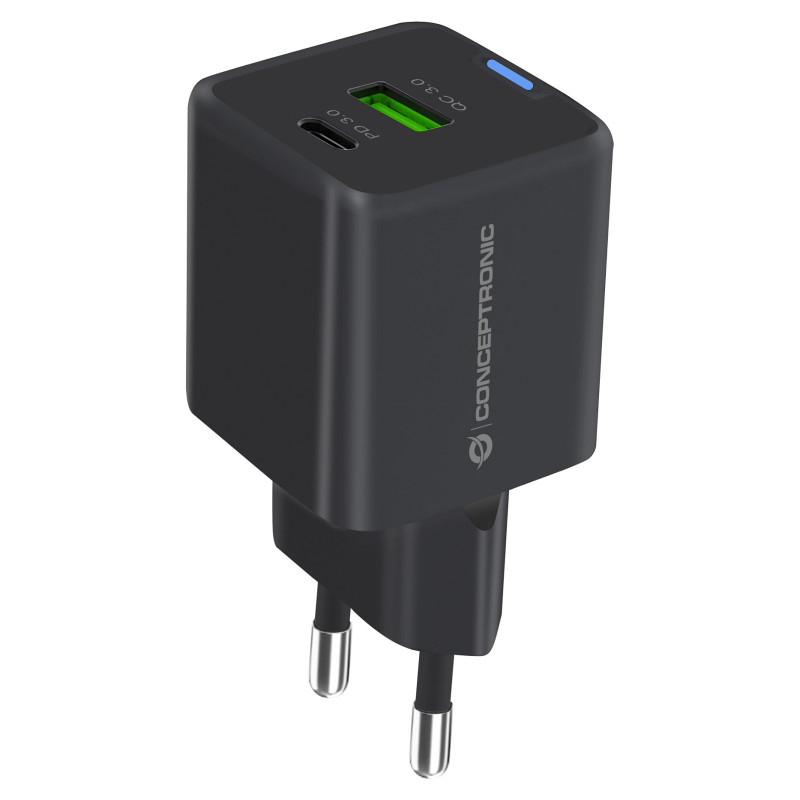

This charger harnesses the power of advanced Gallium Nitride (GaN) technology, delivering up to 33W of total power for quicker and more efficient charging. It offers versatile port options with 1 USB-C port featuring USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, enabling simultaneous charging of multiple devices with varying power needs. The charger supports a broad range of output options from 3.3V to 20.0V, making it compatible with everything from smartphones to laptops. It is designed with enhanced safety features, including protections against overload, short circuiting, and overheating to safeguard both the charger and connected devices. The charger also incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies, along with Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat. Additionally, it includes a 1.5m 3.0A 3-in-1 cable for added convenience and versatility.

Performance

Charger compatibility: Universal
Power source type: AC

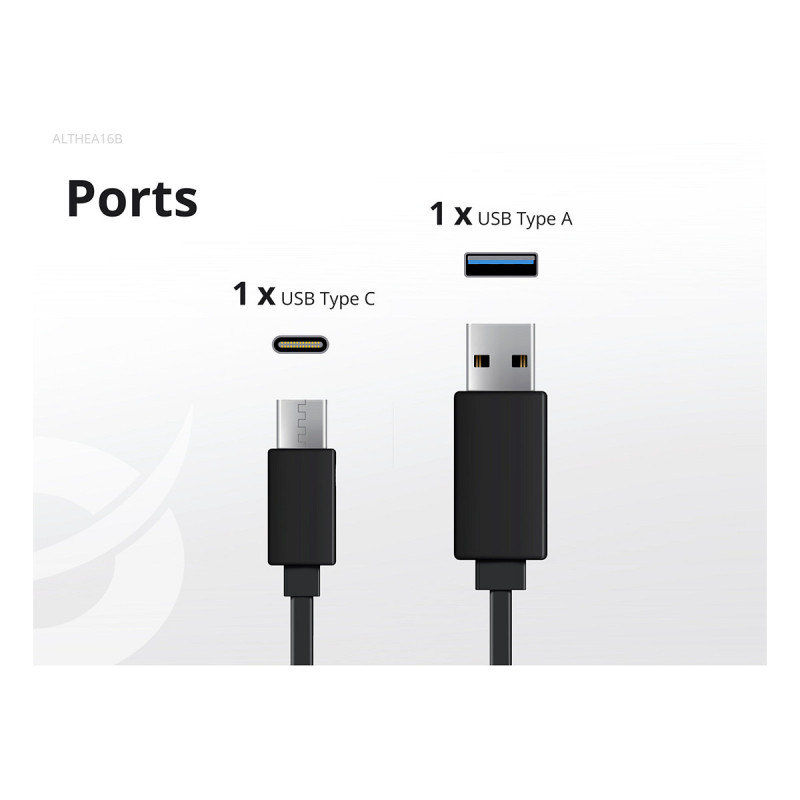

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 1
Feature: Fast charging
Fast charging technology: Power Delivery 3.0, Quick Charge 3.0
Charger type: Indoor
Number of simultaneously connected devices (max): 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
Power protection features: Overheating, Overload, Short circuit

Design

Product colour: Black

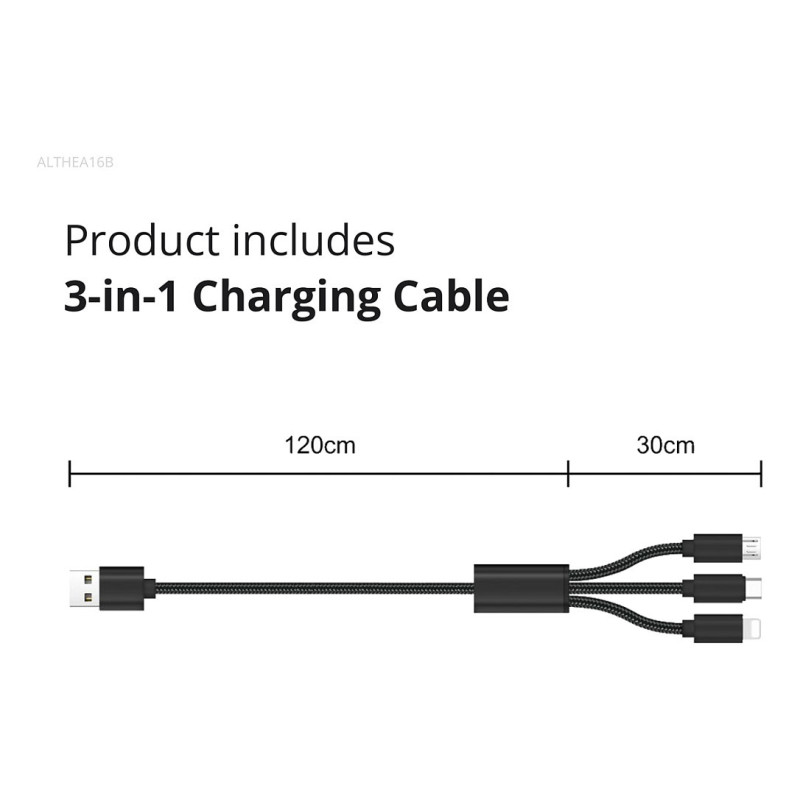

Cable length: 1.5 m

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 0.8 A

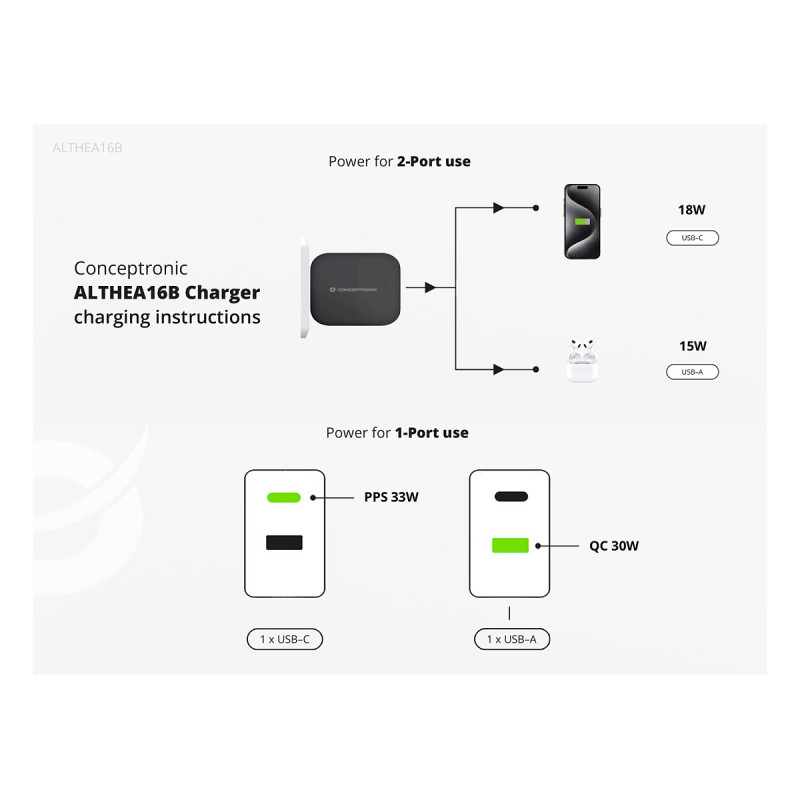

Maximum power: 33 W
Maximum output voltage: 20 V
Minimum output voltage: 3.3 V
Output current (5V): 3 A
Output current (9V): 3 A
Output current (12V): 2.5 A
Output current (15V): 2 A
Output current (20V): 1.5 A

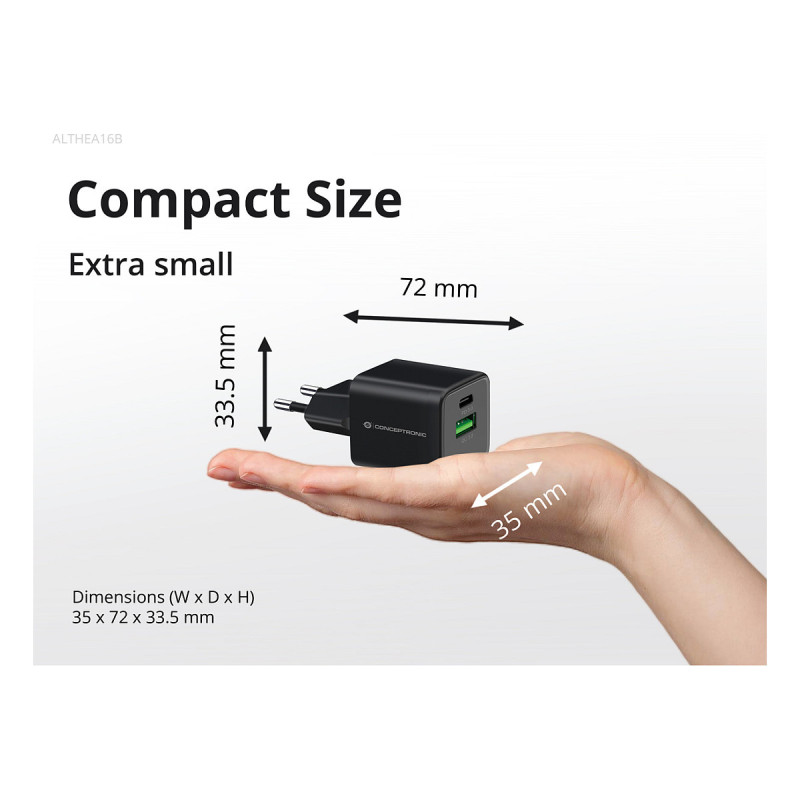

Weight & dimensions

Width: 35 mm
Depth: 72 mm
Height: 34 mm
Weight: 54 g

Packaging data

Package width: 95 mm
Package depth: 37 mm
Package height: 194 mm
Package weight: 194 g
Package type: Box

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 5 - 95%

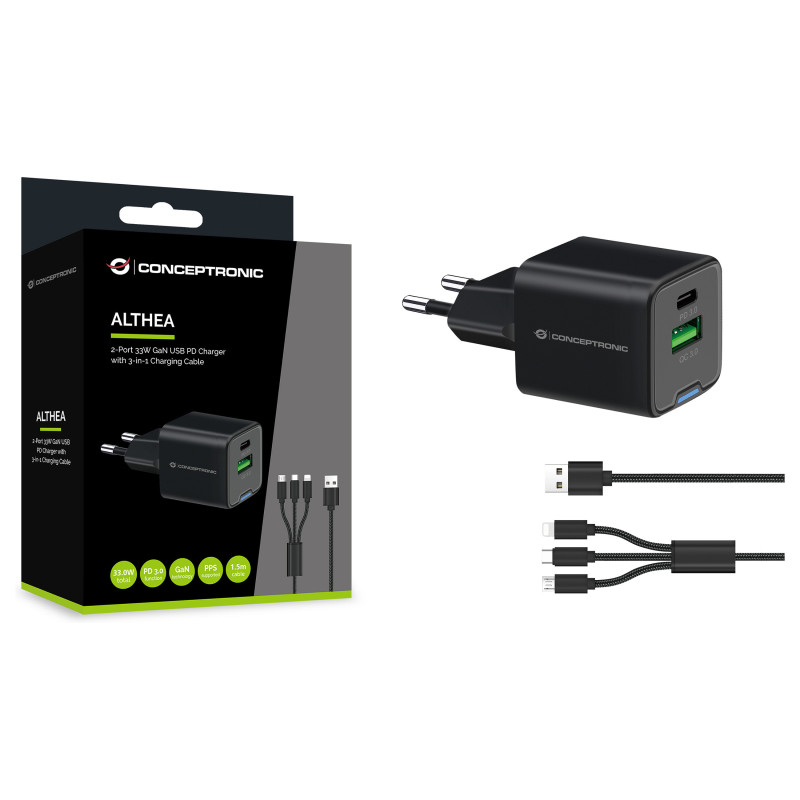

Packaging content

Cables included: USB
Feature: Manual

Certificates

Compliance certificates: CE, REACH, RoHS

Sustainability

Feature: Sustainability compliance
Sustainability certificates: ErP

Logistics data

Harmonized System (HS) code: 8504408390
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 180 cm
Master (outer) case width: 450 mm
Master (outer) case length: 450 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 10 kg
Products per master (outer) case: 50 pc(s)
Country of origin: China
