UBIQUITI UniFi Protect Network Video Recorder Instant Kit

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.

Video Management

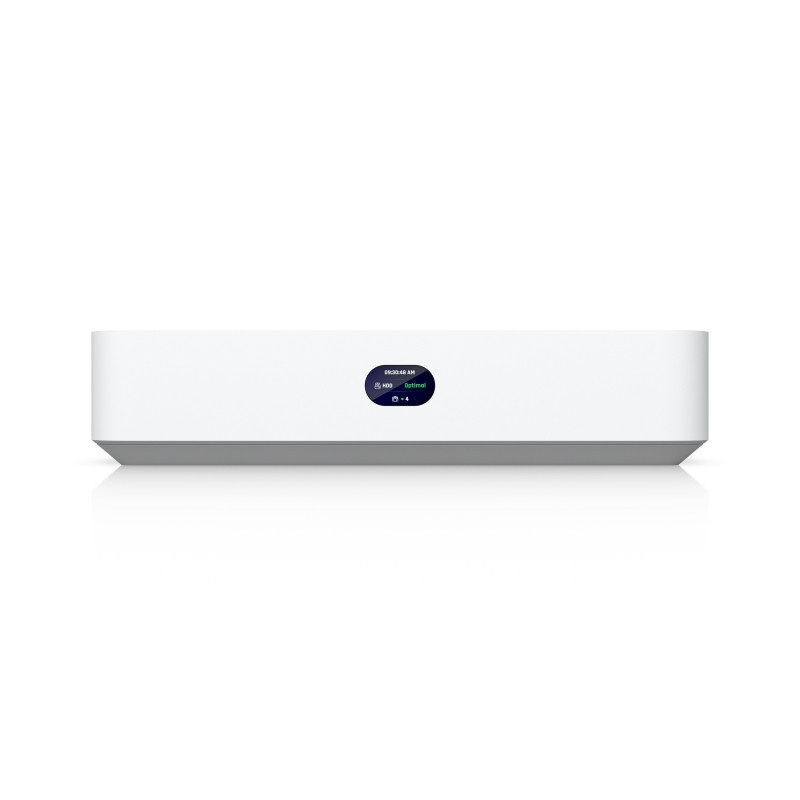

The Ubiquiti UNVR-Instant is a compact and reliable network video recorder designed to make security systems easier to deploy and manage. It includes a 3.5″ HDD bay, giving you the flexibility to add local storage for recordings. Equipped with a 6-port PoE switch, the unit allows direct camera connection and power delivery, simplifying installation. For simple on-site monitoring, the device features an HDMI ViewPort that lets you view live feeds or recordings on a screen without a separate computer. The UNVR-Instant can support up to 6 cameras in 4K resolution, 8 cameras in 2K, or 15 cameras in HD, making it adaptable for different system sizes. With its sleek and compact design, it fits neatly into small spaces and is easy to mount, while still delivering enterprise-level video management through the UniFi Protect platform.

Connectivity Features

The UNVR-Instant combines smart power distribution with flexible connectivity options. It includes one Gigabit uplink port for connecting to your main network and six Gigabit PoE ports for powering cameras or other devices. The PoE budget of 40 W ensures reliable power delivery, with each port supporting up to 15.4 W. The system runs on an integrated power supply (100-240 VAC), so there's no need for external adapters, and idle power usage is only about 9 W, keeping operating costs low. The UNVR-Instant uses a quad-core ARM Cortex-A55 processor at 1.7 GHz with 4 GB of RAM, providing smooth handling of video recording, streaming, and management. The device is light but durable, with a tough polycarbonate enclosure. This makes it practical for many types of installations, from office spaces to edge deployments, while still offering the performance needed to run multiple cameras efficiently.

Deployment Efficiency

The UNVR-Instant is designed to reduce complexity and improve efficiency in surveillance projects. With its built-in PoE switch, there's no need for extra switches or power injectors, as the cameras connect directly to the recorder. The HDMI output provides an easy way to display live or recorded video on a connected monitor, making local monitoring straightforward. Thanks to full integration with the UniFi Protect platform, you can manage everything through a simple, license-free interface, both locally and remotely. The device's small form factor and multiple mounting options (desktop, wall, or DIN-rail) make it versatile for different environments, whether in small businesses, branch offices, or edge sites. Its ability to support various camera resolutions allows it to scale with your needs. Altogether, the UNVR-Instant offers a balanced mix of convenience, reliability, and scalability in a single compact unit.

Ultra-Compact and Secure
The Ubiquiti G5 Turret Ultra is a compact and powerful security camera designed to blend seamlessly into your environment. Its tamper-resistant design deters vandalism, while its compact size blends seamlessly into your surroundings. With a weatherproof exterior, this camera can withstand the elements, providing reliable surveillance year-round. Unite exceptional video quality, discreet design, and advanced features with the Ubiquiti G5 Turret Ultra. This versatile camera offers a powerful solution for securing your home or business.

Sharp Vision, Day or Night
Capture every detail with crisp 2K (4MP) video resolution. The camera boasts an ultra-wide viewing angle of 102.4 degrees, ensuring expansive coverage. Even in low-light conditions, the G5 Turret Ultra delivers exceptional clarity thanks to its long-range night vision that reaches up to 30 meters.

Intelligent Monitoring
The G5 Turret Ultra utilizes built-in AI capabilities to detect specific events, minimizing false alarms and allowing you to focus on what matters most. Additionally, the integrated microphone allows you to record audio for a more comprehensive security solution. The microphone could be disabled if needed. Power and data are delivered seamlessly through a single PoE cable, simplifying installation and eliminating the need for separate power outlets.

Network Video Recorder Instant

Dimensions: 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite:
Protect: ✓
Access: ✓
Managed Cameras:
(15) HD
(8) 2K
(6) 4K
Managed Access Hubs: 50
Storage Capacity: (1) 3.5" drive bay
Data Protection: ✓
Vantage Point: ✓

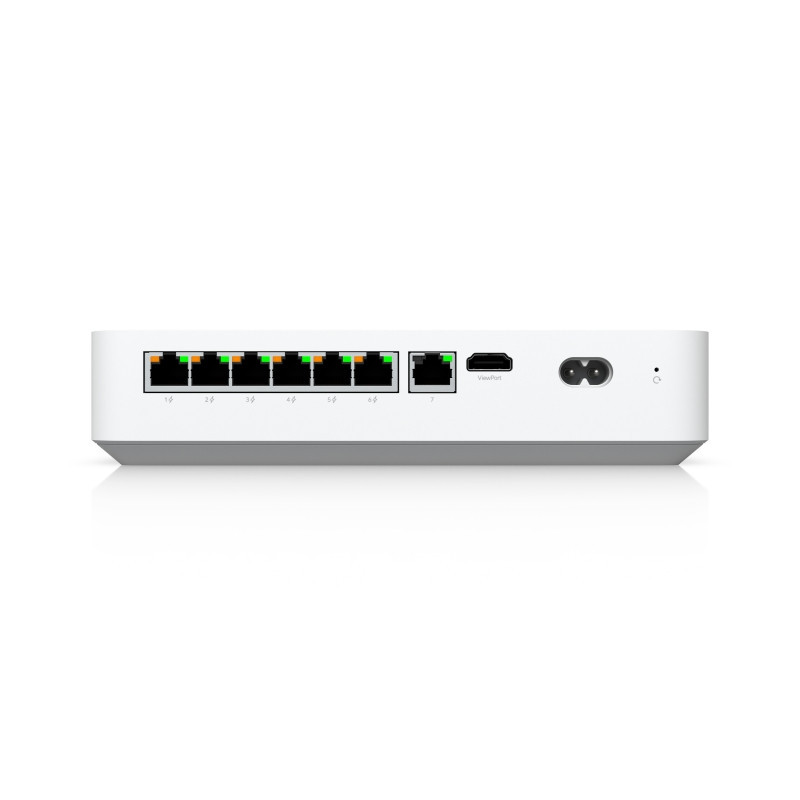

Networking Interface:
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor: Compact Desktop
Mounting: Wall, Din rail mount (Included)
Door Access Support: ✓
Hard Drive Capacity: (1) 3.5" HDD support
Max. Power Budget for Drives: 11W
Max. Power Consumption: 9W
Power Method: Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply: AC/DC, Internal, 60W
PoE Budget: 40W
Max. PoE Wattage per Port by PSE:
PoE: 15.4W
Voltage Range PoE Mode: 44-57V
Processor: Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory: 4 GB
Management:
Ethernet
Bluetooth
Display: 1.14" screen
Weight: 1.04 kg (2.3 lb)
Enclosure Materials: Polycarbonate
Mount Material: Polycarbonate
LEDs:
Ethernet: ✓
PoE: ✓
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, IC, CE, Electrical Safety

G5 Turret Ultra

Dimensions: Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision: 30 m (98 ft)
Smart Detections (People, Vehicles, Animals): ✓
Resolution: 2K
Field of View: H: 102.4°, V: 54.9°, D: 120.6°
Audio: Microphone
Weatherproofing: IP66
Tamper Resistance: IK04|
Mounting: Wall, ceiling mount (Included) Junction box, arm mount (Optional)
Networking Interface: 10/100 MbE RJ45 port
Video:
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)
Optics:
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter
Max. Power Consumption: 4W
Supported Voltage Range: 37—57V DC
Power Method: PoE
Processor: Dual-core Arm® Cortex®-A7 based chip
Weight: 330 g (11.6 oz)
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate
Mount Material: Polycarbonate
Button: (1) Factory-reset
Cable:
Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity: 0 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC

HDD

Dimensions: 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor: 3.5-inch
Weight: 0.45 kg (0.99 lb)
Storage Capacity: 1 TB
Power Method: 5V/12V input
Management Interface: SATA 6 Gb/s
Rotation Speed: 5400 RPM
Workload Rating: 180 TB/year
Mean Time Between Failure (MTBF): 1,000,000 h
Ambient Operating Temperature: 0 to 65° C (32 to 149° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: FCC, CE, TUV, RCM, KC, BSMI
