Ricoh fi-7300NX

Ricoh fi-7300NX. Maximum scan size: 216 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Output colour depth: 24 bit. Scanner type: ADF scanner, Product colour: Grey, White, Display: TFT. Sensor type: Dual CCD, Daily duty cycle (max): 4000 pages, Light source: White LED (2x). Auto document feeder (ADF) input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Plain paper, Plastic Card, Auto Document Feeder (ADF) media weight: 27 - 413 g/m²

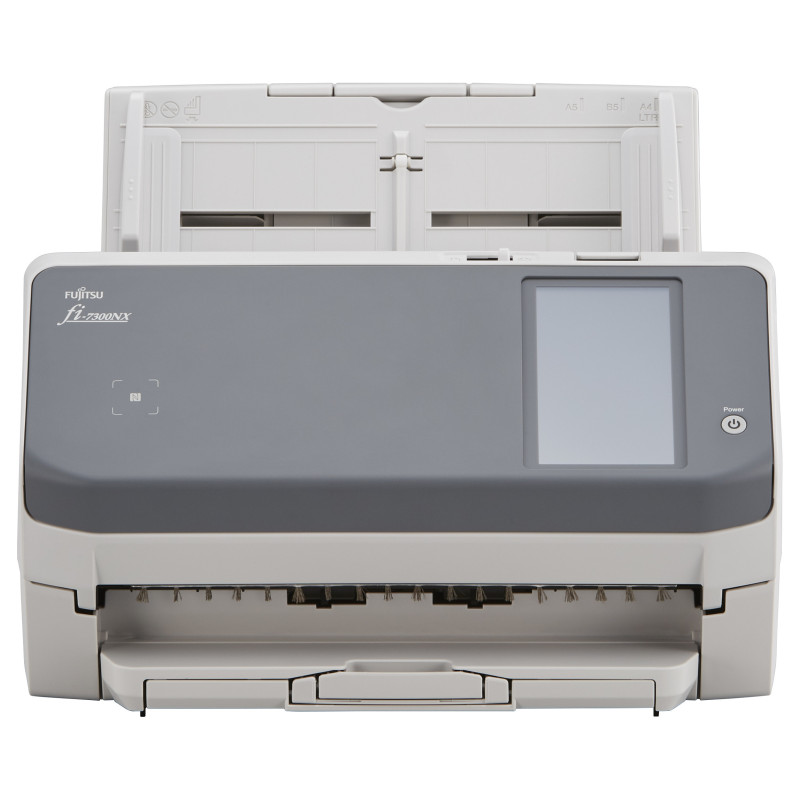

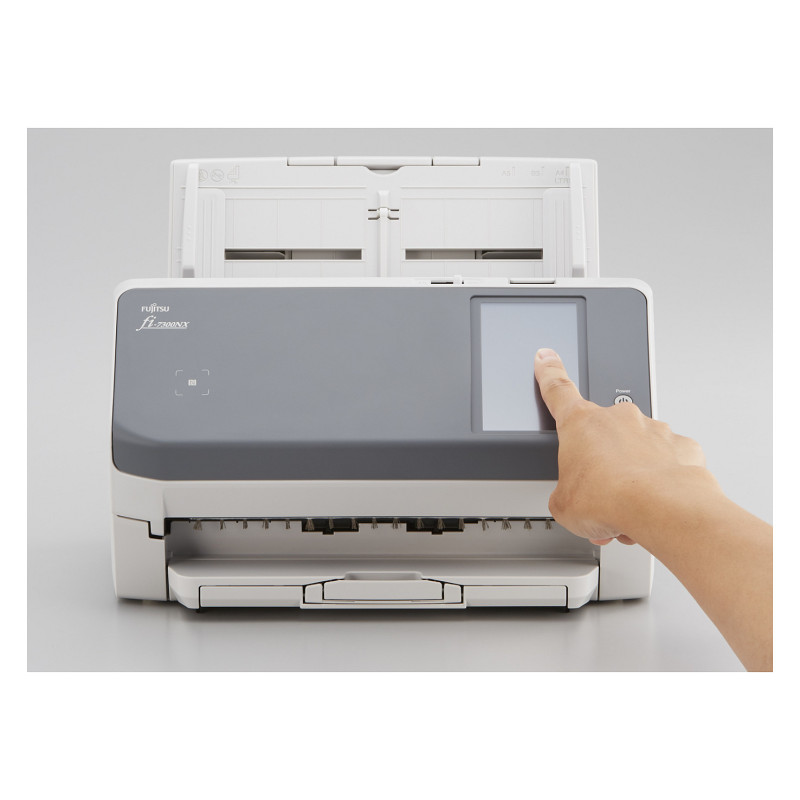

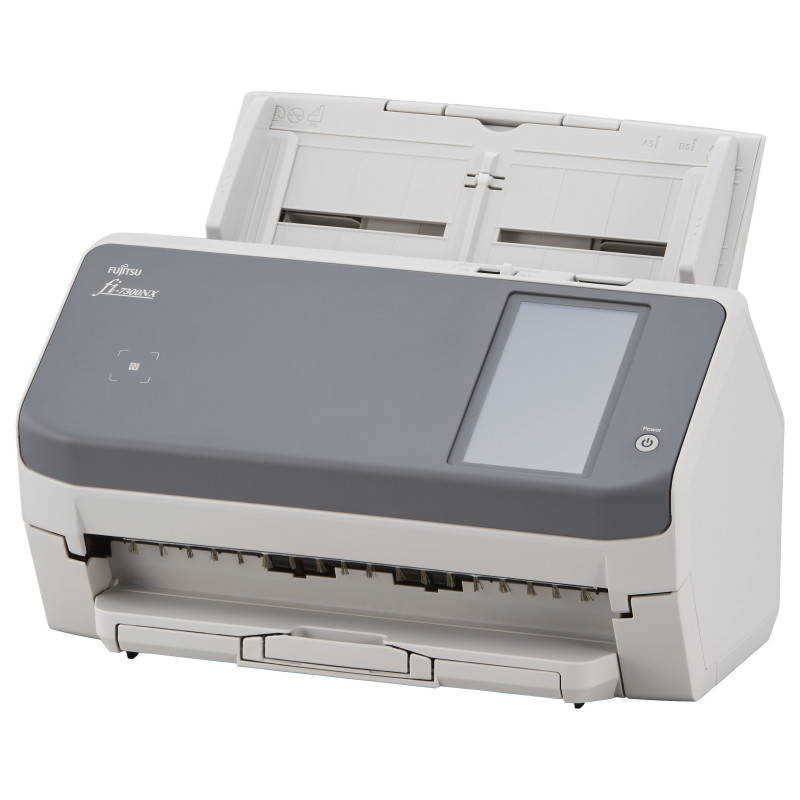

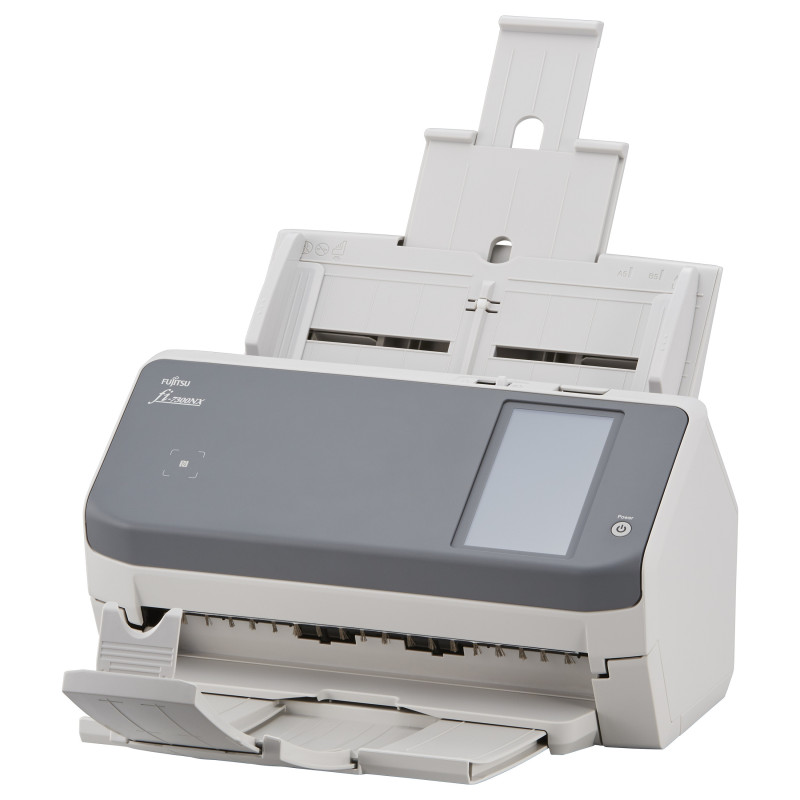

The fi-7300NX is an Image Scanner that supports web systems and connects directly to client systems. Users can begin scanning from the scanner's touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption. The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone* scanner in the world to support 5 GHz Wi-Fi. The 4.3" touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans and the screen also displays messages or instructions with illustrations so that users can handle errors themselves.

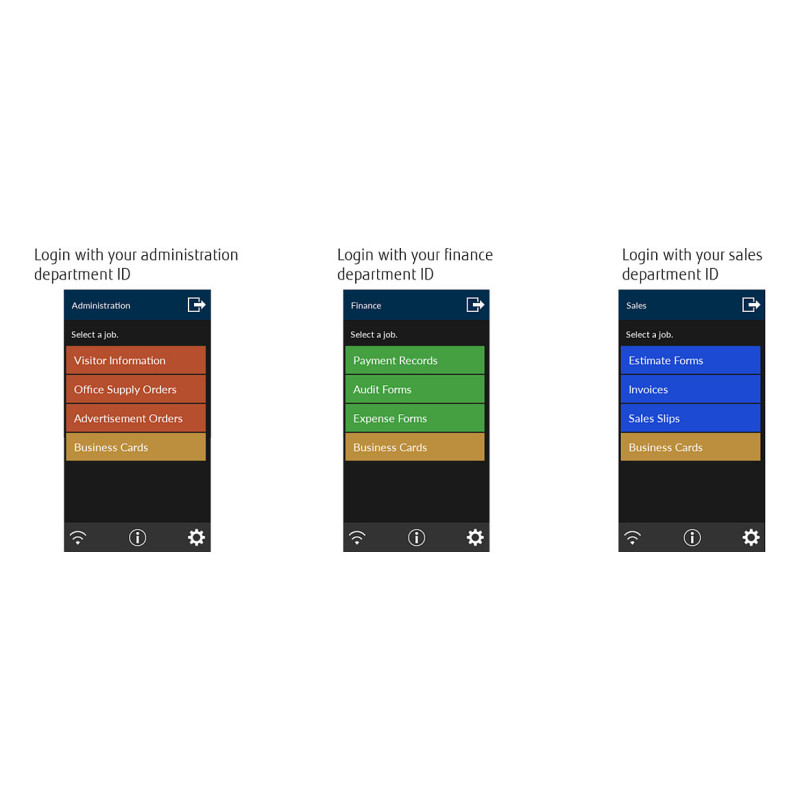

Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX's touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

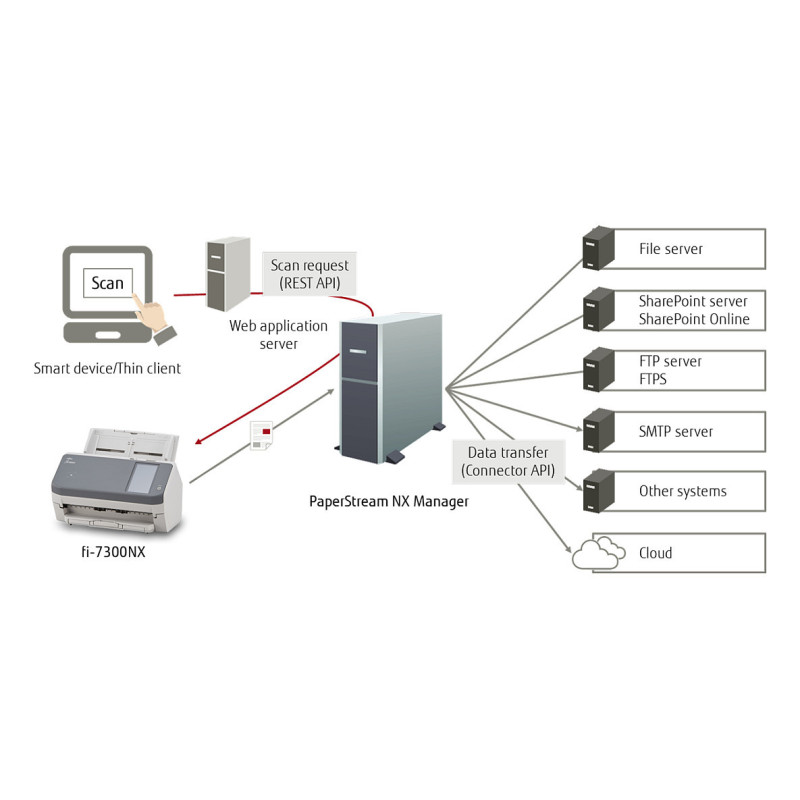

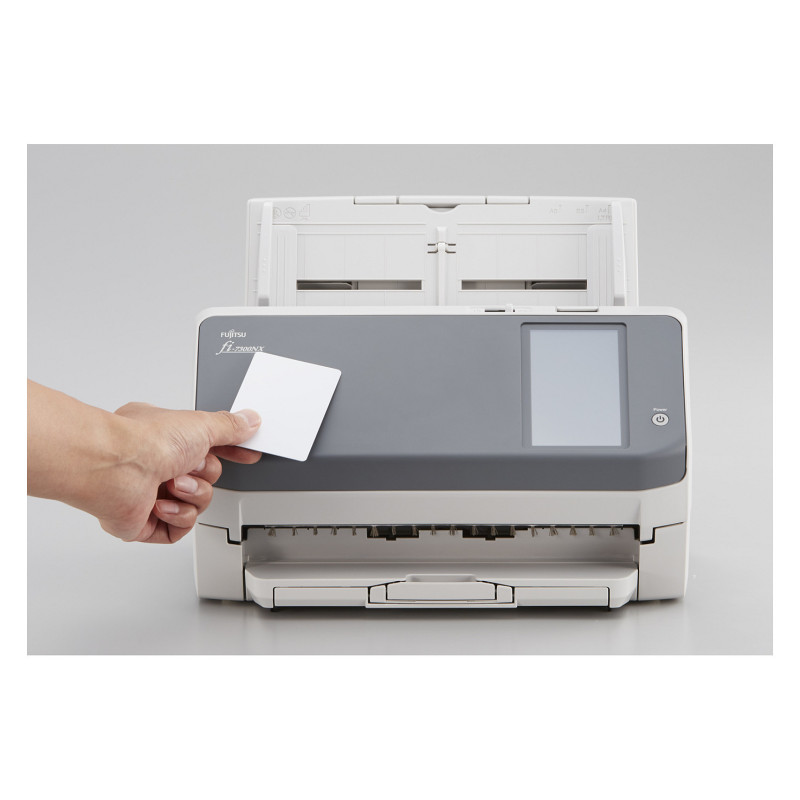

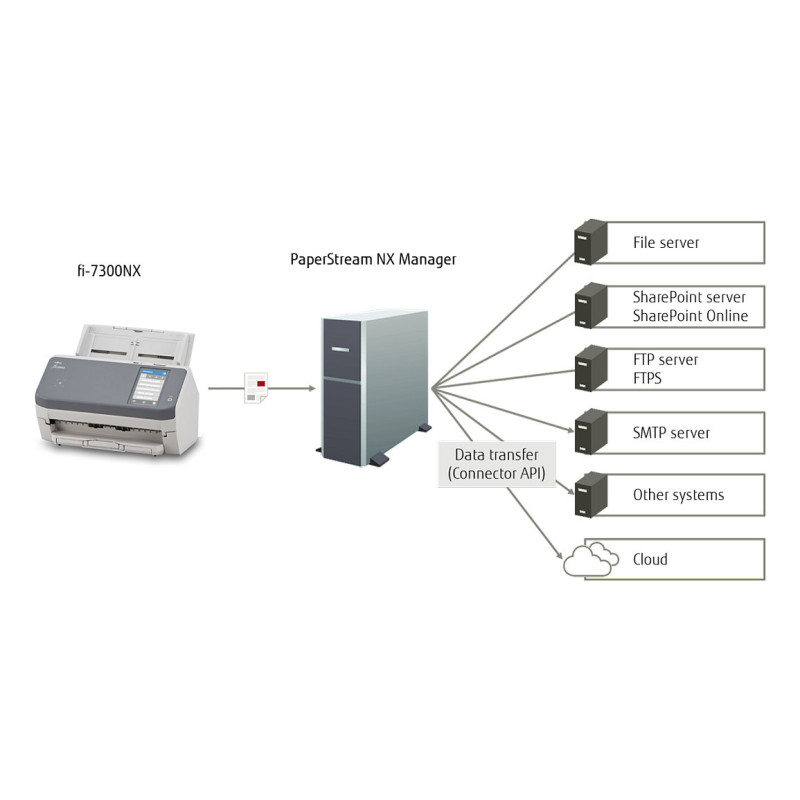

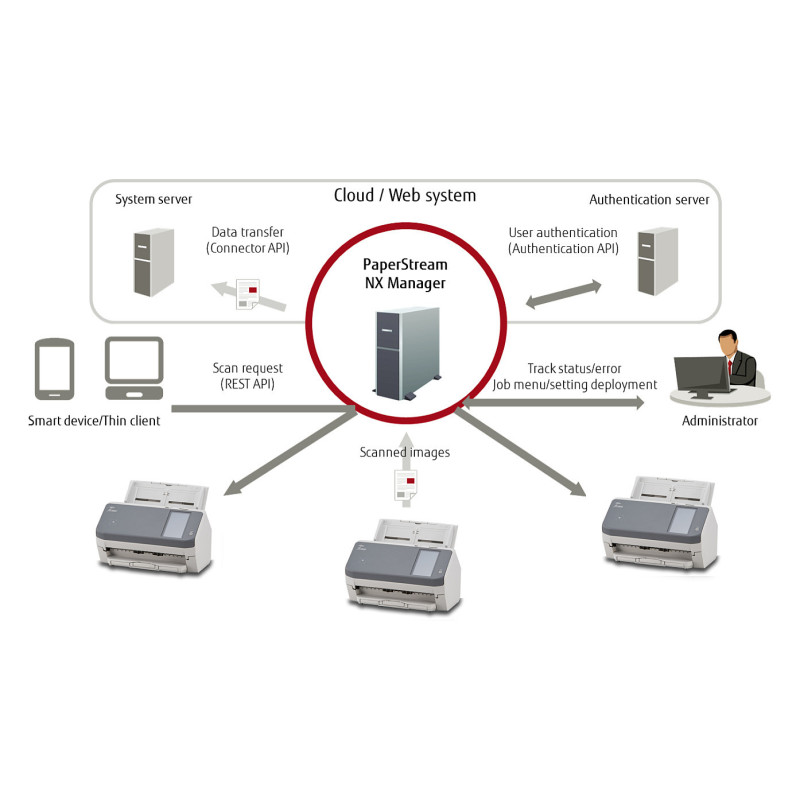

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX's server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin.

When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.


*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).

Scanning

Maximum scan size: 216 x 5588 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Output monochrome depth: 1 bit
Duplex ADF scan speed (colour, A4): 120 ipm
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: ADF scanner
Product colour: Grey, White
Display: TFT
Display diagonal: 10.9 cm (4.3")
Feature: Touchscreen
Feature: Built-in display

Performance

Sensor type: Dual CCD
Light source: White LED (2x)
Daily duty cycle (max): 4000 pages
Scan drivers: ScanSnap, TWAIN, WIA
Feature: Ultrasonic double sheet detection

Input capacity

Auto document feeder (ADF) input capacity: 80 sheets

Paper handling

Scanning media types supported: Plain paper, Plastic Card
Feature: Long-paper mode
Maximum ISO A-series paper size: A4
Auto Document Feeder (ADF) media weight: 27 - 413 g/m²
Maximum scan width: 21.6 cm
Maximum scan length: 5.59 m
Minimum scan area (ADF): 50.8 x 54 mm

Ports & interfaces

Feature: USB port
USB version: 3.2 Gen 2 (3.1 Gen 2)
Socket connector type: C5
Standard interfaces: Ethernet, USB 1.1, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Ethernet LAN
Supported network protocols: IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS

Power

Power supply type: AC
Power consumption (typical): 42 W
Power consumption (off): 0.35 W
Power consumption (PowerSave): 2.4 W
Input voltage: 100 - 240 V

Weight & dimensions

Width: 300 mm
Depth: 202 mm
Height: 170 mm
Weight: 49 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 270 mm
Package depth: 400 mm
Package height: 305 mm
Package weight: 7.2 kg

Packaging content

Cables included: AC, USB
Feature: AC adapter included
Feature: ADF paper chute
Feature: Drivers included

Sustainability

Sustainability certificates: ENERGY STAR

System requirements

Minimum storage drive space: 120000 MB
Minimum processor: 3.5 GHz
Server operating systems supported: Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Operating relative humidity (H-H): 20 - 80%
Operating temperature (T-T): 41 - 95 °F

Other features

Compliance certificates: RoHS
Background colours: Black, White

Logistics data

Country of origin: Indonesia
Pallet gross length: 121.9 cm
Pallet gross width: 101.6 cm
Harmonized System (HS) code: 8471607000
Paper packaging weight: 2.4 kg
Metal packaging weight: 0 g
Wood packaging weight: 0 g
Plastic packaging weight: 15 g
Products per pallet (air): 40 pc(s)
Products per pallet (sea): 60 pc(s)
Pallet height (sea): 198 cm
Pallet height (air): 137 cm
Cardboard packaging weight: 1.2 kg
Foil packaging weight: 15 g
Polystyrene (EPS/EPP) packaging weight: 200 g
Glass packaging weight: 0 g
