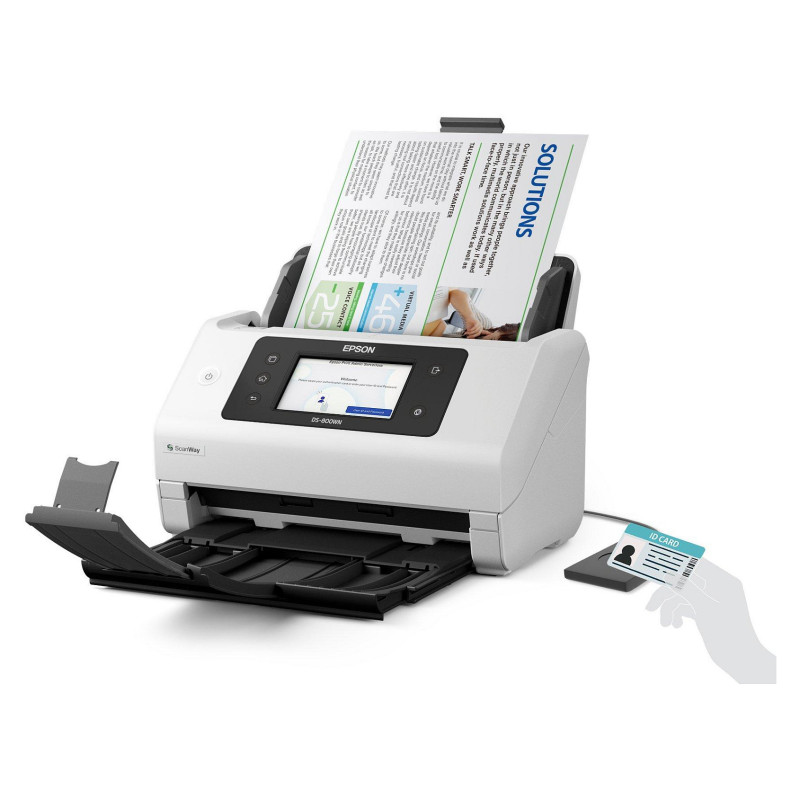

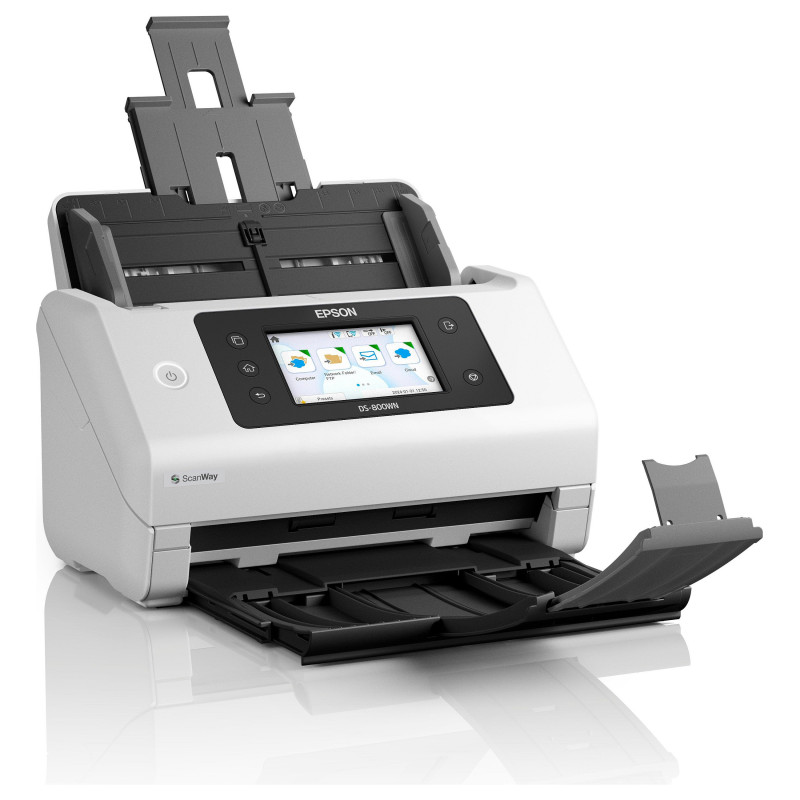

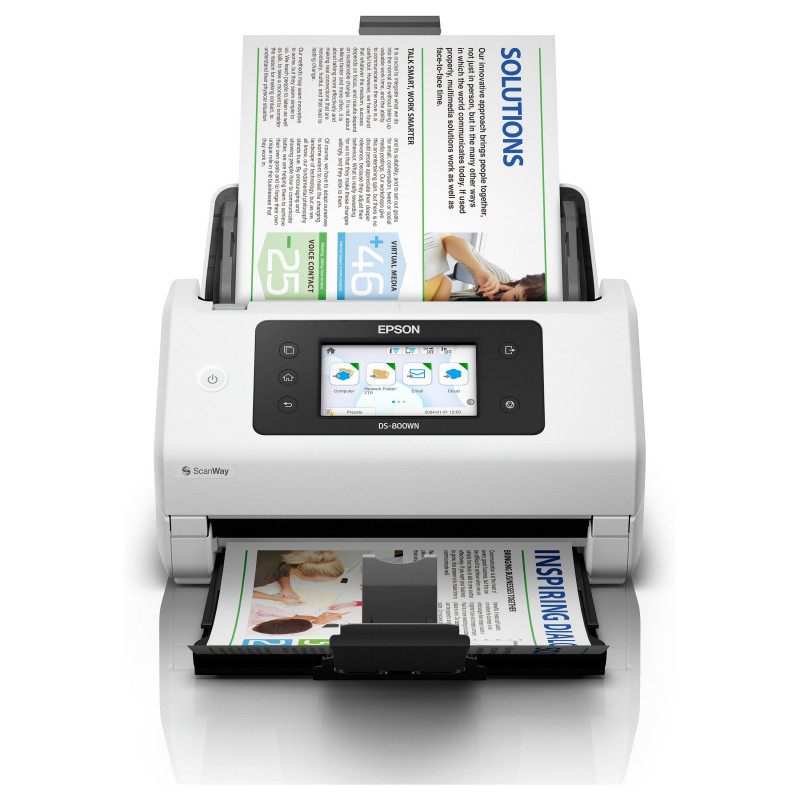

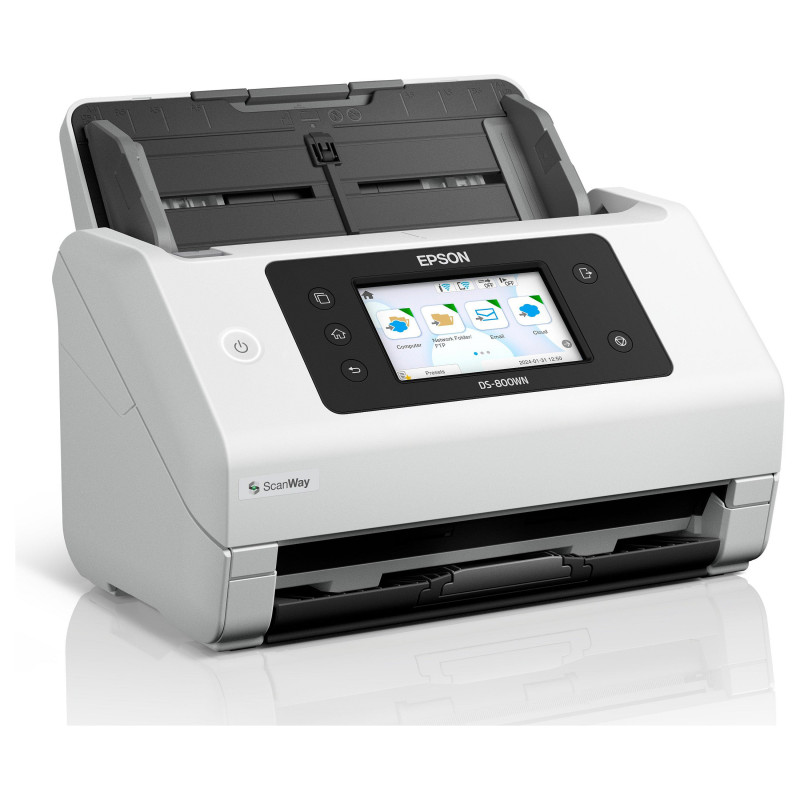

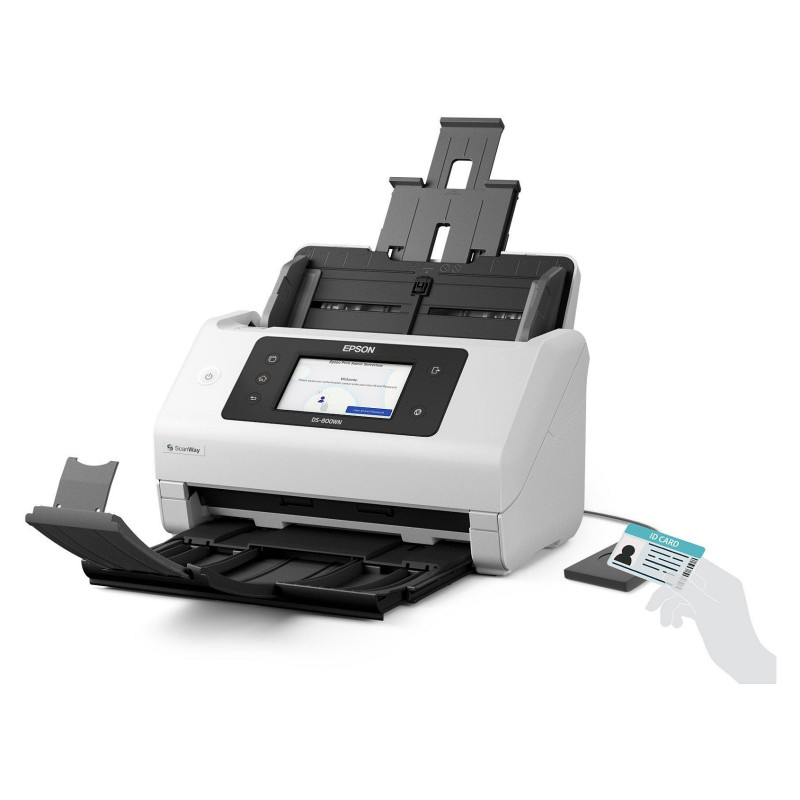

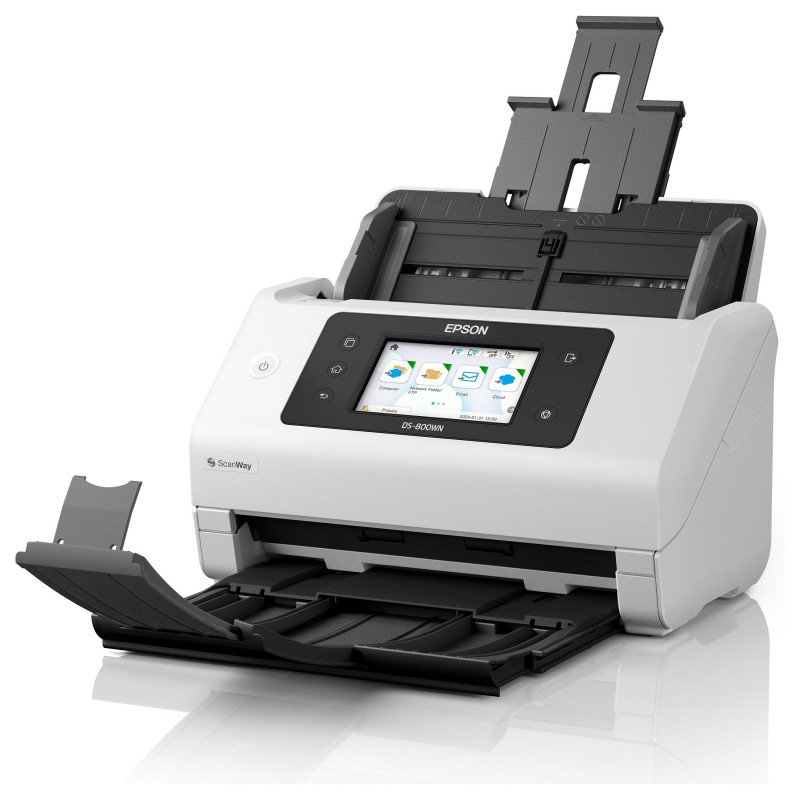

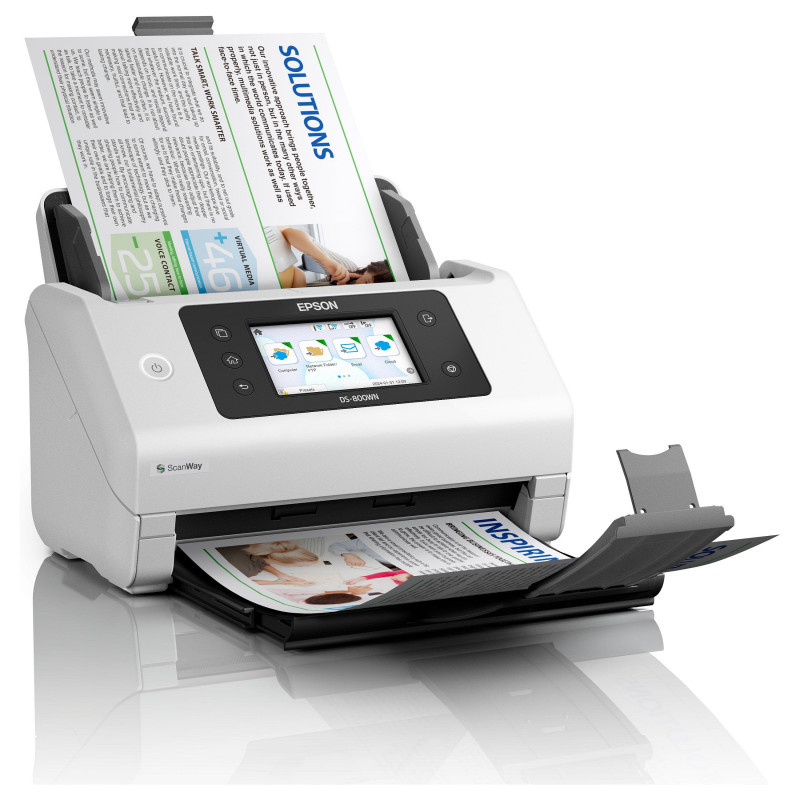

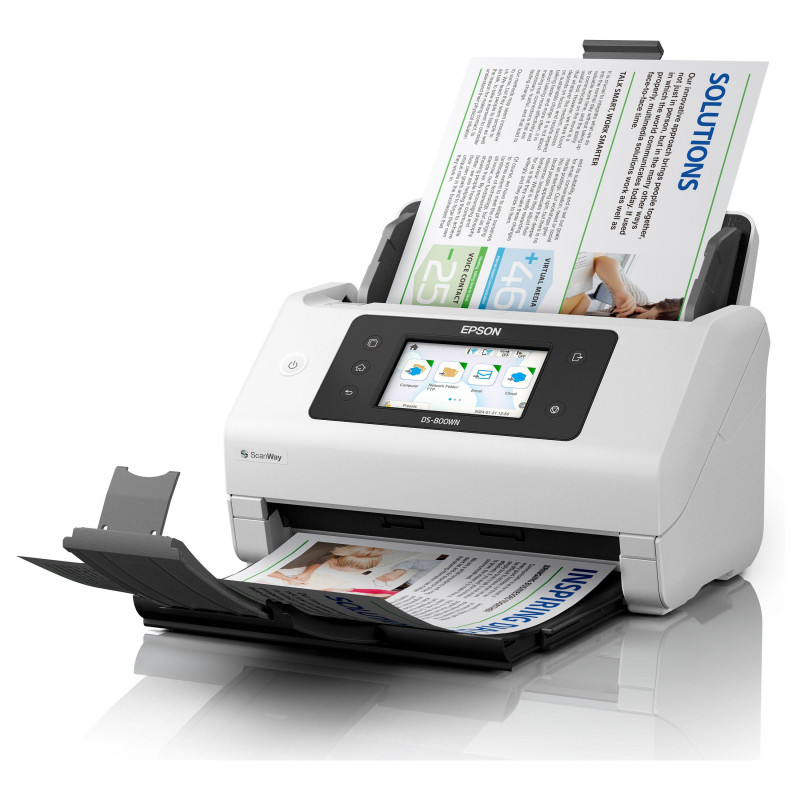

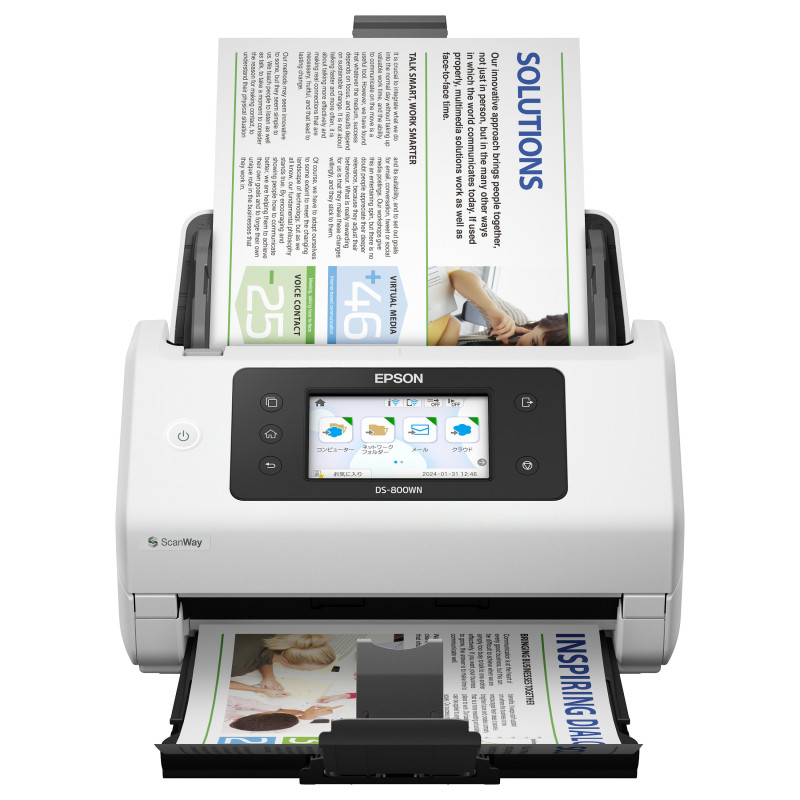

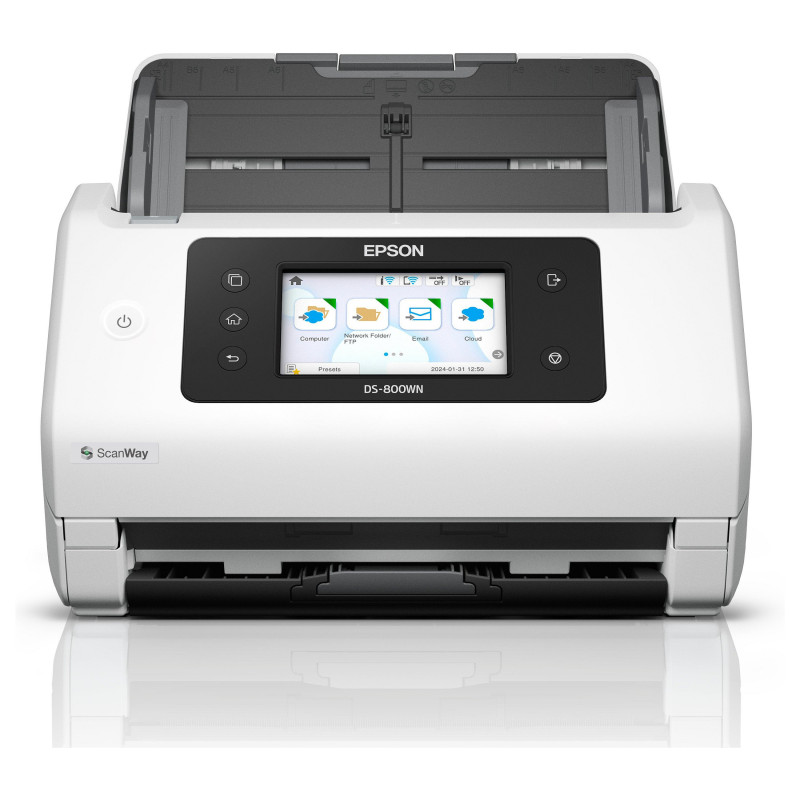

Epson WorkForce DS-800WN

Epson WorkForce DS-800WN. Maximum scan size: 215.9 x 6096 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: White, Display: LCD. Daily duty cycle (max): 8000 pages, Scan file formats: BMP, JPEG, PDF, PNG, TIFF, Scan to: Cloud, E-mail, Network folder, PC, USB. Standard input capacity: 100 sheets, Auto document feeder (ADF) input capacity: 100 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Envelopes, Plastic Card, ISO A-series sizes (A0...A9): A3, A4, A5, A6

Open platform
The DS-800WN features web-based open platform which allows seamless integration with Epson software or third-party software solutions. This means that businesses can customise their systems and integrate the scanner with existing infrastructures, business processes and workflows.

Network connectivity
Integrated network connectivity means that the scanner can be shared by multiple users and each user is able to create their own settings. Also, the LCD touchscreen allows the user to operate the scanner directly, without the use of a PC.

High speed
The DS-800WN processes and digitises a high volume of documents, quickly and securely. Scan speed of 50ppm/100ipm, a daily duty cycle of 8,000 pages and an optional paper alignment plate, make this an ideal scanner for a wide range of industry sectors: from government, healthcare and legal, to finance, accounting and education.

Efficient
Built with efficiency in mind, the DS-800WN offers low power consumption, whether idle or in use. It's also made from 30% recycled plastics (from discarded IT products).

- Open platform Full Integration with ISV or Epson software solutions
- High speed 50ppm/100ipm, 8,000 pages daily duty cycle
- Network connectivity USB 3.2 Gen1, Wi-Fi, Wi-Fi Direct, LAN
- User-friendly Customisable LCD touchscreen, scan directly - no PC required
- Efficient Low power consumption

Scanning

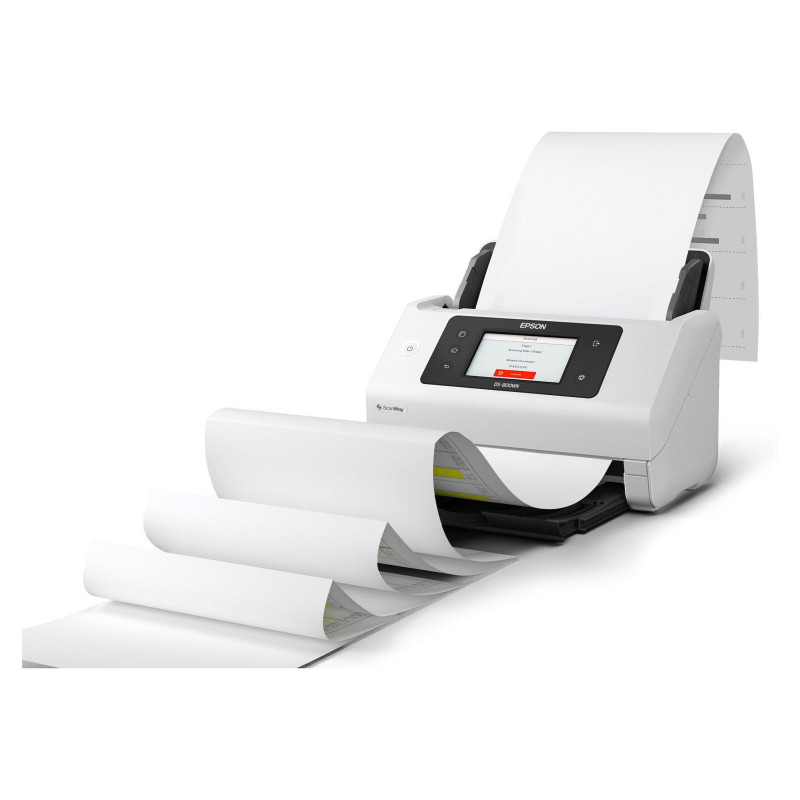

Maximum scan size: 215.9 x 6096 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
Input colour depth: 30 bit
Output colour depth: 24 bit
Input greyscale depth: 10 bit
Output greyscale depth: 8 bit
ADF scan speed (b/w, A4): 50 ppm
ADF scan speed (colour, A4): 50 ppm
Duplex ADF scan speed (b/w, A4): 100 ipm
Duplex ADF scan speed (colour, A4): 100 ipm

Design

Scanner type: Sheet-fed scanner
Product colour: White
Display: LCD
Display diagonal: 10.7 cm (4.2")
Feature: Touchscreen
Control type: Touch
Feature: Built-in display

Performance

Scan file formats: BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max): 8000 pages
Feature: Built-in OCR
Scan to: Cloud, E-mail, Network folder, PC, USB
Scan drivers: ICA, ISIS, SANE, TWAIN, WIA
Feature: Barcode reader
Feature: Ultrasonic sensor
Scanner smart software features: Skip blank page function

Input capacity

Standard input capacity: 100 sheets
Auto document feeder (ADF) input capacity: 100 sheets

Paper handling

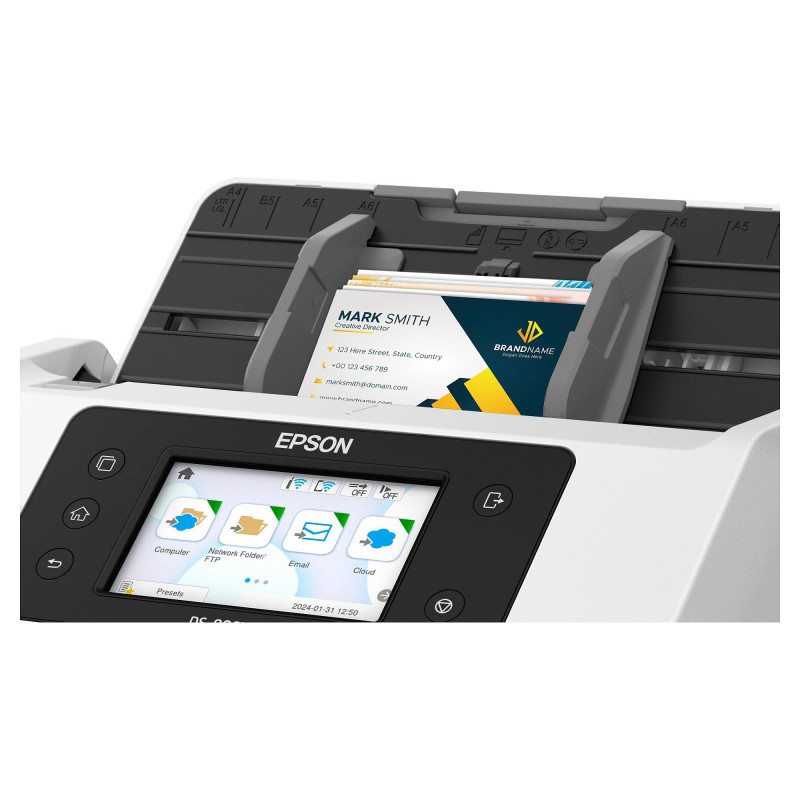

Scanning media types supported: Business Card, Envelopes, Plastic Card
Maximum ISO A-series paper size: A4
ISO A-series sizes (A0...A9): A3, A4, A5, A6
ISO B-series sizes (B0...B9): B4, B5, B6
Feature: Letter
Feature: Legal
Auto Document Feeder (ADF) media weight: 27 - 413 g/m²

Ports & interfaces

Feature: USB port
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Ethernet LAN

Power

Power supply type: AC
Power consumption (typical): 18 W
Power consumption (standby): 1.2 W
Power consumption (PowerSave): 5.6 W
AC input frequency: 50 - 60 Hz
Input voltage: 100 - 240 V

Weight & dimensions

Width: 296 mm
Depth: 212 mm
Height: 217 mm
Weight: 3.7 kg

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Bundled software: Document Capture Pro, Epson Scan 2
Packaging content: Paper Alignment Plate, Carrier Sheet, Cleaning Kit

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C
Operating relative humidity (H-H): 15 - 80%
Storage relative humidity (H-H): 25 - 60%

Other features

Warranty period: 1 year(s)
