„Epson WorkForce DS-70“

Epson WorkForce DS-70. Maximum scan size: 216 x 356 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit. Scanner type: Handheld scanner, Product colour: White. Sensor type: CIS, Daily duty cycle (max): 300 pages, Light source: ReadyScan LED. Auto document feeder (ADF) input capacity: 1 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), Paper tray media weight: 35 - 270 g/m²

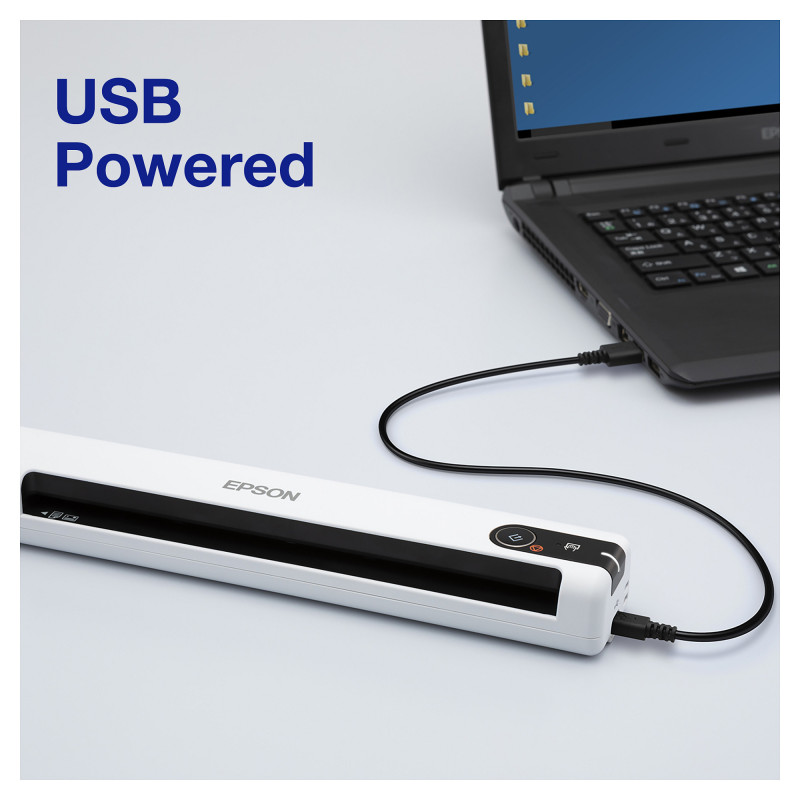

The DS-70 is easy to use, set up and transport with its space-saving design, powered by the included single USB cable via your laptop or PC. Its included OCR and document capture software easily creates editable text and searchable PDFs while TWAIN drivers enable seamless integration to third party applications.

Scan anywhere

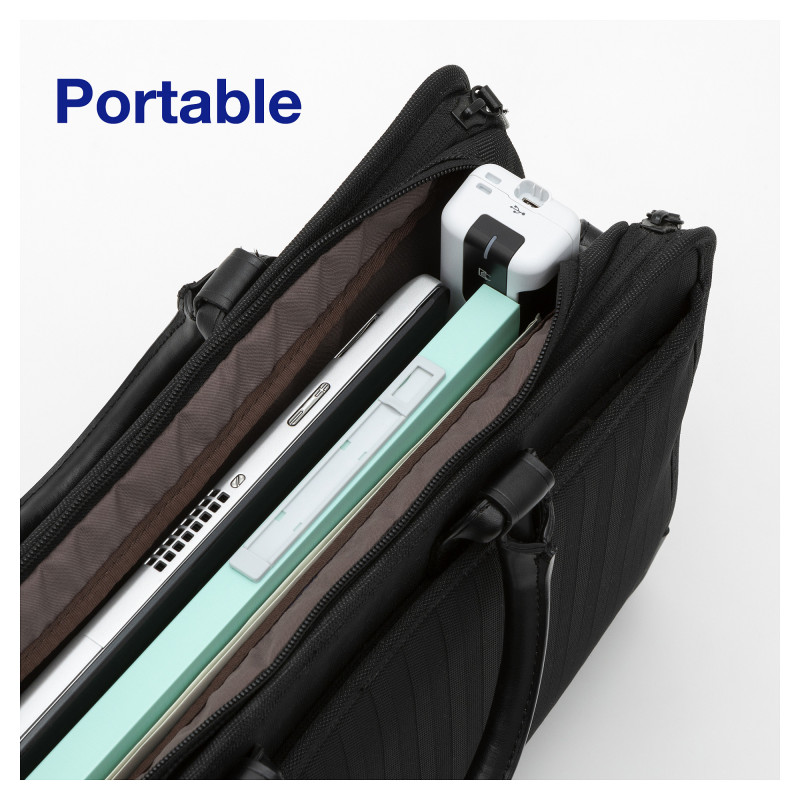

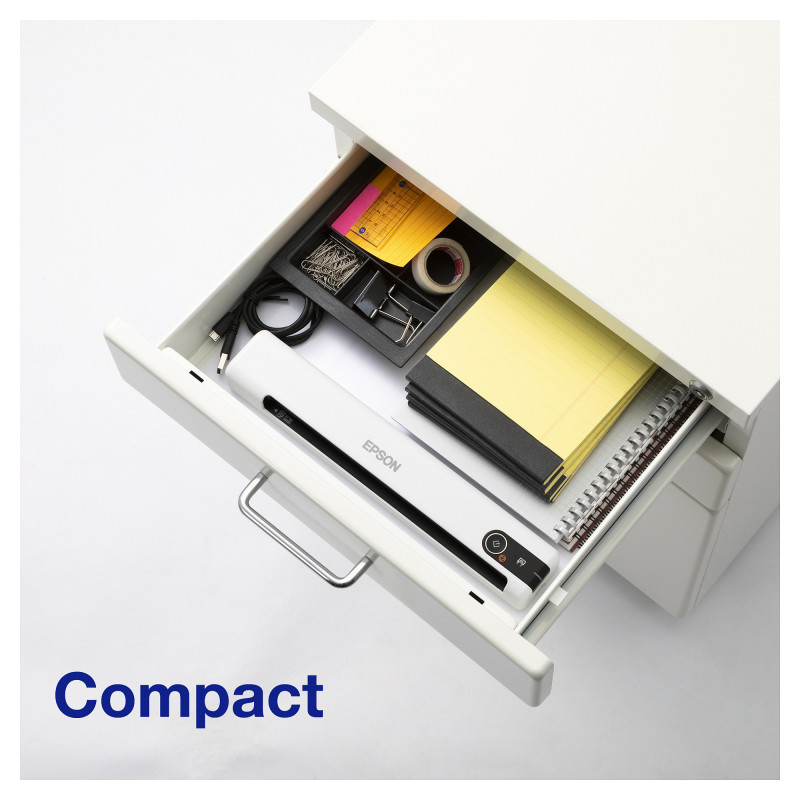

The small, compact design and USB connectivity make it easy to use the DS-70 wherever it's needed, such as in reception areas, and stores conveniently in a drawer.

Highly organised

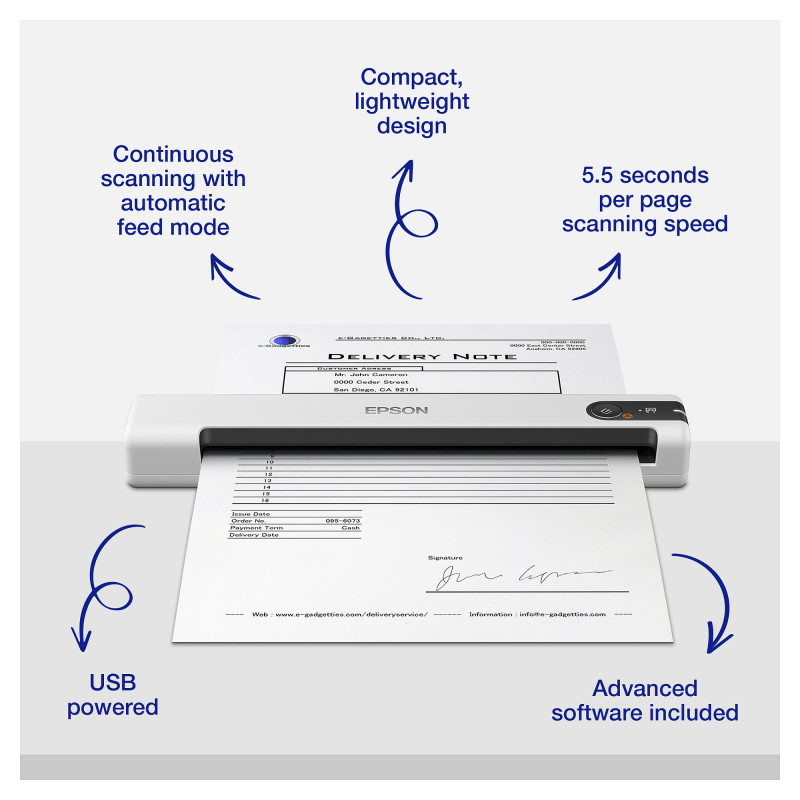

Software provided with the DS models includes Document Capture Pro 2 and Epson Scan 2.0, and TWAIN driver support, making it easier to scan, save and share information around the business. Advanced features for naming, separating and routing documents make scanning easy - and logical. Users can save and send files in common formats like PDF, JPEG, TIFF and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.

Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

Scanning

Maximum scan size: 216 x 356 mm
Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Input colour depth: 48 bit
Output colour depth: 24 bit
Input greyscale depth: 16 bit
Output greyscale depth: 8 bit
Output monochrome depth: 8 bit
Scan speed (b/w, low res, A4): 5.5 sec/page
Scan speed (colour, low res, A4): 5.5 sec/page

Design

Scanner type: Handheld scanner
Product colour: White

Performance

Sensor type: CIS
Light source: ReadyScan LED
Scan file formats: BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max): 300 pages
Scan drivers: TWAIN, WIA, SANE, ICA

Input capacity

Auto document feeder (ADF) input capacity: 1 sheets

Paper handling

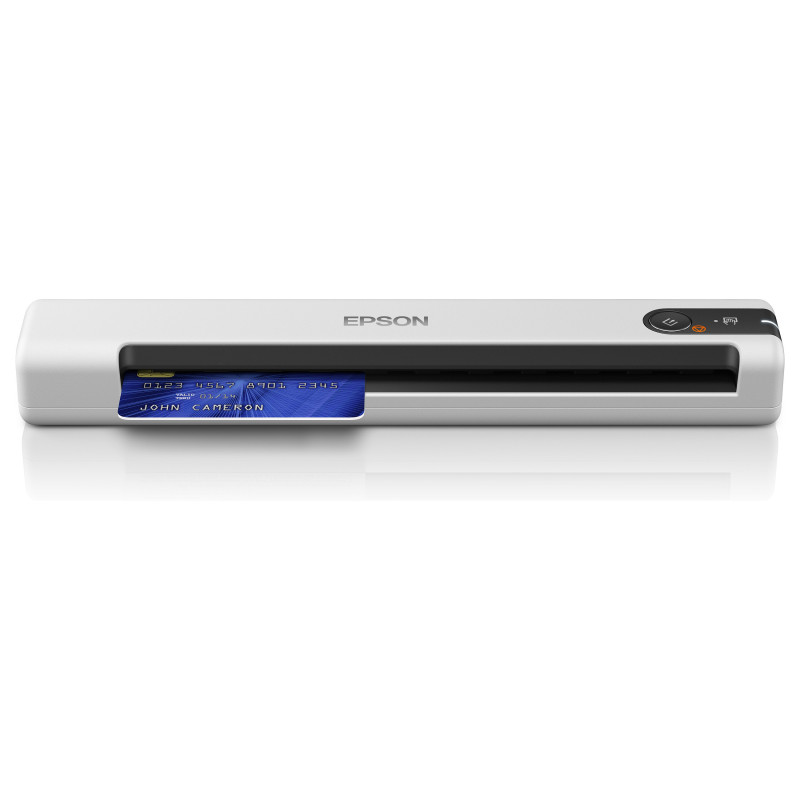

Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size: A4
Paper tray media weight: 35 - 270 g/m²
Auto Document Feeder (ADF) media weight: 35 - 270 g/m²

Ports & interfaces

Feature: USB port
USB version: 2.0
Standard interfaces: USB 2.0

Power

Power supply type: USB

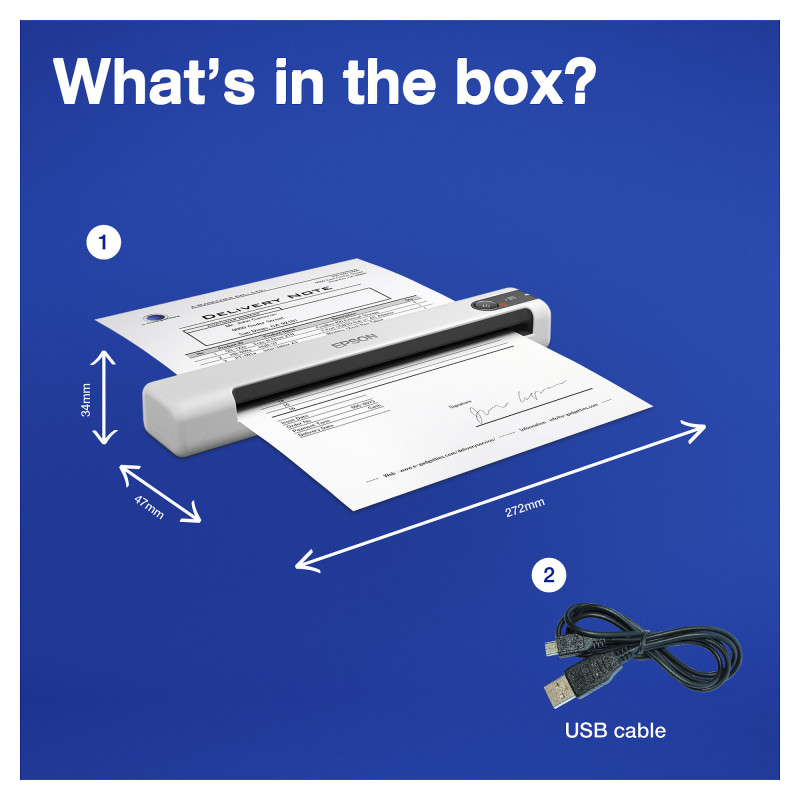

Weight & dimensions

Width: 272 mm
Depth: 47 mm
Height: 34 mm
Weight: 270 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 140 mm
Package depth: 330 mm
Package height: 65 mm
Package weight: 553 g

Packaging content

Cables included: USB
Bundled software: Document Capture Pro, Epson Scan 2

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Server operating systems supported: Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -25 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 90%

Other features

Output resolutions: 600 dpi
Image formats supported: BMP, JPEG, TIFF, MTIFF, PNG
Box contents: USB cable
Interface: Hi-Speed USB - compatible with USB 2.0 specification

Logistics data

Products per pallet: 360 pc(s)
Country of origin: China
Pallet gross weight: 0 g
Master (outer) case length: 360 mm
Master (outer) case height: 320 mm
Master (outer) case width: 350 mm
Master (outer) case gross weight: 0 g
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 171 cm
Products per master (outer) case: 10 pc(s)
Products per pallet layer: 60 pc(s)
Products per pallet layer (UK): 60 pc(s)
Products per pallet (UK): 360 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 171 cm
Master (outer) case GTIN (EAN/UPC): 8715946662596
Harmonized System (HS) code: 84716070
